7B04包铝复合板热变形行为及其对组织演变的影响
杨璐1, 曹敏2(), 曹玲飞3, 廖斌3, 王正安1
1 西南铝业(集团)有限责任公司, 重庆 401326
2 装备发展部某中心, 北京 100000
3 重庆大学材料科学与工程学院, 重庆 400044
Hot deformation behavior and its effect on microstructure evolution of aluminum cladded 7B04 composite sheet
Lu YANG1, Min CAO2(), Ling-fei CAO3, Bin LIAO3, Zheng-an WANG1
1 Southwest Aluminum(Group) Co., Ltd., Chongqing 401326, China
2 Equipment Research and Development Center, Beijing 100000, China
3 College of Materials Science and Engineering, Chongqing University, Chongqing 400044, China
全文: PDF(18904 KB)   HTML ( 0 )
输出: BibTeX | EndNote (RIS)
摘要

利用热模拟实验研究7B04包铝复合板在变形温度为380~450℃和应变速率为0.1~30 s-1的热压缩性能,结果表明:随着真应变的增加,热加工图失稳区逐渐向高应变速率区域扩展。最适宜的热加工区域为:温度380~410℃,应变速率5~30 s-1。采用EBSD技术对变形后的组织进行表征,结果表明:随着温度的增加和应变速率的降低,再结晶晶粒趋向于晶界平直化及晶界取向差逐渐增加的方向演变。包铝层在变形过程中主要发生连续动态再结晶,而7B04基体中同时存在不连续动态再结晶、连续动态再结晶(含几何动态再结晶)。材料最佳的热变形温度为410℃和应变速率10 s-1,此时7B04基体和包铝层的晶粒尺寸均保持在较小的范围内。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
杨璐
曹敏
曹玲飞
廖斌
王正安
关键词 7B04复合板热加工图微观组织再结晶机制晶粒尺寸
Abstract

Hot compression properties of aluminium cladded 7B04 composite sheets were investigated by thermal simulation testing at the deformation temperatures of 380-450 ℃ and strain rates of 0.1-30 s-1. The results show that the instability zone of hot processing map gradually expands to the region of high strain rates with the increase of true strains. The most suitable hot working zone is at the temperature range of 380-410 ℃ and strain rate of 5-30 s-1. Electron backscattered diffraction (EBSD) technique was employed to study the deformed microstructure. The results show that the recrystallized grains tend to have flat boundaries and the orientation difference between grain boundaries increases gradually with the increase of temperature and the decrease of strain rate. During deformation, the Al-clad layer shows mainly continuous dynamic recrystallization, while discontinuous dynamic recrystallization and continuous dynamic recrystallization (including geometric dynamic recrystallization) co-exist in the 7B04 matrix. The optimal hot deformation temperature of materials are 410 ℃ at the strain rate of 10 s-1, at this moment, the grain size of both 7B04 matrix and Al cladding is close and small.

Key words7B04 composite plate    hot processing map    microstructure    recrystallization mechanism    grain size
收稿日期: 2020-06-01      出版日期: 2021-03-20
中图分类号:  TG146.2
基金资助:国家重点研发计划(2016YFB0300901);重庆市留创计划创新类项目(cx2018002);中央高校基本科研业务费(2020CDJDPT001)
作者简介: 曹玲飞(1977-), 女, 研究员, 博士, 主要研究铝合金组织结构及性能的关系, 联系地址: 重庆市沙坪坝区沙正街174号重庆大学材料科学与工程学院(400044), E-mail: caolingfei@cqu.edu.cn
引用本文:
杨璐, 曹敏, 曹玲飞, 廖斌, 王正安. 7B04包铝复合板热变形行为及其对组织演变的影响[J]. 材料工程, 2021, 49(3): 78-86.
Lu YANG, Min CAO, Ling-fei CAO, Bin LIAO, Zheng-an WANG. Hot deformation behavior and its effect on microstructure evolution of aluminum cladded 7B04 composite sheet. Journal of Materials Engineering, 2021, 49(3): 78-86.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.000491      或      http://jme.biam.ac.cn/CN/Y2021/V49/I3/78
Alloy Si Fe Cu Mn Mg Zn Cr Ni Ti Al
7B04 0.051 0.17 1.5 0.24 2.09 5.66 0.15 0.003 0.007 Bal
7A01 0.06 0.18 0.008 0.92 Bal
Table 1  实验用铝合金化学成分(质量分数/%)
Fig.1  不同变形条件下7B04包铝复合板真应力-真应变曲线
(a) =0.1 s-1; (b)=1 s-1; (c)=10 s-1; (d)=30 s-1
Fig.2  不同应变下7B04包铝复合板的热加工图
(a)ε=0.3;(b)ε=0.6;(c)ε=0.9;(d)各应变的叠加图
Fig.3  7B04包铝复合板在450 ℃不同应变速率下的包铝层晶界图
(a)0.1 s-1; (b)1 s-1; (c)10 s-1; (d)30 s-1
Fig.4  7B04包铝复合板在450 ℃不同应变速率下的基体晶界图
(a)0.1 s-1; (b)1 s-1; (c)10 s-1; (d)30 s-1

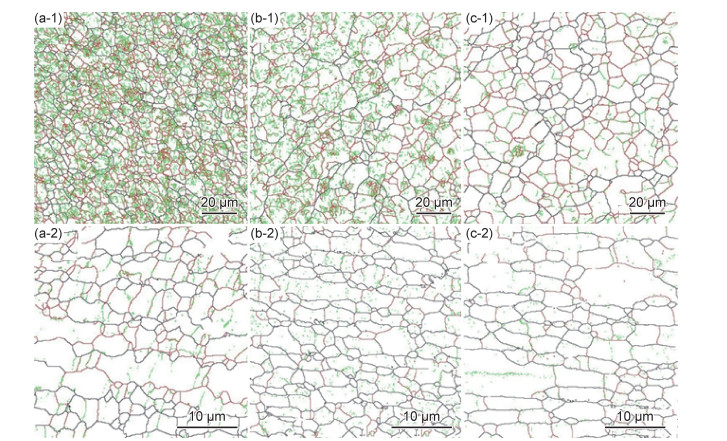

Fig.5  应变速率0.1 s-1不同变形温度下的包铝层(1)及基体(2)晶界图
(a)380 ℃; (b)410 ℃; (c)450 ℃
Fig.6  7B04复合板在450 ℃不同应变速率下包铝层(a)及基体(b)晶界取向差角
Fig.7  不同变形条件下包铝层及基体的晶粒尺寸
