2222材料工程  2019, Vol. 47 Issue (2): 56-61    DOI: 10.11868/j.issn.1001-4381.2017.000588
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
阳离子光敏抗菌型水凝胶的制备及性能表征
董建成, 葛孝栋, 王清清, 魏取福()
江南大学 生态纺织教育部重点实验室, 江苏 无锡 214122
Preparation and property characterization of cationic photoantimicrobial hydrogel
Jian-cheng DONG, Xiao-dong GE, Qing-qing WANG, Qu-fu WEI()
Key Laboratory of Eco-textile(Ministry of Education), Jiangnan University, Wuxi 214122, Jiangsu, China
全文: PDF(9992 KB)   HTML ( 14 )
输出: BibTeX | EndNote (RIS)
摘要

利用蒙脱土(MMT)分别吸附3种阳离子光敏剂(meso-四(1-甲基吡啶嗡-4-基)卟吩对甲苯磺酸盐(TMPyP)、meso-四(N-甲基-4-吡啶)卟吩四氯化锌(Zn-TMPyP)、亚甲基蓝(MB)),然后均匀分散在聚乙烯醇-苯乙烯基吡啶盐缩合物(PVA-SbQ)的水溶液中,通过紫外光交联法制备出相应的光敏MMT/PS水凝胶。借助透射电子显微镜(TEM)对MMT和MMT/PS形貌结构进行分析,利用扫描电子显微镜(SEM)、热重分析仪(TGA)对3种光敏水凝胶的内部形貌、热学性能进行分析,研究其溶胀性能及对金黄色葡萄球菌的抗菌效果。结果表明:3种光敏MMT/PS水凝胶均具有良好的溶胀性能。抗菌结果显示,三者对金黄色葡萄球菌均具有一定的杀灭效果,其中负载Zn-TMPyP的水凝胶在光照条件下对金黄色葡萄球菌的杀菌率达到98.49%。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
董建成
葛孝栋
王清清
魏取福
关键词 蒙脱土水凝胶光敏抗菌金黄色葡萄球菌
Abstract

Montmorillonite(MMT) was utilized to absorb three types of cationic photosensitizers, namely, meso-tetra(4-N-methylpyridyl)porphyrine tetratosylate (TMPyP), Zn(Ⅱ) meso-tetra (N-methyl-4-pyridyl) porphine tetrachloride (Zn-TMPyP) and methylene blue (MB), the as-obtained mixtures were then evenly dispersed in aqueous polyvinyl alcohol-styrylpyridine salt condensate (PVA-SbQ) solution, corresponding photoactive MMT/PS hydrogels were prepared by the assay of UV cross-linking eventually. Transmission electron microscopy (TEM) was employed to analyse morphology of MMT and one as-prepared MMT/PS hydrogel. Scanning electron microscopy (SEM) and thermogravimetric analysis (TGA) were applied to analyse the internal morphology and thermal properties of the as-prepared hydrogels. Finally, swelling properties and antibacterial effect against staphylococcus aureus (S. aureus) were investigated. The results show that three photoactive MMT/PS hydrogels are successfully prepared with good swelling properties. The as-prepared hydrogels exhibit inactivation against S. aureus to some extent, furthermore, the hydrogel which immobilizes Zn-TMPyP reveals best inactivation efficacy, with a sterilization rate of 98.49%.

Key wordsmontmorillonite    hydrogel    photodynamic antibacterial inactivation    staphylococcus aureus
收稿日期: 2017-05-08      出版日期: 2019-02-21
中图分类号:  TQ619.9
基金资助:2018年江苏省研究生科研创新计划项目(KYCX18_1835);国家青年自然科学基金项目(51603090);中央高校基本科研业务费专项资金(JUSRP51621A)
通讯作者: 魏取福     E-mail: qfwei@jiangnan.edu.cn
作者简介: 魏取福(1964-), 男, 教授, 博士, 从事功能纺织材料方面的研究工作, 联系地址:江苏省无锡市江南大学生态纺织教育部重点实验室(214122), E-mail:qfwei@jiangnan.edu.cn
引用本文:
董建成, 葛孝栋, 王清清, 魏取福. 阳离子光敏抗菌型水凝胶的制备及性能表征[J]. 材料工程, 2019, 47(2): 56-61.
Jian-cheng DONG, Xiao-dong GE, Qing-qing WANG, Qu-fu WEI. Preparation and property characterization of cationic photoantimicrobial hydrogel. Journal of Materials Engineering, 2019, 47(2): 56-61.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.000588      或      http://jme.biam.ac.cn/CN/Y2019/V47/I2/56

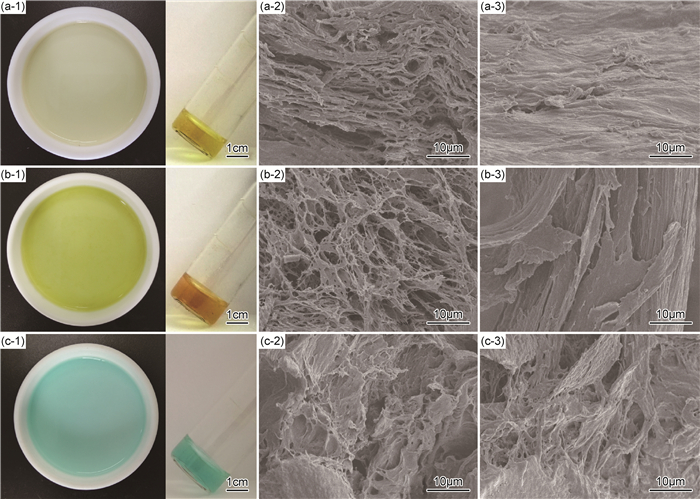

Fig.1  TMPyP(a),Zn-TMPyP(b)和MB(c)水凝胶的实物图与SEM图
(1)实物图;(2)纵切面;(3)横切面
Fig.2  MMT(a),MMT/TMPyP(b)水凝胶的TEM图

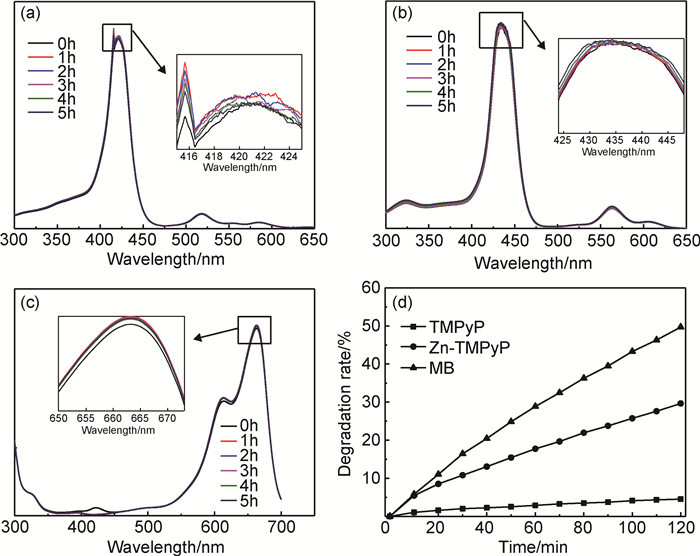

Fig.3  TMPyP,Zn-TMPyP和MB光敏剂的紫外光及可见光漂白曲线
(a), (b), (c)TMPyP,Zn-TMPyP,MB的紫外光漂白曲线;(d)3种光敏剂的可见光漂白曲线

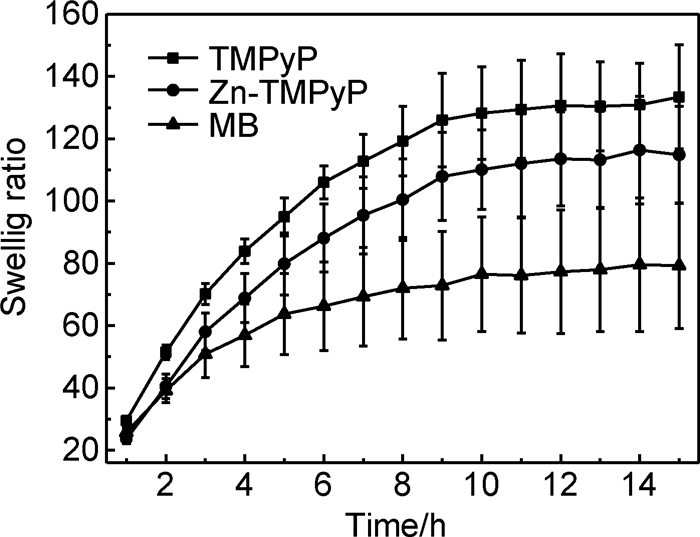

Fig.4  3种光敏水凝胶的溶胀性能

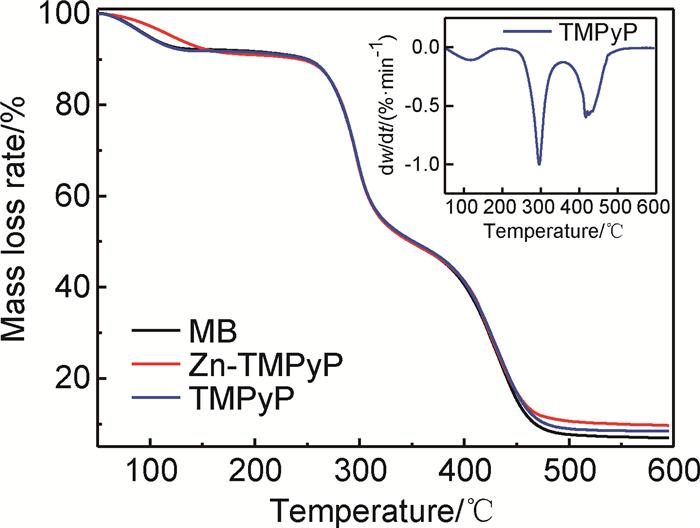

Fig.5  3种光敏水凝胶的TGA曲线和TMPyP水凝胶的DTG曲线

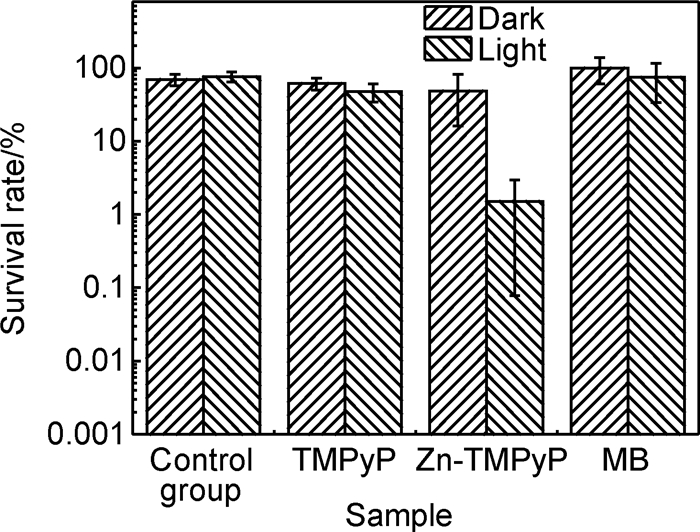

Fig.6  3种光敏水凝胶对金黄色葡萄球菌的抗菌效果
1 郑辉东, 邱洪峰, 郑玉婴, 等. 负载纳米银EVA复合发泡材料的制备及其抗菌性能[J]. 材料工程, 2016, 44 (7): 107- 112.
1 ZHENG H D , QIU H F , ZHENG Y Y , et al. Preparation and antibacterial property of EVA composite foams supported by nano-silver[J]. Journal of Materials Engineering, 2016, 44 (7): 107- 112.
2 高党鸽, 陈琛, 吕斌, 等. 原位制备季铵盐聚合物/纳米ZnO复合抗菌剂[J]. 材料工程, 2015, 43 (6): 38- 45.
2 GAO D G , CHEN C , LYU B , et al. Synthesis polymer quaternary ammonium salt/nano-ZnO composite antibacterial agent via in-situ method[J]. Journal of Materials Engineering, 2015, 43 (6): 38- 45.
3 吕生华, 李莹, 杨文强, 等. 氧化石墨烯/壳聚糖生物复合材料的制备及应用研究进展[J]. 材料工程, 2016, 44 (10): 119- 128.
doi: 10.11868/j.issn.1001-4381.2016.10.017
3 LYU S H , LI Y , YANG W Q , et al. Research progress on preparation and application of graphene oxide/chitosan biocomposites[J]. Journal of Materials Engineering, 2016, 44 (10): 119- 128.
doi: 10.11868/j.issn.1001-4381.2016.10.017
4 WAINWRIGHT M . Photodynamic antimicrobial chemotherapy (PACT)[J]. J Antimicrob Chemother, 1998, 42 (1): 13- 28.
doi: 10.1093/jac/42.1.13
5 SPAGNUL C , TURNER L C , BOYLE R W . Immobilized photosensitizers for antimicrobial applications[J]. J Photochem Photobiol B-Biol, 2015, 150, 11- 30.
doi: 10.1016/j.jphotobiol.2015.04.021
6 SCHLACHET I , SOSNIK A . Protoporphyrin IX-modified chitosan-g-oligo (NiPAAm) polymeric micelles:from physical stabilization to permeability characterization in vitro[J]. Biomater Sci, 2017, 5 (1): 128- 140.
doi: 10.1039/C6BM00667A
7 ALVES E , FAUSTINO M A F , NEVES M , et al. Potential applications of porphyrins in photodynamic inactivation beyond the medical scope[J]. J Photochem Photobiol C-Photochem Rev, 2015, 22, 34- 57.
doi: 10.1016/j.jphotochemrev.2014.09.003
8 CAVALLARO A , TAHERI S , VASILEV K . Responsive and "smart" antibacterial surfaces:common approaches and new developments (review)[J]. Biointerphases, 2014, 9 (2): 10- 19.
9 BUJDAK J , KOMADEL P . Interaction of methylene blue with reduced charge montmorillonite[J]. J Phys Chem B, 1997, 101 (44): 9065- 9068.
doi: 10.1021/jp9718515
10 BETTANIN F , FONTINELLES T A D , MACIEL C D , et al. Aggregation of photosensitizers:the role of dispersion and solvation on dimer formation energetics[J]. Theoretical Chemistry Accounts, 2015, 134 (12): 11- 23.
11 ZHANG H F , HUSSAIN I , BRUST M , et al. Aligned two-and three-dimensional structures by directional freezing of polymers and nanoparticles[J]. Nat Mater, 2005, 4 (10): 787- 793.
doi: 10.1038/nmat1487
12 WU J , MEREDITH J C . Assembly of chitin nanofibers into porous biomimetic structures via freeze drying[J]. ACS Macro Lett, 2014, 3 (2): 185- 190.
doi: 10.1021/mz400543f
13 CUI J , WANG Q , WEI Q . Synthesis and characterization of cross-linked SbQ/montmorillonite composites[J]. Polymer Materials Science & Engineering, 2015, 31 (7): 159- 162.
14 ROTOMSKIS R , STRECKYTE G , BAGDONAS S . Phototransformations of sensitizers 1. significance of the nature of the sensitizer in the photobleaching process and photoproduct formation in aqueous solution[J]. J Photochem Photobiol B-Biol, 1997, 39, 167- 171.
doi: 10.1016/S1011-1344(96)00015-2
15 HORVATH O , HUSZANK R , VALICSEK Z , et al. Photophysics and photochemistry of kinetically labile, water-soluble porphyrin complexes[J]. Coordination Chemistry Reviews, 2006, 250 (13/14): 1792- 1803.
16 许凤兰, 李玉宝, 李吉东, 等. 纳米羟基磷灰石/聚乙烯醇复合水凝胶的溶胀性[J]. 材料工程, 2005, (7): 15- 18.
doi: 10.3969/j.issn.1001-4381.2005.07.004
16 XU F L , LI Y B , LI J D , et al. Swelling properties of nano-hydroxyaptite/polyvinyl alcohol hydrogel composite[J]. Journal of Materials Engineering, 2005, (7): 15- 18.
doi: 10.3969/j.issn.1001-4381.2005.07.004
17 崔晓彤, 刘金龙, 张德坤, 等. 不同接触尺度下PVA/HA复合水凝胶的滑动摩擦行为[J]. 材料工程, 2016, 44 (5): 59- 64.
17 CUI X T , LIU J L , ZHANG D K , et al. Sliding friction behavior of PVA/HA composite hydrogels under different contacting scales[J]. Journal of Materials Engineering, 2016, 44 (5): 59- 64.
18 GOMEZ I , OTAZO E M , HERNANDEZ H , et al. Thermal degradation study of PVA derivative with pendant phenylthionecarbamate groups by DSC/TGA and GC/MS[J]. Polym Degrad Stabil, 2015, 112, 132- 136.
doi: 10.1016/j.polymdegradstab.2014.12.027
19 XU J , BAI H Y , WANG M , et al. Properties of hyaluronan/PVA-SbQ composite films processed by casting[J]. Polymers & Polymer Composites, 2013, 21 (1): 55- 60.
20 REDMOND R W , GAMLIN J N . A compilation of singlet oxygen yields from biologically relevant molecules[J]. Photochem Photobiol, 1999, 70 (4): 391- 475.
21 ZHAO Z , LI Y , MENG S , et al. Susceptibility of methicillin-resistant staphylococcus aureus to photodynamic antimicrobial chemotherapy with α-d-galactopyranosyl zinc phthalocyanines:in vitro study[J]. Lasers in Medical Science, 2014, 29 (3): 1131- 1138.
