Research progress in functionalization of photocured bioceramics |
Chen JIAO1, Huixin LIANG2, Yun YE1, Hanxu ZHANG1, Zhijing HE1, Youwen YANG3, Lida SHEN1,*( ), Feng HOU4 |
1 Institute of Additive Manufacturing (3D Printing), Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China 2 State Key Laboratory of Pharmaceutical Biotechnology, Drum Tower Hospital Affiliated to Medical School of Nanjing University, Nanjing 210008, China 3 Institute of Bioadditive Manufacturing, Jiangxi University of Science and Technology, Ganzhou 341000, Jiangxi, China 4 Prismlab China Ltd., Shanghai 200233, China |
|
|

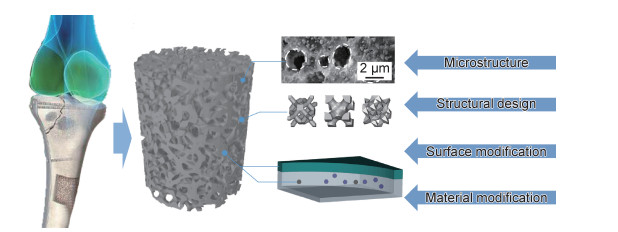

Abstract In recent years, photocured ceramics has become one of the rapidly developing additive manufacturing technologies. Bioceramics have a promising future in tissue engineering due to their good cellular compatibility, however, a single bioceramic material is difficult to take into account both mechanical properties and biocompatibility, so the application and promotion are greatly limited. In this paper, the modification and design methods of bioceramic materials suitable for photocuring were reviewed. The comprehensive effects of material modification, surface modification, structural design and microstructural regulation on the biological properties such as bone conduction, bone induction, antibacterial, angiogenesis promotion and other biological properties as well as and basic mechanical properties of were discussed. It was pointed out that the function of photocurable bioceramics can be fully realized and its further application can be promoted through the combination of modification and regulation methods, and the realization and interaction mechanism of multifunction should be explored.
|
Received: 31 August 2021
Published: 18 July 2022
|
|
Corresponding Authors:
Lida SHEN
E-mail: ldshen@nuaa.edu.cn
|
|
|
|
14]; (c)ceramic bone filler[15] ">
|
Main applications of bioceramics (a)Biolox® inert ceramic hip joint; (b)dental implants[14]; (c)ceramic bone filler[15]
|
Type | Composition | Compressive strength/MPa | Bending strength/ MPa | Elastic modulus/ GPa | Fracture toughness/ (MPa·m1/2) | Human cortical bone | Composite | 100-230 | 50-150 | 7-30 | 2-12 | Human cancellous bone | Composite | 2-20 | 1.5-38 | 0.1-0.5 | 1.0-1.4 | Hydroxyapatite | Ca10(PO4)6(OH)2 | 500-1000 | 115-200 | 75-103 | 0.7-1.3 | Tricalcium phosphate | Ca3(PO4)2 | 460-680 | 140-154 | 33-90 | 1-1.2 | Bioglass | CaO, SiO2 | 350-500 | 180-200 | 100-120 | 1.9 | Calcium silicate | CaSiO3 | 225-300 | 294 | 46.5 | 2.0 |
|
Mechanical properties of common bioactive ceramic materials[21]
|
|
Functionalization solutions for photocured bioceramics
|
29]; (b)promotion of cell growth[30]; (c)dislocation and distortion caused by doping functional elements[31] ">
|
Functional elements modified bioceramic materials (a)antibacterial drugs[29]; (b)promotion of cell growth[30]; (c)dislocation and distortion caused by doping functional elements[31]
|
Surface modification | Structural applicability | Material applicability | Coating adhesion | Coating thickness | Thermal influence | Influence on mechanical property | Cold spraying[51] | Surface | Metals | Fine | Thick | Medium | Medium | Thermal spraying[52] | Surface | Metals, ceramics | Fine | Thick | Significant | Significant | Physical immersion[53] | Complex structures | Ceramics, polymers | Medium | Medium | Non-significant | Non-significant | Chemical immersion[54] | Complex structures | Metals, polymers | Fine | Thin | Non-significant | Non-significant |
|
Surface modification methods for photocured bioceramics
|
