Research progress of new composite nanomaterials for photocatalytic degradation in dye wastewater |
Mingtai ZHANG1, Shaobin YU1, Xicheng LI1, Cuimin FENG1, Mengtong SHI1, Changzheng WANG1,*( ), Qiang WANG2 |
1 Key Laboratory of Urban Storm Water System and Water Environment (Ministry of Education), Beijing University of Civil Engineering and Architecture, Beijing 100044, China 2 Laboratory for Micro-sized Functional Materials College of Elementary Education, Capital Normal University, Beijing 100048, China |
|
|
Abstract Photocatalytic technology is an effective way to solve the two major problems of environmental problems and energy crisis in today's human society. Semiconductor materials were favored in early research. However, a single semiconductor photocatalyst has disadvantages such as poor response to visible light and easy recombination of electron-hole pairs. Photocatalytic technology has low efficiency in the application of dye wastewater degradation. Therefore, researchers have conducted in-depth studies on the new composite nanomaterials as photocatalysts to degrade dye wastewater. The research progress and main results of three new composite nanomaterials of graphene, metal organic framework, and carbon quantum dots for photocatalytic degradation of pollutants in dye wastewater were introduced in this article. According to the idea of design and upgrading of composite nanomaterials, the preparation methods of some new composite nanomaterials were briefly described, and the degradation efficiency of target pollutants was analyzed. By summarizing the performance of different photocatalytic materials to degrade pollutants in water, the future development trend was prospected. The future development trend and research focus of new composite nanomaterials in the direction of photocatalysis are targeted treatment of wastewater and industrialization.
|
Received: 03 December 2020
Published: 18 July 2022
|
|
Corresponding Authors:
Changzheng WANG
E-mail: changzhwang@163.com
|
|
|
|
|

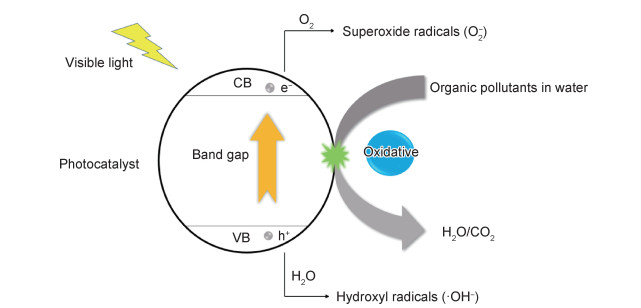

Schematic diagram of photocatalytic reaction mechanism
|
|
New photocatalytic materials (a)flake graphene; (b)MOFs; (c)MOF@graphene; (d)carbon quantum dots
|
22] ">
|
SEM images of TiO2 (a), GO(b), TiO2/GO nanocomposites(c) and mechanism diagram of photocatalytic degradation of methylene blue by TiO2/GO nanocomposite(d)[22]
|
Nanocomposite material | Degraded pollutant | Degradation rate/% | Degradation time/min | Reference | ZnO/graphene | MB | 100 | 180 | [20] | TiO2/graphene | CV | 98.17 | 105 | [21] | TiO2/GO | MB | 98.67 | 45 | [22] | GO-TiO2-ZnO | MO | 44.2 | 165 | [23] | ZnFe2O4@rGO | MB | 94.2 | 60 | [25] | rGO/ZnFe2O4 | MB | 100 | 120 | [26] | rGO-ZnO-TiO2 | CV | 87.06 | 20 | [27] | Porous graphene-SrTiO3 | MB | 92 | 120 | [28] |
|
Photocatalytic performance of new graphene composite nanomaterials
|
38] ">
|
SEM images of MOF-5(a), MOF-74(b), ZIF-8(c), ZnO/CMOF-5(d), ZnO/CMOF-74(e) and ZnO/CZIF-8(f)[38]
|
Nanocomposite material | Degraded pollutant | Degradation rate/% | Degradation time/min | Reference | CuCr2O4/CuO | MB | 95 | 120 | [36] | CdS/g-C3N4/MOF | RhB | 90 | 90 | [37] | ZnO/CMOF-5 | MB | 99 | 360 | [38] | ZIF-8/Fe2O3 nanofibers | RR198 | 94 | 90 | [39] | ZnO/C | MB | 100 | 100 | [40] | N-doped Cu2O/C | MO | 90 | 180 | [41] | Ag3PO4/Fe-MIL-88-NH2 | RhB | 100 | 120 | [42] |
|
Photocatalytic performance of MOFs new composite nanomaterials
|
52] ">
|
TEM images of TiO2 (a), NP-CQDs/TiO2 (b) and photocatalytic performance of NP-CQDs/TiO2, TiO2 and NP-CQDs(c)[52]
|
Nanocomposite material | Degraded pollutant | Degradation rate/% | Degradation time/min | Reference | CQDs/Bi2WO6 | MO | 94.10 | 120 | [47] | 5%CQDs/meso-Ti-450 | MB | 98.00 | 60 | [48] | CQDs/TiO2 | RhB | 74.08 | 120 | [49] | N-CDs/P25 | RhB | 100.00 | 90 | [50] | S, N-CQDs/TiO2 | AR88 | 77.29 | 180 | [51] | NP-CQDs/TiO2 | MB | 100.00 | 15 | [52] | CQDs/Ag/Ag2O | MB | 95.00 | 80 | [53] |
|
Photocatalytic performance of CQDs new composite nanomaterials
|
|
Photocatalytic performance of some new composite nanomaterials
|
