三维五向编织复合材料低速冲击及冲击后压缩性能实验研究

doi:10.11868/j.issn.1001-4381.2015.000861

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(3491 KB)

HTML ( 21 )
输出: BibTeX | EndNote (RIS)

摘要

通过实验研究三维五向碳纤维/环氧树脂编织复合材料低速冲击及其冲击后压缩（CAI）性能。测试试件虽然有不同的编织角度，但承受相同的冲击能力。采用冲击后压缩测试表征不同编织结构的冲击后剩余力学性能。结果表明：编织角较大的试件由于其更紧密的空间结构，能承受更高的冲击载荷且冲击损伤区域更小。CAI强度和损伤机理主要取决于编织纤维束的轴向支撑。随着编织角的增加，CAI强度降低，材料的破坏模式也由横向断裂转变为剪切破坏。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	严实
	郭留雨
	赵金阳
	陆夏美
	曾涛

关键词 ：三维五向, 编织复合材料, 低速冲击, 冲击后压缩, 损伤机理

Abstract：

The low-velocity impact and compression after impact (CAI) properties of three-dimensional (3D) five-directional carbon fiber/epoxy resin braided composites were experimentally investigated. Specimens prepared with different braiding angles were tested at the same impact energy level. Residual post-impact mechanical properties of the different configurations were characterized by compression after impact tests. Results show that the specimens with bigger braiding angle sustain higher peak loads, and smaller impact damage area, mainly attributes to a more compact space construction. The CAI strength and damage mechanism are found to be mainly dependent on the axial support of the braiding fiber tows. With the increase of braiding angle, the CAI strength decreases, and the damage mode of the composites is changed from transverse fracture to shear failure.

Key words： 3D five-directional braided composite low-velocity impact CAI damage mechanism

收稿日期: 2015-07-13 出版日期: 2017-12-19

中图分类号:

TB332

基金资助:国家自然科学基金项目(11102055);国家自然科学基金项目(11272110)

通讯作者: 严实 E-mail: yanshi@hrbust.edu.cn

作者简介: 严实(1977-), 男, 博士, 副教授, 从事复合材料性能表征研究, 联系地址:黑龙江省哈尔滨市学府路52号哈尔滨理工大学建筑工程学院421室(150080), E-mail:yanshi@hrbust.edu.cn

引用本文:

严实, 郭留雨, 赵金阳, 陆夏美, 曾涛. 三维五向编织复合材料低速冲击及冲击后压缩性能实验研究[J]. 材料工程, 2017, 45(12): 65-70.
Shi YAN, Liu-yu GUO, Jin-yang ZHAO, Xia-mei LU, Tao ZENG. Experimental Investigation on Low-velocity Impact and Compression After Impact Properties of Three-dimensional Five-directional Braided Composites. Journal of Materials Engineering, 2017, 45(12): 65-70.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.000861 或 http://jme.biam.ac.cn/CN/Y2017/V45/I12/65

Fig.1 Instron 9250HV型落锤试验机

Fig.2 三维五向编织复合材料冲击示意图

Table 1 材料编号及参数

Table 2 基体及碳纤维的性能

Table 3 三维编织复合材料试件冲击数据

Table 4 三维编织复合材料冲击参数的平均值与方差

Table 5 三维编织复合材料冲击后压缩数据

Fig.3 30J冲击时载荷和能量与时间曲线

Fig.4 30J冲击时载荷-位移曲线

Fig.5 试件冲击损伤照片 (a)15°试件正面；(b)15°试件背面；(c)25°试件正面；(d)25°试件背面；(e)35°试件正面；(f)35°试件背面

Fig.6 CAI测试装置

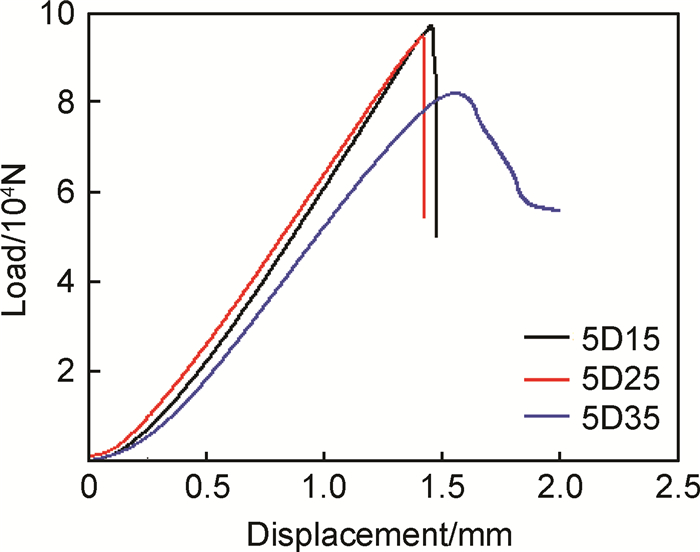

Fig.7 CAI载荷-位移曲线

Fig.8 三维编织复合材料CAI强度

Fig.9 CAI试件典型破坏模式 (a)15°试件正面；(b)15°试件侧面；(c)25°试件正面；(d)25°试件侧面；(e)35°试件正面；(f)35°试件侧面

1	董慧民, 安学锋, 益小苏, 等. 纤维增强聚合物基复合材料低速冲击研究进展[J]. 材料工程, 2015, 43 (5): 89- 100.
1	DONG H M , AN X F , YI X S , et al. Progress in research on low velocity impact properties of fibre reinforced polymer matrix composite[J]. Journal of Materials Engineering, 2015, 43 (5): 89- 100.
2	王欢, 李嘉禄, 樊威. 纤维体积分数对三维编织复合材料T型梁模态性能的影响[J]. 材料工程, 2015, 43 (9): 80- 86.
2	WANG H , LI J L , FAN W . Effect of fiber volume fraction on modal properties of three-dimension braided composite T-beams[J]. Journal of Materials Engineering, 2015, 43 (9): 80- 86.
3	LI D S , LU Z X , CHEN L , et al. Microstructure and mechanical properties of three-dimensional five-directional braided composites[J]. International Journal of Solids and Structures, 2009, 46 (18/19): 3422- 3432.
4	徐焜, 许希武. 三维五向编织复合材料渐进损伤分析及强度预测[J]. 固体力学学报, 2010, 31 (2): 133- 141.
4	XU K , XU X W . Progressive damage analysis and strength prediction of 3D five-directional braided composites[J]. Chinese Journal of Solid Mechanics, 2010, 31 (2): 133- 141.
5	卢子兴, 王成禹, 夏彪. 含界面相三维全五向编织复合材料拉伸行为模拟及失效机制研究[J]. 复合材料学报, 2014, 31 (1): 179- 186.
5	LU Z X , WANG C Y , XIA B . Failure mechanisms analysis and simulation of tensile mechanical behaviors of 3D full five-directional braided composites with interface phase[J]. Acta Materiae Compositae Sinica, 2014, 31 (1): 179- 186.
6	石晓朋, 李曙林, 常飞, 等. 复合材料加筋壁板低速冲击响应与冲击能量关系[J]. 材料工程, 2015, 43 (4): 53- 58.
6	SHI X P , LI S L , CHANG F , et al. Connection of low-velocity impact response and impact energy of stiffened composite panel[J]. Journal of Materials Engineering, 2015, 43 (4): 53- 58.
7	MATEMILOLA S A, STRONG W J. Impact micro-damage in rein transfer moulded carbon fiber composites plate[C]//Impact and Dynamic Fracture of Polymers and Composites. ESIS 19. London:Mechanical Engineering Publications, 1995:371-381.
8	FUKUTA K . Three-dimensional braided composite material[J]. Journal of the Japan Society for Composite Materials, 1995, 21 (2): 51- 60.
9	ZENG T , FANG D N , LU T J . Dynamic crashing and impact energy absorption of 3D braided composite tubes[J]. Materials Letters, 2005, 59 (12): 1491- 1496. doi: 10.1016/j.matlet.2005.01.007
10	GU B H , XU J Y . Finite element calculation of 4-step 3-dimensional braided composite under ballistic perforation[J]. Composites:Part B, 2004, 35 (4): 291- 297. doi: 10.1016/j.compositesb.2004.01.001
11	ZHANG Y , SUN B Z , GU B H . Experimental characterization of transverse impact behaviors of four-step 3-D rectangular braided composites[J]. Journal of Composite Materials, 2012, 46 (24): 3017- 3029. doi: 10.1177/0021998311435531
12	SUN B Z , ZHANG Y , GU B H . Low-velocity impact response and finite element analysis of four-step 3-D braided composite[J]. Applied Composite Materials, 2013, 20 (4): 397- 413. doi: 10.1007/s10443-012-9279-2
13	郑海燕, 刘元镛, 郭伟国. 编织型复合材料的冲击及冲击后压缩强度的试验研究[J]. 航空材料学报, 2002, 22 (3): 33- 37.
13	ZHENG H Y , LIU Y Y , GUO W G . The experimental research of impact and CAI of woven composite[J]. Journal of Aeronautical Materials, 2002, 22 (3): 33- 37.
14	杨灵敏, 焦亚男, 高华斌. 三维编织复合材料低速冲击试验与分析[J]. 纺织学报, 2009, 30 (5): 63- 67.
14	YANG L M , JIAO Y N , GAO H B . Low-velocity impact experiment and analysis of 3-D braided composites[J]. Journal of Textile Research, 2009, 30 (5): 63- 67.
15	李明, 周光明, 王新峰. 2.5D机织复合材料冲击后剩余强度研究[J]. 材料工程, 2009, (增刊2): 307- 311.
15	LI M , ZHOU G M , WANG X F . Study on the post-impact strength of 2.5D woven composites[J]. Journal of Materials Engineering, 2009, (Suppl 2): 307- 311.
16	皇甫劭炜, 童小燕, 姚磊江. 编织型复合材料低速冲击损伤及剩余压缩强度研究[J]. 机械设计与制造, 2009, (3): 120- 122.
16	HUANGFU S W , TONG X Y , YAO L J . Research on low velocity impact damage and residual compressive strength of woven composites[J]. Machinery Design & Manufacture, 2009, (3): 120- 122.
17	胡靖元, 陈利阳, 齐风华, 等. 编织复合材料低速冲击响应与破坏模式分析[J]. 工程与试验, 2013, 53 (2): 8- 11.
17	HU J Y , CHEN L Y , QI F H , et al. Research on low velocity impact response and failure modes of woven fabric composite[J]. Engineering & Test, 2013, 53 (2): 8- 11.
18	严实, 赵金阳, 陆夏美, 等. 基于声发射技术的三维编织复合材料低速冲击损伤分析[J]. 材料工程, 2014, (7): 92- 97.
18	YAN S , ZHAO J Y , LU X M , et al. Low-velocity impact response of 3D braided composites by acoustic emission[J]. Journal of Materials Engineering, 2014, (7): 92- 97.
