材料工程  2017, Vol. 45 Issue (3): 13-16    DOI: 10.11868/j.issn.1001-4381.2015.001137
  石墨烯专栏 本期目录 | 过刊浏览 | 高级检索 |
氧化石墨烯对聚丙烯/尼龙6两组分聚合物的增容作用
何聪1, 欧宝立1,2, 李政峰1
1. 湖南科技大学 材料科学与工程学院, 湖南 湘潭 411201;
2. 中南大学 粉末冶金国家重点实验室, 长沙 410083
Compatibilization of Graphene Oxide on Polypropylene/Polyamide 6 of Two Components
HE Cong1, OU Bao-li1,2, LI Zheng-feng1
1. Institute of Materials Science and Engineering, Hunan University of Science and Technology, Xiangtan 411201, Hunan, China;
2. State Key Laboratory of Powder Metallurgy, Central South University, Changsha 410083, China
全文: PDF(6179 KB)   HTML()
输出: BibTeX | EndNote (RIS)

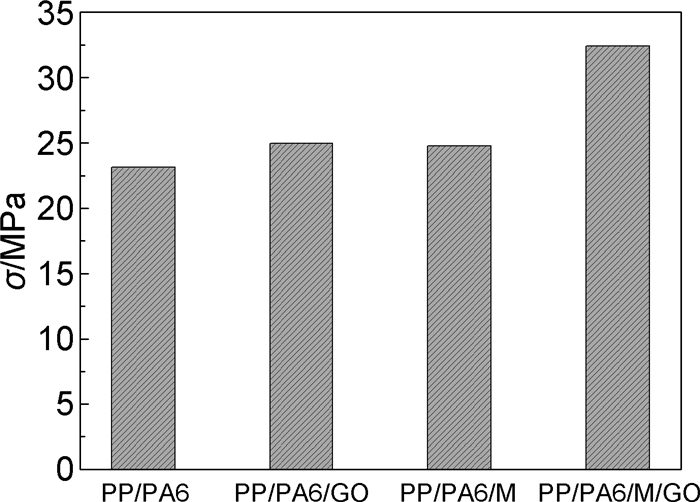

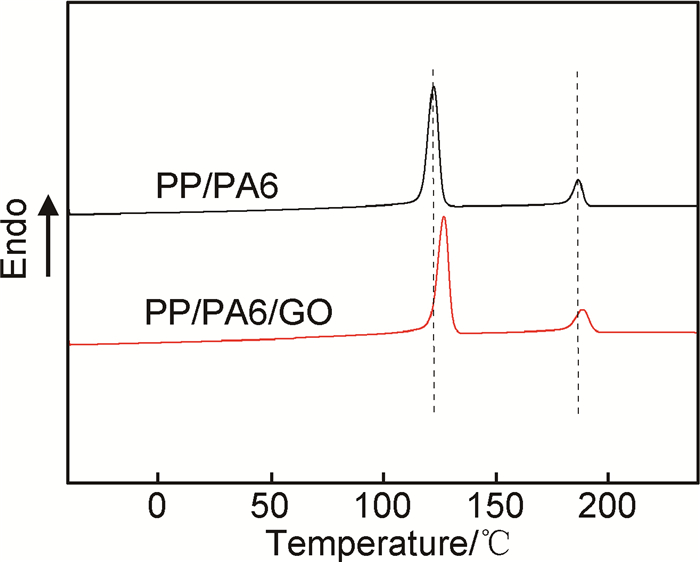

摘要 采用改进的Hummers法制备氧化石墨烯,然后将其与聚丙烯/尼龙6(PP/PA6)两组分聚合物进行熔融共混制备聚丙烯/尼龙6/氧化石墨烯纳米复合材料。通过拉伸强度测试、差示扫描量热测试并结合扫描电子显微镜对尼龙6分散相尺寸大小观察表明,由于氧化石墨烯表面环氧官能团与尼龙6中端氨基能发生化学反应,有效提高了各组分之间的界面相互作用;少量的氧化石墨烯使尼龙6分散相尺寸大幅度减小,并使复合材料拉伸强度大幅度提高,由此表明石墨烯对热力学不相容聚丙烯/尼龙6两组分聚合物具有良好的增容作用。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
何聪
欧宝立
李政峰
关键词 氧化石墨烯增容聚丙烯/尼龙6共混物聚丙烯接枝马来酸酐

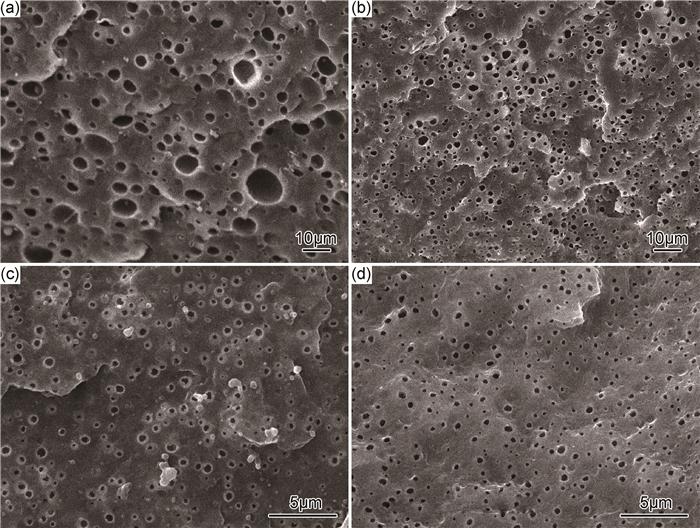

Abstract:The graphene oxide were firstly prepared by a modified Hummers method, and then blended with polypropylene(PP)/polyamide 6(PA6) blends. The compatibilizations of the graphene oxide on the PP/PA6 blends were investigated by means of scanning electron microscopy(SEM). SEM observation shows the domain size of the dispersed PA6 phase significantly decreases with the addition of graphene oxide. Due to the chemical reaction of graphene oxide with amino group of PA6, a stronger interfacial adhesion between graphene oxide, PP and PA6 is obtained, which is confirmed by mechanical analysis. The improved mechanical properties and decreased dispersed PA6 domain indicate the graphene oxide plays the role of coupling species between the two polymers. Therefore, a clear compatibilization effect is induced by graphene oxide in the immiscible PP/PA6 blends.
Key wordsgraphene oxide    compatibilization    polypropylene/polyamide 6 blends    PP-g-MAH
收稿日期: 2015-09-11      出版日期: 2017-03-22
中图分类号:  TQ323.6
  TQ325.1+4
通讯作者: 欧宝立(1976-),男,副教授,博士,主要从事聚合物基复合材料研究,联系地址:湖南省湘潭市雨湖区湖南科技大学(411201),E-mail:oubaoli@163.com     E-mail: oubaoli@163.com
引用本文:
何聪, 欧宝立, 李政峰. 氧化石墨烯对聚丙烯/尼龙6两组分聚合物的增容作用[J]. 材料工程, 2017, 45(3): 13-16.
HE Cong, OU Bao-li, LI Zheng-feng. Compatibilization of Graphene Oxide on Polypropylene/Polyamide 6 of Two Components. Journal of Materials Engineering, 2017, 45(3): 13-16.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.001137      或      http://jme.biam.ac.cn/CN/Y2017/V45/I3/13
[1] HESAM G, AMIN M, PHITIP J B, et al. Characterization of recycled polyamide 6:effect of polypropylene and inorganic contaminants on mechanical properties[J]. Polymer Testing, 2015, 42:69-78.
[2] 欧宝立. 两组分聚合物基纳米复合材料-PP/PA6/TiO2纳米复合[M]. 北京:化学工业出版社, 2015. 1-23. OU B L, Two Component Polymers Based Nanocomposites-PP/PA6/TiO2 Nanocomposite[M].Beijing:Chemical Industry Press, 2015. 1-23.
[3] HUANG J, ZHU Y, JIANG W, et al. Morphology control and stabilization in immiscible polypropylene and polyamide 6 blends with organoclay[J]. International Polymer Processing, 2014, 29(4):522-534.
[4] XU Z, GAO C. In situ polymerization approach to graphene-reinforced nylon-6 composites[J]. Macromolecules, 2010, 43(16):6716-6723.
[5] ZHANG W, DE S, LIN Y P, et al. Carbon nanotubes reinforced nylon-6 composite prepared by simple melt-compounding.[J]. Macromolecules, 2014, 37(2):256-259.
[6] BARRAUD T, RESTAGNO F, DEVISME S, et al. Formation of diblock copolymers at PP/PA6 interfaces and their role in local crystalline organization under fast heating and cooling conditions[J]. Polymer, 2012, 53(12):5138-5145.
[7] KUSMONO K, MOHD Z A, CHOW W S, et al. Water absorption behavior of different types of organophilic montmorillonite-filled polyamide 6/polypropylene nanocomposites[J]. Polymer Composites, 2010, 31(2):195-202.
[8] BENALIA K, AICHA S. Properties of polypropylene/polyamide nanocomposites prepared by melt processing with a PP-g-MAH compatibilizer[J]. Materials & Design, 2012, 34:313-318.
[9] 欧宝立, 李笃信. 纳米TiO2对聚丙烯/尼龙6共混物的增容作用[J]. 高分子材料科学与工程, 2009, 25(12):52-54. OU B L, LI D X. Compatibilization of nanometer-sized TiO2on polypropylene/polyamide 6 blends[J]. Polymer Materials Science & Engineering, 2009, 25(12):52-54.
[10] 欧宝立, 李笃信. 聚酰胺6/聚丙烯/纳米蒙脱土复合材料研究进展[J]. 中国塑料, 2009, 23(2):8-11. OU B L, LI D X. Research progress in polyamide 6/polypropylene/nano-montmorillonite composites[J]. China Plastics, 2009, 23(2):8-11.
[11] 杨旭宇, 王贤保, 杨佳,等. 氧化石墨烯/尼龙6复合材料的等温结晶行为[J]. 功能材料, 2013, 44(15):2175-2183. YANG X Y, WANG X B,YANG J, et al. Isothermal crystallization behavior of GO/PA6 composite[J]. Functional Materials, 2013, 44(15):2175-2183.
[12] 迟长龙,杨秀琴,卢会琴,等. PP-g-MAH增容PP/玻纤增强PA6共混体系流变性能研究[J]. 塑料科技, 2014, 42(2):34-37. CHI C L, YANG X Q,LU H Q, et al. Study on rheological behavior of PP/glass fiber reinforced PA6 blend compatibilized by PP-g-MAH[J]. Plastics Science and Technology, 2014, 42(2):34-37.
[13] GUPTA A K, GUPTA V B, PETERS R H, et al. The effect of addition of high-density polyethylene on the crystallization and mechanical properties of polypropylene and glass-fiber-reinforced polypropylene[J]. J Appl Polym Sci, 1982, 27(12):4669-4686.
[14] GUPTA A K, PUEWAR S N. Crystallization of PP in PP/SEBS blends and its correlation with tensile properties[J]. J Appl Polym Sci, 1984, 29(5):1595-1609.
