钛微合金化热轧TRIP钢的连续冷却相变研究

doi:10.11868/j.issn.1001-4381.2015.03.002

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4528 KB)

HTML ( 68 )
输出: BibTeX | EndNote (RIS)

摘要

用Formastor-FII相变仪研究了钛微合金化TRIP在不同开冷温度下的连续冷却相变,建立了实验钢的连续冷却转变曲线,分析了铁素体、贝氏体及马氏体的相变规律。结果表明,随着冷却速率的增加,实验钢依次经过铁素体、贝氏体及马氏体相区,在较宽的冷却速率范围内,均可获得贝氏体及马氏体组织,其M_s点为450℃左右;随着开冷温度的降低或冷却速率的提高,实验钢的铁素体及贝氏体开始转变温度降低,抑制了铁素体及贝氏体相变;随着冷却速率的增加,实验钢的显微组织由铁素体+粒状贝氏体逐步转变为板条贝氏体+板条马氏体及板条马氏体组织;当冷却速率较低时,铁素体由晶内铁素体和晶界铁素体组成,晶内铁素体形核质点为复杂的氧化物及硫化物。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	衣海龙
	徐薇
	龙雷周
	刘振宇

关键词 ：热轧TRIP钢, 连续冷却转变曲线, 晶内铁素体, 贝氏体

Abstract：

The transformation behavior of a Ti-bearing microalloyed steel during continuous cooling at different start cooling temperatures was investigated by means of Formastor-FII phase transformation testing instrument. The continuous cooling transformation (CCT) curves were established, and the transformation behaviors of ferrite, bainite and martensite were analyzed. The results show that the ferrite, bainite and martensite are obtained successively with the increasing of cooling rate, and the bainite and martensite can be obtained in a wide range of cooling rate, and the martensite transformation start temperature (M_s) is about 450℃. The ferrite and bainite transformation start temperature decreases with the decreasing of start cooling temperature or increasing of cooling rate, so the ferrite and bainite phase transformation is inhibited. The microstructure of the steel transforms from ferrite plus granular bainite, lath bainite plus lath martensite and then to lath martensite successively with the increasing of cooling rate; when the cooling rate is low, the ferrite is composed intragranular ferrite and grain boundary ferrite, and the intragranular ferrite nucleat on complex oxide and sulfide.

Key words： hot rolled TRIP steel CCT curve intragranular ferrite bainite

收稿日期: 2013-05-10 出版日期: 2015-03-20

基金资助:国家自然科学基金资助项目(51104046);中央高校基本科研业务费资助项目(N120407001,N120807001)

通讯作者: 衣海龙 E-mail: yihl@ral.neu.edu.cn

作者简介: 衣海龙(1979-),男,副教授,博士,从事专业:材料加工工程,联系地址:辽宁省沈阳市东北大学轧制技术及连轧自动化国家重点实验室(110819),E-mail:yihl@ral.neu.edu.cn

引用本文:

衣海龙, 徐薇, 龙雷周, 刘振宇. 钛微合金化热轧TRIP钢的连续冷却相变研究[J]. 材料工程, 2015, 43(3): 7-11.
Hai-long YI, Wei XU, Lei-zhou LONG, Zhen-yu LIU. Transformation of Ti-microalloyed TRIP Steel During Continuous Cooling. Journal of Materials Engineering, 2015, 43(3): 7-11.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.03.002 或 http://jme.biam.ac.cn/CN/Y2015/V43/I3/7

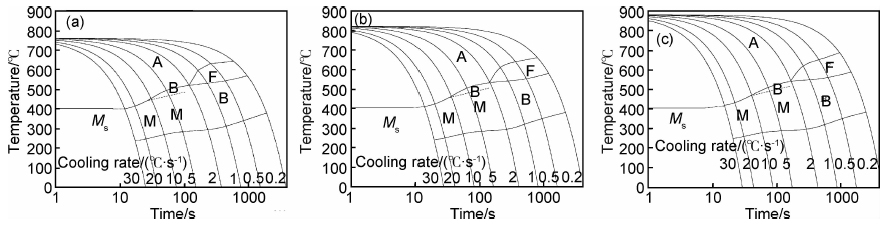

Fig.1 含钛TRIP钢的连续冷却转变曲线
(a)-760℃；(b)-820℃；(c)-880℃

Fig.2 在不同开冷温度及冷却速率下的显微组织
(a)760℃-0.5℃/s；(b)760℃-1℃/s;(c)760℃-2℃/s;(d)880℃-0.5℃/s；(e)880℃-1℃/s;(f)880℃-2℃/s

Fig.3 在760℃不同冷却速率下的显微组织
(a)5℃/s；(b)10℃/s；(c)20℃/s；(d)30℃/s

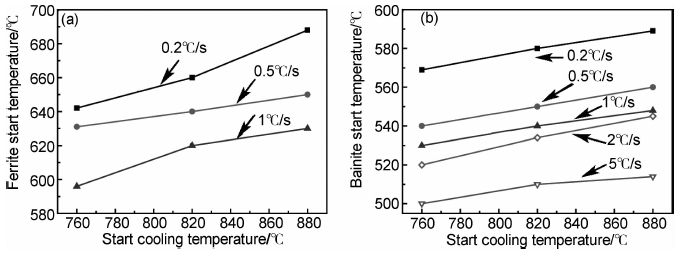

Fig.4 相变开始温度变化规律
(a)铁素体转变；(b)贝氏体转变

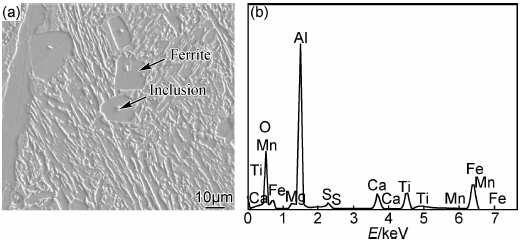

Fig.5 TRIP钢中晶内铁素体及夹杂物SEM照片
(a)和EDS图谱(b)

1	闫翠, 李麟, 符仁钰, 等 TRIP钢的研究进展[J]. 上海金属, 2008, 30 (4): 40- 44.
1	YAN Cui, LI Lin, FU Ren-yu, et al A review on research progress of TRIP steel[J]. Shanghai Metals, 2008, 30 (4): 40- 44.
2	熊自柳, 蔡庆伍, 江海涛, 等 TRIP钢中奥氏体的力学稳定性研究[J]. 材料工程, 2011, (3): 11- 15.
2	XIONG Zi-liu, CAI Qing-wu, JIANG Hai-tao, et al Research on mechanical stability of austenite in TRIP steels[J]. Journal of Materials Engineering, 2011, (3): 11- 15.
3	衣海龙, 徐薇, 龙雷周, 等热轧钛微合金化TRIP钢的组织与性能研究[J]. 材料工程, 2014, (12): 66- 71.
3	YI Hai-long, XU Wei, LONG Lei-zhou, et al Research on microstructures and mechanical properties of hot rolled Ti-microalloyed TRIP steel[J]. Journal of Materials Engineering, 2014, (12): 66- 71.
4	定巍, 龚志华, 唐荻, 等低硅含铝TRIP钢残余奥氏体变形过程中稳定性研究[J]. 材料工程, 2013, (12): 68- 73.
4	DING Wei, GONG Zhi-hua, TANG Di, et al Stability of retained austenite of low Si containing Al TRIP steel during deformation[J]. Journal of Materials Engineering, 2013, (12): 68- 73.
5	余伟, 王潇, 蔡庆伍, 等热轧TRIP钢的连续冷却转变行为及力学性能[J]. 材料热处理学报, 2014, 35 (5): 97- 102.
5	YU Wei, WANG Xiao, CAI Qing-wu, et al Continuous cooling transformation behaviour and mechanical properties of hot rolled TRIP steel[J]. Transactions of Materials and Heat Treatment, 2014, 35 (5): 97- 102.
6	LI Lin, WOLLANTS P, HE Yan-lin, et al Review and prospect of high strength low alloy TRIP steel[J]. Acta Metallurgica Sinica, 2003, 16 (6): 457- 465.
7	郑芳, 郑磊, 王国栋经济型热轧TRIP钢的成分对组织和性能的影响[J]. 钢铁, 2007, 42 (3): 60- 64.
7	ZHENG Fang, ZHENG Lei, WANG Guo-dong Effect of composition of an economical hot-rolled TRIP steel on microstructure and properties[J]. Iron and Steel, 2007, 42 (3): 60- 64.
8	FENG Qing-xiao, LI Long-fei, YANG Wang-yue, et al Microstructures and mechanical properties of hot-rolled Nb-microalloyed TRIP steels by different thermo-mechanical processes[J]. Materials Science and Engineering: A, 2014, 605, 14- 21.
9	HAUSMANN K, KRIZAN D, SPIRADEK H A, et al The influence of Nb on transformation behavior and mechanical properties of TRIP-assisted bainitic-ferritic sheet[J]. Materials Science and Engineering: A, 2013, 588, 142- 150.
10	侯晓英, 许云波, 王业勤, 等含磷和钒热轧TRIP钢组织控制及力学性能研究[J]. 材料科学与工艺, 2011, 19 (5): 21- 24.
10	HOU Xiao-ying, XU Yun-bo, WANG Ye-qin, et al Study on microstructure and mechanical properties of hot rolled TRIP steel containing phosphorus and vanadium[J]. Materials Science & Technology, 2011, 19 (5): 21- 24.
11	刘宗昌, 王海燕, 任慧平, 等贝氏体相变特点的研究[J]. 材料热处理学报, 2007, 28 (8): 168- 171.
11	LIU Zong-chang, WANG Hai-yan, REN Hui-ping, et al Investigations of bainite transformation[J]. Transactions of Materials and Heat Treatment, 2007, 28 (8): 168- 171.
12	刘宗昌, 王海燕, 任慧平钢中贝氏体相变热力学[J]. 包头钢铁学院学报, 2006, 25 (4): 307- 312.
12	LIU Zong-chang, WANG Hai-yan, REN Hui-ping Phase transformation thermodynamics of bainite in steels[J]. Journal of Baotou University of Iron and Steel Technology, 2006, 25 (4): 307- 312.
13	MIYAMOTO G, SHINYOSHI T, YAMAGUCHI J, et al Crystallography of intragranular ferrite formed on (MnS + V(C, N)) complex precipitate in austenite[J]. Scripta Materialia, 2003, 48, 371- 377.
14	余圣甫, 雷毅, 谢明立, 等晶内铁素体的形核机理[J]. 钢铁研究学报, 2005, 17 (1): 47- 50.
14	YU Sheng-pu, LEI Yi, XIE Ming-li, et al Nucleation mechanisms of intragranular ferrite[J]. Journal of Iron and Steel Research, 2005, 17 (1): 47- 50.
15	雍岐龙. 钢铁材料中的第二相[M]. 北京: 冶金工业出版社, 2006.
15	279. YONG Qi-long. The Second Phase in Steel[M]. Beijing: Metallurgical Industry Press, 2006.279.
