2222材料工程  2015, Vol. 43 Issue (6): 102-112    DOI: 10.11868/j.issn.1001-4381.2015.06.016
  综述 本期目录 | 过刊浏览 | 高级检索 |
新能源汽车驱动电机用高强度无取向硅钢片的研究与进展
龚坚, 罗海文()
北京科技大学 冶金与生态工程学院, 北京 100083
Progress on the Research of High-strength Non-oriented Silicon Steel Sheets in Traction Motors of Hybrid/Electrical Vehicles
Jian GONG, Hai-wen LUO()
School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing, Beijing 100083, China
全文: PDF(3988 KB)   HTML ( 133 )
输出: BibTeX | EndNote (RIS)
摘要

本文系统介绍了混合动力汽车和电动汽车所用驱动电机的特点和类型以及其对无取向硅钢片的要求,总结出适用于驱动电机的无取向硅钢片是既要求高强度、疲劳性能等力学性能,也要求高磁感和低的高频铁损等磁性能的复合材料。全面介绍了业界领先的各日本钢铁公司关于高强无取向硅钢片相关专利的具体内容,并通过相关热力学计算分析了各专利中所涉及的技术路线,得出析出强化技术路线是未来发展趋势,而其中Ti析出强化不可行,Nb析出强化可行但是成分和工艺窗口狭窄,且必须和Ni、Mn的固溶强化相结合;而Cu的析出强化途径工艺简单且易行、成本经济。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
龚坚
罗海文
关键词 ： 混动/电动汽车,  驱动电机,  高强度无取向硅钢,  高磁感,  低铁损
Abstract：

The characteristics and types of traction motors for hybrid/electrical vehicles and the requirements to non-orientation silicon steel sheets were systematically reviewed. It was summed up that the non-orientation silicon steel sheets, which are suitable for traction motor, not only require high strength, fatigue properties, but also good magnetic properties, i.e. high permeability and low iron loss at high frequency. The specific contents of the relevant patents on the high strength non-orientation silicon steel sheets of the leading Iron and Steel Companies in Japan were introduced comprehensively, and the involved technological routes in the patents were analysized with thermodynamic calculations. It was concluded that precipitation strengthening technological route is the future developing trend. Particulary, Ti precipitation strengthening is not feasible; Nb precipitation strengthening is feasible but the composition and process window is narrow, and must be combined with the solution strengthening of Ni, Mn; while Cu precipitation strengthening process is simple, cost-effective, and practical.
Key words： hybrid/electrical vehicle    traction motor    high strength non-oriented silicon steel    high permeability    low iron loss
收稿日期: 2014-12-26      出版日期: 2015-06-20
基金资助:国家自然科学基金委员会-宝钢集团有限公司钢铁联合研究基金项目(U1460203);国家国际科技合作专项项目(2015DFG51950)
通讯作者: 罗海文     E-mail: luohaiwen@ustb.edu.cn
作者简介: 罗海文(1972-),男,教授,博士,现从事先进钢铁材料研发,联系地址:北京市学院路30号北京科技大学冶金与生态工程学院(100083),E-mail:luohaiwen@ustb.edu.cn
引用本文:
龚坚, 罗海文. 新能源汽车驱动电机用高强度无取向硅钢片的研究与进展[J]. 材料工程, 2015, 43(6): 102-112.
Jian GONG, Hai-wen LUO. Progress on the Research of High-strength Non-oriented Silicon Steel Sheets in Traction Motors of Hybrid/Electrical Vehicles. Journal of Materials Engineering, 2015, 43(6): 102-112.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.06.016      或      http://jme.biam.ac.cn/CN/Y2015/V43/I6/102

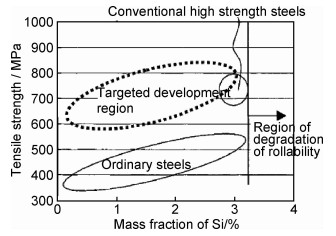

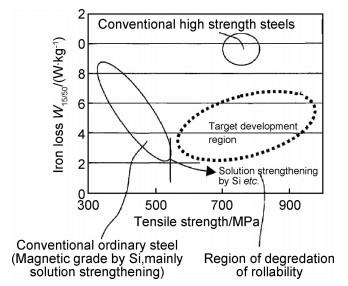

Fig.1  Si含量对普通钢、高强结构钢强度和可轧制性的影响，以及通过包括固溶强化在内的多种手段所要达到的高强电工钢目标强度区间[10]
Fig.2  高强电工钢产品的强度-铁损目标性能区间及与普通钢和高强结构钢的对比[10]

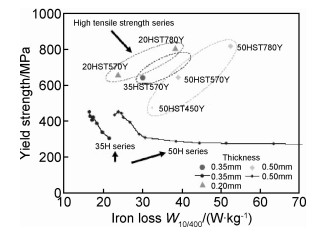

Fig.3  新日铁2002年公布的高强度无取向电工钢系列产品磁性能[7]
Patent No Mass fraction of alloying element / % Process parameter Property
JP S62-256917 [18] ＜0.005C,2.1-3.4Si,＜0.8 Al,0.5-3.3 Mn+Ni,0.05-0.19P,＜0.006B Soaking temp of slab:1150℃; Thickness of hot rolled and cold rolled strip:2.0mm and 0.5mm; Annealing: 820℃×1min σb=660-690MPa,A=25%-30%， P5/1000=40-43W/kg B50=1.65-1.69T
JP H1-162748 [19] 2.95-3.13Si,0.55-0.65 Al,0.1-1.5Mn，1.06-2.5Ni，＜1.54Cr,0.3-0.5Mo,0.03-0.3 Cu,0.0015-0.005B Thickness of hot rolled and cold rolled strip:1.8mm and 0.5mm. Grain size after annealing: 19-25μｍ σs=600-630MPa，σb=690-730MPa, A=25%-30%，P15/50=6.1-6.5W/kg B50=1.63-1.65T
JP 2011-184787[20] 0.003C,3Si,0.75Al,0.24-2.2Mn,＜2.6Ni,2-6.2Cr,0.03P Thickness of cold rolled strips: 0.2mm; Annealing: 750℃×20s σs=609-679MPa,σb=712-776MPa, A=29%-32%,P15/50=4.3-4.5W/kg P10/1000=38-44 W/kg,B50=1.58-1.65T
Table 1  采用固溶强化的新日铁高强度无取向电工钢专利的部分内容

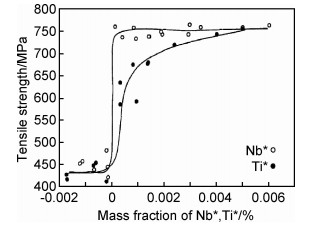

Fig.4  高强无取向硅钢片中经750℃退火20s时效处理后，其固溶Nb*和Ti*的摩尔分数和抗拉强度之间的关系[21]

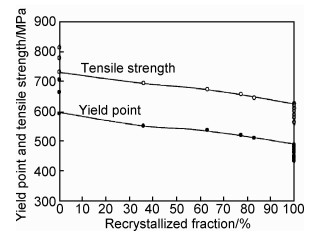

Fig.5  屈服强度、抗拉强度与退火时再结晶分数之间的关系[21]
Grade Thickness/mm Magnetic property Mechanic property
W10/400/kg-1 Yield strength(RD/TD)/MPa Tensile strength(RD/TD)/MPa
SXRC 690MPa 0.35 46 659/705 768/766
0.27 49 761/834 842/851
780MPa 0.35 51 743/807 833/855
0.50 53 724/779 818/837
Conventional JIS 35A230 Cold rolled 0.35 106 1084/1140 1122/1140
Annealed 0.35 17 336/348 464/472
RD: Rolling direction; TD: Transverse direction
Table 2  住友金属公司的高强度无取向硅钢产品系列的性能[22]

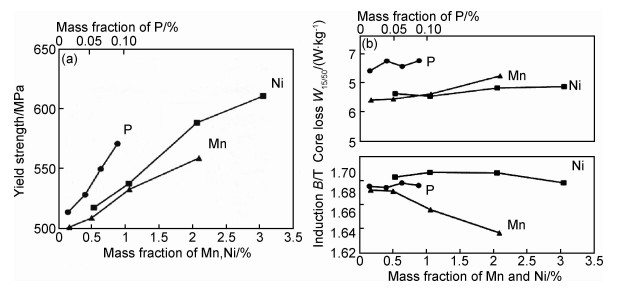

Fig.6  P,Mn和Ni固溶元素含量对无取向硅钢性能的影响[31]
(a)强度;(b)铁损和磁感
Thickness/mm Grade Magnetic property Mechanic property
Core loss/(W·kg-1) Induction B50/T Tensile strength/MPa Typical yield strength/MPa Typical elongation/%
W10/50 W10/400 Min Typical
Min Typical Typical Min Typical L C L C L C
0.35mm 35HXT590T 10.5 4.32 41.0 1.62 1.65 590 678 690 659 669 24 22
35HXT680T 10.5 4.81 44.6 1.62 1.65 680 725 739 718 733 21 21
35HXT780T 11.0 4.68 45.9 1.60 1.63 780 860 882 822 839 18 19
0.50mm 50HXT590T 11.5 4.33 47.6 1.62 1.66 590 687 710 675 697 23 21
50HXT780T 12.0 4.90 52.4 1.60 1.63 780 830 872 817 847 19 17
L: Rolling direction; C: Perpendicular to rolling direction
Table 3  新日铁住金公司生产的高强度无取向硅钢系列产品的磁性能和力学性能要求及其典型值 [32]

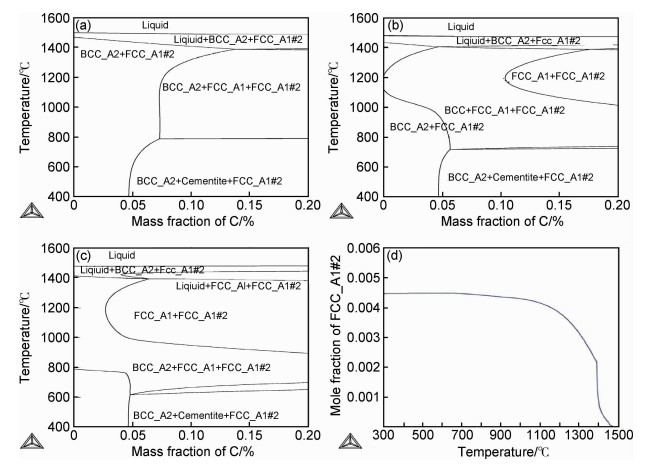

Fig.7  Mn对成分为3%Si-0.5%Al-0.004%N-0.2%Ti的Fe-C相图的影响(图中FCC_A1#2为Ti(CN))由ThermoCalc软件和TCFe数据库计算
(a)0Mn,(b)2%Mn;(c)4%Mn;(d)4%Mn时，Ti(CN)在各温度下析出量

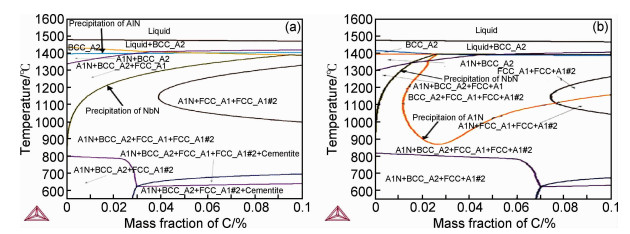

Fig.8  Nb对3%Si-0.5%Al-0.004%N-1%Mn-3%Ni的Fe-C相图的影响(图中FCC_A1#2为析出的Nb(CN))
(a)0.2%Nb;(b)0.5%Nb

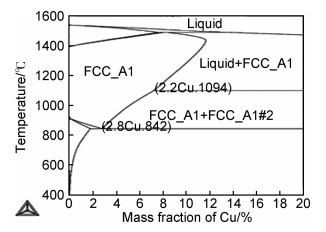

Fig.9  Fe-Cu二元相图(FCC_A1#2是析出的金属Cu相)
1 KOMATSUBARA M, SADAHIRO K, KONDO O, et al Newly developed electrical steel for high-frequency use[J]. Journal of Magnetism and Magnetic Materials, 2002, 242-245 (4): 212- 215.
2 YOSHIHIKO O, KOHNO M, HONDA A Recent development of non-oriented electrical steel sheet for automobile electrical devices[J]. Journal of Magnetism and Magnetic Materials, 2008, 320 (10): 2430- 2435.
3 SENDA K, NAMIKAWA M, HAYAKAWA Y Electrical steels for advanced automobiles-core materials for motors, generators, and high-frequency reactors[J]. JFE Technical Report, 2004, (4): 67- 73.
4 王德安. 新能源汽车驱动电机系统[R]. 深圳: 平安证券研究所综合研究所行业报告, 2010. WANG De-an. Traction motors for hybrid/electrical vehicles[R]. Shenzhen: Research report of Shenzhen Ping An Stocking Ltd, 2010.
5 黄允凯, 余莉, 胡虔生, 等 高速永磁电动机设计的关键问题[J]. 微电机, 2006, 33 (3): 6- 9.
5 HUANG Y K, YU L, HU Q S, et al Design consideration for high-speed permanent magnetic motors[J]. Micromotors, 2006, 33 (3): 6- 9.
6 王凤翔 高速电机的设计特点及相关技术研究[J]. 沈阳工业大学学报, 2006, 28 (3): 259- 264.
6 WANG F X Study on design feature and related technology high speed electrical machines[J]. Journal of Shenyang University of Technology, 2006, 28 (3): 259- 264.
7 YABUMOTO M, WAKISAKA T, SUZUKI N Electrical steel sheet for traction motors of hybrid/electric vehicles[J]. Nippon Steel Technical Report, 2003, 87, 57- 61.
8 HONDA A, SENDA K, SADAHIRO K Electrical steel for motors of electric and hybrid vehicles[J]. Kawasaki Steel Technical Report, 2003, 48 (3): 33- 38.
9 何忠治, 赵宇, 罗海文. 电工钢[M]. 北京: 冶金工业出版社, 2012.
9 220-232HE Z Z, ZHAO Y, LUO H W. Electrical Steels[M]. Beijing: Metallurgy Industry Press, 2012.220-232.
10 Nippon Steel Corporation. High-strength Electrical Steel, Sheet and processed Part of Same[P]. United States Patent: US 8, 097, 094 B2, 2012-01-17.
11 王立涛, 张莉霞, 刘念华, 等 在我国申请的无取向电工钢专利技术的分析[J]. 特殊钢, 2007, 28 (1): 41- 43.
11 WANG L T, ZHANG L X, LIU N H Analysis on patented technology of non-oriented electrical steel in China[J]. Special Steels, 2007, 28 (1): 41- 43.
12 新日本製鐵株式会社. 高周波鉄損の優れた高張力無方向性電磁鋼板[P]. 日本专利: 2011-184787, 2011-09-22. Nippon Steel Corporation. High-strength high-frequency non-oriented electrical steel sheet[P]. Japan Patent: 2011-184787, 2011-09-22.
13 新日本制铁株式会社. 无方向性电磁钢板[P]. 中国专利: 102292462A, 2011-12-21. Nippon Steel Corporation. Non-oriented electrical steel sheet[P]. China Paten: 102292462A, 2011-12-21.
14 KUBOTA T Recent progress on non-oriented silicon steel[J]. Steel Research Int, 2005, 76 (6): 464- 469.
15 新日本制铁株式会社. 高张力电磁钢板及びその制造方法[P]. 日本专利: 平2-022442, 1990-01-25. Nippon Steel Corporation. A manufacturing method of high-tensile-strength electrical steel sheet[P]. Japan Patent: H2-022442, 1990-01-25.
16 新日本制铁株式会社. 抗张力の高い无方向性电磁钢板の制造方法[P]. 日本专利: 昭64-228, 1989-01-05. Nippon Steel Corporation. A manufacturing method of high-strength non-oriented electrical steel sheet[P]. Japan Patent: S64-228, 1989-01-05.
17 新日本制铁株式会社. 高张力无方向性电磁钢板およびその制造方法[P]. 日本专利: 平6-330255, 1994-11-29. Nippon Steel Corporation. A manufacturing method of high-tensile-strength non-oriented electrical steel sheet[P]. Japan Patent: H6-330255, 1994-11-29.
18 新日本製鐵株式会社. 回转机用のすぐれた高抗張力無方向性電磁鋼板[P]. 日本专利: 昭62-256917, 1987-11-09. Nippon Steel Corporation. High-tensile-strength non-oriented electrical steel sheet for motors[P]. Japan Patent: S62-256917, 1987-11-09.
19 新日本製鐵株式会社. 加工性と磁気特性のすぐれた高抗張力無方向性電磁鋼板[P]. 日本专利: 平1-162748, 1989-06-27. Nippon Steel Corporation. High-tensile-strength non-oriented electrical steel sheet with good workability and magnetic properties[P]. Japan Patent: H1-162748, 1989-06-27.
20 新日本製鐵株式会社. 高周波鉄損の優れた高張力無方向性電磁鋼板[P]. 日本专利: 2011-184787, 2011-09-22. Nippon Steel Corporation. High-tensile-strength non-oriented electrical steel sheet with low iron loss at high frequency[P]. Japan Patent: 2011-184787, 2011-09-22.
21 Sumitomo Metal Industries Ltd. Non-oriented electrical steel sheet and production process thereof[P]. United States Patent: US 7, 922, 834 B2, 2011-04-12.
22 TANAKA I, YASHIKI H, IWAMOTO S, et al Development of high strength electrical steel SXRC of resource saving design[J]. Material Japan, 2010, 49 (1): 29- 31.
23 新日本制铁株式会社. 磁気特性の优れた高强度电磁钢板とその制造方法[P]. 日本专利: 2005-113185, 2005-04-28. Nippon Steel Corporation. High-tensile-strength electrical steel sheet with good magnetic properties[P]. Japan Patent: 2005-113185.2005-04-28.
24 新日本制铁株式会社. 高强度电磁钢板とその制造方法および加工方法[P]. 日本专利: 2006-070348, 2006-03-16 Nippon Steel Corporation. Manufacturing method of high-tensile-strength electrical steel sheet[P]. Japan Patent: 2006-070348.2006-03-16.
25 新日本制铁株式会社. 高周波鉄损の优れた高抗张力无方向性电磁钢板[P]. 日本专利: 2003-342698, 2003-12-03. Nippon Steel Corporation. High-tensile-strength non-oriented electrical steel sheet with low iron loss at high frequency[P]. Japan Patent: 2003-342698, 2003-12-03.
26 新日本制铁株式会社. 高周波鉄损の优れた高张力无方向性电磁钢板[P]. 日本专利: 2011-184787.2011-09-22. Nippon Steel Corporation. High-tensile-strength non-oriented electrical steel sheet with low iron loss at high frequency[P]. Japan Patent: 2011-184787, 2011-09-22.
27 新日本制铁株式会社. 高周波鉄损の优れた高张力无方向性电磁钢板[P]. 日本专利: 2006-161137, 2006-06-22. Nippon Steel Corporation. High-tensile-strength non-oriented electrical steel sheet with low iron loss at high frequency[P]. Japan Patent: 2006-161137, 2006-06-22.
28 新日本制铁株式会社. 高强度无方向性电磁钢板[P]. 日本专利: 2008-050685, 2008-03-06. Nippon Steel Corporation. High-strength non-oriented electrical steel sheet[P]. Japan Patent: 2008-050685, 2008-03-06.
29 新日本制铁株式会社. 电磁钢板とその制造方法[P]. 日本专利: 2008-261053, 2008-10-30. Nippon Steel Corporation. Manufacturing method of electrical steel sheet[P]. Japan Patent: 2008-261053, 2008-10-30.
30 新日本制铁株式会社. 高强度无方向性电磁钢板及其制造方法[P]. 中国专利: 102007226A. 2011-04-06. Nippon Steel Corporation. High-tensile-strength non-oriented electrical steel sheet and its manufacturing method[P]. China Patent: 102007226A. 2011-04-06.
31 KUBOTA T Recent progress on non-oriented silicon steel[J]. Steel Research International, 2005, 76 (6): 464- 469.
32 新日铁住金公司的产品手册, http://www.nssmc.com/en/product/sheet/magnetic_sheet.html.ProductsandcatalogsofNipponSteel&SumitomoMetals, http://www.nssmc.com/en/product/sheet/magnetic_sheet.html.
33 潘振东, 项利, 张晨, 等. TSCR试制高强度无取向电工钢. 钢铁钒钛, 2013, 34(4): 78-83 PAN Z D, XIANG L, ZHANG C, et al Development of high-strength non-oriented electrical steel by TSCR[J]. Iron Steel Vanadium Titanium, 2013, 34 (4): 78- 83.
34 LAHIRI S. Study of precipitation in Fe-Cu system[D]. Evanston: Northwestern University, 1969.
35 FINE M, ISHEIM D Origin of copper precipitation strengthening in steel revisited[J]. Scripta Materialia, 2005, 53, 115- 118.
36 GAGLIANO M S. Co-precipitation of copper and niobium-carbide in a low carbon steel[D]. Evanston: Northwestern University, 2002.
37 MINTZ B The influence of composition on the hot ductility of steels and to the problem of transverse cracking[J]. ISIJ International, 1999, 39 (9): 833- 855.
38 IMAI N, KOMATSUBARA N, KUNISHIGE K Effect of Cu and Ni on hot workability of hot-rolled mild steel[J]. ISIJ International, 1997, 37 (3): 224- 231.
