Effect of Axle-load on Rolling Wear and Damage Behaviors of Wheel and Rail Materials
Hao-hao DING, Wen-jian WANG(), Jun GUO, Qi-yue LIU, Min-hao ZHU
Tribology Research Institute, State Key Laboratory of Traction Power, Southwest Jiaotong University, Chengdu 610031, China
全文: PDF(4102 KB)   HTML ( 79 )
输出: BibTeX | EndNote (RIS)
摘要

利用WR-1轮轨滚动磨损实验机研究不同轴重下轮轨材料滚动磨损与损伤性能。结果表明:轮轨试样磨损率均随轴重增加呈现线性增加趋势,且钢轨试样磨损率大于车轮试样磨损率。轮轨试样硬化率均随时间呈现先增加后趋于稳定的变化趋势,轮轨试样塑变层厚度和硬化率均随轴重增加而增大,且车轮试样硬化率大于钢轨。车轮试样和钢轨试样表面损伤形貌不同,车轮试样表面表现为垂直于滚动方向的疲劳裂纹,钢轨试样表面表现为裂纹和块状剥落,轮轨试样表面损伤均随轴重增加而更加严重;车轮试样表面裂纹疲劳断裂和钢轨试样表面块状剥落形成磨屑,成分主要为Fe2O3和马氏体,随轴重增加,磨屑尺寸呈现增大趋势,但成分与含量无明显变化。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
丁昊昊
王文健
郭俊
刘启跃
朱旻昊
关键词 轴重轮轨材料磨损损伤疲劳裂纹
Abstract

The rolling wear and damage characteristics of wheel and rail materials under different axle-loads were investigated using a WR-1 wheel/rail rolling wear testing apparatus. The results show that both of the wear rates of wheel and rail materials rise linearly with the increase of axle-load, and the wear rate of rail specimen is larger than wheel. The hardening rates of wheel and rail specimens firstly increase obviously and then keep stable along with the test time. With the increase of axle-load, the depth of plastic deformation layer and the hardness rate of wheel and rail specimens increase. The hardness rate of wheel is larger than rail. The surface damage morphology of wheel specimen is different from rail. For the surface damage morphology of wheel specimen consists of fatigue cracks perpendicular to rolling direction, however, the rail surface damage morphology is dominated by cracks and spalls. The surface damage of the wheel and rail specimens gets increasingly severe along with the in crease of axle-load. Debris, which comes from fatigue cracks fracture of wheel specimen and spalling of rail, is composed of Fe2O3 and martensite. With the increase of axle-load, the size of debris increases, the components and their content, however, have no obvious change.

Key wordsaxle-load    wheel/rail material    wear    damage    fatigue crack
收稿日期: 2014-04-15      出版日期: 2015-10-17
基金资助:国家自然科学基金(51475393,51174282,U1134202);教育部创新团队科学基金(IRT1178)
通讯作者: 王文健     E-mail: wwj527@163.com
作者简介: 王文健(1980-),男,博士,副研究员,主要从事轮轨关系与摩擦学研究,联系地址:四川省成都市二环路北一段111号西南交通大学摩擦学研究所(610031),E-mail: wwj527@163.com
引用本文:
丁昊昊, 王文健, 郭俊, 刘启跃, 朱旻昊. 轴重对轮轨材料滚动磨损与损伤行为影响[J]. 材料工程, 2015, 43(10): 35-41.
Hao-hao DING, Wen-jian WANG, Jun GUO, Qi-yue LIU, Min-hao ZHU. Effect of Axle-load on Rolling Wear and Damage Behaviors of Wheel and Rail Materials. Journal of Materials Engineering, 2015, 43(10): 35-41.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.10.006      或      http://jme.biam.ac.cn/CN/Y2015/V43/I10/35

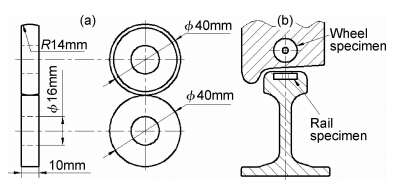

Fig.1  轮轨试样尺寸
(a)和取样位置(b)
Mass fraction/% Mechanical property
C Si Mn P S σb/MPa δ5/%
Wheel 0.56-0.60 ≤0.40 ≤0.80 ≤0.020 ≤0.015 965 ≥12
Rail 0.65-0.75 0.10-0.50 0.80-1.30 ≤0.025 0.008-0.025 980 ≥9
Table 1  轮轨材料化学成分及力学性能
Fig.2  轮轨试样微观组织
(a)钢轨;(b)车轮
Fig.3  轮轨试样硬度
Fig.4  轮轨试样磨损率与轴重
(a)和时间(b)的关系
Fig.5  轮轨试样硬化率与实验时间
(a)和轴重(b)的关系
Fig.6  轮轨试样硬度比
Fig.7  轮轨试样塑性变形OM照片
(a)车轮12t;(b)车轮21t;(c)车轮30t;(d)钢轨12t;(e)钢轨21t;(f)钢轨30t

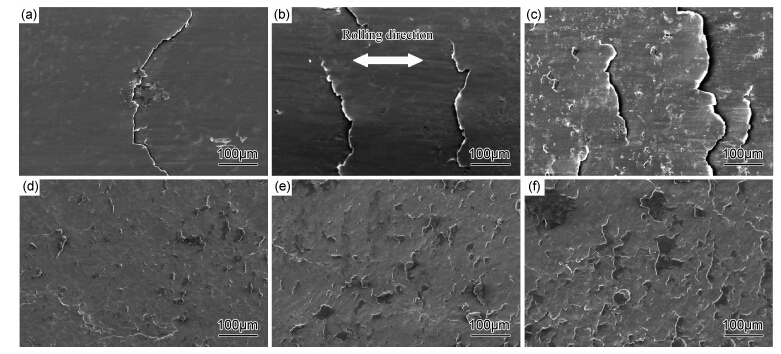

Fig.8  轮轨试样表面损伤SEM照片
(a)车轮16t;(b)车轮25t;(c)车轮30t;(d)钢轨16t;(e)钢轨25t;(f)钢轨30t
Fig.9  轮轨试样表面裂纹OM照片
(a)车轮12t;(b)车轮30t;(c)钢轨12t;(d)钢轨30t
Fig.10  磨屑SEM照片
(a)12t;(b)21t;(c)30t
Fig.11  磨屑XRD图谱
