Mg2B2O5W,SiC和Gr颗粒增强6061Al基复合材料的摩擦磨损行为

doi:10.11868/j.issn.1001-4381.2015.10.007

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4367 KB)

HTML ( 46 )
输出: BibTeX | EndNote (RIS)

摘要

采用粉末热挤压法制备2%Mg₂B₂O_5w/6061Al,2%Gr/6061Al,2%SiC_p/6061Al,2%Mg₂B₂O_5w+2%Gr/6061A,2%Mg₂B₂O_5w+2%SiC_p/6061Al,2%Mg₂B₂O_5w+2%Gr+2%SiC_p/6061Al单一及混杂增强的铝基复合材料,并对其耐磨性和摩擦行为进行研究。结果表明:随着载荷的增大,各种复合材料的磨损率均增大,石墨的添加增大了铝基复合材料的磨损率;复合材料的摩擦因数随载荷的增大而降低并趋于稳定,摩擦因数均介于0.22~0.32之间。未加入石墨的复合材料的磨损机制以磨料磨损和轻微的黏着磨损为主,加入石墨后复合材料的磨损机制转变为剧烈的黏着磨损。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	丁雨田
	王冬强
	胡勇
	彭和思
	马国俊

关键词 ：粉末热挤压, 增强体, 铝基复合材料, 摩擦磨损

Abstract：

Single and hybrid Al matrix composites with 2%Mg₂B₂O_5w/6061Al,2%Gr/6061Al,2%SiC_p/6061Al,2%Mg₂B₂O_5w+2%Gr/6061Al, 2%Mg₂B₂O_5w+2%SiC_p/6061Al, 2%Mg₂B₂O_5w+2%Gr+2%SiC_p/6061Al reinforcements were prepared by powder hot extrusion process, and the wear resistance and the friction behaviour of the single and hybrid Al matrix composites were studied. The results show that the wear rates of all kinds of the composites increase with the load increasing, the wear rate of Al matrix composites increase with the addition of graphite, the friction coefficients of all kinds of the composites decrease with the load increasing and then become stabilized, the friction coefficient is between 0.22 to 0.32. Abrasive wear and slight adhesive wear dominate the wear mechanism of Al matrix composites without graphite, after the addition of graphite, the wear mechanism of Al matrix composites converts into serious adhesive wear.

Key words： powder hot extrusion reinforcement aluminum matrix composite friction and wear

收稿日期: 2014-11-17 出版日期: 2015-10-17

通讯作者: 丁雨田 E-mail: dingyutian@126.com

作者简介: 丁雨田(1962-),男,教授,博士生导师,主要从事热型连铸技术制备新材料、新型医用镁合金、镍及合金、金属基复合材料等方向的研究,联系地址:甘肃省兰州市七里河区兰工坪路287号材料学院(730050),E-mail:dingyutian@126.com

引用本文:

丁雨田, 王冬强, 胡勇, 彭和思, 马国俊. Mg₂B₂O_5W,SiC和Gr颗粒增强6061Al基复合材料的摩擦磨损行为[J]. 材料工程, 2015, 43(10): 42-48.
Yu-tian DING, Dong-qiang WANG, Yong HU, He-si PENG, Guo-jun MA. Friction and Wear Behavior of Mg₂B₂O_5w, SiC and Gr Particles Reinforced 6061Al Matrix Composite. Journal of Materials Engineering, 2015, 43(10): 42-48.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.10.007 或 http://jme.biam.ac.cn/CN/Y2015/V43/I10/42

Table 1 基体合金和复合材料的力学性能

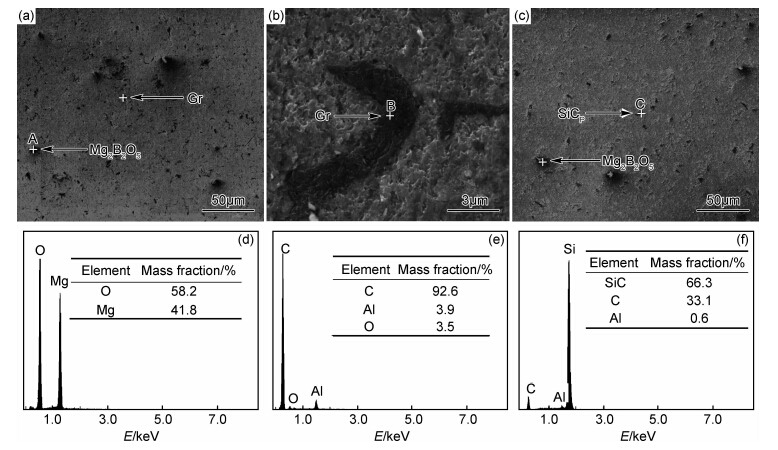

Fig.1 复合材料的SEM照片和EDS分析
(a)2%Mg₂B₂O_5w+2%Gr/6061Al的SEM图片；(b)2%Mg₂B₂O_5w+2%Gr/6061Al中Gr的SEM图片； (c)2%Mg₂B₂O_5w+2%SiC_P/6061Al的SEM图片；(d)(a)中增强相A的EDS分析； (e)(a)中增强相B的EDS分析；(f)(a)中增强相C的EDS分析

Fig.2 不同载荷下6种复合材料的磨损率

Fig.3 不同载荷下6种复合材料摩擦因数

Fig.4 载荷为30N时6种复合材料摩擦表面SEM图片
(a)2%Mg₂B₂O_5w/6061Al；(a)2%Gr/6061Al；(c)2%SiC_P/6061Al；(d)2%Mg₂B₂O₅w+2%Gr /6061Al； (e)2%Mg₂B₂O_5w+2%SiC_P/6061Al；(f)2%Mg₂B₂O_5w+2%Gr+2%SiC_P/6061Al

Fig.5 富铁黏附层的EDS分析

Fig.6 载荷30N下6种复合材料磨损表面EDS分析

Fig.7 30N负载下3种复合材料磨屑的SEM图像
(a)2%Mg₂B₂O_5w+2%Gr/6061Al；(b)2%Mg₂B₂O_5w+2%SiC_P/6061Al；(c)2%Mg₂B₂O_5w+2%Gr+2%SiC_P/6061Al

Fig.8 30N载荷下3种复合材料对偶件的摩擦表面及光镜显微照片
(a)2%Mg₂B₂O_5w+2%Gr/6061Al；(b)2%Mg₂B₂O_5w+2%SiC_P/6061Al；(c)2%Mg₂B₂O_5w+2%Gr+2%SiC_P/6061Al

1	RAVINDRAN P, MANISEKAR K, NARAYANASAMY P, et al Application of factorial techniques to study the wear of Al hybrid composites with graphite addition[J]. Materials & Design, 2012, 39, 42- 54.
2	杨佼源, 韦习成, 洪晓露, 等高含量SiC 颗粒增强铝基复合材料的增摩特性研究[J]. 摩擦学学报, 2014, 34 (4): 446- 451.
2	YANG Jiao-yuan, WEI Xi-cheng, HONG Xiao-lu, et al Dry friction coefficient of high content SiC particle reinforced aluminum matrix composite against commercial friction material[J]. Tribology, 2014, 34 (4): 446- 451.
3	RAVINDRAN P, MANISEKAR K, NARAYANASAMY P, et al Tribological behaviour of powder metallurgy-processed aluminium hybrid composites with the addition of graphite solid lubricant[J]. Ceramics International, 2013, 39 (2): 1169- 1182.
4	RAO R N, DAS S Effect of matrix alloy and influence of SiC particle on the sliding wear characteristics of aluminium alloy composites[J]. Materials & Design, 2010, 31 (3): 1200- 1207.
5	汤赟武, 陈飞, 曹志强, 等原位生成 TiB2/ZA27 复合材料的组织与耐摩擦磨损性能[J]. 稀有金属材料与工程, 2014, 43 (1): 194- 198.
5	TANG Yun-wu, CHEN Fei, CAO Zhi-qiang, et al Microstructure and friction-wear resistance of in-situ TiB2/ZA27 composites[J]. Rare Metal Materials and Engineering, 2014, 43 (1): 194- 198.
6	王宝顺, 吕一中, 崔岩, 等. SiCp/ Al 复合材料-半金属刹车材料干摩擦磨损性能研究. 材料工程, 2007, (6): 7-10 WANG Bao-shun, LU Yi-zhong, CUI Yan, et al Dry sliding tribological behavior of SiCp/Al composites against semi-metallic brake pad[J]. Journal of Materials Engineering, 2007, (6): 7- 10.
7	DILER E A, IPEK R Main and interaction effects of matrix particle size, reinforcement particle size and volume fraction on wear characteristics of Al-SiCp composites using central composite design[J]. Composites Part B: Engineering, 2013, 50, 371- 380.
8	刘慧敏, 宋振东, 许萍, 等. TiC/7075铝基复合材料的磨损实验研究[J], 材料工程, 2011, (7): 66-69.
8	LIU Hui-min, SONG Zhen-dong, XU Ping, et al. Experimental study of the wear resistance of TiC/ 7075 Al matrix composite[J]. Journal of Materials Engineering, 2011, (7): 66-69.
9	UMANATH K, PALANIKUMAR K, SELVAMANI S T Analysis of dry sliding wear behaviour of Al6061/SiC/Al2O3 hybrid metal matrix composites[J]. Composites: Part B, 2013, 53, 159- 168.
10	ALIDOKHT S A, ABDOLLAH-ZADEHN A, ASSADI H Effect of applied load on the dry sliding wear behaviour and the subsurface deformation on hybrid metal matrix composite[J]. Wear, 2013, 305 (1): 291- 298.
11	甄文柱, 梁波等离子喷涂MoS2/Cu基复合涂层真空摩擦磨损性能[J]. 材料工程, 2013, (8): 16- 22.
11	ZHEN Wen-zhu, LIANG Bo Tribological Behavior of plasma sprayed MoS2/Cu composite coating under vacuum atmosphere[J]. Journal of Materials Engineering, 2013, (8): 16- 22.
12	李维学, 张凯, 戴剑锋, 等 TA2 钛合金表面Al2O3/石墨自润滑沉积层的制备及其摩擦学性能研究[J]. 航空材料学报, 2013, 33 (3): 46- 52.
12	LI Wei-xue, ZHANG Kai, DAI Jian-feng, et al Preparation and tribological properties of self-lubricating Al2O3/graphite composite coating on TA2 titanium[J]. Journal of Aeronautical Materials, 2013, 33 (3): 46- 52.
13	PRABHU R T, VARMA V K, VEDANTAM S Effect of SiC volume fraction and size on dry sliding wear of Fe/SiC/graphite hybrid composites for high sliding speed applications[J]. Wear, 2014, 309 (1): 1- 10.
14	金培鹏, 陈庚, 韩丽, 等硼酸镁晶须增强 6061 铝基复合材料的干摩擦磨损行为[J]. 中国有色金属学报, 2014, 24 (1): 49- 57.
14	JIN Pei-peng, CHEN Geng, HAN Li, et al Dry sliding friction and wear behaviors of Mg2B2O5 whisker reinforced 6061Al matrix composites[J]. The Chinese Journal of Nonferrous Metals, 2014, 24 (1): 49- 57.
15	LENG J F, JIANG L T, WU G H, et al Effect of graphite particle reinforcement on dry sliding wear of SiC/Gr/Al composites[J]. Rare Metal Materials and Engineering, 2009, 38 (11): 1894- 1898.
