纳米SiC浓度对Ni/纳米MoS<sub>2</sub>基复合镀层结构和耐磨性能的影响

doi:10.11868/j.issn.1001-4381.2015.10.010

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4124 KB)

HTML ( 50 )
输出: BibTeX | EndNote (RIS)

摘要

采用双脉冲复合电镀技术,在瓦特型镀液中,制备含纳米SiC的Ni/MoS₂基复合镀层。研究纳米SiC浓度对复合镀层微观形貌、组织结构、显微硬度和摩擦性能的影响。结果表明:镀液中添加纳米SiC后,Ni/MoS₂复合镀层的微观形貌产生明显的变化,随镀液中SiC浓度的增加,复合镀层表面致密度提高;镀液中纳米SiC浓度在1.0~1.5g/L时,组织由Ni+MoS₂+SiC组成;纳米SiC为1.5g/L时,显微硬度达到最大,为505HV,摩擦因数为0.28,分别为纯Ni/MoS₂的1.6倍和1/2。复合镀层的磨损机制以磨料磨损为主。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	王红星
	谈淑咏
	柳秉毅
	沈彤

关键词 ： Ni/MoS₂基复合镀层, 纳米SiC, 耐磨性能

Abstract：

Ni/MoS₂ based composite coatings containing nano-SiC particles was prepared by doublepulse electrodepositing in Watts nickel plating solution. The effect of content of nano-SiC in the solution on the micro morphology, microstructure, hardness and friction properties of coating was investigated. The results show that the micro morphology of Ni/MoS₂ composite coating changes obviously after adding nano-SiC particles in electrolyte, the density of the coating surface increases with the increasing of the concentration of nano-SiC particles in electrolyte,the microstructure of coatings is mainly composed of nickel,MoS₂ and SiC,when the content of nano-SiC ranging from 1.0-1.5g/L, the hardness of composite coatings increased with increasing the content of nano-SiC in electrolyte, when nano-SiC is 1.5g/L in electrolyte, the microhardness of coating reaches the maximum value of 505 HV and the friction coefficient of coating is 0.28,which is about 1.6 times and 1/2 of pure Ni/MoS₂ composite coating respectively;and the wear mechanism of coatings is mainly abrasive wear .

Key words： Ni/MoS₂ base composite coating nano-SiC wear resistance

收稿日期: 2014-09-04 出版日期: 2015-10-17

基金资助:青年科学基金项目(51301087);南京工程学院资助项目(CKJB201205,201411276024Y)

通讯作者: 王红星 E-mail: wanghx@njit.edu.cn

作者简介: 王红星(1971-),男,博士,副教授,主要从事复合材料制备及性能研究,联系地址:南京工程学院材料工程学院(211167),E-mail: wanghx@njit.edu.cn

引用本文:

王红星, 谈淑咏, 柳秉毅, 沈彤. 纳米SiC浓度对Ni/纳米MoS₂基复合镀层结构和耐磨性能的影响[J]. 材料工程, 2015, 43(10): 60-65.
Hong-xing WANG, Shu-yong TAN, Bing-yi LIU, Tong SHEN. Effect of Nano-SiC Content on Microstructure and Wear Resistance of Ni/Nano-MoS₂ Based Composite Coating. Journal of Materials Engineering, 2015, 43(10): 60-65.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2015.10.010 或 http://jme.biam.ac.cn/CN/Y2015/V43/I10/60

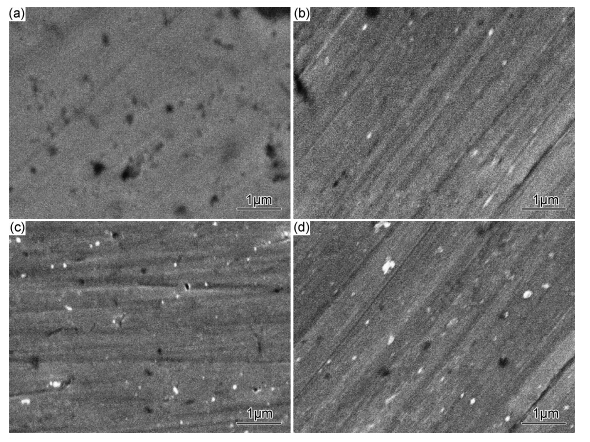

Fig.1 镀液中不同SiC浓度时复合镀层的微观形貌
(a)未添加；(b)0.5g/L；(c)1.0g/L；(d)1.5g/L

Fig.2 复合镀层的截面微观形貌
(a)未添加；(b)0.5g/L；(c)1.0g/L；(d)1.5g/L

Fig.3 镀液中不同SiC浓度时复合镀层XRD图谱
(a)未添加；(b)0.5g/L；(c)1.0g/L；(d)1.5g/L

Fig.4 镀液中 SiC浓度对复合镀层硬度的影响

Fig.5 摩擦因数随时间变化的曲线

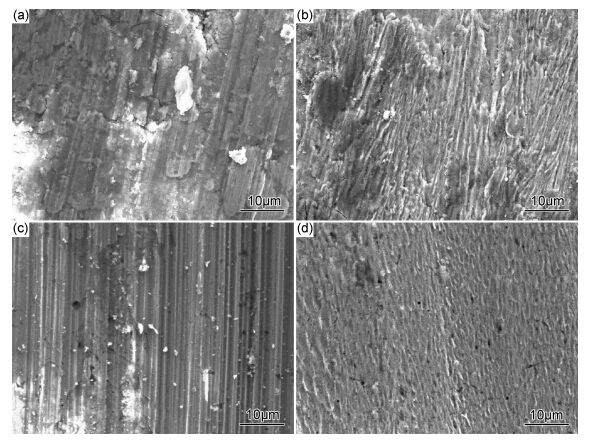

Fig.6 镀液中添加不同浓度SiC的复合镀层磨痕形貌
(a)未添加；(b)0.5g/L；(c)1.0g/L；(d)1.5g/L

1	ALIREAZIE S, MONIRVAGHEFI S M, SALEHI M, et al Wear behavior of Ni-P and Ni-P-Al2O3 electroless coatings[J]. Wear, 2007, 262, 978- 985.
2	CHEN L, WANG L P, ZENG Z X, et al. Influence of pulse frequency on the microstructure and wear resistance of electrodeposited Ni-Al2O3 composite coatings[J]. Surface and Coatings Technology 2006, 201 (3-4): 599-605.
3	FENG Q Y, LI T J, YUE H Y, et al Preparation and characterization of nickel nano-Al2O3 composite coatings by sediment co-deposition[J]. Applied Surface Science, 2008, 254 (8): 2262- 2268.
4	POMPEI E, MAGAGNIN L, LECIS N, et al. Electrodeposition of nickel-BN composite coatings[J]. Electrochimica Acta 2009, 54 (9): 2571-2574.
5	LOW C T J, WILLS R G A, WALSH F C Electrodeposition of composite coatings containing nanoparticles in a metal deposit[J]. Surface and Coatings Technology, 2006, 201 (1-2): 371- 383.
6	HACHEMI B T, ABDELOUAHED C, SAÂD R Microhardness and corrosion behavior of Ni-SiC electrodeposited coatings in presence of organic additives[J]. Surface and Coatings Technology, 2011, 205 (Suppl2): 161- 164.
7	GVL H, UYSAL F K M, ASLAN S, et al Effect of particle concentration on the structure and tribological properties of submicron particle SiC reinforced Ni metal matrix composite (MMC) coatings produced by electrodeposition[J]. Applied Surface Science, 2012, 258 (10): 4260- 4267.
8	BALARAJU J N, EZHIL S V, RAJAM K S Electrochemical behavior of low phosphorus electroless Ni-P-Si3N4 composite coatings[J]. Materials Chemistry and Physics, 2010, 120 (2-3): 546- 551.
9	KARBASI M, YAZDIAN N, VAHIDIAN A Development of electro-co-deposited Ni-TiC nano-particle reinforced nanocomposite coatings[J]. Surface and Coatings Technology, 2012, 207, 587- 593.
10	ZHAO Q, LIU Y, ABEL E W Effect of Cu content in electroless Ni-Cu-P-PTFE composite coatings on their anti-corrosion properties[J]. Materials Chemistry and Physics, 2004, 8 (7): 332- 335.
11	LIEW K W, CHIA S Y, KOK C K, et al Evaluation on tribological design coatings of Al2O3, Ni-P-PTFE and MoS2 on aluminium alloy 7075 under oil lubrication[J]. Materials and Design, 2013, 48, 77- 84.
12	CARDINAL M F, CASTRO P A, BAXI J, et al Characterization and frictional behavior of nanostructured Ni-W-MoS2 composite coatings[J]. Surface and Coatings Technology, 2009, 204 (1-2): 85- 90.
13	GARCIA L E, GARCIA U I, DIEZ J A, et al Codeposition of inorganic fullerene-like WS2 nanoparticles in an electrodeposited nickel matrix under the influence of ultrasonic agitation[J]. Electrochimica Acta, 2013, 114, 859- 867.
14	WU Y T, LIU H Z, SHEN B, et al. The friction and wear of electroless Ni-P matrix with PTFE and/or SiC particles composite[J]. Tribology International 2006, 39 (6): 553-559.
15	HYANG Y S, ZENG X T, ANNERGREN I, et al Development of electroless NiP-PTFE-SiC composite coating[J]. Surface and Coatings Technology, 2003, 167 (2-3): 207- 211.
16	WANG Z J, WU L N, QI Y L, et al Self-lubricating Al2O3/PTFE composite coating formation on surface of aluminium alloy[J]. Surface and Coatings Technology, 2010, 204 (20): 3315- 3318.
17	HUANG Z J, XIONG D S MoS2 coated with Al2O3 for Ni- MoS2/Al2O3 composite coatings by pulse electrodepositon[J]. Surface and Coatings Technology, 2008, 202 (14): 3208- 3214.
18	王兰, 邵红红, 陈康敏, 等 Ni-P-SiC-MoS2复合镀层结构与性能研究[J]. 腐蚀与防护, 2006, 27 (6): 334- 337.
18	WANG Lan, SHAO Hong-hong, CHEN Kang-min, et al Structure and performance of electroless composite Ni-P-SiC-MoS2 plating[J]. Corrosion and Protection, 2006, 27 (6): 334- 337.
19	丁元柱, 王研纳米SiC-MoS2/Ni基复合电刷镀层组织与耐磨性能[J]. 材料开发与应用, 2010, 25 (6): 44- 47.
19	DING Yuan-zhu, WANG Yan Microstructure and wear resistance of nano-SiC-MoS2/Ni electro-brush plating composite coating[J]. Development and Application of Materials, 2010, 25 (6): 44- 47.
20	王红星, 杨少锋, 柳秉毅, 等料浆包渗温度对渗Si层组织结构和性能的影响[J]. 材料工程, 2013, (2): 69- 73.
20	WANG Hong-xing, YANG Shao-feng, LIU Bing-yi, et al Effect of packing temperature on micro structure and properties of siliconized coating[J]. Journal of Materials Engineering, 2013, (2): 69- 73.
21	HUANG Z J, XIONG D S MoS2 coated with Al2O3 for Ni-MoS2 /Al2O3 composite coatings by pulse electro-deposition[J]. Surface and Coatings Technology, 2008, 202 (14): 3208- 3214.

[1]	赵龙志, 刘武, 刘德佳, 赵明娟, 张坚. SiC含量对激光熔覆SiC/Ni60A复合涂层显微组织和耐磨性能的影响[J]. 材料工程, 2017, 45(3): 88-94.
[2]	王红星, 毛向阳, 沈彤, 张月. 纳米TiC颗粒对Ni-TiC复合镀层组织与性能的影响[J]. 材料工程, 2017, 45(1): 52-57.
[3]	刘慧敏, 杨树青, 许萍, 李进福. 原位Al₂O_3P/7075复合材料微观组织与磨损行为[J]. 材料工程, 2012, 0(11): 1-5.
[4]	许乔瑜, 何伟娇. 非晶态Ni-P-ZrO₂复合镀层的耐磨性能[J]. 材料工程, 2010, 0(12): 61-65.
[5]	林新志, 马旭梁. B添加对TiC/Ti6Al4V复合材料组织和耐磨性能的影响[J]. 材料工程, 2009, 0(8): 6-9.
[6]	张辉, 刘荣立. 涤纶织物纳米SiC化学复合镀镍磷[J]. 材料工程, 2008, 0(5): 62-65.
[7]	程秀, 揭晓华, 蔡莲淑, 卢国辉, 谢光荣. Ni-P-SiC(纳米)化学复合镀层的组织与性能[J]. 材料工程, 2006, (1): 43-46,56.
[8]	赵玉珍, 王维斌, 史耀武, 沈莲. 高碳高合金钢的激光表面熔凝处理的耐磨性研究[J]. 材料工程, 2003, 0(2): 37-40.
[9]	陈沙鸥, 郭小龙, 戚凭, 潘秀宏, 张玉军, 王昕, 尹衍升. 纳米SiC颗粒对Al₂O₃基体中ZrO₂约束稳定的影响[J]. 材料工程, 2002, 0(7): 16-19.

Viewed

Full text

Abstract

Cited

Shared

Discussed
