含Ni夹杂的纳米晶Cu基体力学性能分子动力学模拟

doi:10.11868/j.issn.1001-4381.2016.000050

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(7999 KB)

HTML ( 18 )
输出: BibTeX | EndNote (RIS)

摘要

通过拉伸加载的方式研究以Cu为基体、Ni为夹杂的Cu/Ni纳米晶薄膜的力学性能，以及夹杂尺寸、形状对薄膜屈服强度的影响。基于原子嵌入势函数，运用分子动力学方法分析夹杂与位错的相互作用。结果表明：Ni夹杂的引入降低了材料的屈服强度；而在塑性变形阶段依靠界面及Ni原子间较强的相互作用力，夹杂能够阻碍位错的传播，起到强化作用。对于正方形、横置矩形、圆形和竖置矩形的夹杂，当横截面积为6.9nm²时，薄膜的屈服强度接近；当横截面积为15.7nm²时，含横置矩形夹杂的薄膜具有最大屈服强度，为7.41MPa；当横截面积为3.1nm²时，含圆形夹杂的薄膜具有最大屈服强度，为6.93MPa。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	张岩
	肖万伸

关键词 ：分子动力学, 位错, 屈服强度, 强化作用

Abstract：

The mechanical properties of Cu/Ni film composed of substrate Cu and impurity Ni, and the influence of impurity sizes and shapes on yield strength was studied under tensile loading. Based on the embedded-atom-method potential, molecular dynamics simulations were carried out to analyze the interactions between the impurity and dislocations. The results show that the introduction of impurity Ni decreases the yield strength of the nano-crystalline. However, the impurity hinders the movement of dislocations because of the interface between Cu and Ni, and it strengthens the substrate due to the strong interaction force of Ni in the plastic deformation stage. The films with the shape of square, transverse rectangular, circular and vertical rectangular impurities have similar yield strengths at the cross-sectional size 6.9nm²; if the cross-sectional size is 15.7nm², the film with transverse rectangular impurity has the largest yield strength 7.41MPa; at the cross-sectional size 3.1nm², film with circular impurity has the highest yield strength 6.93MPa.

Key words： molecular dynamics(MD) dislocation yield strength strengthening effect

收稿日期: 2016-01-12 出版日期: 2018-04-14

中图分类号:

TB31

通讯作者: 肖万伸 E-mail: xwshndx@126.com

作者简介: 肖万伸(1959-), 男, 教授, 博士, 主要从事微观力学、复合材料损伤断裂、智能材料等方面研究工作, 联系地址:湖南省长沙市岳麓区湖南大学机械与运载工程学院(410082), E-mail:xwshndx@126.com

引用本文:

张岩, 肖万伸. 含Ni夹杂的纳米晶Cu基体力学性能分子动力学模拟[J]. 材料工程, 2018, 46(4): 104-110.
Yan ZHANG, Wan-shen XIAO. Molecular Dynamics Simulations on Mechanical Properties of Substrate Cu with Impurity Ni. Journal of Materials Engineering, 2018, 46(4): 104-110.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.000050 或 http://jme.biam.ac.cn/CN/Y2018/V46/I4/104

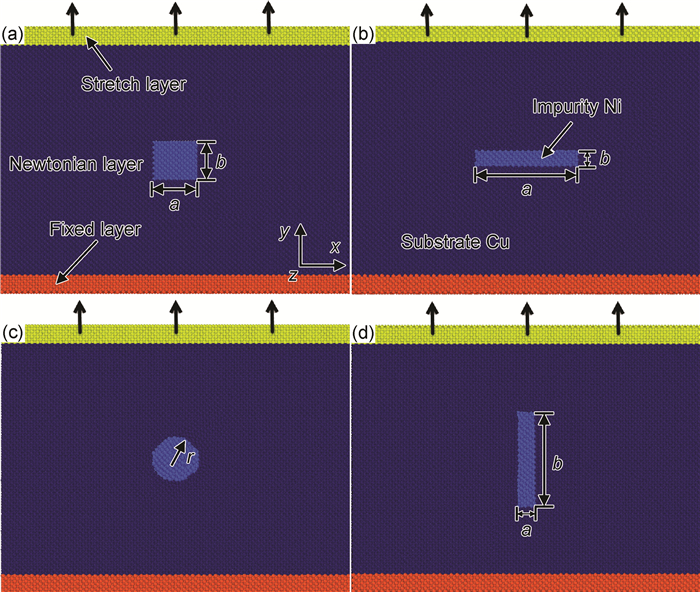

Fig.1 含有Ni夹杂的Cu基体拉伸仿真模型
(a)正方形；(b)横置矩形；(c)圆形；(d)竖置矩形

Table 1 分子动力学模拟中夹杂的尺寸参数

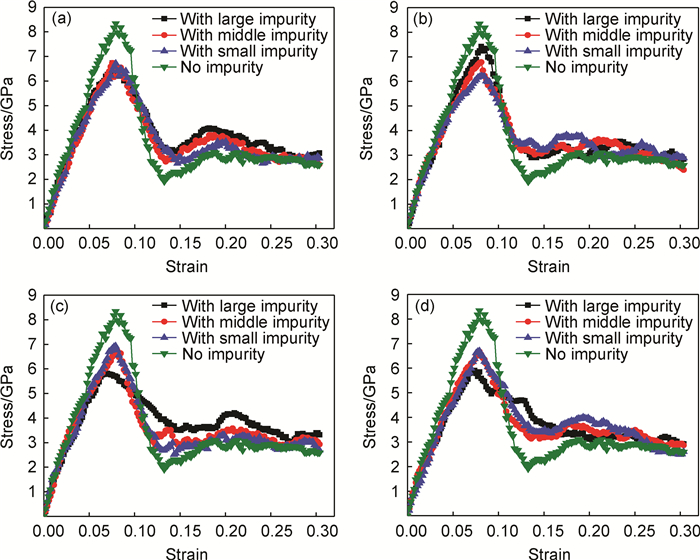

Fig.2 含夹杂的纳米晶基体拉伸应力-应变曲线
(a)正方形；(b)横置矩形；(c)圆形；(d)竖置矩形

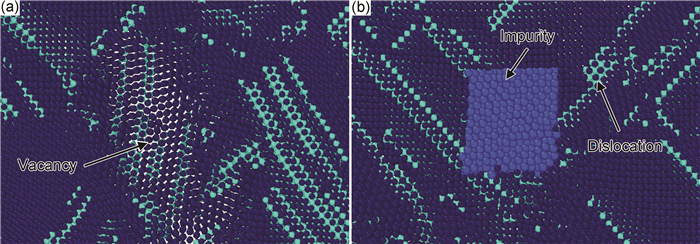

Fig.3 纳米晶拉伸应变ε=0.18时不含夹杂 (a)与含正方形夹杂(b)纳米晶在中心区域变形对比图

Fig.4 初始弹性阶段位错的形核

Fig.5 传播过程中位错与夹杂及界面的相互作用
(a)位错向夹杂方向传播；(b)传播方向的改变

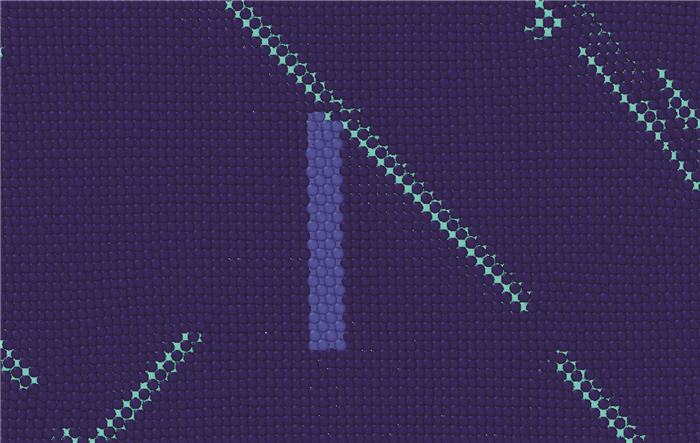

Fig.6 拉伸达到屈服点时竖置矩形夹杂与位错的相互作用

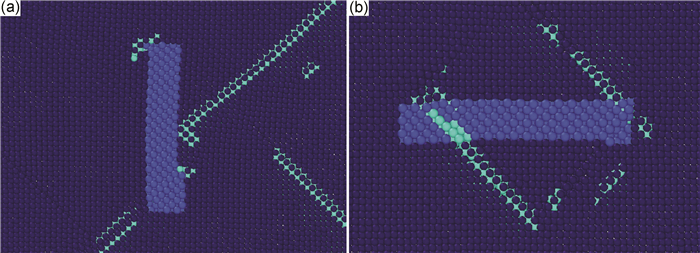

Fig.7 沿x-[100]方向拉伸纳米晶时屈服点夹杂与位错的相互作用
(a)竖置矩形夹杂；(b)横置矩形夹杂

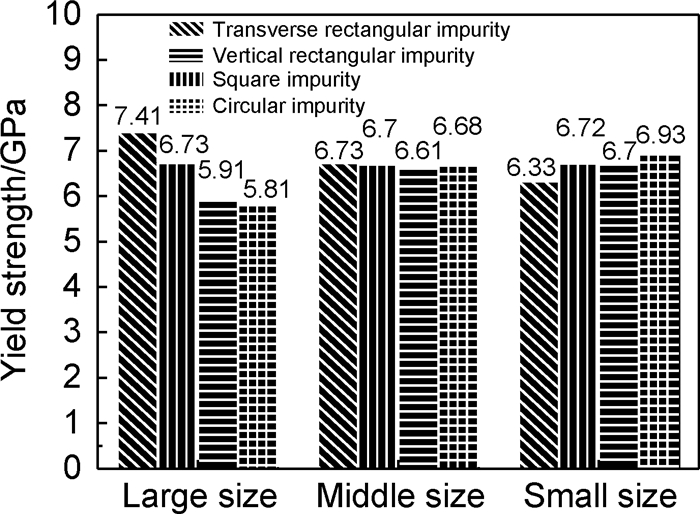

Fig.8 含同一尺寸、不同形状夹杂的纳米晶的屈服强度对比

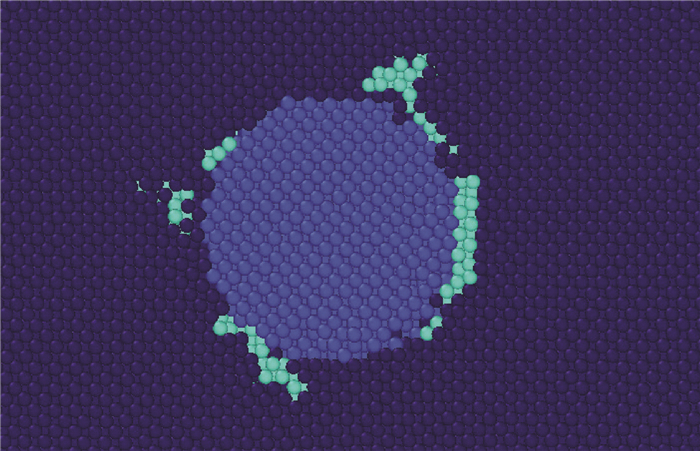

Fig.9 弹性阶段应变ε=0.06时圆形夹杂的位错示意图
