紫铜/Al2O3陶瓷/不锈钢复合结构钎焊接头残余应力研究
刘多1,2,*(), 刘景和2, 周英豪1, 宋晓国1,2, 牛红伟2, 冯吉才1,2
1 哈尔滨工业大学 先进焊接与连接国家重点实验室, 哈尔滨 150001
2 哈尔滨工业大学(威海) 山东省特种焊接技术重点实验室, 山东 威海 264209
Research on Residual Stress in Copper/Al2O3 Ceramic/Stainless Steel Composite Structure Brazed Joint
Duo LIU1,2,*(), Jing-he LIU2, Ying-hao ZHOU1, Xiao-guo SONG1,2, Hong-wei NIU2, Ji-cai FENG1,2
1 State Key Laboratory of Advanced Welding and Joining, Harbin Institute of Technology, Harbin 150001, China
2 Shandong Provincial Key Laboratory of Special Welding Technology, Harbin Institute of Technology at Weihai, Weihai 264209, Shandong, China
全文: PDF(3520 KB)   HTML ( 25 )
输出: BibTeX | EndNote (RIS)       背景资料
文章导读
摘要

采用有限元数值模拟的方法研究AgCuTi钎焊紫铜/Al2O3陶瓷/不锈钢复合结构的形变和残余应力分布情况,并对模拟结果进行实验验证。结果表明:残余应力主要分布在接头区,并且该区形变较小。陶瓷端的残余应力对接头性能影响较大,由于线膨胀系数差异过大,不锈钢陶瓷侧易产生裂纹缺陷,接头倾向于在该区域断裂,紫铜侧陶瓷端TiO反应层的形成导致该区域裂纹的出现,降低了接头的性能。研究各应力分量对最终残余应力的贡献,结果显示环向应力和轴向应力在陶瓷端所产生的拉应力是造成接头强度降低的主要因素。接头拉剪实验表明,接头主要在靠近不锈钢侧的陶瓷端断裂,验证了模拟结果的准确性。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
刘多
刘景和
周英豪
宋晓国
牛红伟
冯吉才
关键词 紫铜/氧化铝陶瓷/不锈钢复合结构钎焊形变残余应力有限元数值模拟
Abstract

The distribution of deformation and residual stress in copper/Al2O3 ceramic/stainless steel brazed joint was investigated by means of finite element numerical simulation. Brazing experiments were conducted to verify the accuracy of simulation results. The results show that residual stress is mainly distributed in the joint area where the deformation is not obvious. Residual stress at the ceramic side has a significant effect on properties of the joints. The fracture tends to occur in the ceramic near stainless steel due to the mismatch of their linear expansion coefficients. The brazed joints may also crack in the ceramic at copper side when TiO reaction layer is formed, and the mechanical properties of the joint are reduced. The contribution of stress component to final residual stress was also analyzed. The tension stress generated by hoop stress and axial stress is the principle factor which decreases the properties of brazed joint. The brazing specimens mainly fracture in the ceramic side near stainless steel, and the accuracy of simulation has been proved by brazing experiments.

Key wordscopper/Al2O3 ceramic/stainless steel composite structure    brazing    deformation    residual stress    finite element numerical simulation
收稿日期: 2016-04-24      出版日期: 2018-03-20
中图分类号:  TG454
基金资助:国家自然科学基金(51505105);山东省自然科学基金(ZR2014EEQ001)
通讯作者: 刘多     E-mail: liuduo0376@163.com
作者简介: 刘多(1982-), 女, 副教授, 从事异种材料连接研究工作, 联系地址:山东省威海市文化西路2号材料学院(264200), E-mail: liuduo0376@163.com
引用本文:
刘多, 刘景和, 周英豪, 宋晓国, 牛红伟, 冯吉才. 紫铜/Al2O3陶瓷/不锈钢复合结构钎焊接头残余应力研究[J]. 材料工程, 2018, 46(3): 61-66.
Duo LIU, Jing-he LIU, Ying-hao ZHOU, Xiao-guo SONG, Hong-wei NIU, Ji-cai FENG. Research on Residual Stress in Copper/Al2O3 Ceramic/Stainless Steel Composite Structure Brazed Joint. Journal of Materials Engineering, 2018, 46(3): 61-66.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.000484      或      http://jme.biam.ac.cn/CN/Y2018/V46/I3/61
Al2O3 SiO2 Fe2O CaO MgO BaO
>99.08 0.10 0.13 0.10 0.10 0.26
Table 1  Al2O3陶瓷的化学成分(质量分数/%)
Cu Bi Sb As Fe S
>99.5 0.001 0.002 0.002 0.005 0.005
Table 2  T2紫铜的化学成分(质量分数/%)
Fe C Mn P S Si Cr Ni
Bal 0.08 2 0.045 0.03 1 18-20 8-11
Table 3  304不锈钢的化学成分(质量分数/%)
Material Linear expansion coefficient/(10-6K-1) Yield strength/MPa
Al2O3 10.0 -
T2 copper 17.7 67
304 stainless steel 16.0 206
AgCuTi filler 19.0 230
Table 4  母材的力学性能
Fig.1  钎焊试样装配示意图

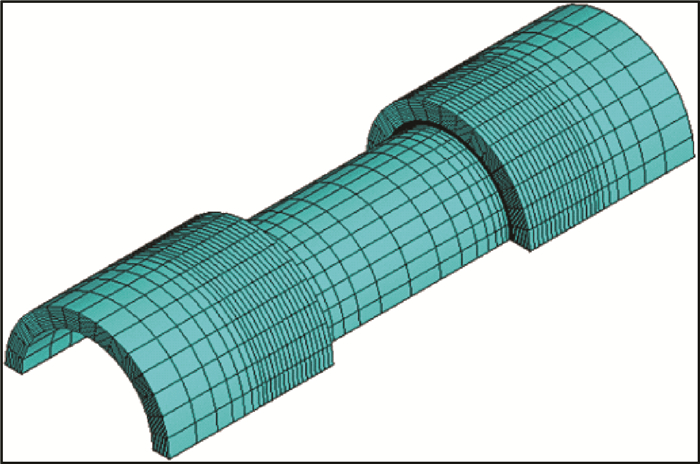

Fig.2  钎焊试样三维有限元网格
Fig.3  试样钎焊后的形变分布
Fig.4  接头区等效应力分布图
Fig.5  陶瓷端沿轴向残余应力分布曲线
Fig.6  金属端沿轴向等效应力分布曲线
Fig.7  钎缝区沿轴向等效应力分布曲线
Fig.8  X-Y截面上沿径向应力分布曲线
Fig.9  紫铜/Al2O3陶瓷/不锈钢钎焊接头的SEM图
(a)Al2O3陶瓷/不锈钢界面; (b)紫铜/Al2O3陶瓷界面;(c)钎料/Al2O3陶瓷界面
Fig.10  实际钎焊试样的断裂位置
