湿热环境下复合材料层板拉-压性能

doi:10.11868/j.issn.1001-4381.2016.000632

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(5440 KB)

HTML ( 31 )
输出: BibTeX | EndNote (RIS) 背景资料

文章导读

摘要

通过对碳纤维环氧复合材料试样进行不同湿热环境下的拉伸和压缩实验，分析其吸湿特性、拉压力学性能、破坏后断口形貌以及动态力学性能，探讨湿热对该复合材料的拉伸和压缩性能的影响。结果表明：碳纤维环氧复合材料的吸湿过程满足Fick定律，饱和吸湿率约为0.86%。吸湿后材料表面变得光滑，有少量纤维拔出和树脂破坏发生，但吸湿后没有发生化学反应和新物质生成。吸湿后在130℃下，复合材料的拉伸性能保持率为96%，而压缩性能保持率仅为69%。吸湿后玻璃化转变温度比干态时下降了33℃。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	许良
	费昺强
	马少华
	回丽
	黄国栋

关键词 ：碳纤维环氧复合材料, 湿热环境, 拉伸和压缩强度, 吸湿量, 破坏模式, 动态力学性能

Abstract：

The tensile and compressive tests on woven carbon fiber epoxy resin composite specimens in different hygrothermal environments were carried out. The moisture absorption, tensile and compressive properties, fracture morphology and dynamic mechanical properties were analyzed. The influence of hygrothermal environments on tensile and compressive properties was investigated. The results show that the absorption process of carbon fiber epoxy composites satisfies Fick's law, and its saturated moisture absorption rate is about 0.86%. After moisture absorption, the surface of specimens becomes smooth, the phenomenon of few fibers pull-out and resin damage occurs, but no chemical reaction and no new substances is generated. After moisture absorption at 130℃, the retention rate of tensile properties is 96%, but the retention rate of compression properties is only 69%. The glass transition temperature of composite laminates after moisture absorption decreases by 33℃ compared with that in dry state.

Key words： carbon fiber epoxy resin composite hygrothermal environment tensile and compress stren-gth moisture absorption failure mode dynamic mechanical property

收稿日期: 2016-05-23 出版日期: 2018-03-20

中图分类号:

TB332

基金资助:辽宁省教育厅项目资助(L201611)

通讯作者: 许良 E-mail: simxu@126.com

作者简介: 许良(1965-), 男, 博士, 副教授, 主要从事航空材料与结构强度方面的研究, 联系地址:辽宁省沈阳市道义南大街37号沈阳航空航天大学机电工程学院(110136), E-mail:simxu@126.com

引用本文:

许良, 费昺强, 马少华, 回丽, 黄国栋. 湿热环境下复合材料层板拉-压性能[J]. 材料工程, 2018, 46(3): 124-130.
Liang XU, Bing-qiang FEI, Shao-hua MA, Li HUI, Guo-dong HUANG. Tensile and Compress Property of Composite Laminate in Hygrothermal Environment. Journal of Materials Engineering, 2018, 46(3): 124-130.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.000632 或 http://jme.biam.ac.cn/CN/Y2018/V46/I3/124

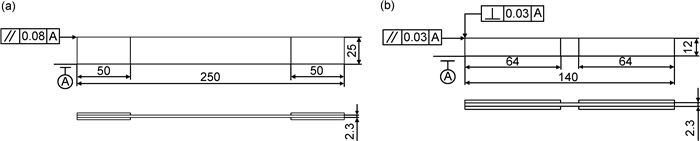

Fig.1 拉伸试样(a)和压缩试样(b)尺寸图

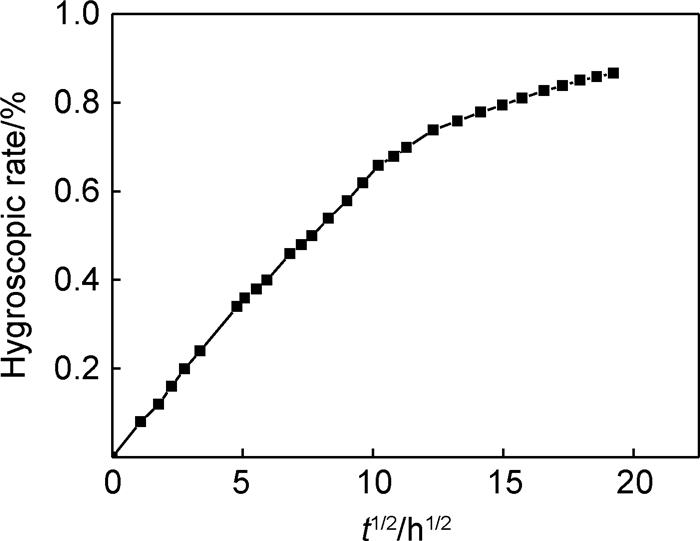

Fig.2 复合材料的吸湿率曲线

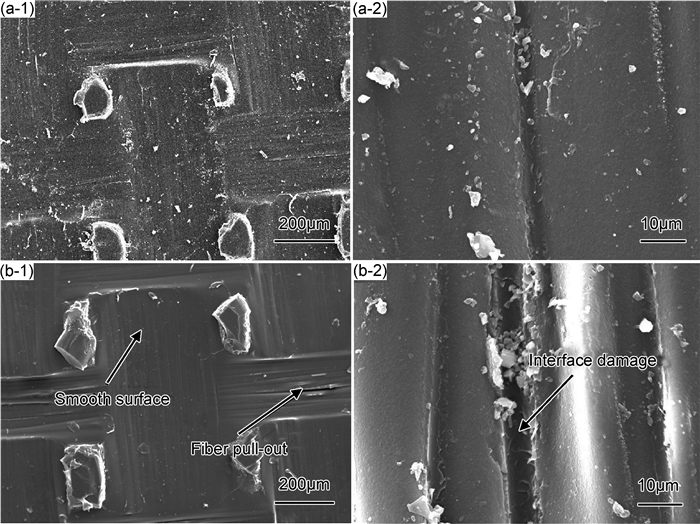

Fig.3 复合材料的表面形貌
(a)干态；(b)湿态；(1)低倍；(2)高倍

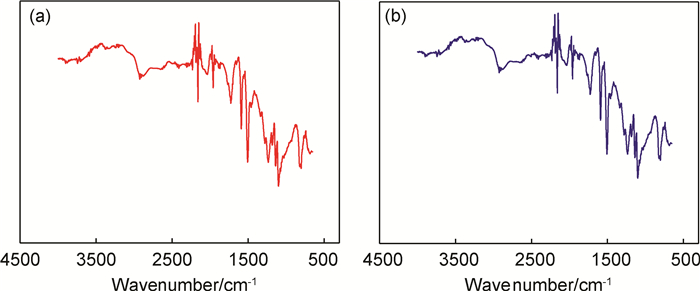

Fig.4 复合材料的FTIR光谱图
(a)干态; (b)湿态

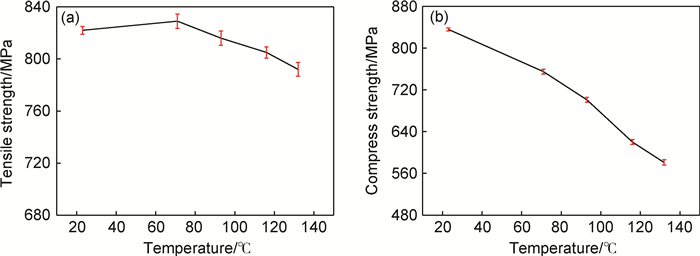

Fig.5 强度和温度的关系
(a)拉伸强度；(b)压缩强度

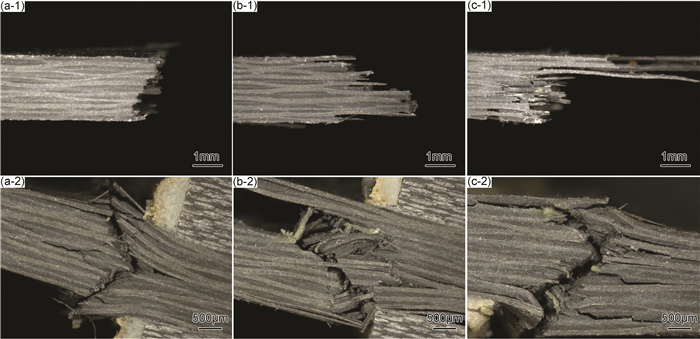

Fig.6 不同温度下干态和湿态的拉伸(1)和压缩(2)断口形貌(a)23℃干态; (b)90℃湿态; (c)130℃湿态

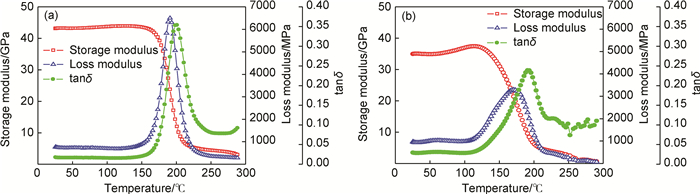

Fig.7 干态(a)和湿态(b)的DMA曲线

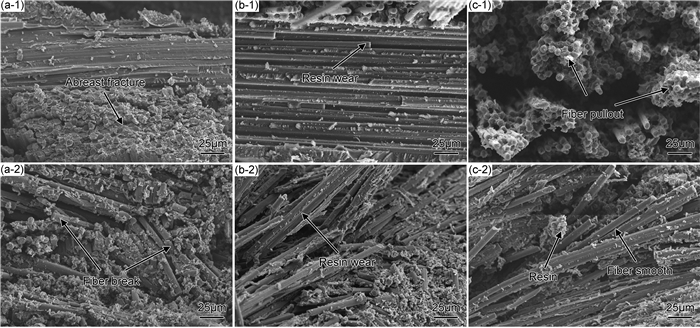

Fig.8 干态和湿态断口的微观形貌
(a)23℃干态；(b)90℃湿态；(c)130℃湿态；(1)拉伸；(2)压缩
