材料工程  2017, Vol. 45 Issue (7): 41-47    DOI: 10.11868/j.issn.1001-4381.2016.000919
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
膨胀石墨/石蜡复合材料的制备及热管理性能
姜贵文, 黄菊花
南昌大学 机电工程学院, 南昌 330031
Preparation and Thermal Management of Expanded Graphite/Paraffin Composite for Li-ion Battery
JIANG Gui-wen, HUANG Ju-hua
School of Mechanical and Electrical Engineering, Nanchang University, Nanchang 330031, China
全文: PDF(3093 KB)   HTML()
输出: BibTeX | EndNote (RIS)

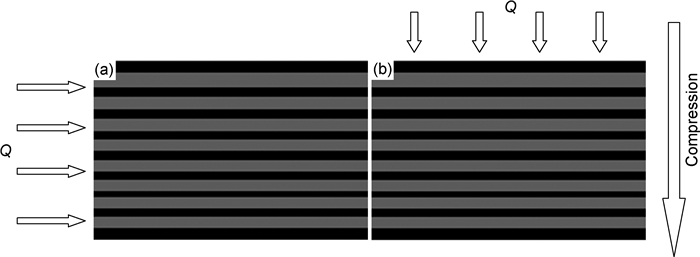

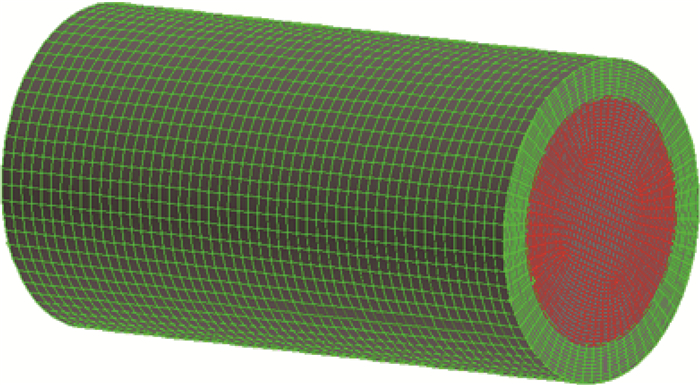

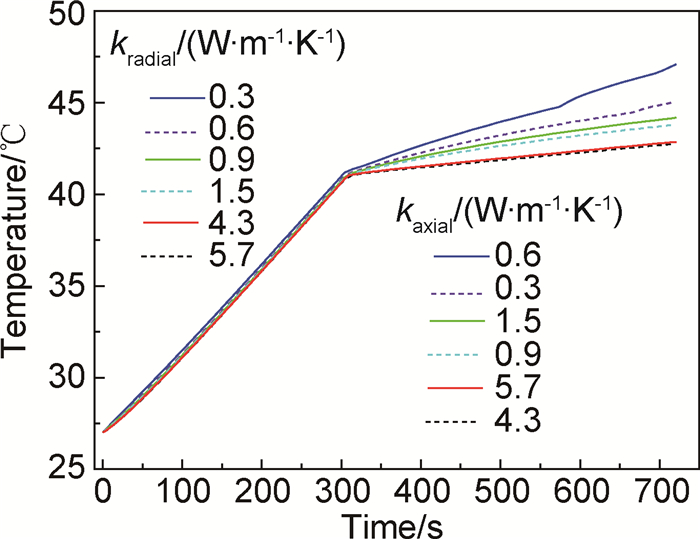

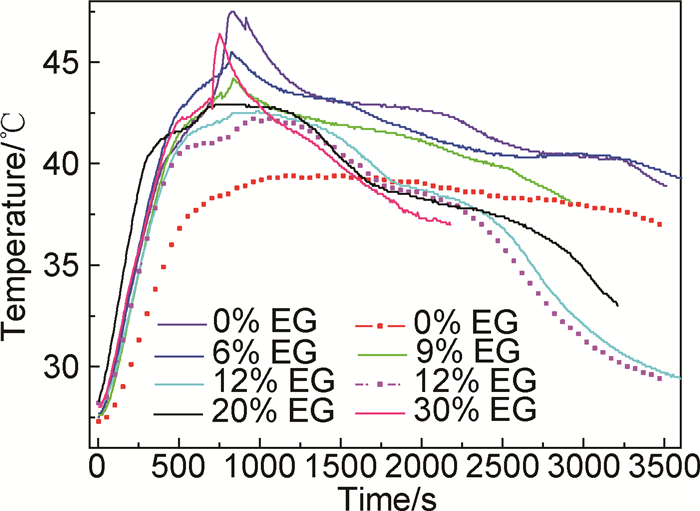

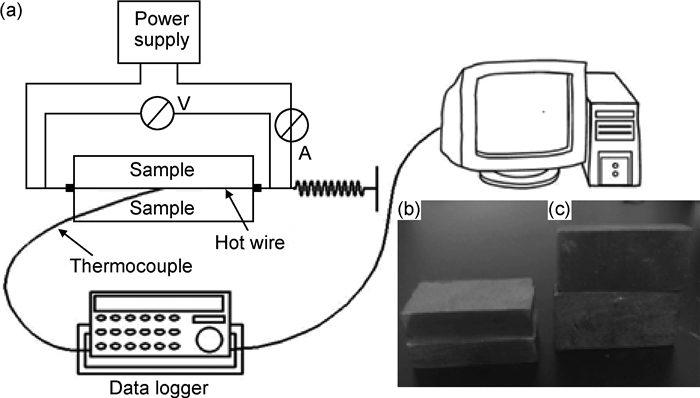

摘要 石蜡作为相变材料(PCM),膨胀石墨(EG)为导热增强剂,制备不同EG含量的膨胀石墨/石蜡(EG/PCM)复合材料。采用瞬态热线法测量样品的导热系数;把EG/PCM应用于锂离子电池热管理,研究不同EG含量的EG/PCM热管理性能;采用ANSYS软件分析EG/PCM的导热系数对锂离子电池热管理的影响。结果表明:EG的加入大幅度提高了PCM的导热系数,EG含量≥9%时,EG/PCM的导热系数呈各向异性;锂离子电池表面温度随EG含量增加而减小,EG(12)/PCM(88)表现出优异的热管理性能;适当地提高EG/PCM的径向导热系数,有利于提高它的热管理性能。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
姜贵文
黄菊花
关键词 PCMEG导热系数热管理锂离子电池
Abstract:A series of expanded graphite (EG)/paraffin composites with various EG contents were prepared for Li-ion battery thermal management, in which paraffin was chosen as PCM and EG as the promoter of thermal conductivity. The thermal conductivity of the samples was measured by a thermal conductivity analyzer based on the transient hot wire method.The effect of EG content in composite on Li-ion battery thermal management was investigated. The thermal management performance of EG/PCM composites with different thermal conductivity was also discussed by software ANSYS. The results show that:EG incorporation dramatically enhances the thermal conductivity of PCM;the thermal conductivity of EG/PCM shows anisotropy, with EG content equaling to or exceeding 9%; The temperature of Li-ion battery surface decreases with an increase in EG content of composite, EG(12)/PCM(88) exhibits excellent thermal management for Li-ion battery.To adequately increase the thermal conductivity of EG/PCM in radial direction is beneficial to improve Li-ion battery thermal management.
Key wordsphase change material    expanded graphite    thermal conductivity    thermal management    Li-ion battery
收稿日期: 2016-07-30      出版日期: 2017-07-21
中图分类号:  TK02
通讯作者: 姜贵文(1978-),男,博士,研究方向:复合相变材料及电池热管理研究,联系地址:江西省南昌市南昌大学前湖校区机电工程学院(330031),E-mail:jgw_cailiao@163.com     E-mail: jgw_cailiao@163.com
引用本文:
姜贵文, 黄菊花. 膨胀石墨/石蜡复合材料的制备及热管理性能[J]. 材料工程, 2017, 45(7): 41-47.
JIANG Gui-wen, HUANG Ju-hua. Preparation and Thermal Management of Expanded Graphite/Paraffin Composite for Li-ion Battery. Journal of Materials Engineering, 2017, 45(7): 41-47.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.000919      或      http://jme.biam.ac.cn/CN/Y2017/V45/I7/41
[1] HOSSAIN R, MAHMUD S, DUTTA A, et al. Energy storage system based on nanoparticle-enhanced phase change material inside porous medium [J]. International Journal of Thermal Sciences, 2015, 91: 49-58.
[2] ZHANG H, BAEYENS J, CÁCERES G, et al. Thermal energy storage: recent developments and practical aspects [J]. Progress in Energy and Combustion Science, 2016, 53: 1-40.
[3] 刘菁伟,杨文彬,谢长琼,等. HDPE/EG/石蜡导热定形相变材料的制备及性能 [J]. 材料工程, 2015, 43(4): 42-46. LIU J W, YANG W B, XIE C Q, et al. Preparation and properties of HDPE/EG/paraffin thermal conducting shape-stabilized phase change material [J]. Journal of Materials Engineering, 2015, 43(4): 42-46.
[4] 高学农, 刘欣, 孙滔, 等. 基于复合相变材料的电子芯片热管理性能研究 [J]. 高校化学工程学报, 2013, 27(2): 187-192. GAO X N, LIU X, SUN T,et al. Research on the thermal management performance of electronic chip with composite phase change material[J]. Journal of Chemical Engineering of Chinese Universities, 2013, 27(2): 187-192.
[5] ALSHAER W G, NADA S A, RADY M A, et al. Numerical investigations of using carbon foam/PCM/nano carbon tubes composites in thermal management of electronic equipment [J]. Energy Conversion and Management, 2015, 89: 873-884.
[6] HALLAJ S A, SELMAN J R. A novel thermal management system for electric vehicle batteries using phase-change material [J]. Journal of the Electrochemical Society, 2000, 147(9): 3231-3236.
[7] KHATEEB S A, FARID M M, SELMAN J R, et al. Design and simulation of a lithium-ion battery with a phase change material thermal management system for an electric scooter [J]. Journal of Power Sources, 2004, 128(2): 292-307.
[8] LI W Q, QU Z G, HE Y L, et al. Experimental study of a passive thermal management system for high-powered lithium ion batteries using porous metal foam saturated with phase change materials [J]. Journal of Power Sources, 2014, 255 (6): 9-15.
[9] 华建社, 张娇, 张焱, 等. 膨胀石墨/石蜡复合相变蓄热材料的热性能及定形性研究 [J]. 材料导报, 2016, 30(12): 61-64. HUA J S, ZHANG J,ZHANG Y, et al. Study on properties and shape-stabilizing expanded graphite/paraffin composite phase change material [J]. Mater REV:Res,2016, 30(12): 61-64.
[10] 胡小冬, 高学农, 李得伦, 等. 石蜡/膨胀石墨定形相变材料的性能 [J]. 化工学报, 2013, 64(10): 3831-3837. HU X D, GAO X N, LI D L, et al. Performance of paraffin/expanded graphite composite phase change material [J]. CIESE Journal, 2013, 64(10): 3831-3837.
[11] MILLS A, AL-HALLAJ S. Simulation of passive thermal management system for lithium-ion battery packs [J]. Journal of Power Sources, 2005, 141 (2): 307-315.
[12] KIZILEL R, LATEEF A, SABBAH R, et al. Passive control of temperature excursion and uniformity in high-energy Li-ion battery packs at high current and ambient temperature [J]. Journal of Power Sources, 2008, 183(1): 370-375.
[13] 刘臣臻, 张国庆, 王子缘, 等. 膨胀石墨/石蜡复合材料的制备及其在动力电池热管理系统中的散热特性 [J]. 新能源进展, 2014, 2(3): 233-238. LIU C Z, ZHANG G Q, WANG Z Y, et al. Preparation of expanded graphite/paraffin composite materials and their heat dissipation characteristics in power eattery thermal management system [J].Advances in New and Renewable Energy, 2014, 2(3): 233-238.
[14] LIN C, XU S, CHANG G, et al. Experiment and simulation of a LiFePO4 battery pack with a passive thermal management system using composite phase change material and graphite sheets [J]. Journal of Power Sources, 2015, 275: 742-749.
[15] LING Z, WANG F, FANG X, et al. A hybrid thermal management system for lithium ion batteries combining phase change materials with forced-air cooling[J]. Applied Energy, 2015, 148: 403-409.
[16] BERNARDI D, PAWLIKOWSKI E, NEWMAN J. A generalenergy balance for battery systems[J]. Journal of the Electrochemical Society, 1985, 132(1): 5-12.
[17] XIA L, ZHANG P, WANG R Z. Preparation and thermal characterization of expanded graphite/paraffin composite phase change material [J]. Carbon, 2010, 48(9): 2538-2548.
[18] LUO J F, YIN H W, LI W Y, et al. Numerical and experimental study on the heat transfer properties of the composite paraffin/expanded graphite phase change material [J]. International Journal of Heat and Mass Transfer, 2015, 84: 237-244.
[19] WANG Z, ZHANG Z, JIA L, et al. Paraffin and paraffin/aluminum foam composite phase change material heat storage experimental study based on thermal management of Li-ion battery [J]. Applied Thermal Engineering, 2015, 78: 428-436.
