基于吸附性能的生物质基多孔活性炭制备方案的响应面法优化

doi:10.11868/j.issn.1001-4381.2016.000979

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(3392 KB)

HTML ( 8 )
输出: BibTeX | EndNote (RIS)

摘要

以废弃核桃壳作为原料，采用微波加热法制备生物质基多孔活性炭。基于响应面法和数值模拟方法研究活性炭前驱体进行物理活化过程中微波功率、活化时间以及磷酸质量分数对生物质基多孔活性炭吸附性能的影响，对生物质基多孔活性炭制备方案进行优化，并对最优条件下制备的生物质基多孔活性炭进行表征。结果表明，3个因素均对生物质基多孔活性炭的吸附性能有影响，其影响显著性为：微波功率>磷酸质量分数>活化时间。优化的制备条件为：微波加热法对活性炭前驱体进行物理活化过程中的微波功率为746W、活化时间为11.2min以及磷酸质量分数为85.9%。优化生物质基多孔活性炭的碘吸附值为1074.57mg/g，亚甲基蓝吸附值为294.4mL/g，获得率为52.1%。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	张浩
	黄新杰
	宗志芳
	刘秀玉

关键词 ：生物质, 多孔活性炭, 响应面法, 吸附性能, 优化制备

Abstract：

With waste walnut shell as raw material, biomass based porous active carbon was made by microwave oven method. The effects of microwave power, activation time and mass fraction of phosphoric acid on adsorptive property of biomass based porous active carbon in the process of physical activation of active carbon precursor were studied by response surface method and numerical simulation method, the preparation plan of biomass based porous active carbon was optimized, and the optimal biomass based porous active carbon property was characterized. The results show that three factors affect the adsorptive property of biomass based porous active carbon, but the effect of microwave power is obviously more significant than that of mass fraction of phosphoric acid, and the effect of mass fraction of phosphoric acid is more significant than that of activation time. The optimized preparation conditions are:microwave power is 746W, activation time is 11.2min and mass fraction of phosphoric acid is 85.9% in the process of physical activation of activated carbon precursor by microwave heating method. For the optimal biomass based porous active carbon, the adsorption value of iodine is 1074.57mg/g, adsorption value of methylene blue is 294.4mL/g and gain rate is 52.1%.

Key words： biomass porous active carbon response surface methodology adsorptive property optimized preparation

收稿日期: 2016-08-16 出版日期: 2017-06-20

中图分类号:

X505

基金资助:国家自然科学基金青年基金资助项目(51206002);高等学校优秀青年人才基金项目(2010SQRL034)

通讯作者: 张浩 E-mail: fengxu19821018@163.com

作者简介: 张浩(1982-), 男, 博士, 副教授, 从事环保型建筑节能材料研究, 联系地址:安徽省马鞍山市雨山区安徽工业大学(东校区)建筑工程学院(243032), E-mail:fengxu19821018@163.com

引用本文:

张浩, 黄新杰, 宗志芳, 刘秀玉. 基于吸附性能的生物质基多孔活性炭制备方案的响应面法优化[J]. 材料工程, 2017, 45(6): 67-72.
Hao ZHANG, Xin-jie HUANG, Zhi-fang ZONG, Xiu-yu LIU. Optimization of Preparation Program for Biomass Based Porous Active Carbon by Response Surface Methodology Based on Adsorptive Property. Journal of Materials Engineering, 2017, 45(6): 67-72.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.000979 或 http://jme.biam.ac.cn/CN/Y2017/V45/I6/67

Table 1 因素及水平

Table 2 响应面实验设计及结果

Table 3 模型的方差分析

Table 4 H的估计回归系数

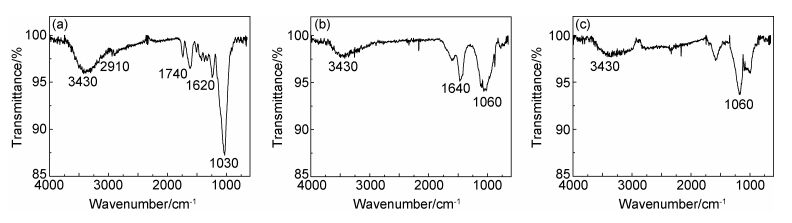

Fig.1 FTIR测试结果
(a)核桃壳；(b)活性炭前躯体；(c)优化生物质基多孔活性炭

Fig.2 SEM测试结果
(a)活性炭前躯体；(b)优化生物质基多孔活性炭

Table 5 孔结构测试结果

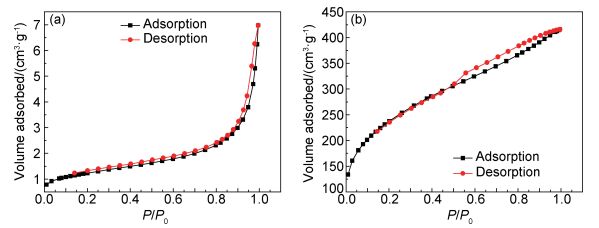

Fig.3 N₂吸脱附等温曲线
(a)活性炭前躯体；(b)优化生物质基多孔活性炭

1	LEE B J , KIM J , HYEON T . Recent progress in the synthesis of porous carbon materials[J]. Advanced Materials, 2006, 18 (6): 2073- 2094.
2	ZHANG X L , ZHANG Y , WANG S S , et al. Effect of activation agents on the surface chemical properties and desulphurization performance of activated carbon[J]. Science China Technological Sciences, 2010, 53 (9): 2515- 2520. doi: 10.1007/s11431-010-4058-5
3	高振华, 邸明伟. 生物质材料及应用[M]. 北京: 化学工业出版社, 2008: 9- 10.
3	GAO Z H , DI M W . Biomass Materials and Applications[M]. Beijing: Chemical Industry Press, 2008: 9- 10.
4	何元渊, 祁彩菊, 仲万军, 等. 核桃壳质负载纳米零价铁吸附废水中的Pb²⁺[J]. 精细化工, 2014, 31 (4): 480- 485.
4	HE Y Y , QI C J , ZHONG W J , et al. A study on the adsorption of Pb²⁺ in wastewater by walnut shell supported-Fe⁰[J]. Fine Chemicals, 2014, 31 (4): 480- 485.
5	KARAIPKLI A , SARI A . Capric-myristic acid/expanded perlite composite as form-stable phase change material for latent heat thermal energy storage[J]. Renewable Energy, 2008, 33 (12): 2599- 2605. doi: 10.1016/j.renene.2008.02.024
6	韩彬, 周美华, 荣达. 稻草秸秆活性炭的制备及其表征[J]. 农业环境科学学报, 2009, 28 (4): 828- 832.
6	HAN B , ZHOU M H , RONG D . Preparation and characterization of activated carbon from rice straw[J]. Journal of Agro-environment Science, 2009, 28 (4): 828- 832.
7	SUN Y , WEBLEY P A . Preparation of activated carbons from corncob with large specific surface area by a variety of chemical activators and their application in gas storage[J]. Chemical Engineering Journal, 2010, 162, 883- 892. doi: 10.1016/j.cej.2010.06.031
8	SUN K , JIANG J C . Preparation and characterization of activated carbon from rubber-seed shell by physical activation with steam[J]. Biomass and Bioenergy, 2010, 34 (4): 539- 544. doi: 10.1016/j.biombioe.2009.12.020
9	ZABIHI M , AHMADPOUR A , ASL A H . Removal of mercury from water by carbonaceous sorbents derived from walnut shell[J]. Journal of Hazardous Materials, 2009, 167 (1-3): 230- 236. doi: 10.1016/j.jhazmat.2008.12.108
10	ZABIHI M , ASL A H , AHMADPOUR A . Studies on adsorption of mercury from aqueous solution on activated carbons prepared from walnut shell[J]. Journal of Hazardous Materials, 2010, 174 (1-3): 251- 256. doi: 10.1016/j.jhazmat.2009.09.044
11	信欣, 何歆, 崔钶, 等. 核桃壳炭化吸附废水中CR(Ⅵ)的性能研究[J]. 环境工程学报, 2010, 4 (10): 2273- 2277.
11	XIN X , HE X , CUI K , et al. Study on capability of hard walnut shell carbonized adsorbing Cr (Ⅵ) in wastewater[J]. Chinese Journal of Enviromental Engineering, 2010, 4 (10): 2273- 2277.
12	尚建丽, 张浩, 熊磊, 等. 基于均匀设计优化制备癸酸-棕榈酸/SiO₂复合相变材料[J]. 材料工程, 2015, 43 (9): 94- 102. doi: 10.11868/j.issn.1001-4381.2015.09.015
12	SHANG J L , ZHANG H , XIONG L , et al. Optimized preparation of decanoic-palmitic acid/SiO₂ composite phase change materials based on uniform design[J]. Journal of Materials Engineering, 2015, 43 (9): 94- 102. doi: 10.11868/j.issn.1001-4381.2015.09.015
13	张浩, 黄新杰, 刘秀玉, 等. 优化制备棕榈醇-棕榈酸-月桂酸/SiO₂复合相变调湿材料[J]. 材料研究学报, 2015, 29 (9): 671- 678. doi: 10.11901/1005.3093.2015.134
13	ZHANG H , HUANG X J , LIU X Y , et al. Optimization for preparation of phase change and humidity control composite materials of hexadecanol-palmitic acid-lauric acid/SiO₂[J]. Chinese Journal of Materials Research, 2015, 29 (9): 671- 678. doi: 10.11901/1005.3093.2015.134
14	王岩, 隋思涟. 试验设计与MATLAB数据分析[M]. 北京: 清华大学出版社, 2012: 57- 61.
14	WAGN Y , SUI S L . Experimental Design and MATLAB Data Analysis[M]. Beijing: Tsinghua University Press, 2012: 57- 61.
15	NAWI N M , KHAN A , REHMAN M Z . A new levenberg marquardt based back propagation algorithm trained with cuckoo search[J]. Procedia Technology, 2013, 11 (1): 18- 23.
16	杨铎. 基于Gauss-Newton法的空间管形拟合算法的研究[J]. 大连大学学报, 2014, 35 (3): 19- 23.
16	YANG D . Space tube-shaped fitting slgorithm based on spatial Gauss-Newton method[J]. Journal of Dalian University, 2014, 35 (3): 19- 23.
