应力载荷作用下5A06铝合金薄板材料在盐水中腐蚀行为

doi:10.11868/j.issn.1001-4381.2016.001446

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(6901 KB)

HTML ( 11 )
输出: BibTeX | EndNote (RIS)

摘要

以铝合金薄板在受载及盐水作用下可能存在的腐蚀加速问题为研究背景，用两点弯曲法探讨1.8mm厚5A06铝合金薄板在50℃的3.5% NaCl溶液中的腐蚀行为，研究发现施加载荷可以促进铝合金薄板材料的腐蚀。对不同腐蚀时期的裂纹形貌、金相组织以及元素成分等进行分析发现：在盐水环境中应力载荷对材料腐蚀的促进体现在与腐蚀程度成正比的关系，受铝合金材料内固溶强化相的影响，材料阳极区优先溶解，形成点蚀坑；另外，应力载荷会导致铝合金薄板表面氧化膜撕裂，并促使腐蚀裂纹扩展。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	马慧媛
	刘慧丛
	石文静
	施丽铭
	李卫平
	朱立群

关键词 ： 5A06铝合金薄板, 应力载荷, 盐水, 两点弯曲, 腐蚀行为

Abstract：

Based on the problem of corrosion acceleration possibly existing in aluminum alloy sheets under the influence of both loading and brine solution, the corrosion behavior of 5A06 aluminum alloy sheets with the thickness of 1.8mm by the two-point bending method in 3.5% NaCl aqueous solution at 50℃ was discussed.It is found that stress actually can promote the speed of corrosion in these aluminum alloy sheets.Crack morphologies, metallurgical structures and elemental compositions in different corrosion periods of these samples were analyzed.The results show:firstly, large stress will cause severe corrosion, which proves that stress can accelerate the corrosion; secondly, the solid solution strengthening phase in aluminum alloy can cause the anode areas preferentially dissolve, resulting in the formation of corrosion pits.Furthermore, stress can result in tearing of oxide film on the aluminum alloy surface, and facilitate corrosion crack propagation.

Key words： 5A06 aluminum alloy sheet stress loading brine solution two-point bending corrosion behavior

收稿日期: 2016-12-02 出版日期: 2018-09-19

中图分类号:

TG172.5

基金资助:国家自然科学基金(51401011)

通讯作者: 石文静,李卫平 E-mail: daizi8429@163.com;liweiping@buaa.edu.cn

作者简介: 李卫平(1972-), 女, 教授, 博士, 从事腐蚀与防护以及功能涂层的研究, 联系地址:北京市海淀区学院路37号北京航空航天大学材料科学与工程学院(100191), E-mail: liweiping@buaa.edu.cn
石文静(1984-), 女, 高级工程师, 博士, 研究方向为航天器结构设计与仿真、结构疲劳可靠性、复合材料, 联系地址:北京市海淀区友谊路102号院31号楼2单元201(100094), E-mail: daizi8429@163.com

引用本文:

马慧媛, 刘慧丛, 石文静, 施丽铭, 李卫平, 朱立群. 应力载荷作用下5A06铝合金薄板材料在盐水中腐蚀行为[J]. 材料工程, 2018, 46(9): 152-159.
Hui-yuan MA, Hui-cong LIU, Wen-jing SHI, Li-ming SHI, Wei-ping LI, Li-qun ZHU. Corrosion Behaviors of 5A06 Aluminum Alloy Sheet Under Stress Loading in Brine Solution. Journal of Materials Engineering, 2018, 46(9): 152-159.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.001446 或 http://jme.biam.ac.cn/CN/Y2018/V46/I9/152

Table 1 5A06铝合金的化学成分(质量分数/%)^[26]

Fig.1 两点弯曲法
(a)预变形试样夹具；(b)尼龙虎钳预应变加载示意图

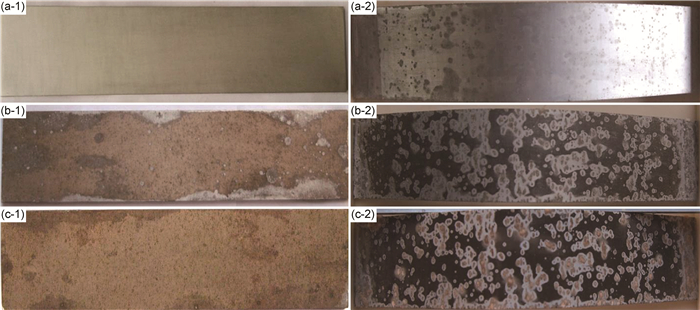

Fig.2 1.8mm厚5A06铝合金试样在无应力载荷下(1)与应力载荷下(2)经过不同时间在盐水中的腐蚀形貌
