材料工程  2018, Vol. 46 Issue (5): 145-150    DOI: 10.11868/j.issn.1001-4381.2016.001542
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
环境协调型Ce-La/TiO2复合材料的制备及光-湿-热性能
宗志芳1, 杨麟2, 张浩1,3, 熊磊2
1. 安徽工业大学 建筑工程学院, 安徽 马鞍山 243032;
2. 广州特种承压设备检测研究院, 广州 510050;
3. 安徽工业大学 冶金减排与资源综合利用教育部重点 实验室, 安徽 马鞍山 243032
Preparation of Environment Coordination Ce-La/TiO2 Composites and Photocatalytic-moisture-heat Properties
ZONG Zhi-fang1, YANG Lin2, ZHANG Hao1,3, XIONG Lei2
1. School of Civil Engineering and Architecture, Anhui University of Technology, Maanshan 243032, Anhui, China;
2. Guangzhou Special Pressure Equipment Inspection and Research Institute, Guangzhou 510050, China;
3. Key Laboratory of Metallurgical Emission Reduction & Resources Recycling (Ministry of Education), Anhui University of Technology, Maanshan 243032, Anhui, China
全文: PDF(1668 KB)   HTML()
输出: BibTeX | EndNote (RIS)

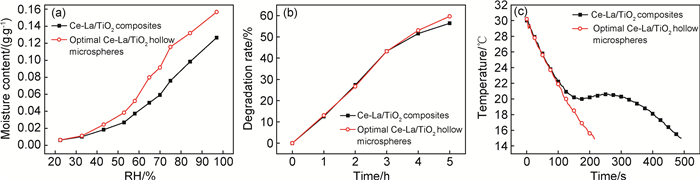

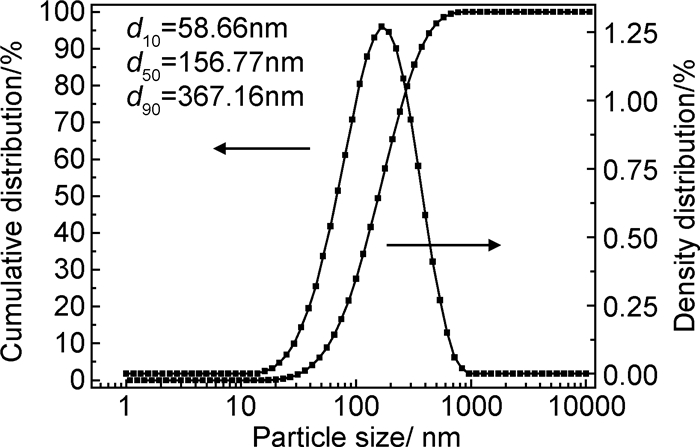

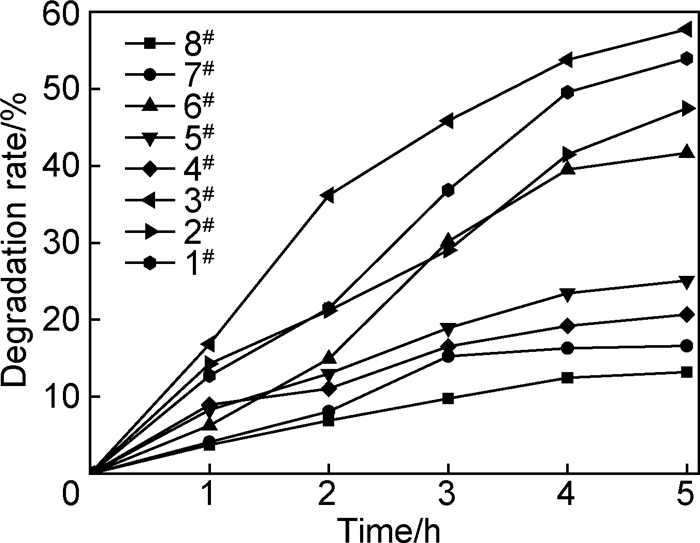

摘要 采用均匀设计和多元非线性回归方程研究Ce-La掺量(Ce-La与钛酸丁酯的摩尔比)、Ce与La摩尔比、煅烧温度和硅酸四乙酯用量(硅酸四乙酯与钛酸丁酯的体积比)对Ce-La/TiO2空心微球的吸放湿性能和光催化性能的影响,以确定优化Ce-La/TiO2空心微球制备参数。将癸酸-棕榈酸采用真空吸附法压入优化Ce-La/TiO2空心微球的空腔中,制备环境协调型Ce-La/TiO2复合材料,分析Ce-La/TiO2复合材料的光-湿-热性能,利用扫描电镜(SEM)与激光粒度仪(LPSA)表征微观形貌与粒径分布。结果表明:4个因素均对Ce-La/TiO2空心微球的吸放湿性能和光催化性能有影响,其影响显著性为:Ce-La掺量 > 硅酸四乙酯用量 > Ce与La物质的量比 > 煅烧温度;优化制备工艺参数为Ce-La掺量为0.76%、Ce与La物质的量比为1.0、煅烧温度为646℃、硅酸四乙酯用量为0.63;Ce-La/TiO2复合材料具有优良的吸放湿性能、光催化性能和相变调温性能,即在相对湿度43.16%~75.29%间的湿容量为0.0576g/g,经过5h的甲醛降解效率为56.37%,从30~15℃降温所需要的时间近500s,具有明显且持续的相变平台。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
宗志芳
杨麟
张浩
熊磊
关键词 Ce-La/TiO2环境协调吸放湿性能光催化性能相变调温性能
Abstract:The uniform experiment design and multivariate nonlinear regression equation were adopted to study the effect of Ce-La dosage (the mole ratio of Ce-La to tetrabutyl titanate), the mole ratio of Ce to La, calcination temperature, and amount of tetraethyl orthosilicate (the volume ratio of tetraethyl orthosilicate to tetrabutyl titanate) on the moisture absorption-desorption and photocatalytic properties of Ce-La/TiO2 hollow microspheres, so as to ensure the optimal preparation parameters of Ce-La/TiO2 hollow microspheres. Then, the decanoic-palmitic acid were pressed into the cavity of the optimal Ce-La/TiO2 hollow microspheres by vacuum absorption to prepare environment coordination Ce-La/TiO2 composite materials and analyze the photocatalytic-mositure-heat properties. The scanning electron microscopy and laser particle size analyzer were used to characterize the microscopic morphology and particle size distribution. The results show that the four factors all have effect on the moisture absorption-desorption and photocatalytic properties of Ce-La/TiO2 hollow microspheres, primary and secondary sequence of each factor is Ce-La dosage > amount of tetraethyl orthosilicate > the mole ratio of Ce to La > calcination temperature. The optimization program is Ce-La dosage 0.76%, the mole ratio of Ce to La is 1.0, calcination temperature 646℃, and amount of tetraethyl orthosilicate 0.63. The Ce-La/TiO2 composites have good moisture absorption-desorption, photocatalytic and phase changing temperature-adjusting properties. Under 43.16%-75.29% relative humidity, the equilibrium humidity content reaches 0.0576g/g,the degradation rate to formaldehyde reaches 56.37% after 5h, the cooling time lasting nearly 500s during 30-15℃, so the Ce-La/TiO2 composites have remarkable and sustainable phase changing platform.
Key wordsCe-La/TiO2    environment coordination    moisture absorption-desorption property    photocatalytic property    phase changing temperature-adjusting
收稿日期: 2016-12-13      出版日期: 2018-05-16
中图分类号:  TU322
通讯作者: 宗志芳(1983-),女,讲师,博士,现从事环保型建筑节能材料研究,联系地址:安徽省马鞍山市安徽工业大学(243032),E-mail:zhifangzong@126.com     E-mail: zhifangzong@126.com
引用本文:
宗志芳, 杨麟, 张浩, 熊磊. 环境协调型Ce-La/TiO2复合材料的制备及光-湿-热性能[J]. 材料工程, 2018, 46(5): 145-150.
ZONG Zhi-fang, YANG Lin, ZHANG Hao, XIONG Lei. Preparation of Environment Coordination Ce-La/TiO2 Composites and Photocatalytic-moisture-heat Properties. Journal of Materials Engineering, 2018, 46(5): 145-150.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.001542      或      http://jme.biam.ac.cn/CN/Y2018/V46/I5/145
[1] WOJDYGA K.An investigation into the heat consumption in a low-energy building[J].Renewable Energy,2009,34(12):2935-2939.
[2] KUZNIK F,VIRGONE J,JOHANNES K.In situ study of thermal comfort enhance mention a renovated building equipped with phase change material wallboard[J].Renewable Energy,2011,36(5):1458-1462.
[3] YANG H,PENG Z,ZHOU Y,et al.Preparation and performances of a novel intelligent humidity control composite material[J].Energy and Buildings,2011,43(2/3):386-392.
[4] 黄子硕,于航,张美玲.建筑调湿材料吸放湿速度变化规律[J].同济大学学报(自然科学版),2014,42(2):310-313.HUANG Z S,YU H,ZHANG M L.Humidity-control materials and their humidity absorption and desorption rate variation[J].Journal of Tongji University (Natural Science),2014,42(2):310-313.
[5] 尚建丽,张浩,熊磊,等.基于傅里叶红外光谱的癸酸-棕榈酸/SiO2相变储湿复合材料制备机理研究[J].光谱学与光谱分析,2016,36(6):1690-1695.SHANG J L,ZHANG H,XIONG L,et al.Study on preparation mechanism of decanoic acid-palmitic acid/SiO2 phase change and humidity storage composite materials by fourier transform infrared spectrum[J].Spectroscopy and Spectral Analysis,2016,36(6):1690-1695.
[6] AVISAR D,HOROVITZ I,LOZZI L,et al.Impact of water quality on removal of carbamazepine in natural waters by N-doped TiO2 photo-catalytic thin film surfaces[J].Journal of Hazardous Materials,2013,244/245:463-471.
[7] 李纲,刘昉,阳启华,等.Si掺杂对TiO2空心微球微结构和光催化性能的影响[J].催化学报,2011,32(2):286-292.LI G,LIU F,YANG Q H,et al.Effect of Si doping on the microstructure and photocatalytic performance of TiO2 hollow microsperes[J].Chinese Journal of Catalysis,2011,32(2):286-292.
[8] 吴青端,曲婕.二氧化钛空心微球的合成及其光电化学性能[J].化学研究,2015,26(3):282-286.WU Q D,QU J.Synthesis and photoelectrochemical properties of TiO2 hollow microspheres[J].Chemical Research,2015,26(3):282-286.
[9] 冯翠珍,周孝清,吴会军.TiO2复合粉体对空调系统菌类的杀抑性实验研究[J].暖通空调,2012,42(12):118-121.FENG C Z,ZHOU X Q,WU H J.Experimental study on bacteria-killing ability of TiO2 composite powders in HVAC system[J].Heating Ventilating&Air Conditioning,2012,42(12):118-121.
[10] ROALES J,PEDROSA J,CANO M,et al.Anchoring effect on (tetra) carboxyphenyl porphyrin/TiO2 composite films for VOC optical detection[J].Rsc Advances,2014,4(4):1974-1981.
[11] 刘阳龙,郑玉婴,尚鹏博.铕掺杂的TiO2的制备及光催化性能[J].无机材料学报,2015,30(7):699-705.LIU Y L,ZHENG Y Y,SHANG P B.Preparation,characterization and photocatalytic property of Eu-doped TiO2 hollow microspheres[J].Journal of Inorganic Materials,2015,30(7):699-705.
[12] 尚鹏博,郑玉婴,冀峰,等.锌离子掺杂的二氧化钛介孔空心微球的制备及光催化性能[J].无机化学学报,2014,30(10):2323-2331.SHANG P B,ZHENG Y Y,JI F,et al.Zinc doped TiO2 mesoporous hollow microspheres:preparation and photocatalytic activity[J].Chinese Journal of Inorganic Chemistry,2014,30(10):2323-2331.
[13] 尚建丽,麻向龙,张磊,等,多孔载体相变材料的热湿综合性能[J].浙江大学学报(工学版),2016,50(5):879-886.SHANG J L,MA X L,ZHANG L,et al.Comprehensive properties of temperature and humidity of porous carrier phase change material[J].Journal of Zhejiang University (Engineering Science),2016,50(5):879-886.
[14] 张浩,黄新杰,刘秀玉,等.优化制备棕榈醇-棕榈酸-月桂酸/SiO2复合相变调湿材料[J].材料研究学报,2015,29(9):671-678.ZHANG H,HUANG X J,LIU X Y,et al.Optimization for preparation of phase change and humidity control composite materials of hexadecanol-palmitic-acid-lauric acid/SiO2[J].Chinese Journal of Materials Research,2015,29(9):671-678.
[15] 尚建丽,张浩,熊磊,等.基于均匀设计优化制备癸酸-棕榈酸/SiO2复合相变材料[J].材料工程,2015,43(9):94-102.SHANG J L,ZHANG H,XIONG L,et al.Optimized preparation of decanoic-palmitic acid/SiO2 composite phase change materials based on uniform design[J].Journal of Materials Engineeing,2015,43(9):94-102.
[16] 王岩,隋思涟.试验设计与MATLAB数据分析[M].北京:清华大学出版社,2012.WANG Y,SUI S L.Experiment design and matlaB analysis[M].Beijing:Tsinghua University Press,2012.
[17] RAO Z H,WANG S F,ZHANG Z G.Energy saving latent heat storage and environment friendly humidity-controlled materials for indoor climate[J].Renewable and Sustainable Energy Reviews,2012,16(5):3136-3145.
[18] NAWI N M,KHAN A,REHMAN M Z.A new levenberg marquardt based back propagation algorithm trained with cuckoo search[J].Procedia Technology,2013,11(1):18-23.
