形变温度对Fe-20Mn-3Cu-1.3C TWIP钢拉伸变形行为的影响

doi:10.11868/j.issn.1001-4381.2016.01.002

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(2970 KB)

HTML ( 70 )
输出: BibTeX | EndNote (RIS)

摘要

运用温控拉伸实验,分析了在-100~200℃范围内变形时形变温度对Fe-20Mn-3Cu-1.3C钢力学性能和形变机理的影响。观察分析了拉伸试样的显微组织,并利用热力学经典模型,估算了温度对孪晶诱发塑性(TWIP)钢层错能的影响。结果表明:随着形变温度的升高,TWIP钢的层错能显著增加,基体中形变孪晶的体积分数逐渐减少,抗拉强度和屈服强度呈下降趋势,而伸长率先升高后降低,塑性变形机制也由孪生为主逐渐转变为以滑移为主。层错能的拟合公式为γ_SFE=26.73+9.38×10^-2T+4.22×10^-4T²-4.47×10^-7T³,与滑移相比,孪生可获得更高的应变硬化率,从而使TWIP钢获得高强度和高塑性。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	王建亭
	周荣生
	王明杰
	朱定一

关键词 ： TWIP钢, 形变温度, 应变硬化率, 孪晶, 层错能

Abstract：

The effect of deformation temperature on the mechanical properties and deformation mechanism of Fe-20Mn-3Cu-1.3C twinning induced plasticity (TWIP) steel when deformed at -100-200℃ was analysed by temperature controlled tensile tests.The microstructure of tensile samples was observed and analysed, and then the effect between stacking fault energy of TWIP steels and deformation temperature was calculated by thermodynamic model. The results show that with the deformation temperature increasing from -100℃ to 200℃, the stacking fault energy of this steel gradually increases, but the volume fraction of twins gradually decreases. The tensile strength and yield strength will gradually decline, while the elongation of this steel firstly increases, then decreases. Furthermore, in this process, the plastic strain mechanism is transformed from twinning to slipping. The stacking fault energy γ_SFE is calculated by the equation γ_SFE=26.73+9.38×10^-2T+4.22×10^-4T²-4.47×10^-7T³. As compared with slipping, the twinning can obtain higher strain hardening rate, which leads to high strength and plasticity of the TWIP steel.

Key words： TWIP steel deformation temperature strain hardening rate twins stacking fault energy

收稿日期: 2015-08-11 出版日期: 2016-01-20

基金资助:福建省高校产学合作科技重大项目(2011H6012);福建省自然科学基金资助项目(2011J01292)

通讯作者: 朱定一 E-mail: zdy7081@163.com

作者简介: 朱定一(1958-),男,教授,博士,主要从事高强高塑性Fe-Mn-Cu-CTWIP钢的性能与组织的研究和材料的表面与界面张力的表征与计算研究,联系地址:福建省福州市上街镇学园路2号福州大学旗山校区材料科学与工程学院(350108)E-mail:zdy7081@163.com

引用本文:

王建亭, 周荣生, 王明杰, 朱定一. 形变温度对Fe-20Mn-3Cu-1.3C TWIP钢拉伸变形行为的影响[J]. 材料工程, 2016, 44(1): 11-18.
Jian-ting WANG, Rong-sheng ZHOU, Ming-jie WANG, Ding-yi ZHU. Effect of Deformation Temperature on Tensile Deformation Behavior of Fe-20Mn-3Cu-1.3C TWIP Steel. Journal of Materials Engineering, 2016, 44(1): 11-18.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.01.002 或 http://jme.biam.ac.cn/CN/Y2016/V44/I1/11

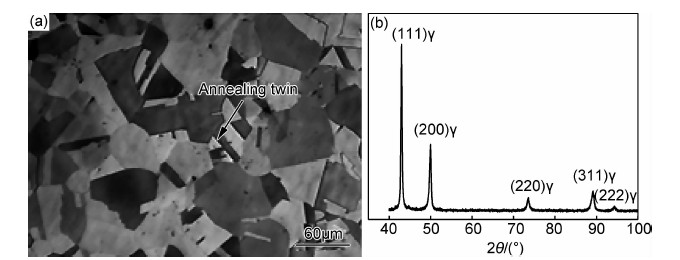

Fig.1 Fe-20Mn-3Cu-1.3C TWIP钢固溶处理后的金相组织
(a)及XRD谱图(b)

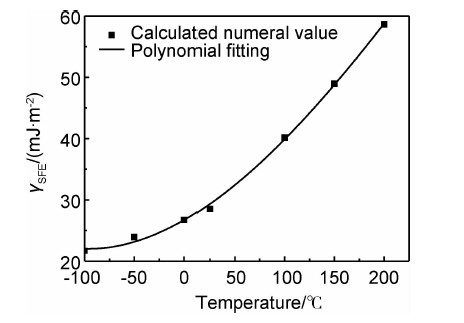

Fig.2 Fe-20Mn-3Cu-1.3C TWIP钢层错能随温度的变化曲线

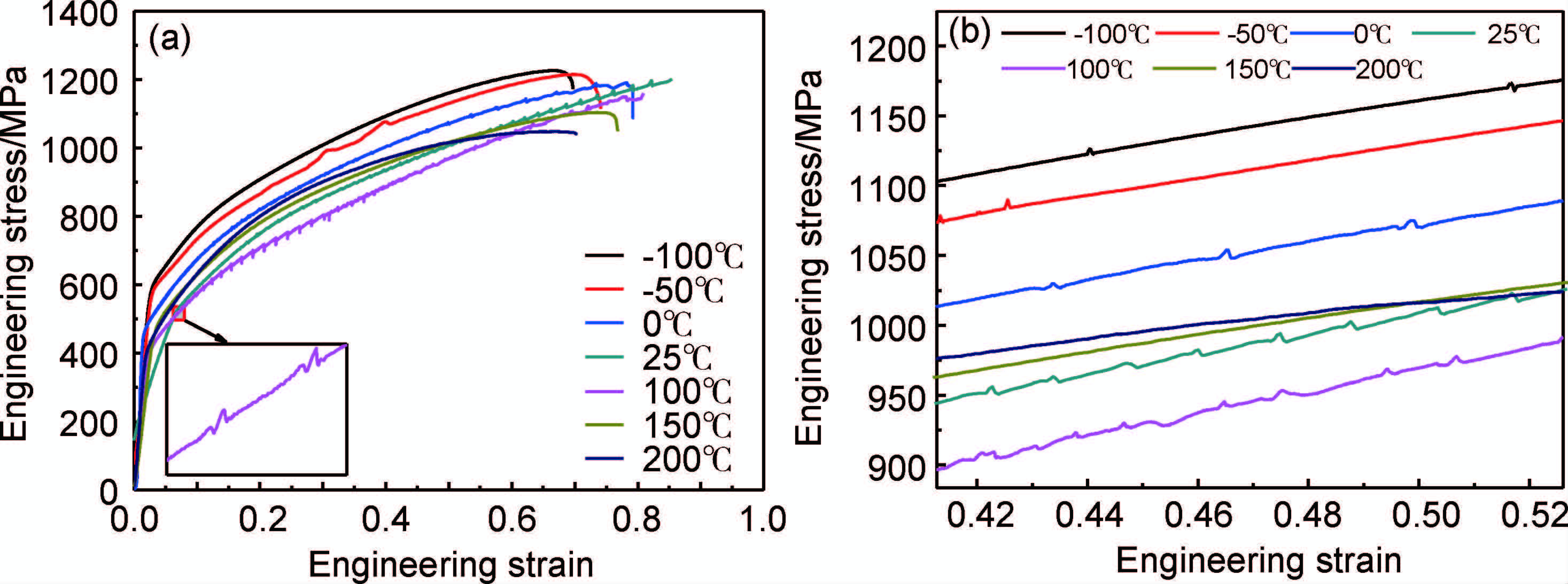

Fig.3 Fe-20Mn-3Cu-1.3C TWIP钢在不同温度拉伸变形时的工程应力-应变曲线(a)及放大图(b)

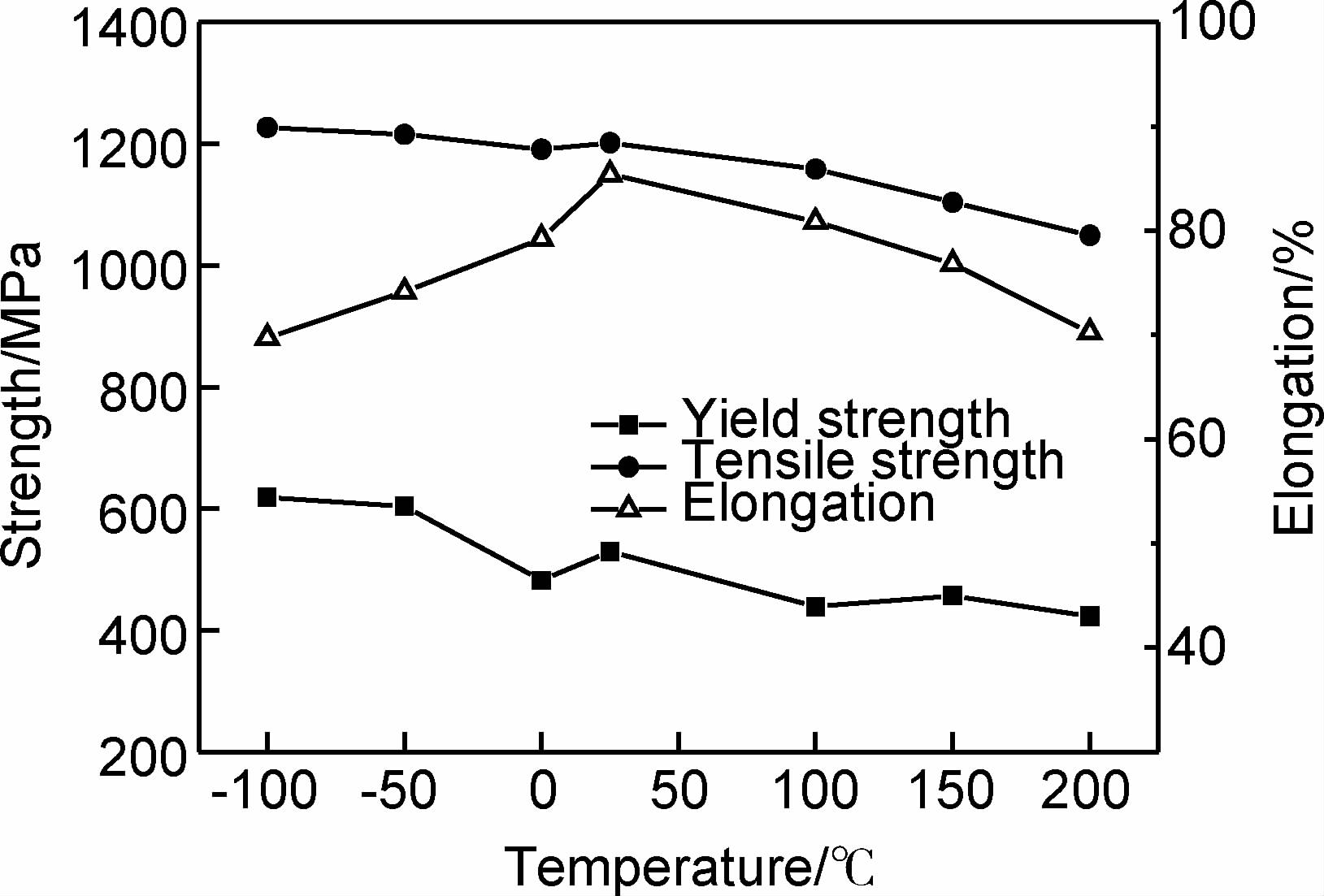

Fig.4 Fe-20Mn-3Cu-1.3C TWIP钢的屈服强度、抗拉强度以及伸长率随变形温度的变化曲线

Fig.5 Fe-20Mn-3Cu-1.3C TWIP钢在不同温度下拉伸变形后的金相组织
(a)-100℃;(b)0℃;(c)25℃;(d)200℃

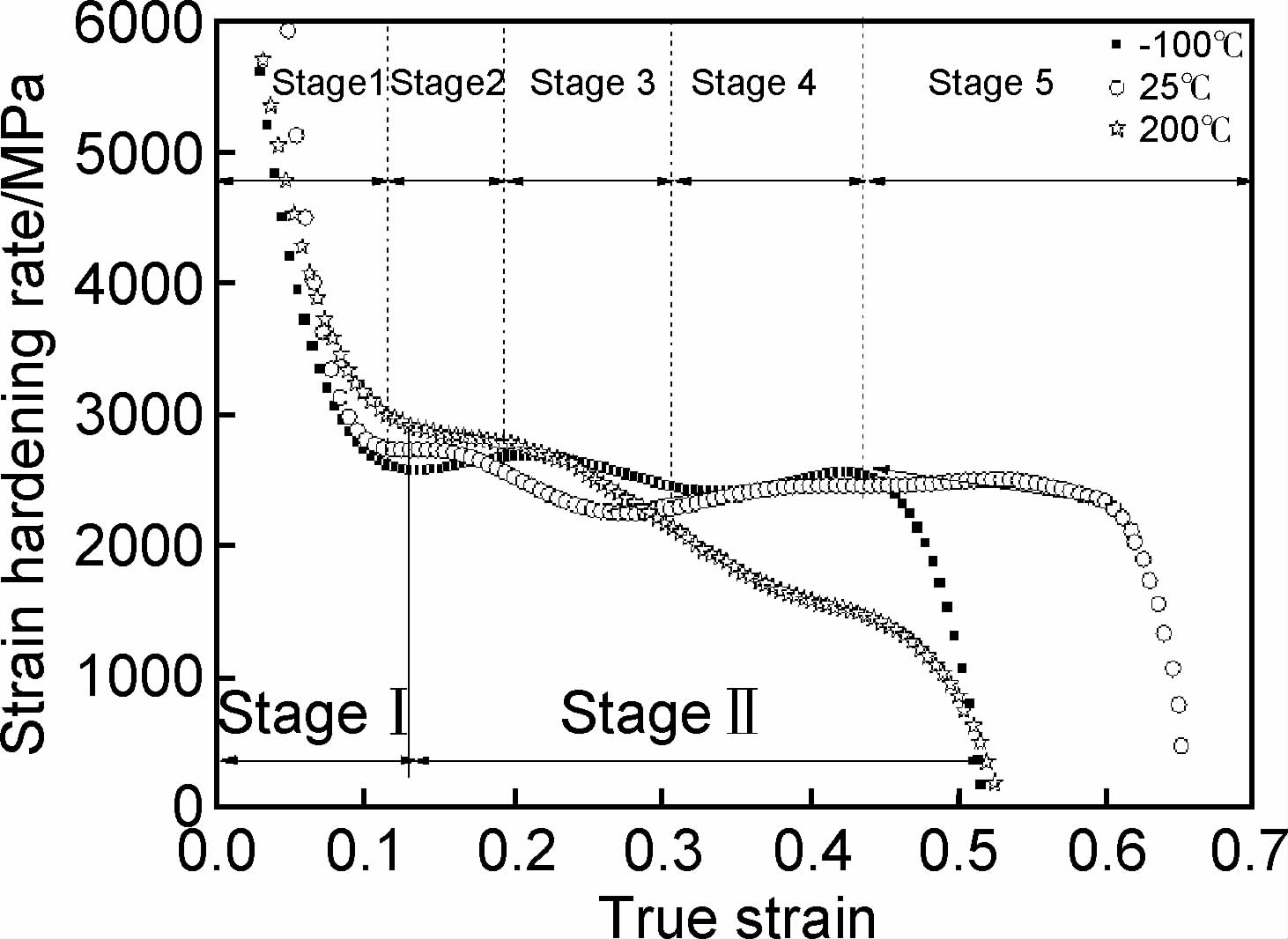

Fig.6 Fe-20Mn-3Cu-1.3C TWIP钢在不同温度下变形时应变硬化速率(dσ/dε)随真应变的变化曲线

Fig.7 不同条件下Fe-20Mn-3Cu-1.3C TWIP钢的TEM组织
(a)ε=5%,25℃；(b)ε=15%,25℃；(c)ε=30%,25℃； (d)ε=55%,25℃；(e)25℃下拉伸至断裂;(f)ε=50%,200℃

1	GRSSEL O, KRGER L, FROMMEYER G, et al High strength Fe-Mn-(Al, Si) TRIP/TWIP steels development properties application[J]. International Journal of Plasticity, 2000, 16 (10-11): 1391- 1409.
2	彭仙, 朱定一, 胡真明, 等碳含量对Fe-Mn-Cu-C系TWIP钢组织和力学性能的影响[J]. 钢铁, 2013, 48 (5): 55- 61.
2	PENG Xian, ZHU Ding-yi, HU Zhen-ming, et al Effect of carbon content on microstructure and mechanical properties of Fe-Mn-Cu-C TWIP steels[J]. Iron and Steel, 2013, 48 (5): 55- 61.
3	FROMMEYER G, BRUX U, NEUMANN P Supra-ductile and high-strength manganese-TRIP/TWIP steels for high energy absorption purposes[J]. Transactions of the Iron and Steel Institute of Japan, 2003, 43 (3): 438- 446.
4	GRSSEL O, FROMMEYER G Effect of martensitic phase transformation and deformation twinning on mechanical properties of Fe-Mn-Si-Al steels[J]. Materials Science and Technology, 1998, 14 (12): 1213- 1217.
5	代永娟, 唐荻, 米振莉, 等锰元素对TWIP钢层错能和变形机制的影响[J]. 材料工程, 2009, (7): 39- 42.
5	DAI Yong-juan, TANG Di, MI Zhen-li, et al The influence of manganese on the stacking fault energy and deformation mechanisms of the TWIP steel[J]. Journal of Materials Engineering, 2009, (7): 39- 42.
6	ALLAIN S, CHATEAU J P, BOUAZIZ O A physical model of the twinning-induced plasticity effect in a high manganese austenitic steel[J]. Materials Science and Engineering: A, 2004, 143-147, 387- 389.
7	FROMMEYER G, BRVX U Microstructures and mechanical properties of high-strength Fe-Mn-Al-C light-weight TRIPLEX steels[J]. Steel Research International, 2006, 77 (9-10): 627- 633.
8	代永娟, 米振莉, 唐荻, 等 Fe-Mn-C系TWIP钢的组织和性能[J]. 上海金属, 2007, 29 (5): 132- 136.
8	DAI Yong-juan, MI Zhen-li, TANG Di, et al Microstructure and mechanical properties of the Fe-Mn-C TWIP steel[J]. Shanghai Metals, 2007, 29 (5): 132- 136.
9	LEE S, KIM J, LEE S-J, et al Effect of Cu addition on the mechanical behavior of austenitic twinning-induced plasticity steel[J]. Scripta Materialia, 2011, 65 (12): 1073- 1076.
10	KIM S-J, CHANG G-L, LEE T-H, et al Effect of Cu, Cr and Ni on mechanical properties of 0[J]. 15wt. % C TRIP-aided cold rolled steels[J]. Scripta Materialia, 2003, 48 (5): 539- 544.
11	易炜发, 朱定一, 杨泽斌, 等铜含量对高碳TWIP钢组织和力学性能的影响[J]. 钢铁, 2011, 46 (11): 71- 76.
11	YI Wei-fa, ZHU Ding-yi, YANG Ze-bin, et al Effect of copper content on microstructure and mechanical properties of high carbon TWIP steel[J]. Iron and Steel, 2011, 46 (11): 71- 76.
12	秦小梅, 陈礼清, 邸洪双, 等变形温度对Fe-23Mn-2Al-0[J]. 2C TWIP钢变形机制的影响[J]. 金属学报, 2011, 47 (9): 1117- 1122.
12	QIN Xiao-mei, CHEN Li-qing, DI Hong-shuang, et al Effect of deformation temperature on tensile deformation mechanism of Fe-23Mn-2Al-0[J]. 2C TWIP steel[J]. Acta Metallurgica Sinica, 2011, 47 (9): 1117- 1122.
13	ALLAIN S, CHATEAU J P, BOUAZIZ O, et al Correlations between the calculated stacking fault energy and the plasticity mechanisms in Fe-Mn-C alloys[J]. Materials Science and Engineering: A, 2004, 387-389, 158- 162.
14	CURTZE S, KUOKKALA V T Dependence of tensile deformation behavior of TWIP steels on stacking fault energy, temperature and strain rate[J]. Acta Materialia, 2010, 58 (15): 5129- 5141.
15	DUMAY A, CHATEAU J P, ALLAIN S, et al Influence of addition elements on the stacking-fault energy and mechanical properties of an austenitic Fe-Mn-C steel[J]. Materials Science and Engineering: A, 2008, 483-484, 184- 187.
16	CURTZE S, KUOKKALA V T, OIKARI A, et al Thermodynamic modeling of the stacking fault energy of austenitic steels[J]. Acta Materialia, 2011, 59 (3): 1068- 1076.
17	GRASSEL O, FROMMEYER G, DERDER C, et al Phase transformations and mechanical properties of Fe-Mn-Si-Al TRIP-steels[J]. Le Journal de Physique, 1997, 7 (5): 383- 388.
18	ZHENG C, XIAO N, LI D, et al Microstructure prediction of the austenite recrystallization during multi-pass steel strip hot rolling: a cellular automaton modeling[J]. Computational Materials Science, 2008, 44 (2): 507- 514.
19	鲁法云, 刘彤妍, 杨平, 等形变温度对高锰TRIP/TWIP钢拉伸性能和组织的影响[J]. 武汉科技大学学报, 2012, 35 (4): 281- 288.
19	LU Fa-yun, LIU Tong-yan, YANG Ping, et al Influence of deformation temperature on the microstructure and properties of a high manganese TRIP/TWIP steel[J]. Journal of Wuhan University of Science and Technology, 2012, 35 (4): 281- 288.
20	王雷, 李玉龙, 索涛, 等航空常用铝合金动态拉伸力学性能探究[J]. 航空材料学报, 2013, 33 (4): 71- 77.
20	WANG Lei, LI Yu-long, SUO Tao, et al Mechanical behavior of commonly used aeronautical aluminum alloys under dynamic tension[J]. Journal of Aeronautical Materials, 2013, 33 (4): 71- 77.
21	BARBIER D, GEY N, ALLAIN S, et al Analysis of the tensile behavior of a TWIP steel based on the texture and microstructure evolutions[J]. Materials Science and Engineering: A, 2009, 500 (1-2): 196- 206.
22	郭鹏程, 钱立和, 孟江英, 等高锰奥氏体TWIP钢的单向拉伸与拉压循环变形行为[J]. 金属学报, 2014, 50 (4): 415- 422.
22	GUO Peng-cheng, QIAN Li-he, MENG Jiang-ying, et al Monotonic tension and tension-compression cyclic deformation behaviors of high manganese austenitic TWIP steel[J]. Acta Metallurgica Sinica, 2014, 50 (4): 415- 422.
23	MIGUEL M C, VESPINGANI A, ZAPPERI S, et al Intermittent dislocation flow in viscoplastic deformation[J]. Nature, 2001, 410 (6829): 667- 671.
24	EL-DANAF E, KALIDINDI S R, DOHERTY R D Influence of grain size and stacking-fault energy on deformation twinning in fcc metals[J]. Metall Mater Trans A, 1999, 30 (5): 1223- 1233.
25	EL-DANAF E, KALIDINDI S R, DOHERTY R D Influence of deformation path on the strain hardening behavior and microstructure evolution in low SFE FCC metals[J]. International Journal of Plasticity, 2001, 17 (9): 1245- 1265.
26	米振莉, 靖海涛, 江海涛, 等 Fe-Mn-Si-Al系和Fe-Mn-C系TWIP钢加工硬化行为[J]. 北京科技大学学报, 2013, 35 (4): 465- 473.
26	MI Zhen-li, JING Hai-tao, JIANG Hai-tao, et al Work hardening behavior of Fe-Mn-Si-Al and Fe-Mn-C TWIP steels[J]. Journal of University of Science and Technology Beijing, 2013, 35 (4): 465- 473.
27	GUTIERREZ-URRUTIA I, RAABE D Grain size effect on strain hardening in twinning-induced plasticity steels[J]. Scripta Materialia, 2012, 66 (12): 992- 996.
28	JIN J E, LEE Y K Strain hardening behavior of a Fe-18Mn-0[J]. 6C-1.5Al TWIP steel[J]. Materials Science and Engineering: A, 2009, 527 (1-2): 157- 161.
29	闫世兴, 董世运, 徐滨士, 等预热温度对灰铸铁表面激光熔覆镍基涂层组织与性能的影响[J]. 材料工程, 2015, 43 (1): 30- 36.
29	YAN Shi-xing, DONG Shi-yun, XU Bin-shi, et al Effect of preheating temperature on microstructure and property of laser clad Ni-based alloy coating on gray cast iron substrate[J]. Journal of Materials Engineering, 2015, 43 (1): 30- 36.
30	KALIDINDI S R Modeling the strain hardening response of low SFE FCC alloys[J]. International Journal of Plasticity, 1998, 14 (12): 1265- 1277.
