pH值对7050铝合金膜致应力和应力腐蚀敏感性的影响

doi:10.11868/j.issn.1001-4381.2016.05.014

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(5682 KB)

HTML ( 44 )
输出: BibTeX | EndNote (RIS)

摘要

采用慢应变速率拉伸法和流变应力差值法研究了7050铝合金在3.5%(质量分数)NaCl水溶液中膜致应力和应力腐蚀敏感性随pH值的变化规律。结果表明:当pH≤7时,随着pH值的增大,膜致应力和应力腐蚀敏感性均下降,当pH>7时,膜致应力和应力腐蚀敏感性随着pH值的增大而提高;而当pH=1,14时,腐蚀的类型为剥蚀,合金基体发生剥落,表面没有钝化膜产生。pH值在6~9之间时,膜致应力随pH的变化比较平缓,而pH在2~5和10~13之间时,膜致应力变化则较为剧烈,整体的变化曲线呈山谷形。膜致应力和应力腐蚀敏感性具有很强的相关性。XPS研究表明,膜致应力值与钝化膜的成分有关。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	祁星
	宋仁国
	祁文娟
	金骥戎
	王超
	李海

关键词 ： 7050铝合金, 应力腐蚀敏感性, pH值, 膜致应力

Abstract：

The change tendency of passive film-induced stress and susceptibility to stress corrosion cracking (SCC) with various pH values of 7050 aluminum alloy in 3.5% (mass fraction) NaCl solution was investigated by slow strain rate testing (SSRT) and flowing stress differential method. The results show that when pH≤7, with the increase of pH value, the passive film-induced stress and the susceptibility to SCC decrease, correspondingly; when pH>7, they increase with the increase of pH value. However, when pH=1,14, the corrosion type is exfoliation corrosion, the alloy matrix exfoliated, there is no film formed on the specimens surface. Moreover, the variation of passive film-induced stress is changed slowly when the pH value is between 6 and 9, nevertheless, it is much more severe when the pH value is between 2 and 5 as well as between 10 and 13. The whole variation plot is presented as valley shape and the passive film-induced stress and susceptibility to SCC is of a close relationship. The film-induced stress is related to the compositions of the passive film by X-ray photoelectron spectrum (XPS).

Key words： 7050 aluminum alloy susceptibility to SCC pH value passive film-induced stress

收稿日期: 2014-09-04 出版日期: 2016-05-19

中图分类号:

TG178

基金资助:国家自然科学基金资助项目(51371039)

通讯作者: 宋仁国 E-mail: songrg@hotmail.com

作者简介: 宋仁国(1965-),博士,教授,博士生导师,主要研究方向为材料腐蚀与防护、表面工程、计算材料科学等,联系地址:江苏省常州市武进区滆湖路常州大学材料学院(213164),E-mail:songrg@hotmail.com

引用本文:

祁星, 宋仁国, 祁文娟, 金骥戎, 王超, 李海. pH值对7050铝合金膜致应力和应力腐蚀敏感性的影响[J]. 材料工程, 2016, 44(5): 86-92.
Xing QI, Ren-guo SONG, Wen-juan QI, Ji-rong JIN, Chao WANG, Hai LI. Influence of pH Values on Passive Film-induced Stress and Susceptibility to Stress Corrosion Cracking in 7050 Aluminum Alloy. Journal of Materials Engineering, 2016, 44(5): 86-92.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.05.014 或 http://jme.biam.ac.cn/CN/Y2016/V44/I5/86

Fig.1 7050铝合金试样在不同pH值的3.5%NaCl溶液中浸泡6h后的钝化膜形貌 (a)pH=1；(b)pH=2；(c)pH=7；(d)pH=9；(e)pH=13；(f)pH=14

Table 1 7050铝合金在不同pH值的3.5%NaCl溶液中浸泡6h后的应力腐蚀敏感性

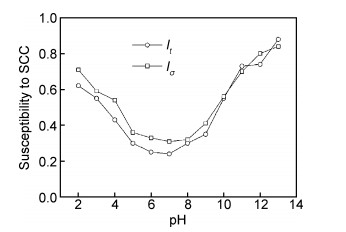

Fig.2 7050铝合金应力腐蚀敏感性随pH值的变化

Table 2 不同pH值下7050铝合金的腐蚀过程中产生的膜致应力

Fig.3 同一试样形成钝化膜前后的应力-应变曲线 (a)pH=2,σ_P=90MPa;(b)pH=7,σ_P=46MPa;(c)pH=9,σ_P=54MPa;(d)pH=13,σ_P=112MPa

Fig.4 不同pH值的膜致应力与应力腐蚀敏感性

Fig.5 不同pH值时7050铝合金的Nyquist图

Fig.6 不同pH值时7050铝合金的Bode图

Fig.7 7050铝合金试样在3.5%NaCl溶液中的等效电路

Table 3 等效电路中各组元的电化学阻抗参数

Fig.8 7050铝合金的XPS分析图 (a)Al2p;(b)O1s

1	CHEN S Y , CHEN K H , PENG G S , et al. Effect of quenching rate on microstructure and stress corrosion cracking of 7085 aluminum alloys[J]. Transactions of Nonferrous Metals Society of China, 2012, 22 (1): 47- 52.
2	LIN J C , LIAO H L , JEHNG W D , et al. Effect of heat treatments on the tensile strength and SCC-resistance of AA7050 in an alkaline saline solution[J]. Corrosion Science, 2006, 48 (10): 3139- 3156.
3	辛星, 张新明, 刘胜胆, 等. 回归再时效中预时效温度对7050铝合金应力腐蚀性能的影响[J]. 材料工程, 2014, (5): 29- 34.
3	XIN Xing , ZHANG Xin-ming , LIU Sheng-dan , et al. Effect of pre-aging temperature in retrogression and re-aging treatment on stress corrosion resistance of 7050 aluminum alloy[J]. Journal of Materials Engineering, 2014, (5): 29- 34.
4	王宇, 邓运来, 康建可, 等. 振动对7055铝合金蠕变时效成形的影响[J]. 航空材料学报, 2014, 34 (3): 81- 85.
4	WANG Yu , DENG Yun-lai , KANG Jian-ke , et al. Effects of vibration on creep aging forming of 7055 aluminum alloy[J]. Journal of Aeronautical Materials, 2014, 34 (3): 81- 85.
5	佘欢, 疏达, 储威, 等. Fe和Si杂质元素对7XXX系高强航空铝合金组织及性能的影响[J]. 材料工程, 2013, (6): 92- 98.
5	SHE Huan , SHU Da , CHU Wei , et al. Effects of Fe and Si impurities on the microstructure and properties of 7XXX high strength aircraft aluminum alloys[J]. Journal of Materials Engineering, 2013, (6): 92- 98.
6	孙文会, 张永安, 李锡武, 等. 固溶热处理对7136铝合金组织性能的影响[J]. 航空材料学报, 2014, 34 (3): 35- 41.
6	SUN Wen-hui , ZHANG Yong-an , LI Xi-wu , et al. Effect of solution treatment on microstructures and mechanical properties of 7136 aluminum alloy[J]. Journal of Aeronautical Materials, 2014, 34 (3): 35- 41.
7	GUO X Z , GAO K W , CHU W Y , et al. Correlation between passive film-induced stress and stress corrosion cracking of α-Ti in a methanol solution at various potentials[J]. Materials Science and Engineering: A, 2003, 346 (1-2): 1- 7.
8	LU H , GAO K W , CHU W Y . Determination of tensile stress induced by dezincification layer during corrosion for bass[J]. Corrosion Science, 1998, 40 (10): 1663- 1670.
9	CHEN H , GUO X Z , CHU W Y , et al. Martensite caused by passive film-induced stress during stress corrosion cracking in type 304 stainless steel[J]. Materials Science and Engineering:A, 2003, 358 (1-2): 122- 127.
10	吕宏, 郭献忠, 高克玮, 等. α-Ti在甲醇溶液中应力腐蚀及膜致应力的研究[J]. 自然科学进展, 2000, 10 (8): 729- 733.
10	LU Hong , GUO Xian-zhong , GAO Ke-wei , et al. The research on stress corrosion cracking and passive film-induced stress of α-Ti in a methanol solution[J]. Progress in Natural Science, 2000, 10 (8): 729- 733.
11	郭献忠, 高克玮, 乔利杰, 等. 黄铜应力腐蚀敏感性及其与脱锌层拉应力的对应性[J]. 金属学报, 2000, 36 (7): 753- 756.
11	GUO Xian-zhong , GAO Ke-wei , QIAO Li-jie , et al. SCC susceptibility and its correspondence to dezincification layer-induced stress for brass[J]. Acta Metallurgica Sinica, 2000, 36 (7): 753- 756.
12	GUO X Z , GAO K W , QIAO L J , et al. The correspondence between susceptibility to SCC of brass and corrosion-induced tensile stress with various pH values[J]. Corrosion Science, 2002, 44 (10): 2367- 2378.
13	褚武扬, 乔利杰, 陈奇志, 等. 断裂与环境断裂[M]. 2000, 北京: 科学出版社.
14	刘军.氢对7050铝合金短横方向慢应变速率拉伸及应力腐蚀开裂性能的影响[D].沈阳:东北大学,1989.
15	郭献忠, 高克玮, 乔利杰, 等. 不锈钢应力腐蚀敏感性和钝化膜引起的应力随电位变化的一致性[J]. 金属学报, 2002, 38 (2): 181- 184.
15	GUO Xian-zhong , GAO Ke-wei , QIAO Li-jie , et al. Consistent variation of stress corrosion cracking and passive film-induced stress for stainless steel with potential[J]. Acta Metallurgica Sinica, 2002, 38 (2): 181- 184.
16	赵军军, 张平, 李奇, 等. 外加电位条件下7A52铝合金应力腐蚀开裂敏感性研究[J]. 装甲兵工程学院学报, 2011, 25 (5): 84- 87.
16	ZHAO Jun-jun , ZHANG Ping , LI Qi , et al. Investigation of stress corrosion cracking susceptibility of 7A52 aluminum alloy under different applied potentials[J]. Journal of Academy of Armored Force Engineering, 2011, 25 (5): 84- 87.
17	GUSEVA O , SCHMUTZ P , SUTER T , et al. Modelling of anodic dissolution of pure aluminum alloy in sodium chloride[J]. Electrochimica Acta, 2009, 54 (19): 4514- 4524.
