材料工程  2016, Vol. 44 Issue (9): 96-102    DOI: 10.11868/j.issn.1001-4381.2016.09.015
  测试与表征 本期目录 | 过刊浏览 | 高级检索 |
多层隔热材料对填充式结构高速撞击损伤影响的实验研究
管公顺, 曾明, 李航杰
哈尔滨工业大学 航天学院, 哈尔滨 150080
Experimental Investigation of Multi-layer Insulation Effect on Damage of Stuffed Shield by High-velocity Impact
GUAN Gong-shun, ZENG Ming, LI Hang-jie
School of Astronautics, Harbin Institute of Technology, Harbin 150080, China
全文: PDF(19125 KB)   HTML()
输出: BibTeX | EndNote (RIS)

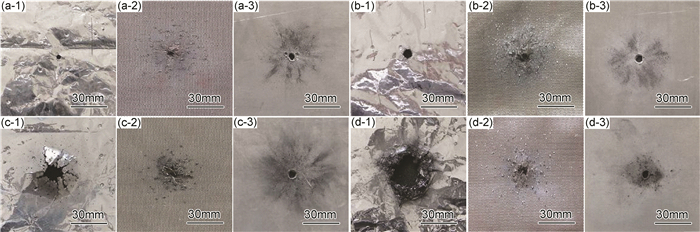

摘要 在填充式结构中加入多层隔热材料(MLI),利用二级轻气炮发射铝球弹丸在真空环境下对其进行高速撞击实验,获得了MLI位于不同位置时的防护结构损伤模式,研究MLI对填充式结构高速撞击损伤与防护特性的影响。结果表明:当MLI位于首层薄铝板前侧时,薄铝板穿孔尺寸增大,首层薄铝板耗散弹丸撞击动能的能力增强,有助于填充式结构高速撞击防护性能提高;当MLI位于首层薄铝板后侧时,弹丸击穿薄铝板后次生碎片云团的膨胀扩散受到抑制,不利于填充式结构高速撞击防护性能提高;在相同撞击条件下,当MLI位于填充层前侧时,填充层中心穿孔尺寸增大,当MLI位于舱壁前侧时,舱壁弹坑分布范围减小。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
管公顺
曾明
李航杰
关键词 多层隔热材料填充式结构高速撞击损伤空间碎片
Abstract:The stuffed shield with multi-layer insulation(MLI) was designed by improving on Al Whipple shield, and a series of high-velocity impact tests were practiced with a two-stage light gas gun facility at vacuum environment. The damage model of the stuffed shield with different MLI location by Al-sphere projectile impacting was obtained. The effect of MLI on damage of the stuffed shield by high-velocity impact was studied. The results indicate when the MLI is located at front side of the first Al-plate, the protection performance of the stuffed shield is improved with the larger perforation diameter of the first Al-plate and more impact kinetic energy dissipation of the projectile. When MLI is arranged at back side of the first Al-plate, the expansion of the secondary debris cloud from projectile impacting the first Al-plate is restrained, it is not good to improve the protection performance of the stuffed shield. When MLI is arranged at front side of the stuffed wall, the perforation size of the stuffed wall increases; when MLI is arranged at front side of the rear wall, the distribution range of crater on the rear wall decreases.
Key wordsmulti-layer insulation    stuffed shield    high-velocity impact    damage    space debris
收稿日期: 2015-07-20      出版日期: 2016-09-27
中图分类号:  V423.4+1
  O347
通讯作者: 管公顺(1969-),男,博士,教授,主要从事航天器材料与结构的高速撞击损伤评价及防护技术研究,联系地址:黑龙江省哈尔滨市南岗区一匡街2号哈尔滨工业大学科学园3020信箱(150080),E-mail:hitggsh@163.com     E-mail: hitggsh@163.com
引用本文:
管公顺, 曾明, 李航杰. 多层隔热材料对填充式结构高速撞击损伤影响的实验研究[J]. 材料工程, 2016, 44(9): 96-102.
GUAN Gong-shun, ZENG Ming, LI Hang-jie. Experimental Investigation of Multi-layer Insulation Effect on Damage of Stuffed Shield by High-velocity Impact. Journal of Materials Engineering, 2016, 44(9): 96-102.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2016.09.015      或      http://jme.biam.ac.cn/CN/Y2016/V44/I9/96
[1] 高禹,王钊,陆春,等.高性能树脂基复合材料典型空天环境下动态力学行为研究现状[J].材料工程,2015,43(3):106-112.GAO Y,WANG Z,LU C,et al.State of arts of the dynamic mechanical behaviors of high performance polymer composites in typical aerospace environments[J].Journal of Materials Engineering,2015,43(3):106-112.
[2] 沈自才,邱家稳,丁义刚,等.航天器空间多因素环境协同效应研究[J].中国空间科学技术,2012,(5):54-60.SHEN Z C,QIU J W,DING Y G,et al.Space environment synergistic effect on spacecraft[J].Chinese Space Science and Technology,2012,(5):54-60.
[3] 马少华,回丽,周松,等.腐蚀环境对预腐蚀铝合金腐蚀疲劳性能的影响[J].材料工程,2015,43(2):91-95.MA S H,HUI L,ZHOU S,et al.Influence of corrosion environments on corrosion fatigue property of pre-corroded aluminum alloy[J].Journal of Materials Engineering,2015,43(2):91-95.
[4] PALMIERI D,LAMBERT M,MENDOZA M.Effect of multi-layer insulation on top of spacecraft meteoroids/debris shields:prediction of the automated transfer vehicle pressure module ballistic limit[J].International Journal of Impact Engineering,2003,29(1-10):537-548.
[5] WHITE D M,WICKLEIN M,CLEGG R A,et al.Multi-layer insulation material models suitable for hypervelocity impact simulations[J].International Journal of Impact Engineering,2008,35(12):1853-1860.
[6] 李永春,刘强,马洪炯,等.真空环境中多层隔热材料的隔热性能[J].宇航材料工艺,2012,(4):90-92.LI Y C,LIU Q,MA H J,et al.Thermal properties of multi-layer insulation materials in vacuum[J].Aerospace Materials&Technology,2012,(4):90-92.
[7] 江经善.多层隔热材料及其在航天器上的应用[J].宇航材料工艺,2000,(4):17-25.JIANG J S.Multi-layer insulation materials and their application to spacecrafts[J].Aerospace Materials&Technology,2000,(4):17-25.
[8] STADERMANN F J,HEISS C H,REICHLING M.Evaluation of impact craters on solar cell samples and thermal MLI blankets[J].Advances in Space Research,1997,20(8):1517-1521.
[9] TURNER R J,TAYLOR E A,McDONNELL J A M,et al.Cost effective honeycomb and multi-layer insulation debris shield for unmanned spacecraft[J].International Journal of Impact Engineering,2001,26(1-10):785-796.
[10] KLINKRAD H.Collision risk analysis for low Earth orbits[J].Advances in Space Research,1993,13(8):177-186.
[11] 韩海鹰,黄家荣,程文龙,等.MLI碎片防护能力增强措施对隔热性能的影响[J].宇航学报,2010,31(1):259-263.HAN H Y,HUANG J R,CHENG W L,et al.The influence of debris shield enhancement on thermal insulation performance of MLI[J].Journal of Astronautics,2010,31(1):259-263.
[12] LAMBERT M,SCHAEFER F,GEYER T.Impact damage on sandwich panels and multi-layer insulation[J].Internatinal Journal of Impact Engineering,2001,26(1-10):369-380.
[13] 黄洁,马兆侠,兰胜威,等.带隔热层蜂窝夹层结构的超高速撞击特性研究[J].宇航学报,2010,31(8):2043-2049.HUANG J,MA Z X,LAN S W,et al.Study on hypervelocity impact characteristics for honeycomb sandwich with multi-layer insulation[J].Journal of Astronautics,2010,31(8):2043-2049.
[14] CHRISTIANSEN E L,CREWS J I,WILLIAMSEN J E,et al.Enhanced meteoroid and orbital debris shielding[J].International Journal of Impact Engineering,1995,17(1-3):217-228.
[15] 管公顺,陈礼文,王少恒,等.不锈钢网/铝板多冲击防护屏高速撞击防护性能实验研究[J].高压物理学报,2012,26(2):127-134.GUAN G S,CHEN L W,WANG S H,et al.Experimental investigation on resist capability of stainless steel mesh/Al multi-shock shield by high-velocity impact[J].Chinese Journal of High Pressure Physics,2012,26(2):127-134.
