含硫代磷酸铵盐润滑油在电磁场作用下的摩擦学性能

doi:10.11868/j.issn.1001-4381.2017.000019

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(2976 KB)

HTML ( 11 )
输出: BibTeX | EndNote (RIS)

摘要

在改进后的四球摩擦磨损试验机上分别考察添加剂含量、载荷和电磁场强度对含硫代磷酸铵盐（T307）摩擦学性能的影响，用扫描电子显微镜（SEM）和X射线光电子能谱仪（XPS）分析了磨斑的表面形貌及其表面典型元素的化学状态，并对摩擦学机理进行了探讨。结果表明：电磁场作用下，含T307润滑油中钢球的磨斑直径和油样的摩擦因数大于无磁场时的数值，这可能是因为电磁场不利于T307中P，S，O，N元素与金属表面的结合从而不利于金属表面生成摩擦化学反应膜；且电磁场会引起T307中的功能元素向金属基体扩散。并从添加剂的分子结构和所含的活性元素分析了电磁场的作用机理。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	江泽琦
	冯彦寒
	方建华
	刘坪
	陈波水
	谷科城
	吴江

关键词 ：硫代磷酸铵盐, 电磁场, 摩擦磨损性能, 扩散

Abstract：

Tribological properties of lubricating oil containing T307 with and without electromagnetic field affection were evaluated on a modified four-ball tribo-tester. The morphologies and chemical states of several typical elements on the worn surfaces were examined by scanning electron microscope(SEM) and X-ray photoelectron spectroscopy(XPS). Then the mechanisms were discussed. The results indicate that the wear scar diameters of worn surfaces lubricated with the T307-doped oils and coefficients of friction obtained from electromagnetic field were bigger than those obtained from non-electromagnetic field. It can be attributed to the negative effect of the electromagnetic field on the combination of elemental phosphorus, sulfur, oxygen and nitrogen in T307 with metal surface, which has an undesirable effect on the formation of the tribo-chemical reaction films, and resulted by the tribo-diffussion of functional elements in T307 to the subsurface induced by electromagnetism. Moreover, the influencing mechanism of electromagnetic field was analyzed considering the molecular structure and active elements.

Key words： ammonium thiophosphate electromagnetic field friction and wear property diffusion

收稿日期: 2017-01-03 出版日期: 2018-09-19

中图分类号:

TH117.3

基金资助:国家自然科学基金项目(51375491);重庆市基础科学与前沿技术研究项目(CSTC);重庆市基础科学与前沿技术研究项目(2017jcyjAX0058);后勤工程学院青年基金项目(YQ16-420801)

作者简介: 方建华(1971-), 男, 教授, 博士, 从事环境友好润滑材料方面的研究, 联系地址:重庆市沙坪坝区大学城陆军勤务学院(401311), E-mail: 2084527@qq.com

引用本文:

江泽琦, 冯彦寒, 方建华, 刘坪, 陈波水, 谷科城, 吴江. 含硫代磷酸铵盐润滑油在电磁场作用下的摩擦学性能[J]. 材料工程, 2018, 46(9): 95-100.
Ze-qi JIANG, Yan-han FENG, Jian-hua FANG, Ping LIU, Bo-shui CHEN, Ke-cheng GU, Jiang WU. Tribological Characteristics of Lubricating Oils with Ammonium Thiophosphate Under Electromagnetic Field. Journal of Materials Engineering, 2018, 46(9): 95-100.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.000019 或 http://jme.biam.ac.cn/CN/Y2018/V46/I9/95

Table 1 T307极压抗磨剂的理化性质

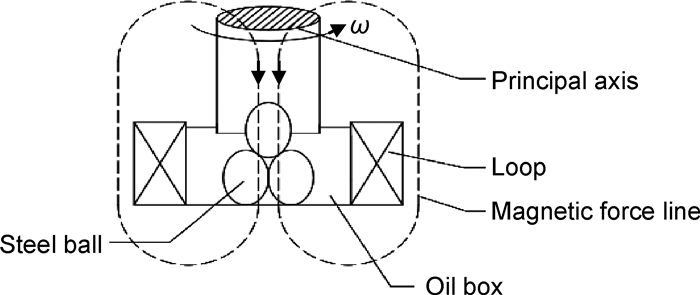

Fig.1 改进后四球试验机工作示意图

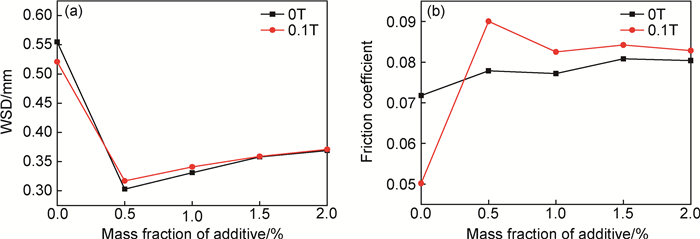

Fig.2 有、无电磁场作用下磨斑直径(a)和摩擦因数(b)随T307质量分数的变化曲线

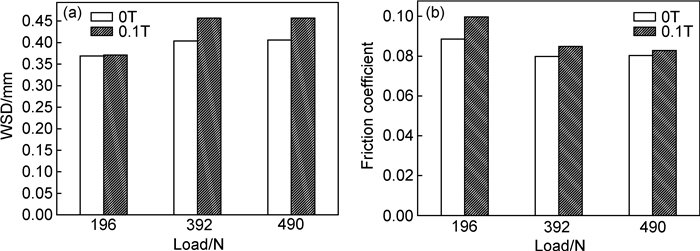

Fig.3 有、无电磁场工况中磨斑直径(a)和摩擦因数(b)随载荷的变化关系

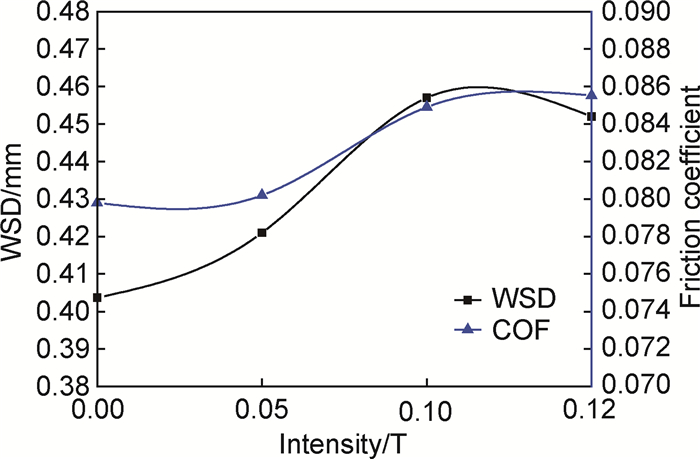

Fig.4 磨斑直径和摩擦因数随电磁场强度的变化关系曲线

Fig.5 有、无电磁场条件下含2%T307油样中钢球表面磨斑的SEM照片
(a)0T;(b)0.1T;(1)全貌图; (2)细节图

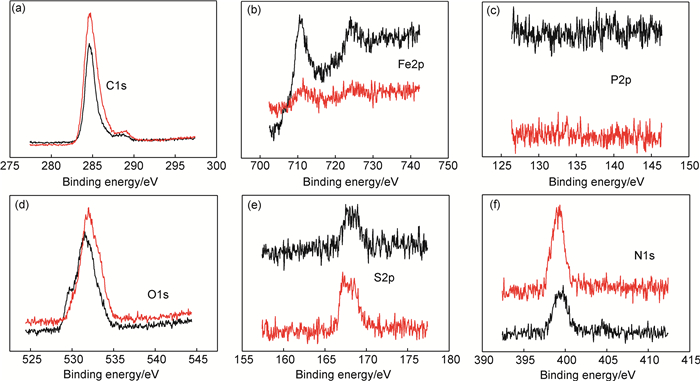

Fig.6 有、无电磁场条件下含2%T307油样中磨斑表面典型元素的XPS图谱
(a)Cls; (b)Fe2p;(c)P2p;(d)O1s;(e)S2p;(f)N1s

Table 2 含T307润滑油中钢球磨斑表面元素的原子分数

1	MUJU M K , RADHAKRISHNA A . Wear of non-magnetic materials in the presence of a magnetic field[J]. Wear, 1980, 58 (1): 49- 58. doi: 10.1016/0043-1648(80)90212-4
2	江泽琦, 方建华, 陈飞, 等. 摩擦电物理和摩擦电化学机理的研究进展[J]. 摩擦学学报, 2017, 37 (5): 695- 706.
2	JIANG Z Q , FANG J H , CHEN F , et al. Research progress on tribo-electrophysical and tribo-electrochemical mechanisms[J]. Tribology, 2017, 37 (5): 695- 706.
3	ZHOU Q , XU R Q , XU H Q . Characteristics of magnetic tribology on high flux pair of magnetic driving mechanism[J]. Journal of Wuhan University of Technology, 2004, 11 (19): 34- 36.
4	PARK J Y , OGLETREE D F , THIEL P A , et al. Electronic control of friction in silicon pn junctions[J]. Science, 2006, 313 (5784): 186. doi: 10.1126/science.1125017
5	BOCKSTEDT J , KLAMECKI B E . Effects of pulsed magnetic field on thrust bearing washer hardness[J]. Wear, 2007, 262 (9): 1086- 1096.
6	ABDEL-JABER G T , MOHAMED M K , ALI W Y . Effect of magnetic field on the friction and wear of polyamide sliding against steel[J]. Material Science and Applications, 2015, (5): 46- 53.
7	翟文杰, 山本二雄. 外加电场对边界润滑条件下钢/钢摩擦副摩擦磨损性能的影响[J]. 摩擦学学报, 2000, 20 (6): 435- 438. doi: 10.3321/j.issn:1004-0595.2000.06.008
7	ZHAI W J , YAMAMOTO Y . The effect of externally applied voltage on tribological characteristics of rubbing pairs under boundary lubrication[J]. Tribology, 2000, 20 (6): 435- 438. doi: 10.3321/j.issn:1004-0595.2000.06.008
8	常秋英, 孟永刚, 温诗铸. 润滑液对电控摩擦的影响研究[J]. 机械工程学报, 2009, 39 (2): 90- 92.
8	CHANG Q Y , MENG Y G , WEN S Z . Effects of lubricants on the voltage-controlled friction on silicon oxide/brass rubbing couple[J]. Chinese Journal of Mechanical Engineering, 2009, 39 (2): 90- 92.
9	TIAN Y , JIANG J L , MENG Y G , et al. A shear thickening phe-nomenon in magnetic field controlled-dipolar suspensions[J]. Applied Physics Letters, 2010, 97, 151904. doi: 10.1063/1.3501128
10	江泽琦, 方建华, 陈波水, 等. 磁场作用下基础油和含磷酸三甲酚酯润滑油的摩擦磨损特性[J]. 摩擦学学报, 2016, 36 (50): 571- 576.
10	JIANG Z Q , FANG J H , CHEN B S , et al. Tribological properties of base oil and lubricating oils containing tricresyl phosphate under magnetic field[J]. Tribology, 2016, 36 (50): 571- 576.
11	JIANG Z Q , FANG J H , CHEN B S , et al. Improvement of magnetic field on tribological properties of lubricating oils with zinc butyloctyldithiophosphate[J]. China Petroleum Processing and Petrochemical Technology, 2016, 18 (4): 92- 98.
12	JIANG Z Q , FANG J H , CHEN B S , et al. Effect of magnetic field on tribological properties of lubricating oils with and without tricresyl phosphate[J]. China Petroleum Processing and Petrochemical Technology, 2016, 18 (3): 119- 124.
13	周强, 郑永军. 磁化摩擦及其润滑增效作用[J]. 摩擦学学报, 2002, 22 (4): 479- 482.
13	ZHOU Q , ZHENG Y J . Magnetizing friction and its boosting action on lubrication[J]. Tribology, 2002, 22 (4): 479- 482.
14	唐洪波, 张敏卿. 磁场对烷烃和醇类粘度的影响[J]. 沈阳工业大学学报, 2000, 22 (5): 448- 449. doi: 10.3969/j.issn.1000-1646.2000.05.027
14	TANG H B , ZHANG M Q . Effect of magnetic fields on viscosity of alkane and alcohol[J]. Journal of Shengyang Univesity of Technology, 2000, 22 (5): 448- 449. doi: 10.3969/j.issn.1000-1646.2000.05.027
15	吴燕霞, 李维民, 王晓波. 磷型极压抗磨剂对双酯基础油摩擦学性能的影响[J]. 润滑与密封, 2015, 40 (9): 19- 24. doi: 10.3969/j.issn.0254-0150.2015.09.004
15	WU Y X , LI W M , WANG X B . Effect of P-extreme pressure and anti-wear additives on tribological properties of diester base oil[J]. Lubrication Engineering, 2015, 40 (9): 19- 24. doi: 10.3969/j.issn.0254-0150.2015.09.004
