MAH/GMA共接枝聚乳酸对木粉/PLA复合材料性能的影响

doi:10.11868/j.issn.1001-4381.2017.000102

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(3464 KB)

HTML ( 18 )
输出: BibTeX | EndNote (RIS)

摘要

采用熔融接枝法分别制备马来酸酐接枝聚乳酸、甲基丙烯酸缩水甘油酯接枝聚乳酸和马来酸酐/甲基丙烯酸缩水甘油酯共接枝聚乳酸，并利用红外光谱对接枝共聚物进行结构表征。分别以三种接枝共聚物为相容剂，采用注塑成型制备了木粉/PLA复合材料。利用扫描电子显微镜（SEM）对复合材料的断面形貌进行微观分析，结果表明，加入不同接枝共聚物后木粉/PLA复合材料两相看不出明显相界面，界面相容性得到改善。对不同接枝共聚物制备的复合材料的力学性能、加工流动性能和动态流变性能测定的结果显示，加入MAH/GMA共接枝聚乳酸后的木粉/PLA复合材料和未添加相容剂的复合材料相比，拉伸强度和冲击强度分别提高了9.54%和7.23%，复合体系的平衡扭矩和剪切热提高，储能模量及复数黏度均增大。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	杜军
	宋永明
	张志军
	房轶群
	王伟宏
	王清文

关键词 ：聚乳酸, 马来酸酐, 甲基丙烯酸缩水甘油酯, 聚乳酸接枝共聚物, 相容性

Abstract：

Graft copolymers of PLA-g-MAH, PLA-g-GMA and PLA-co-MAH/GMA were prepared by means of melt grafting. The structure of the graft copolymers were characterized by FTIR.Wood flour/PLA composites were prepared by injection molding with three kinds of graft copolymers as compatibilizers, and the fractured morphology of composites was investigated by scanning electron microscope (SEM). Results show that there is no obvious phase interface between wood flour and PLA, which indicating the interfacial compatibility of wood flour/PLA composites is improved after adding different graft copolymers. The determination results of mechanical properties, processing flowability and dynamic rheological property of composites prepared with different graft copolymers reveal that, compared to the composite without compatibilizer, the tensile strength and impact strength of wood flour/PLA composites are increased by 9.54% and 7.23% respectively, and the equilibrium torque, shear heat, storage modulus and complex viscosity are all increased after adding maleic anhydride/glycidyl methacrylate cografted polylactic acid.

Key words： polylactic acid maleic anhydride glycidyl methacrylate PLA grafted copolymer compati-bility

收稿日期: 2017-01-22 出版日期: 2017-12-19

中图分类号:

TB332

基金资助:省留学归国人员科学基金(LC2015011);中国博士后科学基金特别资助(2014T70303);国家自然科学基金项目(31100425)

通讯作者: 宋永明 E-mail: ymsong@nefu.edu.cn

作者简介: 宋永明(1978-), 男, 副教授, 博士, 研究方向为生物质聚合物复合材料, 联系地址:黑龙江省哈尔滨市香坊区和兴路51号东北林业大学生物质材料科学与技术教育部重点实验室(150040), E-mail:ymsong@nefu.edu.cn

引用本文:

杜军, 宋永明, 张志军, 房轶群, 王伟宏, 王清文. MAH/GMA共接枝聚乳酸对木粉/PLA复合材料性能的影响[J]. 材料工程, 2017, 45(12): 30-36.
Jun DU, Yong-ming SONG, Zhi-jun ZHANG, Yi-qun FANG, Wei-hong WANG, Qing-wen WANG. Influence of Maleic Anhydride/Glycidyl Methacrylate Cografted Polylactic Acid on Properties of Wood Flour/PLA Composites. Journal of Materials Engineering, 2017, 45(12): 30-36.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.000102 或 http://jme.biam.ac.cn/CN/Y2017/V45/I12/30

Fig.1 聚乳酸接枝共聚物的FTIR谱图

Fig.2 PLA，PLA-g-GMA及PLA-co-MAH/GMA的FTIR谱图

Fig.3 PLA熔融接枝MAH和GMA的反应路径

Fig.4 不同相容剂制备木粉/PLA复合材料的SEM照片
(a)WP；(b)WPMD；(c)WPGD；(d)WPMGD

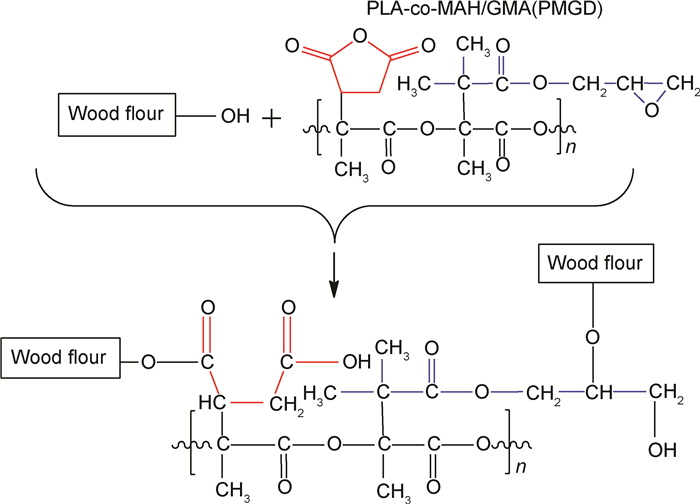

Fig.5 PMGD对木粉/PLA复合体系的增容作用机理

Table 1 不同相容剂制备木粉/PLA复合材料的力学性能

Fig.6 不同相容剂制备木粉/PLA复合体系扭矩(a)和温度(b)随时间变化曲线

Table 2 不同相容剂制备木粉/PLA复合体系的平衡扭矩和剪切热

Fig.7 不同相容剂制备木粉/PLA复合材料的储能模量G′(a)和复数黏度η^*(b)与频率的关系

1	王清文, 王伟宏, 宋永明, 等. 木塑复合材料与制品[M]. 北京: 化学工业出版社, 2007.
1	WANG Q W , WANG W H , SONG Y M , et al. Wood plastic composite materials and products[M]. Beijing: Chemical Industry Press, 2007.
2	REDDY M M , VIVEKANANDHAN S , MISRA M , et al. Biobased plastics and bionanocomposites:current status and future opportunities[J]. Progress Polymer Science, 2013, 38 (10): 1653- 1689.
3	RAQUEZ J M , HABIBI Y , MURARIU M , et al. Polylactide (PLA)-based nano-composites[J]. Progress Polymer Science, 2013, 38 (10): 1504- 1542.
4	陶岩, 王辉, 邸明伟. 水环境下等离子体处理聚乙烯木塑复合材料表面性质的演变[J]. 材料工程, 2012, (10): 94- 98.
4	TAO Y , WANG H , DI M W . Evolution of surface properties for plasma treated wood/polyethylene composites under water soaking[J]. Journal of Materials Engineering, 2012, (10): 94- 98.
5	BAILLIE C E . Eco-composites[J]. Composites Science and Technology, 2003, 63 (9): 1223- 1224. doi: 10.1016/S0266-3538(03)00090-3
6	MARTIN O , AVEROUS L . Poly(lactic acid):plasticization and properties of biodegradable multiphase systems[J]. Polymer, 2001, 42 (14): 6209- 6219. doi: 10.1016/S0032-3861(01)00086-6
7	杨继年, 杨双萍, 王闯, 等. 超细硫酸钡和轻质碳酸钙协同增韧聚乳酸混杂材料的制备及性能[J]. 材料工程, 2016, 44 (11): 61- 65. doi: 10.11868/j.issn.1001-4381.2016.11.010
7	YANG J N , YANG S P , WANG C , et al. Fabrication and properties of poly (lactic acid) hybrid composites synergistic toughened by ultra-fine barium sulfate and light calcium carbonate[J]. Journal of Materials Engineering, 2016, 44 (11): 61- 65. doi: 10.11868/j.issn.1001-4381.2016.11.010
8	RASAL R M , JANORKAR A V , HIRT D E . Poly(lactic acid) modifications[J]. Progress in Polymer Science, 2010, 35 (3): 338- 356. doi: 10.1016/j.progpolymsci.2009.12.003
9	PILLA S , GONG S , O'NEILL E , et al. Polylactide-pine wood flour composites[J]. Polymer Engineering & Science, 2008, 48 (3): 578- 587.
10	WANG Y L , QI R R , CHENG X , et al. Effects of coupling agent and interfacial modifiers on mechanical properties of poly(lactic acid) and wood flour biocomposites[J]. Iranian Polymer Journal, 2011, 20 (4): 281- 294.
11	AVELLA M , BOGOEVA-GACEVA G , BUŽAROVSKA A , et al. Poly (lactic acid)-based biocomposites reinforced with kenaf fibers[J]. Journal of Applied Polymer Science, 2008, 108 (6): 3542- 3551.
12	于人同, 方显力, 张云灿, 等. 反应挤出法制备马来酸酐接枝聚乳酸[J]. 高分子材料科学与工程, 2009, 25 (3): 85- 88.
12	YU R T , FANG X L , ZHANG Y C , et al. Preparation and properties of PLA grafted with maleic anhydride through reactive extrusion[J]. Polymer Materials Science & Engineering, 2009, 25 (3): 85- 88.
13	ZHU R , LIU H Z , ZHANG J W . Compatibilizing effects of maleated poly(lactic acid)(PLA) on properties of PLA/Soy protein composites[J]. Industrial & Engineering Chemistry Research, 2012, 51 (22): 7786- 7792.
14	CSIKÍSÁ , FALUDI G , DOMJÁN A , et al. Modification of interfacial adhesion with a functionalized polymer in PLA/wood composites[J]. European Polymer Journal, 2015, 68 (Suppl 1): 592- 600.
15	LIU J S , JIANG H H , CHEN L B . Grafting of glycidyl methacrylate onto poly(lactide) and properties of PLA/Starch blends compatibilized by the grafted copolymer[J]. Journal of Polymers and the Environment, 2012, 20 (3): 810- 816. doi: 10.1007/s10924-012-0438-1
16	谢振华, 储富祥, 王春鹏, 等. 聚乳酸反应接枝甲基丙烯酸缩水甘油酯及其增容作用[J]. 高分子材料科学与工程, 2015, 31 (5): 125- 128.
16	XIE Z H , CHU F X , WANG C P , et al. Preparation of poly(lactic acid) grafted with glycidyl methacrylate through reactive extrusion and its compatibilization[J]. Polymer Materials Science And Engineering, 2015, 31 (5): 125- 128.
17	MOHANTY S , NAYAK S K . Effect of poly (lactic acid)-graft-glycidyl methacrylate as a compatibilizer on properties of poly (lactic acid)/banana fiber biocomposites[J]. Polymers for Advanced Technologies, 2016, 27 (4): 515- 524.
18	WU C S . Renewable resource-based composites of recycled natural fibers and maleated polylactide bioplastic:characterization and biodegradability[J]. Polymer Degradation and Stability, 2009, 94 (7): 1076- 1084. doi: 10.1016/j.polymdegradstab.2009.04.002
19	XU T Q , TANG Z B , ZHU J . Synthesis of polylactide-graft-glycidyl methacrylate graft copolymer and its application as a coupling agent in polylactide/bamboo flour biocomposites[J]. Journal of Applied Polymer Science, 2012, 125 (Suppl 2): 622- 627.
20	王霞, 李浩, 宋永明, 等. 木粉/聚丙烯复合材料的流变性能研究[J]. 西南林业大学学报, 2016, 36 (4): 145- 151.
20	WANG X , LI H , SONG Y M , et al. Research on rheological properties of wood flour/polypropylene composites[J]. Journal of Southwest Forestry University, 2016, 36 (4): 145- 151.
21	欧荣贤, 王清文. 马来松香对木粉/HDPE复合材料流变性质的影响[J]. 林业科学, 2009, 45 (5): 126- 131. doi: 10.11707/j.1001-7488.20090519
21	OU R X , WANG Q W . Effects of maleic rosin on the rheological properties of wood flour/HDPE composites[J]. Scientia Silvae Sinicae, 2009, 45 (5): 126- 131. doi: 10.11707/j.1001-7488.20090519
