炭化纳米Co3O4/硅藻土复合材料制备及其性能
张博1,2, 付琪智1, 林森1,2, 陈廷芳1, 孙仕勇1,2, 蒋卉1
1. 西南科技大学 非金属矿研究所 固体废物处理与资源化教育部重点实验室, 四川 绵阳 621010;
2. 西南科技大学 四川省非金属矿粉体改性与高质化利用技术工程实验室, 四川 绵阳 621010
Preparation and properties of carbonized nano Co3O4 and diatomite composites
ZHANG Bo1,2, FU Qi-zhi1, LIN Sen1,2, CHEN Ting-fang1, SUN Shi-yong1,2, JIANG Hui1
1. Key Laboratory of Solid Waste Treatment and Resource Recycle(Ministry of Education), Institute of Non-metallic Minerals, Southwest University of Science and Technology, Mianyang 621010, Sichuan, China;
2. Sichuan Provincial Engineering Laboratory of Non-metallic Mineral Powder Modification and High Efficiency Utilization, Southwest University of Science and Technology, Mianyang 621010, Sichuan, China
全文: PDF(2496 KB)   HTML()
输出: BibTeX | EndNote (RIS)

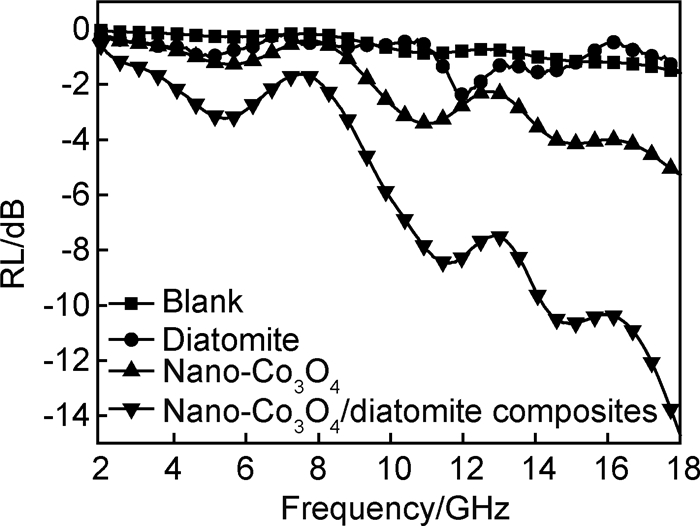

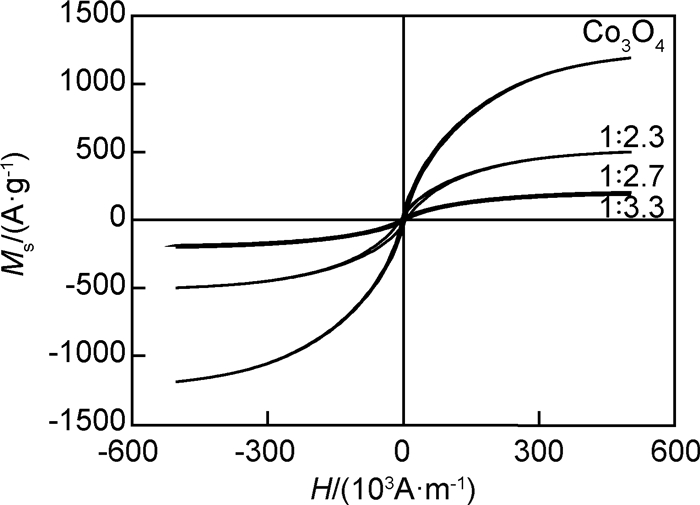

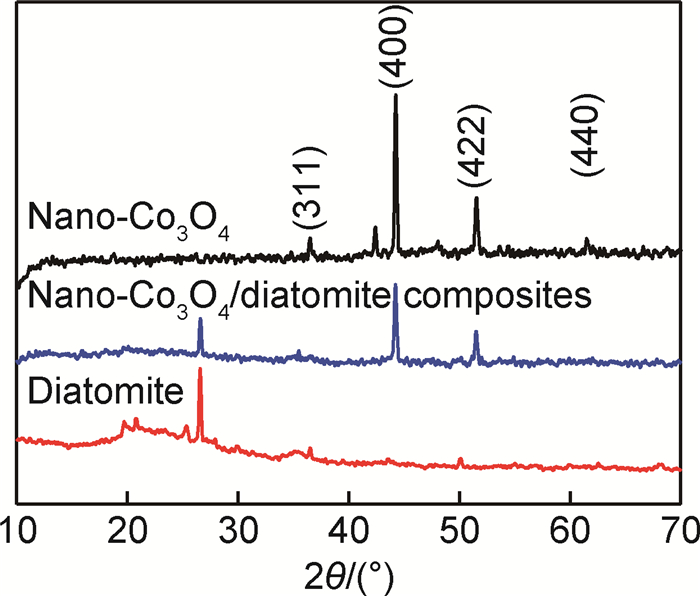

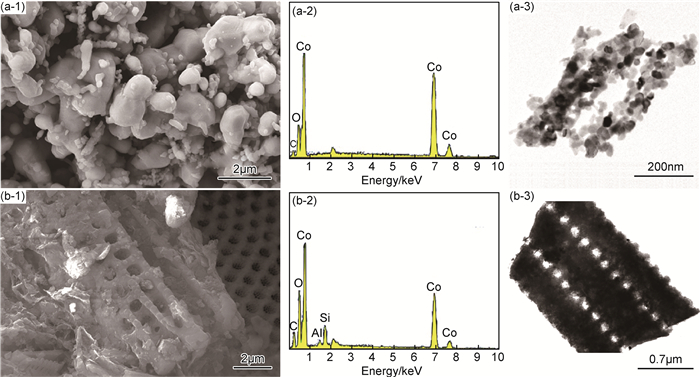

摘要 利用高温热解炭化制备炭化纳米Co3O4与硅藻土复合材料,研究其磁性和吸波性能。采用X射线衍射、扫描电镜、透射电镜、振动样品磁强计和矢量网络分析仪等测试分析技术对复合材料进行表征。结果表明:平均粒径为50nm的超顺磁性纳米Co3O4粒子和无定形碳均匀分散于硅藻土表面和孔隙内,形成稳定的复合体。炭化纳米Co3O4/硅藻土复合具有较强的超顺磁性和吸波性能,最大反射率损失为-14.7dB,<-10dB的频率范围大约为14~18GHz,带宽为4GHz。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
张博
付琪智
林森
陈廷芳
孙仕勇
蒋卉
关键词 纳米Co3O4硅藻土复合材料吸波性能炭化
Abstract:Carbonized nano-Co3O4 particles and diatomite were used for preparation of the composite of carbonized nano-Co3O4/diatomite by pyrolysis method, the magnetic and absorption properties were studied. The composite was characterized by X-ray diffraction, scanning electron microscopy, transmission electron microscopy, vibrating sample magnetometer. The results show that the superparamagnetic nano-Co3O4 particles with average size of 50nm and amorphous activated carbon are uniformly dispersed in the surface and pores of diatomite to form a stable composite. Carbonized nano-Co3O4/diatomite composite indicates high magnetic and microwave absorption performance with maximum reflection loss of -14.7dB, <-10dB frequency range about 14-18GHz and bandwidth of 4GHz.
Key wordsnano-Co3O4    diatomite    composite    microwave absorption property    carbonization
收稿日期: 2017-04-28      出版日期: 2019-02-21
中图分类号:  P579
  TB34
通讯作者: 陈廷芳(1963-),男,教授,博士,研究方向:非金属矿开发与应用,联系地址:四川省绵阳市西南科技大学环境与资源学院(621010),E-mail:chentingfang@swust.edu.cn     E-mail: chentingfang@swust.edu.cn
引用本文:
张博, 付琪智, 林森, 陈廷芳, 孙仕勇, 蒋卉. 炭化纳米Co3O4/硅藻土复合材料制备及其性能[J]. 材料工程, 2019, 47(2): 62-67.
ZHANG Bo, FU Qi-zhi, LIN Sen, CHEN Ting-fang, SUN Shi-yong, JIANG Hui. Preparation and properties of carbonized nano Co3O4 and diatomite composites. Journal of Materials Engineering, 2019, 47(2): 62-67.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.000540      或      http://jme.biam.ac.cn/CN/Y2019/V47/I2/62
[1] 刘丹莉,刘平安,杨青松,等. 吸波材料的研究现状及其发展趋势[J]. 材料导报,2013,27(17):74-78. LIU D L,LIU P A,YANG Q S,et al. Study on current situation and development trend of microwave absorbing materials[J].Materials Review,2013,27(17):74-78.
[2] 杨国栋,康永,孟前进.微波吸波材料的研究进展[J].应用化工,2010,39(4):584-589. YANG G D,KANG Y,MENG Q J.Study on microwave absorbing materials[J].Chinese Journal of Applied Chemistry,2010,39(4):584-589.
[3] GAO Y,CHEN S,CAO D,et al.Electrochemical capacitance of Co3O4 nanowire arrays supported on nickel foam[J].Journal of Power Sources,2010,195(6):1757-1760.
[4] DENG M J,HUANG F L,SUN I W,et al.An entirely electrochemical preparation of a nano-structured cobalt oxide electrode with superior redox activity[J].Nanotechnology,2009,20(17):175602.
[5] ICHIYANAGI Y,KIMISHIMA Y,YAMADA S.Magnetic study on Co3O4,nanoparticles[J].Journal of Magnetism & Magnetic Materials,2004,272(2):1245-1246.
[6] LIAO M,FENG J,LUO W,et al.Co3O4,nanoparticles as robust water oxidation catalysts towards remarkably enhanced photostability of a Ta3N5,photoanode[J].Advanced Functional Materials,2012,22(14):3066-3074.
[7] SHI P,SU R,WAN F,et al.Co3O4 nanocrystals on graphene oxide as a synergistic catalyst for degradation of Orange Ⅱ in water by advanced oxidation technology based on sulfate radicals[J].Applied Catalysis B Environmental,2012,123/124(12):265-272.
[8] NGUYEN H,ELASAFTY S A.Meso-and macroporous Co3O4 nanorods for effective VOC gas sensors[J].Journal of Physical Chemistry C,2011,115(17):8466-8474.
[9] 胡雷,刘志宏.四氧化三钴粉末的制备与应用现状[J].粉末冶金材料科学与工程,2008,13(4):195-200. HU L,LIU Z H.Preparation and application of Co3O4[J].Materials Science and Engineering of Powder Metallurgy,2008,13(4):195-200.
[10] WANG G,WU Y,WEI Y,et al.Fabrication of reduced graphene oxide(RGO)/Co3O4 nanohybrid particles and a RGO/Co3O4/poly(vinylidene fluoride) composite with enhanced wave-absorption properties[J].Chem Plus Chem,2014,79(3):375-381.
[11] LI X,YANG S,SUN J,et al.Enhanced electromagnetic wave absorption performances of Co3O4,nanocube/reduced graphene oxide composite[J].Synthetic Metals,2014,194:52-58.
[12] WANG X,YU J,DONG H,et al.Synthesis of nanostructured MnO2,SnO2,and Co3O4:graphene composites with enhanced microwave absorption properties[J].Applied Physics A,2015,119(4):1483-1490.
[13] 朱学文,廖列文,崔英德.均匀沉淀法制备纳米四氧化三钴微粉[J].无机盐工业,2002,34(1):3-4. ZHU X W,LIAO L W,CUI Y D.Study on preparing nanometer-sized Co3O4 by homogeneous precipitation method[J].Inorganic Chemicals Industry,2002,34(1):3-4.
[14] LIU X,QIU G,LI X.Shape-controlled synthesis and properties of uniform spinel cobalt oxide nanocubes[J].Nanotechnology,2005,16(12):3035-3040.
[15] 刘志宏,胡雷,刘智勇,等.高温气-固反应水解制备八面体形四氧化三钴粉末[J].无机材料学报,2008,23(6):1205-1210. LIU Z H,HU L,LIU Z Y,et al.Synthesis of microsized Co3O4 octahedral by high temperature gas-solid hydrolysis[J].Journal of Inorganic Materials,2008,23(6):1205-1210.
[16] 姜玉芝,贾嵩阳.硅藻土的国内外开发应用现状及进展[J].有色矿冶,2011,27(5):31-37. JIANG Y Z,JIA S Y.Application and progress of development and application of diatomaceous earth at home and abroad[J].Non-ferrous Mining and Metallurgy,2011,27(5):31-37.
[17] 孙仕勇,付琪智,宋绵新,等.硅藻土-无定形碳-氧化铁三元复合体系降解三硝基甲苯的研究[J].岩石矿物学杂志,2015,34(6):901-906. SUN S Y,FU Q Z,SONG M X,et al.The removal of TNT by ternary composite materials of diatomite-amorphous carbon-iron[J].Acta Petrologica et Mineralogica,2015,34(6):901-906.
[18] 孙仕勇,文科,杨波,等.活性炭/硅藻土吸附剂的制备及性能研究[J].岩石矿物学杂志,2013,32(6):941-946. SUN S Y,WEN K,YANG B,et al.The preparation and adsorption properties of novel active carbon/diatomite[J].Acta Petrologica et Mineralogica,2013,32(6):941-946.
[19] 崔素萍,王楠,郭红霞,等.硅藻土/镍锌铁氧体的制备及电磁性能[J].硅酸盐学报,2016,44(10):1509-1514. CUI S P,WANG N,GUO H X,et al.Synthesis and electromagnetic properties of nickel zinc ferrite coated on surface of diatomite[J].Journal of the Chinese Ceramic Society,2016,44(10):1509-1514.
[20] CAO M S,SONG W L,HOU Z L,et al.The effects of temperature and frequency on the dielectric properties,electromagnetic interference shielding and microwave-absorption of short carbon fiber/silica composites[J].Carbon,2010,48(3):788-796.
[21] LIU J,CAO M S,LUO Q,et al.Electromagnetic property and tunable microwave absorption of 3D nets from nickel chains at elevated temperature[J].ACS Applied Materials & Interfaces,2016,34:22615.
[22] WEN B,CAO M S,HOU Z L,et al.Temperature dependent microwave attenuation behavior for carbon-nanotube/silica composites[J].Carbon,2013,65(12):124-139.
[23] SONG W L,CAO M S,HOU Z L,et al.High dielectric loss and its monotonic dependence of conducting-dominated multiwalled carbon nanotubes/silica nanocomposite on temperature ranging from 373 to 873 K in X-band[J].Applied Physics Letters,2009,94(23):233110-233112.
[24] CAO M S,YANG J,SONG W L,et al.Ferroferric oxide/multiwalled carbon nanotube vs polyaniline/ferroferric oxide/multiwalled carbon nanotube multiheterostructures for highly effective microwave absorption[J].ACS Applied Materials & Interfaces,2012,4(12):6949-6956.
