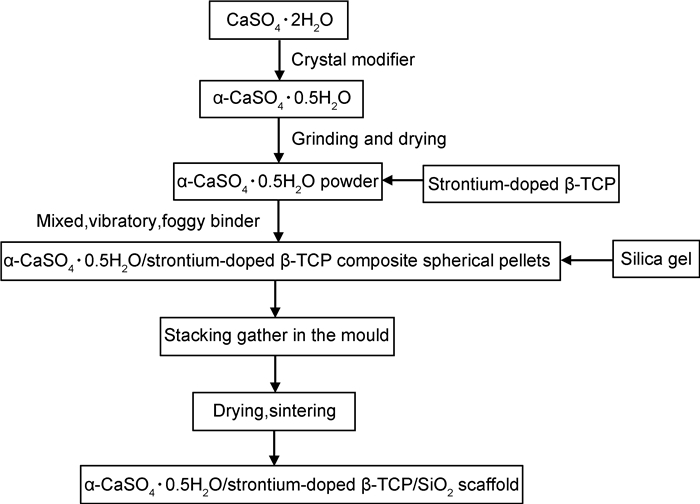

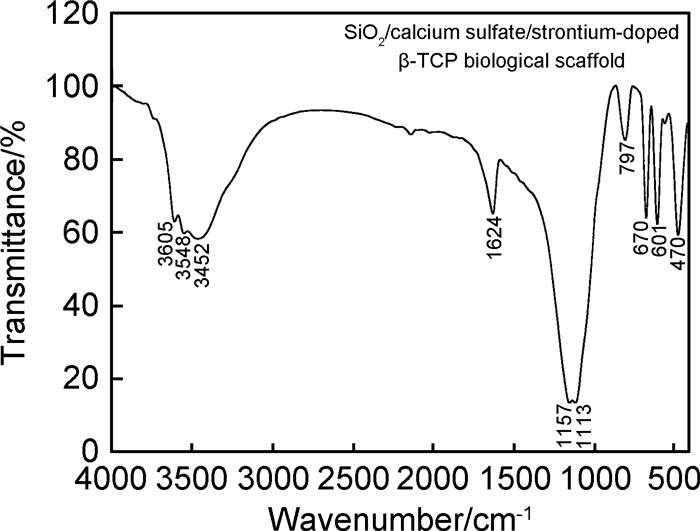

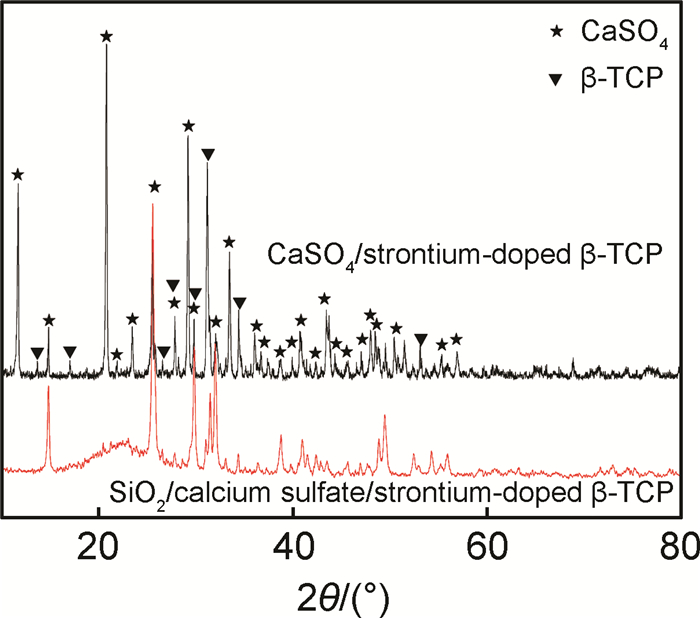

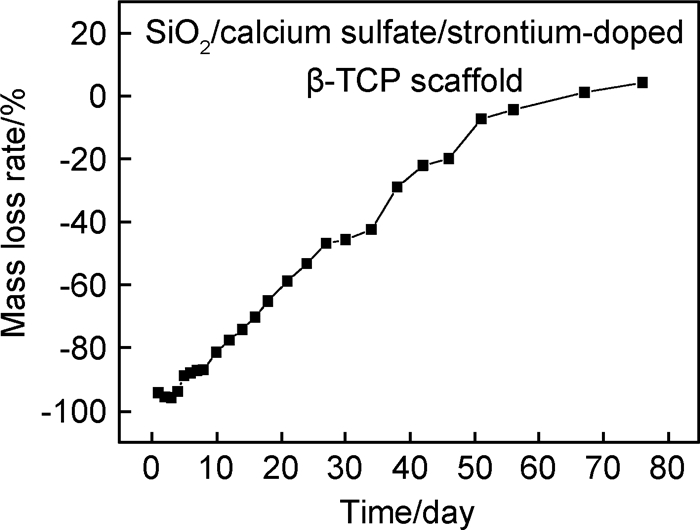

The calcium sulfate/strontium-doped β-tricalcium phosphate composite spherical pellets was fabricated, using the calcium sulfate/strontium-doped β-TCP as raw material, and through the stirring spray drying method, and then composite spherical pellets were combined with silica gel, porous silica gel/calcium sulfate/strontium-doped β-tricalcium phosphate scaffold was obtained by stacking aggregation method in the mould. The XRD, SEM and FT-IR, etc are employed to examine the chemical composition, composite morphology and structure characteristics, and the degradability, porosity, mechanical properties and cytotoxicity of the scaffolds materials were studied. The results reveal that the composite porous scaffolds have irregular pore structure with pore size between 0.2-1.0mm, and they have a large number of micropores on each of the composite spherical pellets, with the aperture between 50-200μm. Moreover, the porosity of the composite scaffolds is about 62%, which can meet the requirements of scaffolds for bone tissue engineering in porosity; the cytotoxicity tests show the composite scaffolds have no cytotoxic effect and it has good degradation. Therefore, it has good application prospect in bone tissue engineering of the bone defect repair of non-bearing site.
LOZANO R , NAGHAVI M , FOREMAN K , et al. Global and regional mortality from 235 causes of death for 20 age groups in 1990 and 2010:a systematic analysis for the global burden of disease study 2010[J]. The Lancet, 2013, 380 (9859): 2095- 2128.
LU C P , WANG X D , SHEN G F . Bioceramics in bone tissue engineering[J]. Chinese Journal of Tissue Engineering Research, 2017, 21 (22): 3576- 3582.
doi: 10.3969/j.issn.2095-4344.2017.22.022
3
MASCARENHAS R , MACDONALD P B . Anterior cruciate ligament reconstruction:a look at prosthetics-past, present and possible future[J]. McGill Journal of Medicine, 2008, 11 (1): 29- 37.
WANG Z , LIANG G , YIN Q , et al. Limb salvage surgery using massive allografts in malignant bone tumors[J]. Chinese Journal of Surgery, 1997, 35 (4): 200- 203.
5
LUO Z , DENG Y , ZHANG R , et al. Peptide-laden mesoporous silica nanoparticles with promoted bioactivity and osteo-differentiation ability for bone tissue engineering[J]. Colloids and Surfaces B:Biointerfaces, 2015, 131, 73- 82.
doi: 10.1016/j.colsurfb.2015.04.043
6
SARIIBRAHIMOGLU K , WOLKE J G C , LEEUWENBURGH S C G , et al. Characterization of α/β-TCP based injectable calcium phosphate cement as a potential bone substitute[J]. Key Engineering Materials, 2013, 529/530, 157- 160.
7
SUGAWARA A , ASAOKA K , DING S J . Calcium phosphate-based cements:clinical needs and recent progress[J]. Journal of Materials Chemistry B, 2013, 1 (8): 1081- 1089.
doi: 10.1039/C2TB00061J
YANG W Z , ZHOU D L , YIN G F , et al. Progress of biphasic calcium phosphate bioceramic as scaffold materials of bone tissue engineering[J]. Journal of the Chinese Ceramic Society, 2004, 32 (9): 1143- 1149.
10
CHEM F , LI S , YAN Y . Effect of TCP material on PH value inside and outside phagocytes by using nanometric microelectrode[J]. Bioceramics, 1996, 9, 209- 212.
11
GIANNOUDIS P V , DINOPOULOS H , TSIRIDIS E . Bone substitutes:an update[J]. Injure, 2005, 36 (3): 20- 27.
doi: 10.1016/j.injury.2005.07.029
NI G X , HUANG G T , YAO Z P , et al. The effect of strontium incoporated with hydroxyapatite on osteoblastic differentiation of bone masenchymal stromal cells[J]. Chinese Journal of Orthopaedic Trauma, 2010, 12 (11): 1060- 1064.
doi: 10.3760/cma.j.issn.1671-7600.2010.11.015
13
LEHMANN G , CACCIONTTI I , PALMERO P , et al. Differentiation of osteoblast and osteoclast precursors on pure and silicon-substituted synthesized hydroxyapatites[J]. Biomedical Materials, 2012, 7 (5): 055001.
doi: 10.1088/1748-6041/7/5/055001
14
IBRAHIM S , SABUDIN S , SAHID S , et al. Bioactivity studies and adhesion of human osteoblast (hFOB) on silicon-biphasic calcium phosphate material[J]. Saudi Journal of Biological Sciences, 2016, 23 (1): S56- S63.
doi: 10.1016/j.sjbs.2015.10.024
ZHANG J S , LEI S Z , LI C J , et al. A histological study on experimental implantation of β-tricalcium phosphate in rabbit mandi-ble[J]. Journal of Practical Stomatology, 2002, 18 (1): 65- 67.
16
TURNER T M , URBAN R M , SINGH K , et al. Vertebroplasty comparing injectable calcium phosphate cement compared with polymethylmethacrylate in a unique canine vertebral body large defect model[J]. The Spine Journal, 2008, 8 (3): 482- 487.
doi: 10.1016/j.spinee.2006.12.007
17
KHAN Y , YASZEMSKI M J , MIKOS A G , et al. Tissue engineering of bone:material and matrix considerations[J]. The Journal of Bone & Joint Surgery, 2008, 90 (Suppl 1): 36- 42.
18
RAVAINE D , SEMINEL A , CHARBOUILLOT Y , et al. A new family of organically modified silicates prepared from gels[J]. Journal of Non-Crystalline Solids, 1986, 82 (1): 210- 219.
19
MOTOMASTU M , NIE H Y , MIZUTANI W , et al. Microstructure study of acrylic polymer-silica nanocomposite surface by scanning force microscopy[J]. Polymer, 1997, 38 (1): 177- 182.
doi: 10.1016/S0032-3861(96)00477-6
20
HAN P , WU C , XIAO Y . The effect of silicate ions on proliferation, osteogenic differentiation and cell signalling pathways (WNT and SHH) of bone marrow stromal cells[J]. Biomaterials Science, 2013, 1 (4): 379- 392.
doi: 10.1039/C2BM00108J
21
DONG K Y . A study of optothermal and cytotoxic properties of silica coated Au nanorods[J]. Mater Lett, 2011, 65 (15/16): 2319- 2321.
22
LUO Z Y , DENG Y , ZHANG R R , et al. Peptide-laden mesoporous silica nanoparticles with promoted bioactivity and osteo-differentiation ability for bone tissue engineering[J]. Colloid & Surface:Biointerfaces, 2015, 131, 73- 82.
23
HUTMACHER D W . Scaffold design and fabrication technologies for engineering tissues-state of the art and future perspectives[J]. Journal of Biomaterials Science (Polymer Edition), 2001, 12 (1): 107- 124.
doi: 10.1163/156856201744489
24
KIM D H , KIM K L , CHUM H H , et al. In vitro biodegradable and mechanical performance of biphasic calcium phosphate porous scaffolds with unidirectional macro-pore structure[J]. Ceramics International, 2014, 40 (6): 8293- 8300.
doi: 10.1016/j.ceramint.2014.01.031
2018, Vol. 46
)
