材料工程  2018, Vol. 46 Issue (11): 45-50    DOI: 10.11868/j.issn.1001-4381.2017.001493
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
SiC微/纳米纤维毡增强SiO2气凝胶复合材料的制备和表征
余煜玺, 马锐
厦门大学 材料学院 材料科学与工程系 福建省特种先进材料重点实验室, 福建 厦门 361005
Preparation and Characterization of Silicon Carbide Micro/Nano Fibrous Mat Reinforced Silica Aerogel Composites
YU Yu-xi, MA Rui
Fujian Key Laboratory of Advanced Materials, Department of Materials Science and Engineering, College of Materials, Xiamen University, Xiamen 361005, Fujian, China
全文: PDF(3306 KB)   HTML()
输出: BibTeX | EndNote (RIS)       背景资料
文章导读

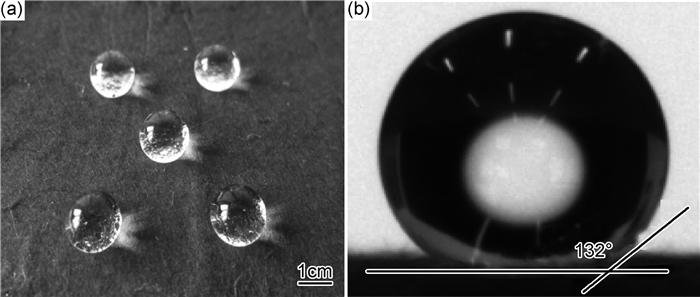

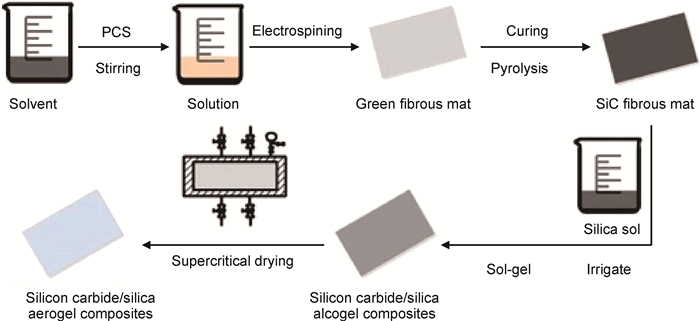

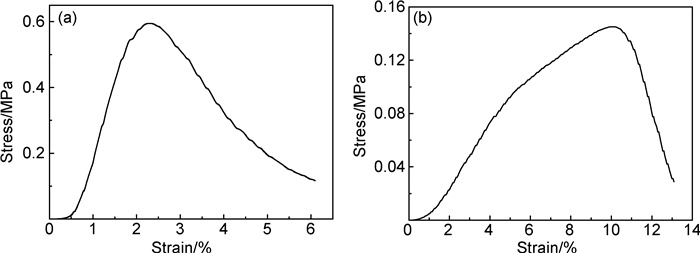

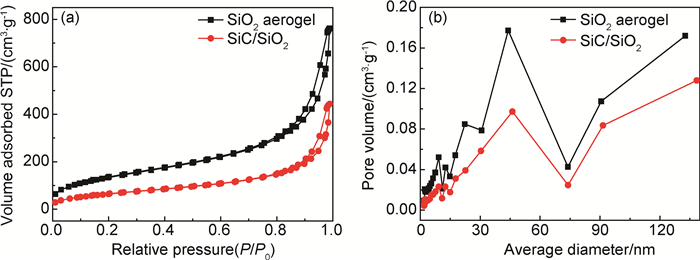

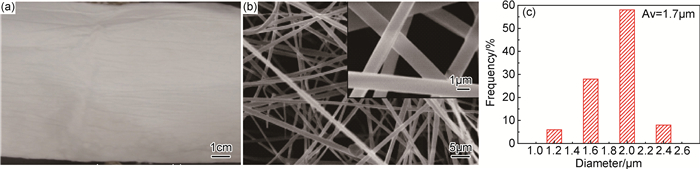

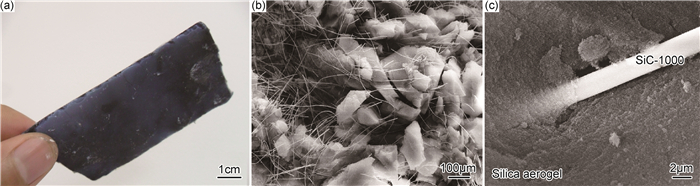

摘要 以聚碳硅烷为先驱体进行静电纺丝,制备PCS微/纳米纤维毡,通过交联和高温热处理工艺得到柔性无定型SiC微/纳米纤维毡,然后以纤维毡作为增强体,结合溶胶-凝胶和超临界干燥技术,制备SiC微/纳米纤维毡增强SiO2气凝胶复合材料(SiC/SiO2)。结果表明:制备的SiC纤维毡平均直径为1.7μm,横向抗拉强度为0.6MPa,伸长率为6.0%。SiC微/纳米纤维毡与SiO2气凝胶基体具有较好的相容性,SiC/SiO2气凝胶复合材料疏水角为132°,比表面积为241.8m2/g,平均孔径为12.0nm,SiC微/纳米纤维毡在增强气凝胶韧性的同时保持了其良好的耐温性和疏水性能。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
余煜玺
马锐
关键词 SiC微/纳米纤维毡SiO2气凝胶静电纺丝
Abstract:Flexible and amorphous silicon carbide micro/nano fibrous mats were prepared by electrospinning technology with polycarbosilane(PCS)as the precursor to prepare PCS micro/nano fibrous mats and followed by cross-linking and high temperature heat treatment process. The silicon carbide micro/nano fibrous mats reinforced silica aerogel composites (silicon carbide/silica aerogel) were prepared by using the SiC as the reinforcing material, and combining the sol-gel and super-critical drying technology. The results show that the average diameter of SiC fiber mats is about 1.7μm, the transverse tensile strength is 0.6MPa, and elongation is 6.0%. SiC micro/nano fibrous mat and SiO2 aerogel matrix have better compatibility, the hydrophobic angle of SiC/SiO2 aerogel composites is 132°, specific surface area is 241.8m2/g and the mean pore diameter is 12.0nm. SiC micro/nano fibrous mats strengthen the toughness of aerogel while maintaining its good thermal insulation and hydrophobic properties.
Key wordssilicon carbide micro/nano fibrous mat    silica aerogel    electrospinning
收稿日期: 2017-12-05      出版日期: 2018-11-19
中图分类号:  TB332
基金资助:
通讯作者: 余煜玺(1974-),男,博士,教授,博士生导师,从事先驱体陶瓷和器件的设计与制备、极端环境应用的新材料与器件和气凝胶材料,联系地址:福建省厦门市厦门大学材料科学与工程系(361005),E-mail:yu_heart@xmu.edu.cn     E-mail: yu_heart@xmu.edu.cn
引用本文:
余煜玺, 马锐. SiC微/纳米纤维毡增强SiO2气凝胶复合材料的制备和表征[J]. 材料工程, 2018, 46(11): 45-50.
YU Yu-xi, MA Rui. Preparation and Characterization of Silicon Carbide Micro/Nano Fibrous Mat Reinforced Silica Aerogel Composites. Journal of Materials Engineering, 2018, 46(11): 45-50.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2017.001493      或      http://jme.biam.ac.cn/CN/Y2018/V46/I11/45
[1] SCHAEFER D W, KEEFER K D. Structure of random porous materials:silica aerogel[J]. Physical Review Letters, 1986, 56(20):2199-2202.
[2] KISTLER S S. Coherent expanded aerogels and jellies[J]. Nature, 1931, 127:741.
[3] HRUBESH L W. Aerogel applications[J]. Journal of Non-Crystalline Solids, 1998, 225:335-342.
[4] 余煜玺, 吴晓云, 伞海生. 常压干燥制备疏水性SiO2-玻璃纤维复合气凝胶及表征[J]. 材料工程, 2015, 43(8):31-36. YU Y X, WU X Y, SAN H S. Preparation and characterization of hydrophobic SiO2-glass fibers aerogels via ambient pressure drying[J]. Journal of Materials Engineering, 2015, 43(8):31-36.
[5] GURAV J L, JUNG I K, PARK H H, et al. Silica aerogel:synthesis and applications[J]. Journal of Nanomaterials, 2010(24):23.
[6] WEI G, LIU Y, ZHANG X, et al. Thermal conductivities study on silica aerogel and its composite insulation materials[J]. International Journal of Heat and Mass Transfer, 2011, 54(11):2355-2366.
[7] RAO A P, RAO A V, BANGI U K H. Low thermal conductive, transparent and hydrophobic ambient pressure dried silica aerogels with various preparation conditions using sodium silicate solutions[J]. Journal of Sol-Gel Science and Technology, 2008, 47(1):85-94.
[8] WOIGNIER T, PRIMERA J, ALAOUI A H, et al. Mechanical behaviour of nano composite aerogels[J]. Journal of Sol-Gel Science and Technology, 2011, 58(2):385-393.
[9] FRANK D, THONNESSEN F, ZIMMERMANN A. Fiber web/aerogel composite material comprising bicomponent fibers, production thereof and use thereof:US 5786059[P]. 1998-07-28.
[10] 高庆福, 冯坚, 张长瑞, 等. 陶瓷纤维增强氧化硅气凝胶隔热复合材料的力学性能[J]. 硅酸盐学报, 2009,37(1):1-5. GAO Q F, FENG J, ZHANG C R, et al. Mechanical properties of ceramic fiber-reinforced silica aerogel insulation composites[J]. Journal of the Chinese Ceramic Society, 2009, 37(1):1-5.
[11] SHI X, ZHANG S C, CHEN Y F, et al. Effects of infrared scattering powders on the thermal properties of porous SiO2 insulation material[J]. Key Engineering Materials, 2010, 434:689-692.
[12] 余煜玺, 朱孟伟. 高球形度、高比表面积SiO2/TiO2气凝胶小球的制备和表征[J]. 材料工程, 2017, 45(2):7-11. YU Y X, ZHU M W.Preparation and characterization of highly spherical silica-titania aerogel beads with high surface area[J]. Journal of Materials Engineering, 2017, 45(2):7-11.
[13] 林本兰, 崔升, 沈晓冬, 等. 六钛酸钾晶须掺杂改性气凝胶的结构和性能[J]. 南京工业大学学报(自然科学版), 2012, 34(1):20-23. LIN B L, CUI S, SHEN X D, et al. Microstructure and properties of PTW-doped SiO2 aerogels[J]. Journal of Nanjing University of Technology(Natural Science Edition), 2012, 34(1):20-23.
[14] 刘洪丽, 邓青沂, 褚鹏. 超临界干燥制备PSNB气凝胶及其超疏水性能研究[J]. 材料工程, 2018, 46(2):22-26. LIU H L, DENG Q Y, CHU P. Preparation and hydrophobic properties of polyborosilazane aerogels via CO2 supercritical drying[J]. Journal of Materials Engineering, 2018, 46(2):22-26.
[15] YU Y X, CHEN Y, AN L. Flexible hydrophobic and lipophilic aluminum-doped silicon carbide fibrous mats synthesized by electrospinning polyaluminocarbosilane[J]. International Journal of Applied Ceramic Technology, 2014, 11(4):699-705.
[16] 韩乃红, 杨杰, 刘瑞祥, 等. 红外遮蔽剂在耐高温高性能隔热材料中的应用[J]. 现代技术陶瓷, 2013, 34(3):7-10. HAN N H, YANG J, LIU R X, et al. Application of infrared screening agent in high temperature and high performance thermal insulation materials[J]. Advanced Ceramics, 2013, 34(3):7-10.
[17] MUSA C, ORRÙ R, SCITI D, et al. Synthesis, consolidation and characterization of monolithic and SiC whiskers reinforced HfB2 ceramics[J]. Journal of the European Ceramic Society, 2013, 33(3):603-614.
[18] YANG W, ARAKI H, TANG C, et al. Single-crystal SiC nanowires with a thin carbon coating for stronger and tougher ceramic composites[J]. Advanced Materials, 2005, 17(12):1519-1523.
[19] FU Q, GU C, LI H, et al. Microstructure and mechanical properties of SiC nanowires reinforced hydroxyapatite coating on carbon/carbon composites[J]. Materials Science and Engineering:A, 2013, 563:133-137.
[20] ZEKENTES K, ROGDAKIS K. SiC nanowires:material and devices[J]. Journal Physics D:Applied Physics, 2011, 44:1-17.
