POSS-(PMMA46)8浸渍涂覆商业PP隔膜的结构与性能
马敬玉, 杨凯淇, 张敏, 杨晗, 马晓燕
西北工业大学 理学院, 西安 710129
Structure and properties of POSS-(PMMA46)8 impregnated commercial polypropylene separator
MA Jing-yu, YANG Kai-qi, ZHANG Min, YANG Han, MA Xiao-yan
School of Science, Northwestern Polytechnical University, Xi'an 710129, China
全文: PDF(7261 KB)   HTML()
输出: BibTeX | EndNote (RIS)       背景资料
文章导读

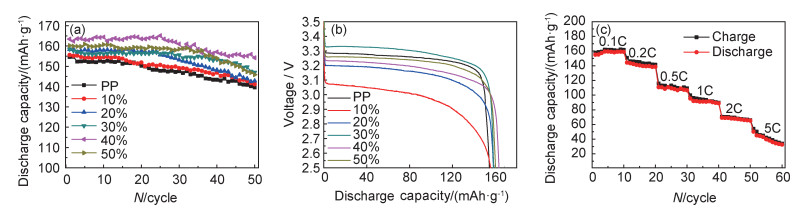

摘要 为了提高锂离子电池的安全性能,降低其界面阻抗,选用既具有优异耐热性能又与聚合物有良好相容性的POSS杂化聚甲基丙烯酸甲酯(POSS-(PMMA468)作为改性剂,通过在商业聚丙烯(PP)隔膜上浸渍POSS-(PMMA468制备改性商用PP隔膜,分析隔膜的力学性能、热收缩性能、界面性能、离子电导率及电化学性能。结果表明:当POSS-(PMMA468质量分数为40%时,复合膜的孔丰富均一,润湿性最佳,拉伸强度是未改性前的5.34倍,且在160℃/1h下具有较高的热稳定性。此复合膜电导率为1.35×10-3 S/cm,与电极的界面阻抗由原来的743Ω降为152Ω;Li/改性隔膜/LiFePO4扣式电池的充放电循环稳定性较好,低倍率下的电池容量与商业PP隔膜相当。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
马敬玉
杨凯淇
张敏
杨晗
马晓燕
关键词 锂离子电池浸渍POSS-(PMMA46)8热稳定性隔膜
Abstract:In order to improve the safety and reduce interface impedance of lithium-ion batteries, the star-shaped polyhedral POSS-poly(methyl methacrylate) (POSS-(PMMA46)8), which has both excellent heat resistance and good compatibility with the polymer material, was selected as a modifier to modify the separator of commercial polypropylene (PP) by the method of impregnation. The micromorphology of the composite separator was studied by scanning electron microscope (SEM). The mechanical property of the separator was measured by a tensile tester. The thermal stability of the separator was studied at a high temperature. The wettability of the separator was tested by a contact angle tester. The AC impedance was used to obtain the bulk impedance of the composite separator and then its ionic conductivity was studied. The electrochemical stability of the separator was measured by linear sweep voltammetry (LSV). The results show that when the mass fraction of POSS-(PMMA46)8 is 40%, the pore distribution of the composite membrane is homogeneous, and the wettability is the best. The tensile strength is 5.34 times that of the original film, and the thermo-stability is ideal at 160℃/1h. The conductivity of the composite membrane is 1.35×10-3 S/cm. The interface resistance between the composite separator and the electrode is reduced from 743Ω to 152Ω, and which is 79.5% higher than that of the original film; for Li/Separator/LiFePO4 cell, the charge-discharge cycling stability is better and the battery capacity at low magnification is comparable to commercial PP separator.
Key wordsLi-ion battery    impregnation    POSS-(PMMA46)8    thermal stability    separator
收稿日期: 2018-06-21      出版日期: 2019-09-18
中图分类号:  TM912
基金资助:
通讯作者: 马晓燕(1963-),女,教授,博士,研究方向为新化学电源的设计及新化学电源材料的设计与合成,有机/无机杂化材料和高性能树脂及其纳米复合材料研究,E-mail:m_xiao_yana@nwpu.edu.cn     E-mail: m_xiao_yana@nwpu.edu.cn
引用本文:
马敬玉, 杨凯淇, 张敏, 杨晗, 马晓燕. POSS-(PMMA46)8浸渍涂覆商业PP隔膜的结构与性能[J]. 材料工程, 2019, 47(9): 116-122.
MA Jing-yu, YANG Kai-qi, ZHANG Min, YANG Han, MA Xiao-yan. Structure and properties of POSS-(PMMA46)8 impregnated commercial polypropylene separator. Journal of Materials Engineering, 2019, 47(9): 116-122.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2018.000734      或      http://jme.biam.ac.cn/CN/Y2019/V47/I9/116
[1] YANG K Q, MA X Y, SUN K, et al. Electrospun octa(3-chloropropyl)-polyhedral oligomeric silsesquioxane-modified polyvinylidene fluoride/poly(acrylonitrile)/poly(methylmethacr-ylate) gel polymer electrolyte for high-performance lithium ion battery[J].Journal of Solid State Electrochemistry, 2018, 22(2):441-452.
[2] YU L H, JIN Y, LIN Y S. Ceramic coated polypropylene separators for lithium-ion batteries with improved safety:effects of high melting point organic binder[J].RSC Advances, 2016, 6(46):40002-40009.
[3] CHENG Q H, HE W, ZHANG X D, et al. Recent advances in composite membranes modified with inorganic nanoparticles for high-performance lithium ion batteries[J].RSC Advances, 2016, 6(13):10250-10265.
[4] YU L H, MIAO J S, JIN Y, et al. A comparative study on polypropylene separators coated with different inorganic materials for lithium-ion batteries[J].Frontiers of Chemical Science and Engineering, 2017, 11(3):346-352.
[5] 马敬玉,孙坤,马晓燕, 等. 静电纺丝法制备POSS-(C3H6Cl)8复合聚偏氟乙烯聚合物隔膜的结构与性能[J].高分子材料科学与工程, 2018, 34(6):54-59. MA J Y, SUN K, MA X Y, et al. Structure and property of electrospinning POSS-(C3H6Cl)8 composite PVDF polymer separators[J]. Polymer Materials Science & Engineering, 2018, 34(6):54-59.
[6] SHI C, DAI J H, SHEN X, et al. A high-temperature stable ceramic-coated separator prepared with polyimide binder/Al2O3 particles for lithium-ion batteries[J].Journal of Membrane Science, 2016, 517:91-99.
[7] XIONG Q Q, ZHENG C, CHI H Z, et al. Reconstruction of TiO2/MnO2-C nanotube/nanoflake core/shell arrays as high-performance supercapacitor electrodes[J].Nanotechnology, 2017, 28(5):055405.
[8] LI Z G, MA X Y, GUAN X H, et al. Aggregation behavior of star-shaped fluoropolymers containing polyhedral oligomeric silsesquioxane (POSS) at the air-water interface[J].Colloid and Polymer Science, 2017, 295(1):157-170.
[9] 张帆,管兴华,马晓燕, 等. POSS星型聚合物对PMMA复合凝胶聚合物电解质性能的影响[J].高分子学报, 2015(7):852-857. ZHANG F, GUAN X H, MA X Y, et al. Effect of POSS star-shaped polymers on the properties of PMMA-based GPE[J]. Acta Polymeric Sinica, 2015(7):852-857.
[10] LIU Y, MA X, SUN K, et al. Preparation and characterization of gel polymer electrolyte based on electrospun polyhedral oligomeric silsesquioxane-poly(methyl methacrylate)8/polyvin-ylidene fluoride hybrid nanofiber membranes for lithium-ion batteries[J].Journal of Solid State Electrochemistry, 2017, 22(4):1-10.
[11] QIANG X, MA X Y, LI Z G, et al. Synthesis of star-shaped polyhedral oligomeric silsesquioxane (POSS) fluorinated acrylates for hydrophobic honeycomb porous film application[J].Colloid and Polymer Science, 2014, 292(7):1531-1544.
[12] DONG X, MI W, YU L, et al. Zeolite coated polypropylene separators with tunable surface properties for lithium-ion batteries[J].Microporous and Mesoporous Materials, 2016, 226:406-414.
[13] LI X, ZHANG M, HE J, et al. Effects of fluorinated SiO2 nanoparticles on the thermal and electrochemical properties of PP nonwoven/PVDF-HFP composite separator for Li-ion batteries[J].Journal of Membrane Science, 2014, 455:368-374.
[14] LEE J Y, YONG M L, BHATTACHARYA B, et al. Solid polymer electrolytes based on crosslinkable polyoctahedral silsesquioxanes (POSS) for room temperature lithium polymer batteries[J].Journal of Solid State Electrochemistry, 2010, 14(8):1445-1449.
[15] PARK J H, CHO J H, PARK W, et al. Close-packed SiO2/poly(methyl methacrylate) binary nanoparticles-coated polye-thylene separators for lithium-ion batteries[J].Journal of Power Sources, 2010, 195(24):8306-8310.
[16] KIM K M, HEPOWIT L R, KIM J C, et al. Enhanced separator properties by coating alumina nanoparticles with poly(2-acrylamido-2-methyl-1-propanesulfonic acid) binder for lithium-ion batteries[J].Korean Journal of Chemical Engin-eering, 2015, 32(4):717-722.
