磁性核壳Fe<sub>3</sub>O<sub>4</sub>/P (GMA-DVB)-SH-Au复合催化剂的制备及催化性能

doi:10.11868/j.issn.1001-4381.2018.000856

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(3463 KB)

HTML ( 19 )
输出: BibTeX | EndNote (RIS)

摘要

首先通过水热法合成了单分散空心Fe₃O₄磁球，之后利用蒸馏沉淀聚合将P（GMA-DVB）聚合物层包覆在Fe₃O₄磁球表面形成Fe₃O₄/P（GMA-DVB）核壳结构，巯基化处理后吸附Au纳米粒子，得到磁性核壳Fe₃O₄/P（GMA-DVB）-SH-Au复合催化剂。利用TEM，SEM，FTIR，XRD，TGA，VSM及UV-vis对其进行表征，并考察该催化剂在催化还原4-硝基苯酚反应中的催化性能。结果表明合成的材料粒径均匀，球形度规整，核壳结构明显，在催化反应中，Fe₃O₄/P（GMA-DVB）-SH-Au表现出优异的催化性能，而且经过连续8次循环使用后，催化效率仍可保持80%以上。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	马明亮
	杨玉莹
	吕平
	贾丽
	贾新城
	陈柳
	孔令运
	池丽凤

关键词 ：功能材料, Fe₃O₄/P (GMA-DVB)-SH-Au核壳催化剂, 催化性能, 磁性分离, 循环利用

Abstract：

In this work, monodisperse hollow Fe₃O₄ magnetic microspheres were synthesized by hydrothermal method. And the P(GMA-DVB) polymer layer was coated on the surface of Fe₃O₄ microspheres by distillation precipitation polymerization method to form core-shell structure. After adsorption of Au nanoparticles, a magnetic core-shell Fe₃O₄/P(GMA-DVB)-SH-Au supported catalyst was obtained. The morphologies, structures and catalytic performance of the catalysts were characterized by TEM, SEM, FTIR, XRD, TGA, VSM and UV-vis. Results show that the synthesized materials have uniform particle size, regular microsphere, and obvious core-shell struc-ture. For the catalytic reduction of 4-nitrophenol, the Fe₃O₄/P(GMA-DVB)-SH-Au exhibits excellent catalytic performance, and the catalytic efficiency still maintains over 80% after 8 successive cycles.

Key words： functional materials core-shell Fe₃O₄/P(GMA-DVB)-SH-Au catalyst catalytic property magnetic separation recyclable catalyst

收稿日期: 2018-07-16 出版日期: 2019-06-17

中图分类号:

TB34

基金资助:国家自然科学基金项目(51503116);国家自然科学基金项目(51578298)

通讯作者: 马明亮 E-mail: mamingliang@qut.edu.cn

作者简介: 马明亮(1983-), 男, 博士, 讲师, 主要从事新型功能材料及性能研究, 联系地址:山东省青岛市市北区抚顺路11号青岛理工大学(266033), E-mail:mamingliang@qut.edu.cn

引用本文:

马明亮, 杨玉莹, 吕平, 贾丽, 贾新城, 陈柳, 孔令运, 池丽凤. 磁性核壳Fe₃O₄/P (GMA-DVB)-SH-Au复合催化剂的制备及催化性能[J]. 材料工程, 2019, 47(6): 70-76.
Ming-liang MA, Yu-ying YANG, Ping LYU, Li JIA, Xin-cheng JIA, Liu CHEN, Ling-yun KONG, Li-feng CHI. Synthesis and catalytic performance of magnetic core-shell structure Fe₃O₄/P(GMA-DVB)-SH-Au composite catalyst. Journal of Materials Engineering, 2019, 47(6): 70-76.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2018.000856 或 http://jme.biam.ac.cn/CN/Y2019/V47/I6/70

Fig.1 Fe₃O₄/P(GMA-DVB)-SH-Au核壳磁性催化剂的合成

Fig.2 材料的微观形貌图(a)Fe₃O₄微球TEM照片；(b)Fe₃O₄/P(GMA-DVB)微球TEM照片；(c)Fe₃O₄/P(GMA-DVB)-SH-Au微球TEM照片; (d)Fe₃O₄/P(GMA-DVB)-SH-Au微球SEM照片

Fig.3 微球的FTIR光谱

Fig.4 微球的XRD谱图

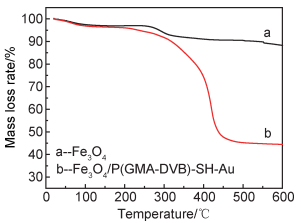

Fig.5 微球的TGA曲线

Fig.6 微球的VSM曲线

Fig.7 宏观磁性分离实验(a)Fe₃O₄/P(GMA-DVB)-SH-Au分散在水中；(b)外加磁场对微球的吸引

Fig.8 催化反应的UV-vis光谱

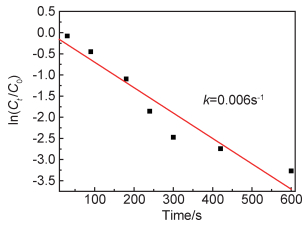

Fig.9 ln(C_t/C₀)与催化时间的关系图

Table 1 不同条件下4-NP的降解

Fig.10 Fe₃O₄/P(GMA-DVB)-SH-Au催化的循环实验结果

1	RICHARDSON S D , TERNES T A . Water analysis: emerging contaminants and current issues[J]. Anal Chem, 2018, 90 (1): 398- 428. doi: 10.1021/acs.analchem.7b04577
2	FENG J , SU L , MA Y , et al. CuFe₂O₄ magnetic nanoparticles: a simple and efficient catalyst for the reduction of nitrophenol[J]. Chem Eng J, 2013, 221, 16- 24. doi: 10.1016/j.cej.2013.02.009
3	LAI B , CHEN Z , ZHOU Y , et al. Removal of high concentr-ation p-nitrophenol in aqueous solution by zero valent iron with ultrasonic irradiation (US-ZVI)[J]. J Hazard Mater, 2013, 250-251, 220- 228. doi: 10.1016/j.jhazmat.2013.02.002
4	ZAREJOUSHEGHANI M , MODER M , BORSDORF H . A new strategy for synthesis of an in-tube molecularly imprinted polymer-solid phase microextraction device: selective off-line extraction of 4-nitrophenol as an example of priority pollutants from environmental water samples[J]. Anal Chim Acta, 2013, 798, 48- 55. doi: 10.1016/j.aca.2013.08.038
5	HASSAN M , ZHAO Y , XIE B . Employing TiO₂ photocatalysis to deal with landfill leachate: current status and development[J]. Chem Eng J, 2016, 285, 264- 275. doi: 10.1016/j.cej.2015.09.093
6	JIANG Z , ZHU C , WAN W , et al. Constructing graphite-like carbon nitride modified hierarchical yolk-shell TiO₂ spheres for water pollution treatment and hydrogen production[J]. J Mater Chem A, 2016, 4 (5): 1806- 1818. doi: 10.1039/C5TA09919F
7	DONG Z , LE X , DONG C , et al. Ni@Pd core-shell nanoparticles modified fibrous silica nanospheres as highly efficient and recoverable catalyst for reduction of 4-nitrophenol and hydrodec-hlorination of 4-chlorophenol[J]. Appl Catal B-Environ, 2015, 162, 372- 380. doi: 10.1016/j.apcatb.2014.07.009
8	LI C , CHEN G , SUN J , et al. Doping effect of phosphate in Bi₂WO₆ and universal improved photocatalytic activity for removing various pollutants in water[J]. Appl Catal B-Environ, 2016, 188, 39- 47. doi: 10.1016/j.apcatb.2016.01.054
9	WANG M L , JIANG T T , LU Y , et al. Gold nanoparticles immobilized in hyperbranched polyethylenimine modified polyacr-ylonitrile fiber as highly efficient and recyclable heterogeneous catalysts for the reduction of 4-nitrophenol[J]. J Mater Chem A, 2013, 1 (19): 5923- 5933.
10	DAI B , LI X , ZHANG J , et al. Application of mesoporous carbon nitride as a support for an Au catalyst for acetylene hydrochlorination[J]. Chem Eng Sci, 2015, 135, 472- 478. doi: 10.1016/j.ces.2014.12.017
11	WANG H , SHI Y , HARUTA M , et al. Aerobic oxidation of benzyl alcohol in water catalyzed by gold nanoparticles supported on imidazole containing crosslinked polymer[J]. Appl Catal A-Gen, 2017, 536, 27- 34. doi: 10.1016/j.apcata.2017.02.015
12	王珍珍, 翟尚儒, 翟滨, 等. 基于对硝基苯酚还原模型反应的纳米金催化材料[J]. 化学进展, 2014, 26 (2/3): 234- 247.
12	WANG Z Z , ZHAI S R , ZHAI B , et al. Preparation and catalytic properties of nano-Au catalytic materials based on the reduction of 4-nitrophenol[J]. Prog Chem, 2014, 26 (2/3): 234- 247.
13	SHYLESH S , SCHUNEMANN V , THIEL W R . Magnetically separable nanocatalysts: bridges between homogeneous and heterogeneous catalysis[J]. Angew Chem Int Edit, 2010, 49 (20): 3428- 3459. doi: 10.1002/anie.200905684
14	ZHANG B , ZHANG H , FAN X , et al. Preparation of thermoresponsive Fe₃O₄/P(acrylic acid-methyl methacrylate-N- isopropylacrylamide) magnetic composite microspheres with controlled shell thickness and its releasing property for phenolphthalein[J]. J Colloid Interf Sci, 2013, 398, 51- 58. doi: 10.1016/j.jcis.2013.01.042
15	CHEN Y , SONG B , LI M , et al. Fe₃O₄ Nanoparticles embed-ded in uniform mesoporous carbon spheres for superior high‐rate battery applications[J]. Adv Funct Mater, 2014, 24 (3): 319- 326. doi: 10.1002/adfm.v24.3
16	TUO Y , LIU G , DONG B , et al. Microbial synthesis of Pd/Fe₃O₄, Au/Fe₃O₄ and PdAu/Fe₃O₄ nanocomposites for catalytic reduction of nitroaromatic compounds[J]. Sci Rep-UK, 2015, 5, 13515. doi: 10.1038/srep13515
17	ZHAO Y , YEH Y , LIU R , et al. Facile deposition of gold nanoparticles on core-shell Fe₃O₄@polydopamine as recyclable nanocatalyst[J]. Solid State Sci, 2015, 45, 9- 14. doi: 10.1016/j.solidstatesciences.2015.04.010
18	LIU Y , LI C , ZHANG H , et al. One-pot hydrothermal synth-esis of highly monodisperse water-dispersible hollow magnetic microspheres and construction of photonic crystals[J]. Chem Eng J, 2015, 259, 779- 786. doi: 10.1016/j.cej.2014.08.051
19	戴田霖, 张艳梅, 储刚, 等. 核-壳结构磁性金属有机骨架材料Fe₃O₄@UiO-66-NH₂的合成、表征及催化性能[J]. 无机化学学报, 2016, 32 (4): 606- 619.
19	DAI T L , ZHANG Y M , CHU G , et al. Core-shell magnetic microsphere Fe₃O₄@UiO-66-NH₂: characterization and applic-ation as heterogeneous catalyst[J]. Chinese J Inorg Chem, 2016, 32 (4): 606- 619.
20	MADDAH B , SABOURI A , HASANZADEH M . Magnetic solid-phase extraction of oxadiazon and profenofos from environ-mental water using magnetite Fe₃O₄@SiO₂-C₁₈ nanoparticles[J]. J Polym Environ, 2017, 25 (3): 770- 780. doi: 10.1007/s10924-016-0859-3
21	MEZGEBE M M , YAN Z , WEI G , et al. 3D graphene-Fe₃O₄-polyaniline, a novel ternary composite for supercapacitor elect-rodes with improved electrochemical properties[J]. Mater Today Energy, 2017, 5, 164- 172. doi: 10.1016/j.mtener.2017.06.007
22	CHENG J , ZHAO S , GAO W , et al. Au/Fe₃O₄@TiO₂ hollow nanospheres as efficient catalysts for the reduction of 4-nitrophenol and photocatalytic degradation of rhodamine B[J]. React Kinet Mech Cat, 2017, 121 (2): 797- 810.
23	LI Z , JIA Z , NI T , et al. Green and facile synthesis of fibrous Ag/cotton composites and their catalytic properties for 4-nitrophenol reduction[J]. Appl Surf Sci, 2017, 426, 160- 168. doi: 10.1016/j.apsusc.2017.07.173
24	BAO F , TAN F , WANG W , et al. Facile preparation of Ag/Ni(OH)₂ composites with enhanced catalytic activity for reduction of 4-nitrophenol[J]. RSC Adv, 2017, 7 (23): 14283- 14289. doi: 10.1039/C6RA27153G
25	ZHANG W , SUN Y , ZHANG L . In situ synthesis of monodi-sperse silver nanoparticles on sulfhydryl-functionalized poly(glycidyl methacrylate) microspheres for catalytic reduction of 4-nitrophenol[J]. Ind Eng Chem Res, 2015, 54 (25): 6480- 6488. doi: 10.1021/acs.iecr.5b01010
26	TANG S , VONGEHR S , MENG X . Controllable incorporation of Ag and Ag-Au nanoparticles in carbon spheres for tunable optical and catalytic properties[J]. J Mater Chem, 2010, 20 (26): 5436- 5445. doi: 10.1039/c0jm00456a
27	ZHANG P , SHAO C , ZHANG Z , et al. In situ assembly of well-dispersed Ag nanoparticles (AgNPs) on electrospun carbon nanofibers (CNFs) for catalytic reduction of 4-nitrophenol[J]. Nanoscale, 2011, 3 (8): 3357- 3363. doi: 10.1039/c1nr10405e
