S32750双相不锈钢相界与晶界特征对其力学性能和耐蚀性能的影响
李昊卿1, 田玉晶1, 赵而团1, 郭红2, 方晓英1,*()
1 山东理工大学 机械工程学院, 山东 淄博 255000
2 山东理工大学 分析测试中心, 山东 淄博 255000
Effect of phase boundary and grain boundary characteristics on mechanical properties and corrosion resistance of S32750 duplex stainless steel
Hao-qing LI1, Yu-jing TIAN1, Er-tuan ZHAO1, Hong GUO2, Xiao-ying FANG1,*()
1 School of Mechanical Engineering, Shandong University of Technology, Zibo 255000, Shandong, China
2 Center of Testing and Analysis, Shandong University of Technology, Zibo 255000, Shandong, China
全文: PDF(5238 KB)   HTML ( 7 )
输出: BibTeX | EndNote (RIS)
摘要

通过固溶处理获得不同初始组织状态的S32750双相不锈钢样品,然后进行厚度压下量80%的冷轧变形和1050℃的退火处理,采用SEM-EBSD和XRD技术研究合金相界与晶界特征以及相组成分布情况,并利用拉伸实验、纳米压痕和双环电化学动电位再活化法(DL-EPR)分析不同初始状态样品的组织对力学性能与耐晶间腐蚀性能的影响规律。结果表明:高温固溶处理的合金样品经冷轧退火后晶粒细小均匀,两相分布接近1:1,且相界占内界面(晶界+相界)比例较高,同相晶粒团簇程度最低,表现出优异的综合力学性能。合金样品经敏化处理后,σ相易沿α相晶界析出,高温固溶并经轧制退火后的样品中,由于α晶界比例较少且满足K-S取向关系的相界比例较高则又表现出良好的晶间腐蚀抗力。因此,通过适当的工艺来调控合金的相界与晶界分布可以实现材料强度和晶间腐蚀抗力的同步改善。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
李昊卿
田玉晶
赵而团
郭红
方晓英
关键词 金属材料相界与晶界特征EBSD双相不锈钢力学性能晶间腐蚀抗力
Abstract

S32750 duplex stainless steel samples with different initial microstructures obtained by solid solution heat treatment (SHT) were cold rolled with the thickness reduction of 80% and subsequently annealed at 1050℃. The distribution of phase boundary and grain boundary character for the as-processed samples was investigated by SEM-EBSD and XRD techniques. Furthermore, the effect of microstructure on mechanical properties and intergranular corrosion resistance was analyzed by means of tensile testing, nano-indentation and double loop electrochemical potential reactivation (DL-EPR) method. The results show that the fine-grained microstructure with the areal ratio of α to γ about 1, the highest fraction of phase boundaries out of the total interfaces (grain boundaries +phase boundaries), and the least grain clustering within the respective α and γ phases was obtained in the sample previously treated by high temperature SHT and subsequent cold rolling and annealing. As a result, the sample exhibits excellent mechanical properties. After the cold-rolled and annealed samples are sensitized at 750℃ for 4 h, the σ phase precipitates readily along the α grain boundary. The sample previously treated by high temperature SHT and subsequent cold rolling and annealing also possess better intergranular corrosion resistance due to the relatively small amount of α grain boundary and high population of phase boundaries meeting K-S orientation relationship between α and γ. Therefore, the strength and intergranular corrosion resistance might be improved simultaneously by controlling and designing interface character distribution via appropriate thermal mechanical treatment in duplex stainless steel.

Key wordsmetallic material    phase boundary and grain boundary characteristics    EBSD    duplex sta-inless steel    mechanical property    intergranular corrosion resistance
收稿日期: 2018-08-29      出版日期: 2020-03-03
中图分类号:  TG142
基金资助:国家自然科学基金资助项目(51471100);国家自然科学基金资助项目(51171095)
通讯作者: 方晓英     E-mail: fxy@sdut.edu.cn
作者简介: 方晓英(1971-), 女, 教授, 博士, 主要从事金属材料界面工程研究, 联系地址:山东省淄博市张店区新村西路266号山东理工大学机械工程学院(255000), E-mail:fxy@sdut.edu.cn
引用本文:
李昊卿, 田玉晶, 赵而团, 郭红, 方晓英. S32750双相不锈钢相界与晶界特征对其力学性能和耐蚀性能的影响[J]. 材料工程, 2020, 48(2): 133-139.
Hao-qing LI, Yu-jing TIAN, Er-tuan ZHAO, Hong GUO, Xiao-ying FANG. Effect of phase boundary and grain boundary characteristics on mechanical properties and corrosion resistance of S32750 duplex stainless steel. Journal of Materials Engineering, 2020, 48(2): 133-139.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2018.001039      或      http://jme.biam.ac.cn/CN/Y2020/V48/I2/133
Fig.1  初始样品的显微组织EBSD重构取向成像图
(a)SHT-A; (b)SHT-B; (c)SHT-C
Fig.2  初始样品的两相分布(a)与平均晶粒尺寸(b)
Fig.3  冷轧退火样品的显微组织EBSD重构取向成像图
(a)CRA-A; (b)CRA-B; (c)CRA-C
Fig.4  冷轧退火后样品的两相分布(a)与平均晶粒尺寸(b)
Fig.5  冷轧退火后样品的晶界和相界特征分布图
(a)γ相中的晶界取向差分布图;(b)α相中的晶界取向差分布图;(c)在一定角度差内满足K-S取向关系的相界分布图

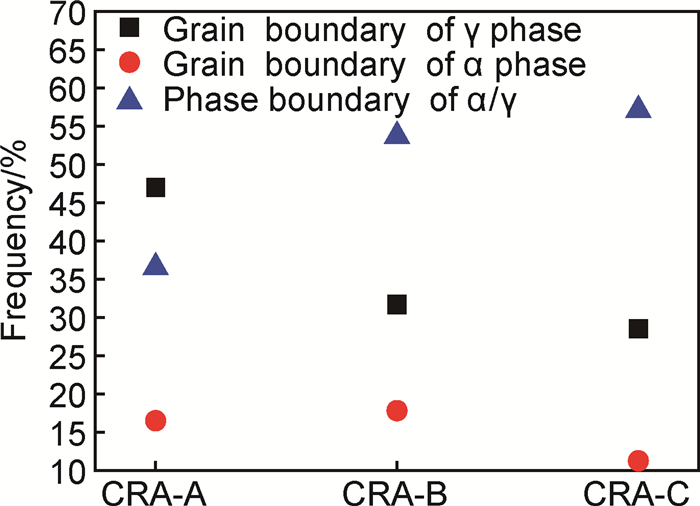

Fig.6  冷轧退火后样品中相界与晶界分布情况
Fig.7  冷轧退火试样经敏化处理后的极化曲线

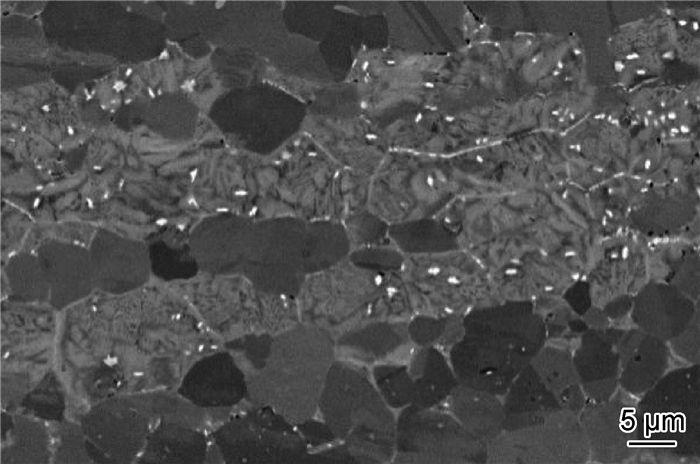

Fig.8  冷轧退火试样经敏化处理后的SEM典型形貌
Sample Element Ferrite Austenite σ
CRA-A Fe 57.19 60.85 51.61
Cr 32.92 25.21 26.93
Mo 4.51 2.18 12.33
Ni 3.98 8.09 4.08
CRA-B Fe 63.38 61.17 49.73
Cr 28.49 24.68 26.95
Mo 2.53 2.09 12.93
Ni 5.10 8.23 4.16
CRA-C Fe 55.82 61.12 49.08
Cr 30.63 25.27 26.56
Mo 3.79 2.19 15.65
Ni 4.75 8.16 4.85
Table 1  冷轧退火试样经敏化处理后的EDS分析(质量分数/%)
Fig.9  γ相、α相和σ相的载荷-位移曲线

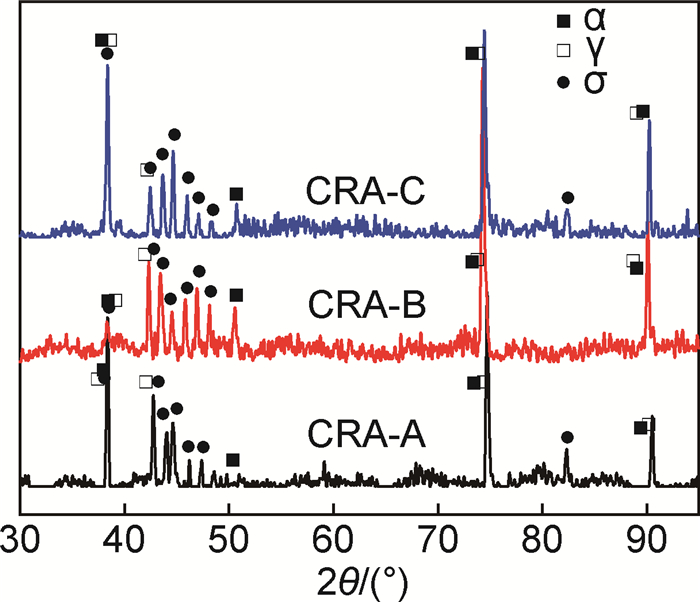

Fig.10  冷轧退火试样经敏化处理后的X射线衍射图
