基于“蛋盒”结构海藻基超级活性炭的制备及电化学性能
李诗杰1, 韩奎华2
1. 山东建筑大学 热能工程学院, 济南 250101;
2. 山东大学 能源与动力工程学院, 济南 250012
Preparation and electrochemical properties of algae-based super activated carbon based on “egg-box” structure
LI Shi-jie1, HAN Kui-hua2
1. School of Thermal Engineering, Shandong Jianzhu University, Jinan 250101, China;
2. School of Energy and Power Engineering, Shandong University, Jinan 250012, China
全文: PDF(3063 KB)   HTML()
输出: BibTeX | EndNote (RIS)

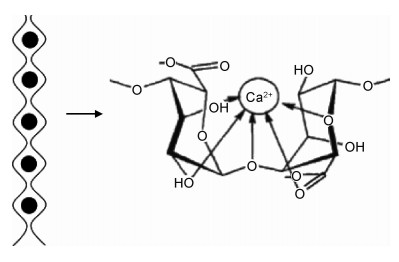

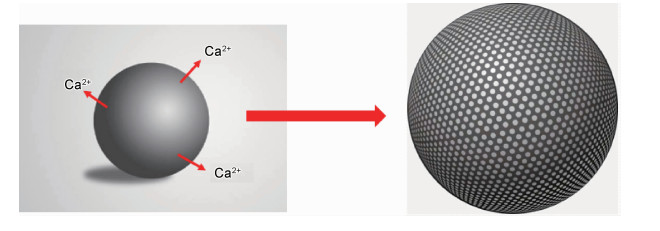

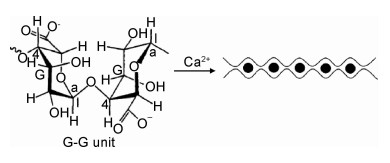

摘要 与陆生植物不同,海藻中含有海藻酸和海藻酸盐,其中海藻酸盐主要以海藻酸钙、海藻酸镁等形式存在于细胞壁中。以马尾藻、浒苔、龙须菜、裙带菜、海带和石莼6种海藻为原料,对海藻炭化后得到的碳产物进行盐酸酸洗,除去海藻酸盐中的钙、镁等离子,形成"蛋盒"式初始孔结构,然后采用KOH活化法制备海藻基超级活性炭,研究酸洗预处理对海藻基活性炭孔结构特性以及电化学性能的影响。结果表明:对海藻炭化产物酸洗预处理,不仅明显增大了海藻基活性炭的比表面积,还大幅度提高了活性炭中介孔的含量。海藻基活性炭的电化学性能得到明显改善。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
李诗杰
韩奎华
关键词 海藻活性炭超级电容器电化学性能盐酸改性
Abstract:Different with terrestrial plants, algae contains alginic acid and alginate, and the alginate mainly exists in cell walls in the form of calcium alginate and magnesium alginate. Six kinds of algae, sargassum, enteromorpha, asparagus, undaria, kelp and ulva, were used as raw materials, carbon products from algae carbonization were pickled with hydrochloric acid to remove Ca2+ and Mg2+ ions,etc. from alginate and form "egg-box" initial pore structure. Then the algae-based super activated carbon was prepared by KOH activation method, the effect of pickling pretreatment on the pore structure and electrochemical properties of algae-based activated carbon was studied. The results show that the hydrochloric acid pretreatment can not only increase the specific surface area, but also improve the number of mesoporous of the algae-based activated carbons. The electrochemical performance of algae-based activated carbons is improved after hydrochloric acid pretreatment.
Key wordsalgae    activated carbon    supercapacitor    electrochemical performance    acid pretreatment
收稿日期: 2018-12-12      出版日期: 2019-10-12
中图分类号:  TQ150
通讯作者: 李诗杰(1990-),男,讲师,博士,研究方向为储能材料,联系地址:山东省济南市临港开发区凤鸣路1000号山东建筑大学热能工程学院(25010),E-mail:675767978@163.com     E-mail: 675767978@163.com
引用本文:
李诗杰, 韩奎华. 基于“蛋盒”结构海藻基超级活性炭的制备及电化学性能[J]. 材料工程, 2019, 47(10): 97-104.
LI Shi-jie, HAN Kui-hua. Preparation and electrochemical properties of algae-based super activated carbon based on “egg-box” structure. Journal of Materials Engineering, 2019, 47(10): 97-104.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2018.001438      或      http://jme.biam.ac.cn/CN/Y2019/V47/I10/97
