La-Mg-Ni系A5B19超晶格负极材料相结构及电化学性能
许剑轶1,*(), 张国芳1, 胡峰1, 王瑞芬1, 寇勇2, 张胤1
1 内蒙古科技大学 材料与冶金学院, 内蒙古 包头 014010
2 包钢(集团)公司, 内蒙古 包头 014010
Phase structure and electrochemical performance for super lattice La-Mg-Ni based A5B19 type negative materials
Jian-yi XU1,*(), Guo-fang ZHANG1, Feng HU1, Rui-fen WANG1, Yong KOU2, Yin ZHANG1
1 School of Materials and Metallurgy, Inner Mongolia University of Science and Technology, Baotou 014010, Inner Mongolia, China
2 Baogang Group, Baotou 014010, Inner Mongolia, China
全文: PDF(2585 KB)   HTML ( 10 )
输出: BibTeX | EndNote (RIS)
摘要

感应熔炼制备La0.8-xCexMg0.2Ni3.8x=0,0.1,0.3,0.5),研究Ce替代部分La对La4MgNi19超晶格负极材料相结构及电化学性能的影响。研究表明,La4MgNi19合金相由LaNi5,(La,Mg)2Ni7,(La,Mg)5Ni19(3R-Ce5Co19)相组成。加入Ce后,(La,Mg)2Ni7相消失,出现2H-Pr5Co19结构的(La,Mg)5Ni19相,同时随着Ce替代量的增多,(La,Mg)5Ni19相含量增多,LaNi5相随之减少,Ce加入有利于形成A5B19相,特别是形成2H-Pr5Co19结构。电化学放电容量随着x值的增加呈现先增后减趋势,x=0.1时样品的电化学放电容量380.36 mAh/g最佳。合金电极活化次数、容量保持率和倍率放电性能随着Ce含量增加而增大。H在合金中的扩散速率是影响其倍率放电性能主要因素。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
许剑轶
张国芳
胡峰
王瑞芬
寇勇
张胤
关键词 La-Mg-Ni系A5B19超晶格负极材料稀土Ce替代电化学性能
Abstract

The quaternary alloys La0.8-xCexMg0.2Ni3.8 (x=0, 0.1, 0.3, 0.5) were prepared by induction melting, and the effects of partial substitution of Ce for La on the phase structure and electrochemical performances of super lattice La4MgNi19 negative materials were investigated. Results show that La4MgNi19 alloys contain LaNi5 phase, (La, Mg)2Ni7(3R-Ce2Ni7 and 2H-Gd2Co7) phase, (La, Mg)5Ni19 (3R-Ce5Co19) phase. The 2H-Pr5Co19 type phase appears while (La, Mg)2Ni7 phase disappears, after partial substitution of Ce for La. The increase of Ce element substitution has led to an obvious increase of the abundance of A5B19 phase and decrease of AB5 phase accordingly. Ce contributes to the formation of A5B19 phase, especially 2H-Pr5Co19 type phase. With the increase of Ce content from 0 to 0.5, the maximum discharge capacity of alloy electroded increases firstly and then decreased. The x=0.1 alloy exhibits a maximum discharge capacity of 380.36 mAh/g. It is also found that this substitution has caused a significant increase in the activation number, the cyclic stability, high-rate discharge ability. The well performance demonstrates that it is the hydrogen diffusion in the alloy that controls the high rate discharge.

Key wordsLa-Mg-Ni based    super lattice A5B19 negative material    rare earth Ce substitution    electrochemical performance
收稿日期: 2018-12-13      出版日期: 2020-03-03
中图分类号:  TG139+.7
  TG146.4
基金资助:内蒙古自然科学基金项目(2017MS(LH)0519);内蒙古自然科学基金项目(2017MS(LH)0516);国家自然科学基金(51501095)
通讯作者: 许剑轶     E-mail: xujiany@yeah.net
作者简介: 许剑轶(1974—), 男, 副教授, 研究方向为功能材料, 联系地址:内蒙古包头市昆区阿尔丁大街7号内蒙古科技大学材料与冶金学院(014010), E-mail:xujiany@yeah.net
引用本文:
许剑轶, 张国芳, 胡峰, 王瑞芬, 寇勇, 张胤. La-Mg-Ni系A5B19超晶格负极材料相结构及电化学性能[J]. 材料工程, 2020, 48(2): 46-52.
Jian-yi XU, Guo-fang ZHANG, Feng HU, Rui-fen WANG, Yong KOU, Yin ZHANG. Phase structure and electrochemical performance for super lattice La-Mg-Ni based A5B19 type negative materials. Journal of Materials Engineering, 2020, 48(2): 46-52.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2018.001448      或      http://jme.biam.ac.cn/CN/Y2020/V48/I2/46
xLa/(mg·g-1)Mg/(mg·g-1)Ce/(mg·g-1)Ni/(mg·g-1)Composition formula
0325.6415.650658.71La0.79Mg0.21Ni3.79
0.1285.6813.5745.28655.24La0.70Ce0.11Mg0.19Ni3.80
0.3194.2515.99124.69665.07La0.48Ce0.30Mg0.22Ni3.82
0.5127.0314.34202.54656.18La0.31Ce0.49Mg0.20Ni3.79
Table 1  退火合金成分ICP-AES分析

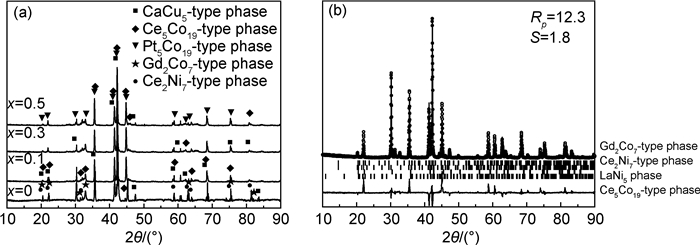

Fig.1  退火合金XRD(a)和x=0时退火合金XRD全谱拟合图谱(b)
xPhaseSpace groupPhase abundance/%Lattice parameter
a/nmc/nmV/nm3
0Ce2Ni7P63/mmc (194)5.980.49742.48380.53212
Gd2Co7R-3m (166)7.260.50453.62490.79909
Ce5Co19R-3m (160)25.310.50364.83011.06082
CaCu5P6/mmm (191)61.450.50250.39870.08718
0.1Ce5Co19R-3m (160)43.960.50334.81901.05713
Pr5Co19P63/mmc (194)17.810.50383.22040.70780
CaCu5P6/mmm (191)38.230.50230.39860.08709
0.3Ce5Co19R-3m (160)45.040.50274.80861.05233
Pr5Co19P63/mmc (194)24.080.50313.21990.70570
CaCu5P6/mmm (191)30.880.50210.39840.08697
0.5Ce5Co19R-3m (160)21.280.50234.79481.04764
Pr5Co19P63/mmc (194)53.680.50173.21950.70170
CaCu5P6/mmm (191)25.040.50180.39810.08681
Table 2  退火合金晶胞参数和相丰度

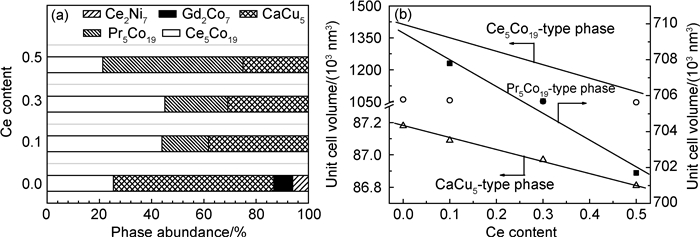

Fig.2  退火合金丰度(a)和合金各相的晶胞体积(b)与Ce含量关系曲线

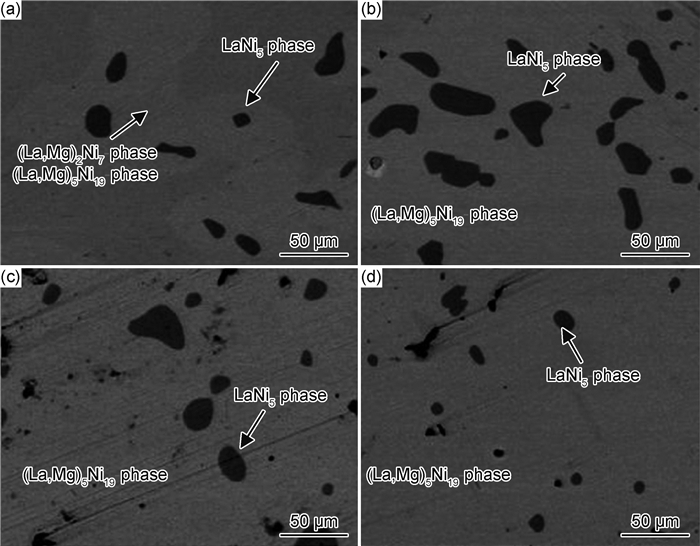

Fig.3  x含量不同时退火合金的背散射电子图像
(a)x=0;(b)x=0.1;(c)x=0.3;(d)x=0.5

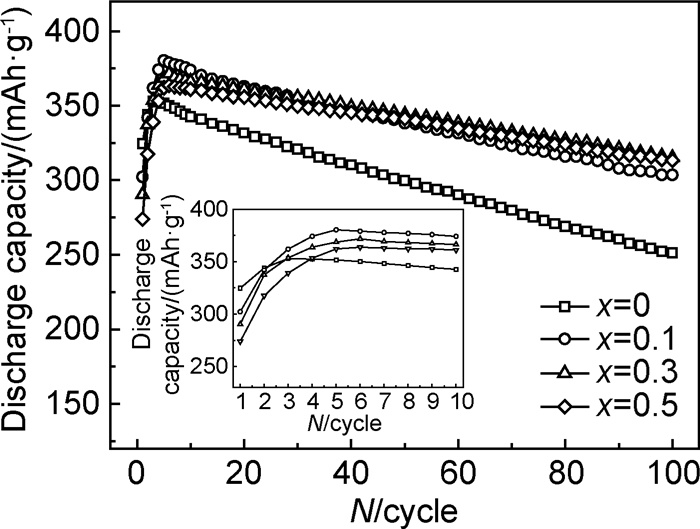

Fig.4  合金电极放电容量和循环次数关系曲线
xC1/(mAh·g-1)Cmax/(mAh·g-1)NaHRD900/%S100/%I0/(mA·g-1)IL/(mA·g-1)Voc/V
0324.71352.97372.2471.15213.53440-0.9540
0.1302.30380.36576.8379.82197.63630-0.9535
0.3290.41371.71682.2984.81136.53951-0.9519
0.5273.93363.69679.2286.17163.53733-0.9437
Table 3  合金电极电化学性能参数

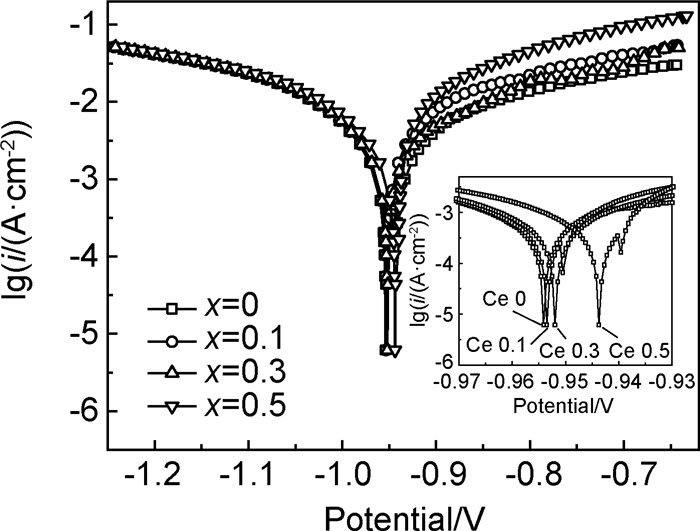

Fig.5  合金电极Tafel极化曲线

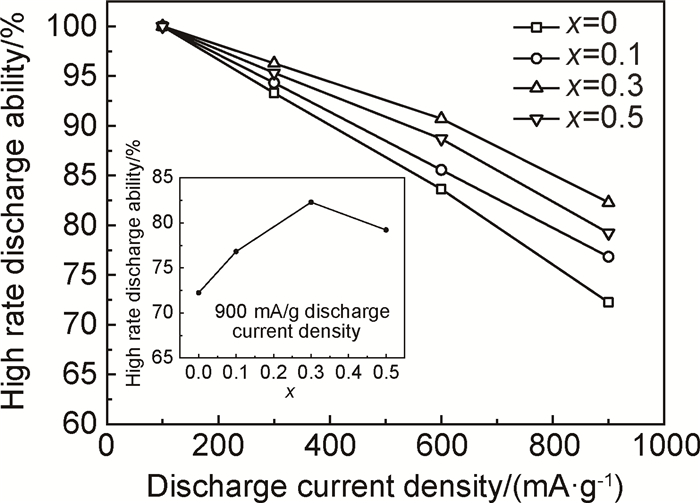

Fig.6  合金电极的高倍率放电性能曲线

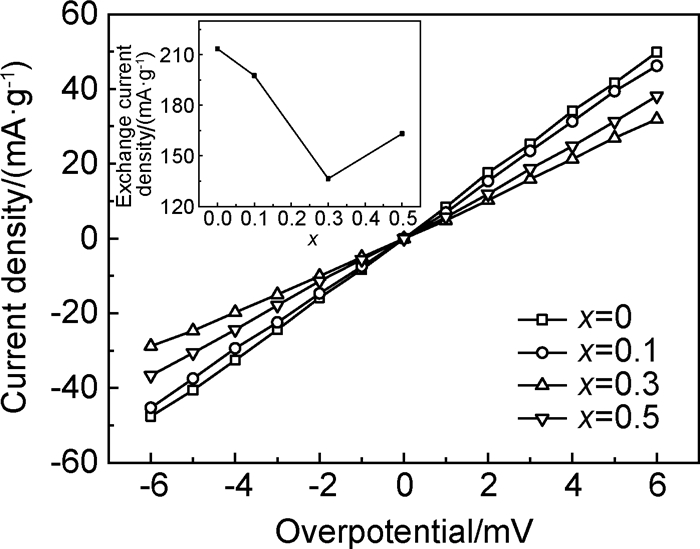

Fig.7  合金电极的线性极化曲线

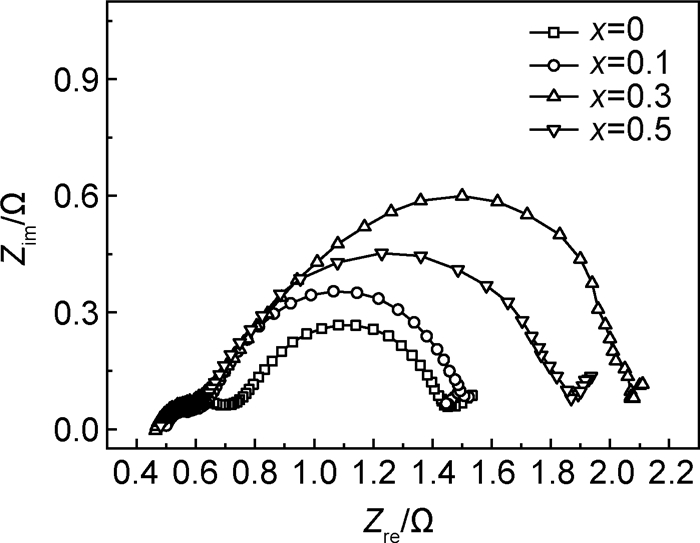

Fig.8  合金电极电化学阻抗图谱

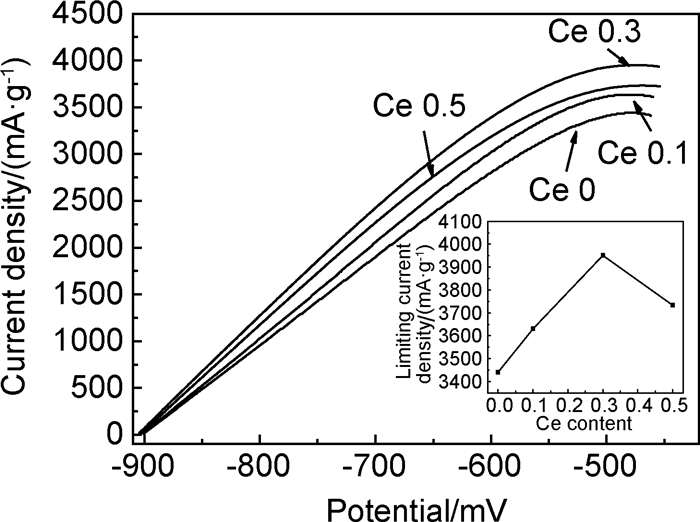

Fig.9  合金电极阳极极化曲线
