材料工程  2020, Vol. 48 Issue (3): 163-169    DOI: 10.11868/j.issn.1001-4381.2019.000131
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
机械滚压对A473M钢疲劳性能的影响
刘也川1, 张松1, 谭俊哲2, 关锰2, 陶邵佳2, 张春华1
1. 沈阳工业大学 材料科学与工程学院, 沈阳 110870;
2. 沈阳鼓风机集团 核电泵业有限公司, 沈阳 110869
Effect of mechanical rolling on fatigue properties of A473M steel
LIU Ye-chuan1, ZHANG Song1, TAN Jun-zhe2, GUAN Meng2, TAO Shao-jia2, ZHANG Chun-hua1
1. School of Materials Science and Engineering, Shenyang University of Technology, Shenyang 110870, China;
2. Nuclear Power Pump Industry Co., Ltd., Shenyang Blower Works Group Corporation, Shenyang 110869, China
全文: PDF(2425 KB)   HTML()
输出: BibTeX | EndNote (RIS)

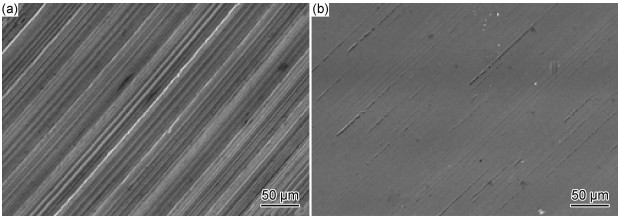

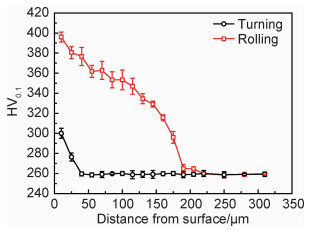

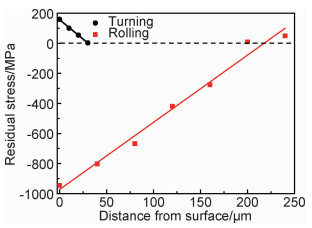

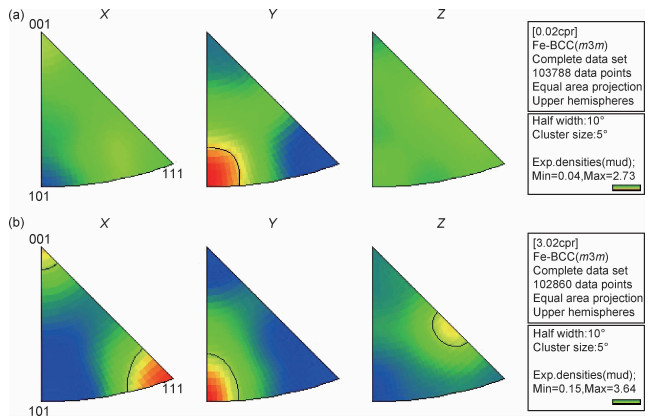

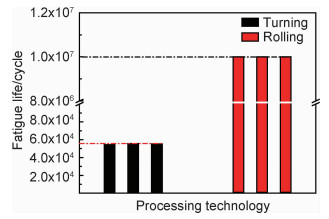

摘要 采用机械滚压对A473M马氏体不锈钢轴套材料进行表面处理,研究滚压工艺对其力学性能的影响。采用SEM、白光干涉仪、X射线衍射仪、显微硬度计、EBSD、拉伸试验机和疲劳试验机分别对试样表面形貌、表面粗糙度、残余应力、显微硬度、拉伸性能和疲劳性能进行系统表征。结果表明:滚压加工试样表面的粗糙度明显降低,仅为车削加工的1/5;滚压加工在材料近表面引入残余压应力,其值最高可达946 MPa,沿深度方向逐渐减小,残余压应力层深度约为200 μm,表面硬度提高30%左右,硬度影响层深度可达200 μm;抗拉强度、屈服强度和伸长率分别提升了40%,22%和8%,疲劳寿命由基体材料的5.4×104周次提高到1×107周次。采用滚压加工后材料的力学性能明显提升,疲劳寿命显著增加。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
刘也川
张松
谭俊哲
关锰
陶邵佳
张春华
关键词 滚压力学性能残余应力拉伸性能疲劳寿命
Abstract:The surface treatment was carried out on the surface of materials of A473M martensitic stainless steel axle sleeve by rolling technology, aiming to investigate the effect on its mechanical properties. The surface morphology and roughness, residual stress, microhardness, tensile and fatigue property were systematically studied using the SEM, white light interferometer, X-ray diffractometer, microhardness tester, EBSD, tensile tester and fatigue tester. The results show that the surface roughness of rolling specimen reduces significantly, which is about 1/5 of that of turning surface. The residual compression stress is induced near surface by rolling processing, the maximum value can reach up to 946 MPa and the residual compression stress decreases along with the depth. The thickness of the residual compression stress layer is about 200 μm. In addition, the rolling surface microhardness can be improved by 30% compared with that of turning surface and the hardened layer can be about 200 μm. As for mechanical properties, the tensile strength, yield strength and elongation of rolling specimens increase about 40%, 22% and 8% respectively compared with that of turning specimens. The fatigue life increases from 5.4×104 cycles to 1×107 cycles after rolling processing. The mechanical properties of the rolled material significantly improve, and the fatigue life significantly increases.
Key wordsrolling    mechanical property    residual stress    tensile property    fatigue life
收稿日期: 2019-02-19      出版日期: 2020-03-18
中图分类号:  TG142.1+2
通讯作者: 张松(1963-),女,教授,博士,主要从事激光增材制造及材料表面工程方面的工作,联系地址:辽宁省沈阳市沈阳经济技术开发区沈辽西路111号沈阳工业大学材料学院(110870),E-mail:songzhang_sy@163.com     E-mail: songzhang_sy@163.com
引用本文:
刘也川, 张松, 谭俊哲, 关锰, 陶邵佳, 张春华. 机械滚压对A473M钢疲劳性能的影响[J]. 材料工程, 2020, 48(3): 163-169.
LIU Ye-chuan, ZHANG Song, TAN Jun-zhe, GUAN Meng, TAO Shao-jia, ZHANG Chun-hua. Effect of mechanical rolling on fatigue properties of A473M steel. Journal of Materials Engineering, 2020, 48(3): 163-169.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2019.000131      或      http://jme.biam.ac.cn/CN/Y2020/V48/I3/163
[1] 马腾跃,王鹏飞,许忠斌,等.蒸汽发生器换热管流量分配及其对核主泵入口流场的影响[J].核动力工程,2018,39(4):58-62. MA T Y,WANG P F,XU Z B,et al.Flow distribution of heat exchanger tubes in a steam generator and its effect on flow field at entrance of reactor coolant pump[J].Nuclear Power Engineering,2018,39(4):58-62.
[2] 张丽平,蔡龙.国内小型压水堆核电站核主泵技术[J].水泵技术,2018(5):1-4. ZHANG L P,CAI L.Nuclear main pump technology for domestic small pressurized water reactor nuclear power plant[J].Pump Technology,2018(5):1-4.
[3] 胡期翔,赵秀明,毛向阳,等.紧固件用MFT8非调质钢的冷作滚压形变工艺[J].金属热处理,2016,41(4):137-141. HU Q X,ZHAO X M,MAO X Y,et al.Cold rolling process on MFT8 non quenched and tempered steel surface for fasteners[J].Heat Treatment of Metals,2016,41(4):137-141.
[4] MISHRA V D,RAO B C,MURTHY H.Enhancement of mechanical properties by cold-rolling of Al6061[J].Materials Today Proceedings,2018,5(2):8263-8270.
[5] 任学冲,陈利钦,刘鑫贵,等.表面超声滚压处理对高速列车车轴钢疲劳性能的影响[J].材料工程,2015,43(12):1-5. REN X C,CHEN L Q,LIU X G,et al.Effects of surface ultrasonic rolling processing on fatigue properties of axle steel used on high speed train[J].Journal of Materials Engineering,2015,43(12):1-5.
[6] NAGARAJAN B,KUMAR D,FAN Z,et al.Effect of deep cold rolling on mechanical properties and microstructure of nickel-based superalloys[J].Materials Science and Engineering:A,2018,728:196-207.
[7] 叶寒,赖刘生,李骏,等.超声滚压强化7075铝合金工件表面性能的研究[J].表面技术,2018,47(2):8-13. YE H,LAI L S,LI J,et al.Surface properties of 7075 aluminum alloy workpieces after ultrasonic burnishing processing[J].Surface Technology,2018,47(2):8-13.
[8] 高玉魁.孔挤压强化对23Co14Ni12Cr3MoE钢疲劳性能的影响[J].金属热处理,2007,32(11):34-36. GAO Y K.Influence of cold hole expansion on fatigue property of 23Co14Ni12Cr3MoE steel[J].Heat Treatment of Metals,2007,32(11):34-36.
[9] 郑建新,蒋书祥.7050铝合金二维超声滚压加工残余应力场研究[J].表面技术,2017,46(12):265-269. ZHENG J X,JIANG S X.Residual stress field in the process of 2D ultrasonic rolling 7050 aluminum alloy[J].Surface Technology,2017,46(12):265-269.
[10] 巴德玛,孙晓峰,邱骥,等.基于纳米晶的低温离子渗硫层油润滑条件下摩擦磨损性能[J].中国表面工程,2017,30(6):140-148. BA D M,SUN X F,QIU J,et al.Tribological behavior of low temperature ion sulphurizing layer based on nanocrystalline under oil lubrication[J].China Surface Engineering,2017,30(6):140-148.
[11] NAKATA T,XU C,UEHARA Y,et al.Origin of texture weakening in a rolled ZEX4101 alloy sheet and its effect on room temperature formability and tensile property[J].Journal of Alloys and Compounds,2019,782:304-314.
[12] 柳阳,王东坡,邓彩艳,等.Ti-6Al-4V表面超声滚压制备Al2O3膜层的微观组织及性能研究[J].材料工程,2015,43(7):8-13. LIU Y,WANG D P,DENG C Y,et al.Microstructure and properties of Al2O3 films on Ti-6Al-4V using ultrasonic surface rolling processing[J].Journal of Materials Engineering,2015,43(7):8-13.
[13] KONG X,DING S,YANG H,et al.Effects of sizes and mechanical properties of fuel coupon on the rolling simulation results of monolithic fuel plate blanks[J].Nuclear Engineering and Technology,2018,50(8):1330-1338.
[14] 陈利钦,项彬,任学冲,等.表面超声滚压处理工艺对高速列车车轴钢表面状态的影响[J].中国表面工程,2014,27(5):96-101. CHEN L Q,XIANG B,REN X C,et al.Influences of surface ultrasonic rolling processing parameters on surface condition of axle steel used in high speed trains[J].China Surface Engineering,2014,27(5):96-101.
[15] EI-HADDAD M H,POOK L P,TOPPER K J.Metal fatigue[M].London:Oxford University,1974:130-195.
[16] 张飞,赵运才.超声表面滚压改善45#钢表层特性及疲劳性能的研究[J].表面技术,2017,46(9):185-190. ZHANG F,ZHAO Y C.Research on surface characteristics and fatigue properties of 45# steel by ultrasonic surface rolling[J].Surface Technology,2017,46(9):185-190.
[17] 吴上生,孙韩磊,杨琪.基于冷滚压工艺的谐波减速器柔轮疲劳寿命分析[J].机械传动,2019,43(1):131-135. WU S S,SUN H L,YANG Q.Fatigue life analysis of harmonic reducer flexspline based on cold rolling process[J].Journal of Mechanical Transmission,2019,43(1):131-135.
[18] 喻钟鸣.谐波减速器柔轮冷滚压成形关键技术研究[D].广州:华南理工大学,2017:66-67. YU Z M.Research on key technologies of cold rolling for flexspline of harmonic reducer[D].Guangzhou:South China University of Technology,2017:66-67.
[19] 俞必强,李威,薛建华,等.基于动载荷谱的齿轮弯曲疲劳寿命预测[J].北京科技大学学报,2013,35(6):813-817. YU B Q,LI W,XUE J H,et al.Prediction of bending fatigue life for gears based on dynamic load spectra[J].Journal of University of Science and Technology Beijing,2013,35(6):813-817.
[20] 邵成伟,陈思联,赵晓丽,等.一种高钒中碳非调质钢的高周疲劳性能[J].金属热处理,2014,39(2):19-22. SHAO C W,CHEN S L,ZHAO X L,et al.High-cycle fatigue property of high vanadium medium-carbon microalloyed steel[J].Heat Treatment of Metals,2014,39(2):19-22.
[21] 张素颖,周智敏,吴晓苏,等.大螺距异型螺纹牙根的微滚压强化技术[J].金属热处理,2015,40(4):135-138. ZHANG S Y,ZHOU Z M,WU X S,et al.Trace rolling strengthening technology of steep-pitch nonstandard thread[J].Surface and Coatings Technology,2015,40(4):135-138.
[22] SUN J,JIANG T,WANG Y,et al.Effect of grain refinement on high-carbon martensite transformation and its mechanical properties[J].Materials Science and Engineering:A,2018,726:342-349.
[23] 郑修麟.屈服强度与疲劳裂纹起始寿命间的关系[J].机械强度,1989,11(1):35-39. ZHENG X L.On the relationship between fatigue crack initiation life and yield stress of metals[J].Mechanical Strength,1989,11(1):35-39.
[24] 李言荣,恽正中.材料物理学概论[M].北京:清华大学出版社,2001. LI Y R,YUN Z Z.Materials physics introduction[M].Beijing:Tsinghua University Press,2001.
[25] 张飞,上官绪超.表面超声滚压处理对AISI304不锈钢疲劳性能的影响[J].热加工工艺,2017,46(16):144-148. ZHANG F,SHANGGUAN X C.Effect of surface ultrasonic rolling processing on fatigue properties of AISI304 austenite stainless steel[J].Hot Working Technology,2017,46(16):144-148.
