Cu-Cr-Ti-Si合金加工软化的机理
袁继慧1, 陈辉明2, 谢伟滨2, 魏海根2, 汪航2, 杨斌1,2,*()
1 江西理工大学 材料科学与工程学院, 江西 赣州 341000
2 江西理工大学 工程研究院, 江西 赣州 341000
Work-softening mechanism of Cu-Cr-Ti-Si alloy
Ji-hui YUAN1, Hui-ming CHEN2, Wei-bin XIE2, Hai-gen WEI2, Hang WANG2, Bin YANG1,2,*()
1 School of Materials Science and Engineering, Jiangxi University of Science and Technology, Ganzhou 341000, Jiangxi, China
2 Institute of Engineering Research, Jiangxi University of Science and Technology, Ganzhou 341000, Jiangxi, China
全文: PDF(6708 KB)   HTML ( 0 )
输出: BibTeX | EndNote (RIS)       背景资料
文章导读
摘要

通过大气熔炼制备Cu-Cr-Ti和Cu-Cr-Ti-Si合金铸锭,进行热轧—固溶—时效—冷轧工艺制备带材,研究合金经不同变形量冷轧后的组织和性能。采用金相显微镜(OM)、配备有电子背散射衍射系统(EBSD)的扫描电子显微镜(SEM)、X射线衍射仪(XRD)以及透射电子显微镜(TEM)等检测手段对冷轧后的合金的组织结构与性能进行分析。结果表明,添加微量Si元素的Cu-Cr-Ti-Si合金在变形量ε≥80%时,硬度不升反降,而Cu-Cr-Ti合金没有发现此现象。随着变形量增大,Cu-Cr-Ti-Si合金小角度晶界比例降低,位错胞增多,位错密度略有下降,但无再结晶晶粒,说明回复导致加工软化。通过分析冷轧前组织发现,Si元素能细化合金晶粒,导致变形前Cu-Cr-Ti-Si合金晶粒较Cu-Cr-Ti更加细小,单位面积内晶界数量多,从而为合金变形中发生回复提供更多的形核位置储能。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
袁继慧
陈辉明
谢伟滨
魏海根
汪航
杨斌
关键词 Cu-Cr-TiCu-Cr-Ti-Si加工软化回复位错密度晶粒细化
Abstract

The Cu-Cr-Ti and Cu-Cr-Ti-Si alloy ingots were melted in the atmosphere, and then treated with hot rolling-solid solution-aging-cold rolling process. Microstructure and properties of alloy after cold rolling with different deformation were studied. The microstructure of the alloy after cold rolling was analyzed by using OM, electron backscatter diffraction, X-ray diffraction and transmission electron microscopy. The results show that when the deformation ε is greater than 80%, the hardness of Cu-Cr-Ti-Si alloy is decreased. Such phenomenon does not occur in Cu-Cr-Ti alloy. With the increase of deformation, the proportion of low angle grain boundaries in Cu-Cr-Ti-Si alloy is decreased, and the increase of dislocation cells and sub-grains leads to slight decrease of dislocation density. Since no re-crystallization was observed, recovery is responsible for work softening. By analyzing the microstructure before cold rolling, it is found that Si can refine the alloy grains, resulting in smaller grains of Cu-Cr-Ti-Si alloy than Cu-Cr-Ti before deformation. More grain boundaries per unit area provide more energy storage at nucleation sites for recovery during deformation of the alloy.

Key wordsCu-Cr-Ti    Cu-Cr-Ti-Si    work-softening    recovery    dislocation density    grain refinement
收稿日期: 2019-03-01      出版日期: 2020-11-20
中图分类号:  TG146.1
基金资助:国家科技部重点研发计划(2016YFB0301400)
通讯作者: 杨斌     E-mail: yangbin65@126.com
作者简介: 杨斌(1962-), 男, 教授, 博士生导师, 主要从事有色金属制备与加工等方面的研究, 联系地址:江西省赣州市客家大道156号江西理工大学材料冶金化学学部(341000), E-mail:yangbin65@126.com
引用本文:
袁继慧, 陈辉明, 谢伟滨, 魏海根, 汪航, 杨斌. Cu-Cr-Ti-Si合金加工软化的机理[J]. 材料工程, 2020, 48(11): 140-146.
Ji-hui YUAN, Hui-ming CHEN, Wei-bin XIE, Hai-gen WEI, Hang WANG, Bin YANG. Work-softening mechanism of Cu-Cr-Ti-Si alloy. Journal of Materials Engineering, 2020, 48(11): 140-146.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2019.000173      或      http://jme.biam.ac.cn/CN/Y2020/V48/I11/140
Alloy Cr Ti Si Cu
Cu-0.35Cr-0.055Ti 0.35 0.055 Bal
Cu-0.32Cr-0.059Ti-0.017Si 0.32 0.059 0.017 Bal
Table 1  合金实际化学成分(质量分数/%)

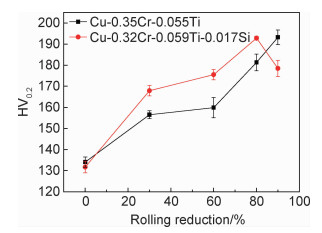

Fig.1  Cu-0.35Cr-0.055Ti和Cu-0.32Cr-0.059Ti-0.017Si合金经不同变形量冷轧后的显微硬度
Fig.2  合金冷轧前显微组织
(a)Cu-0.35Cr-0.055Ti;(b)Cu-0.32Cr-0.059Ti-0.017Si
Fig.3  Cu-0.35Cr-0.055Ti(1)和Cu-0.32Cr-0.059Ti-0.017Si(2)合金不同变形量冷轧后金相组织
(a)30%;(b)60%;(c)80%;(d)90%
Fig.4  Cu-0.35Cr-0.055Ti(1)和Cu-0.32Cr-0.059Ti-0.017Si(2)合金不同变形量冷轧合金晶界图
(a)30%;(b)60%;(c)80%;(d)90%
Fig.5  合金不同变形量冷轧后晶界取向差分布图
(a)Cu-0.35Cr-0.055Ti;(b)Cu-0.32Cr-0.059Ti-0.017Si
Fig.6  Cu-0.35Cr-0.055Ti合金(1)和Cu-0.32Cr-0.059Ti-0.017Si(2)合金经不同变形量冷轧后TEM图
(a)0%;(b)60%;(c)80%;(d)90%

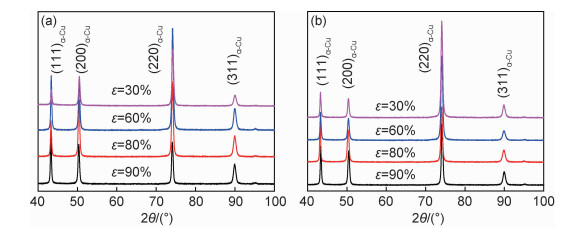

Fig.7  合金不同变形量冷轧后XRD图
(a)Cu-0.35Cr-0.055Ti;(b)Cu-0.32Cr-0.059Ti-0.017Si
ε/% Dislocation density/1014m-2
Cu-0.35Cr-0.055Ti Cu-0.32Cr-0.059Ti-0.017Si
30 4.8383 5.1379
60 4.8602 6.2547
80 4.8917 5.8442
90 5.0680 4.8631
Table 2  合金经不同变形量冷轧后位错密度
