CuO/CuxSy八面体核壳结构的合成及其电化学性能
王振威, 杨晓闪, 郑亚云, 张迎九, 徐洁()
郑州大学 物理工程学院 材料物理教育部重点实验室, 郑州 450001
Synthesis and electrochemical performance of CuO/CuxSy octahedral core-shell structure
Zhen-wei WANG, Xiao-shan YANG, Ya-yun ZHENG, Ying-jiu ZHANG, Jie XU()
Key Laboratory of Material Physics(Ministry of Education), School of Physics and Engineering, Zhengzhou University, Zhengzhou 450001, China
全文: PDF(5015 KB)   HTML ( 4 )
输出: BibTeX | EndNote (RIS)
摘要

在室温下通过离子交换过程,快速制备双壳层中空氧化铜/硫化铜(CuO/CuxSy)八面体材料。通过调节硫化时间,双壳层中空CuO/CuxSy八面体的形貌和硫化物/氧化物组成发生改变,进而影响其电化学性能。通过XRD,SEM,TEM和XPS对该八面体的形貌结构进行测试分析。测试表明该中空结构具有相互交叉的CuxSy纳米片构成的外壳和位于八面体内部的CuO核层部分。双壳层中空CuO/CuxSy八面体的独特结构和CuO,CuxSy之间的协同效应有利于材料的电化学过程。当硫化时间为6 h时双壳层中空CuO/CuxSy八面体在1 A·g-1的电流密度下具有高达413.6 F·g-1的比电容,并且其在20 A·g-1的电流密度下具有较好的倍率性能和循环稳定性。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
王振威
杨晓闪
郑亚云
张迎九
徐洁
关键词 超级电容器氧化铜硫化铜核壳结构
Abstract

A copper oxide/copper sulphide (CuO/CuxSy)composite was simply synthesized through an ion-exchange process just at room temperature, owning a unique octahedral core-shell structure. By adjusting reaction time of sulfuration, the morphology and composition of CuO/CuxSy octahedral core-shell material were changed, which has an important influence on the electrochemical performance. XRD, SEM, TEM and XPS were conducted to analysize the morphology and structure of CuO/CuxSy composite. It shows the hollow composite possesses a shell layer with the interconnected CuxSy nanosheets and a CuO core-layer in the octahedron.The unique core-shell octahedral structure and the synergy between CuO and CuxSy are beneficial for the electrochemical process. When the reaction time is 6 h, as-obtained CuO/CuxSy core-shell octahedral material has a high specific capacity of 413.6 F·g-1 at a current density of 1 A·g-1, and better rate performance and stability even at a higher current density of 20 A·g-1.

Key wordssupercapacitor    copper oxide    copper sulfide    core-shell structure
收稿日期: 2019-04-23      出版日期: 2020-06-15
中图分类号:  O646
基金资助:国家自然科学基金青年项目(51602289)
通讯作者: 徐洁     E-mail: xujie@zzu.edu.cn
作者简介: 徐洁(1991-), 女, 讲师, 博士, 研究方向为复合电极材料的制备及性能研究, 联系地址:河南省郑州市二七区大学北路郑州大学南校区5号教学楼(450001), E-mail:xujie@zzu.edu.cn
引用本文:
王振威, 杨晓闪, 郑亚云, 张迎九, 徐洁. CuO/CuxSy八面体核壳结构的合成及其电化学性能[J]. 材料工程, 2020, 48(6): 98-105.
Zhen-wei WANG, Xiao-shan YANG, Ya-yun ZHENG, Ying-jiu ZHANG, Jie XU. Synthesis and electrochemical performance of CuO/CuxSy octahedral core-shell structure. Journal of Materials Engineering, 2020, 48(6): 98-105.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2019.000381      或      http://jme.biam.ac.cn/CN/Y2020/V48/I6/98

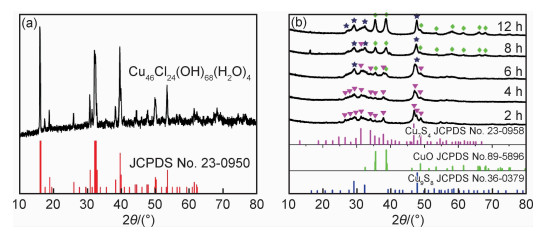

Fig.1  用CTAB作为表面活性剂制备Cu-Pre(a)和不同反应时间下双壳层中空CuO/CuxSy八面体(b)的XRD图谱

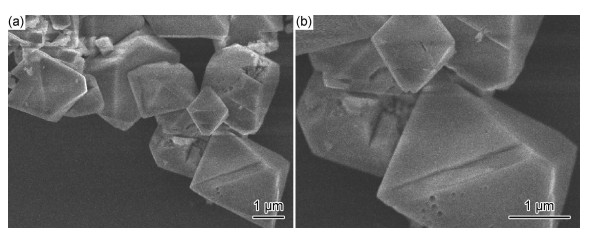

Fig.2  水浴法制备的前驱体的SEM图
(a)低倍;(b)高倍

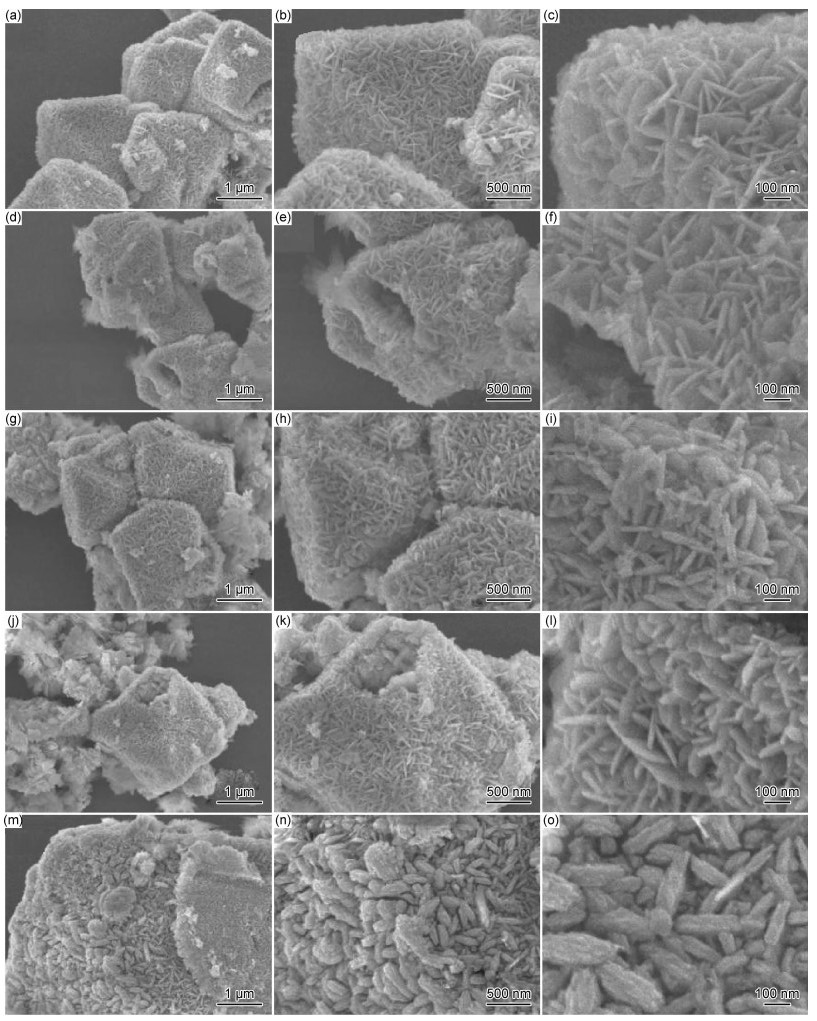

Fig.3  在不同反应时间下制备的双壳层中空CuO/CuxSy八面体材料的SEM图像

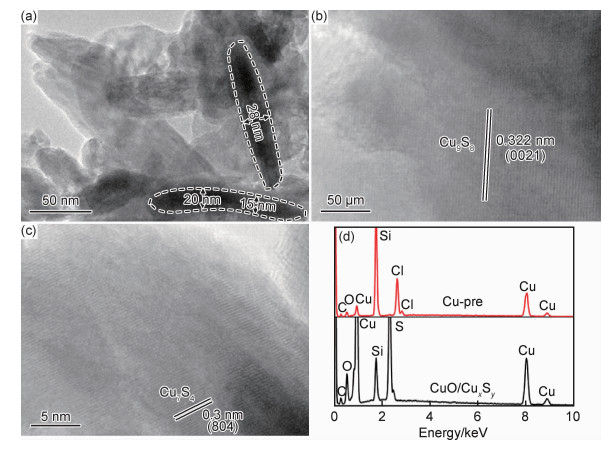

Fig.4  双壳层中空CuO/CuxSy八面体的TEM图和EDS图谱
(a)八面体CuO/CuxSy的TEM图;(b),(c)不同衍射方向上八面体CUO/CuxSy的HRTEM图;(d)前驱体和CuO/CuxSy的EDS图谱
Fig.5  CuO/CuxSy八面体的XPS谱图
(a)总谱图;(b)Cu2p;(c)O1s;(d)S2p
Fig.6  双壳层中空CuO/CuxSy八面体的电化学性能表征图
(a)不同时间对应的CV曲线;(b)不同时间对应的GCD曲线;(c)不同反应时间对应的比电容值;(d)不同扫描速率下的CV曲线;(e)在不同电流密度下的GCD曲线;(f)在不同电流密度下的比电容值
Fig.7  CuO/CuxSy的阻抗图谱(a)和硫化时间为6 h的CuO/CuxSy在20 A·g-1电流密度下的循环稳定性曲线(b)
