2.5D浅交直联Cf/Al复合材料的显微组织及弯曲和剪切性能
冯景鹏1, 余欢1, 徐志锋1, 蔡长春1, 王振军1, 胡银生1, 王雅娜2
1. 南昌航空大学 轻合金加工科学与技术国防重点学科实验室, 南昌 330063;
2. 中国航发北京航空材料研究院, 北京 100095
Microstructure, bending and shear properties of 2.5D shallow cross-linked Cf/Al composites
FENG Jing-peng1, YU Huan1, XU Zhi-feng1, CAI Chang-chun1, WANG Zhen-jun1, HU Yin-sheng1, WANG Ya-na2
1. National Defense Key Discipline Laboratory of Light Alloy Processing Science and Technology, Nanchang Hangkong University, Nanchang 330063, China;
2. AECC Beijing Institute of Aeronautical Materials, Beijing 100095, China
全文: PDF(7818 KB)   HTML()
输出: BibTeX | EndNote (RIS)

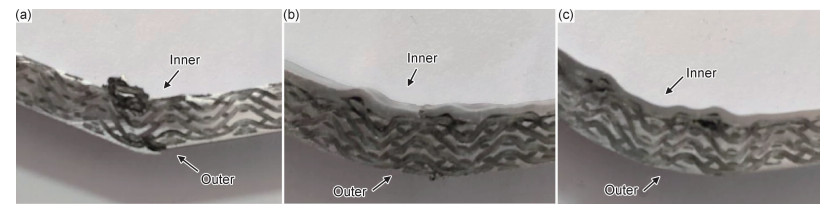

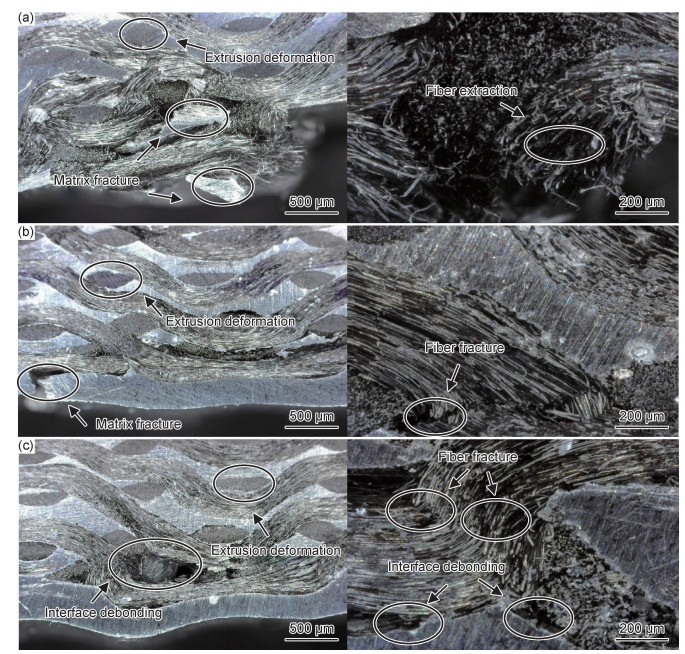

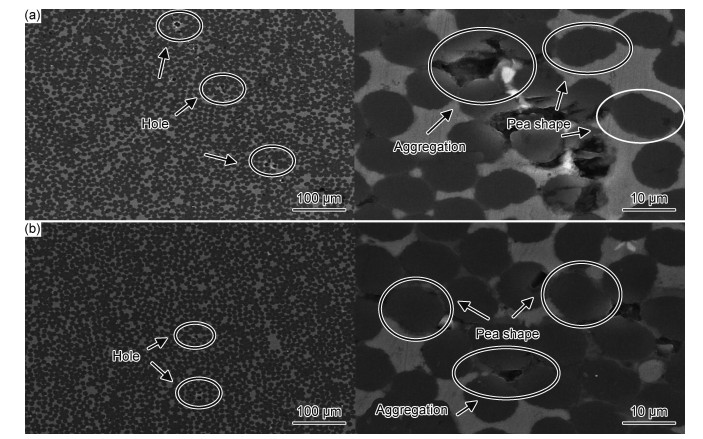

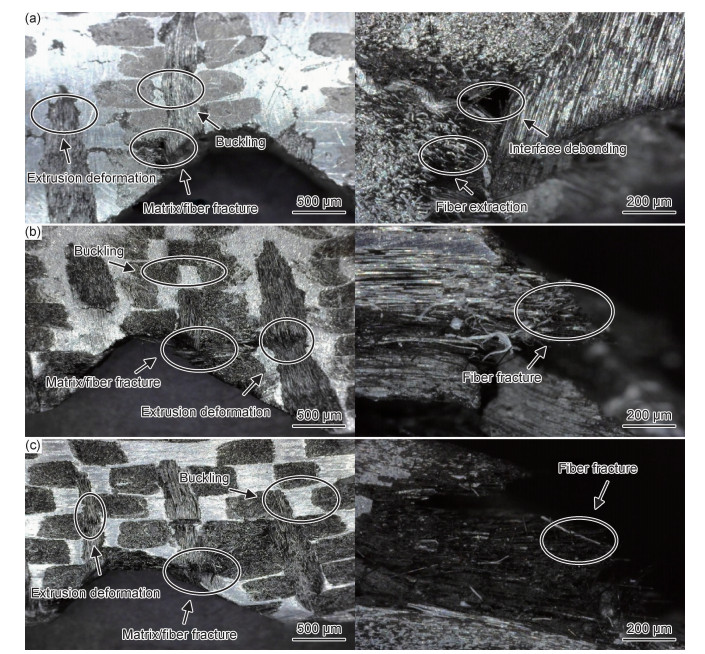

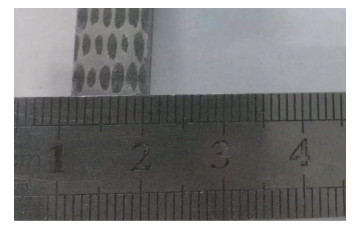

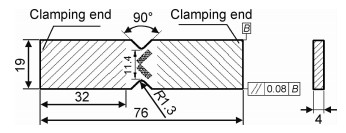

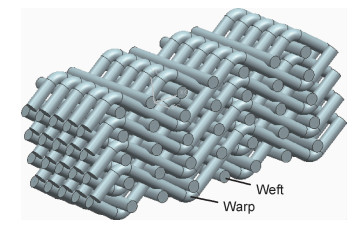

摘要 采用真空压力浸渗法制备体积分数为50%的2.5D浅交直联Cf/Al复合材料,研究复合材料的显微组织以及室温、高温下弯曲和剪切性能,分析复合材料弯曲和剪切性能的破坏失效机理。结果表明:2.5D浅交直联Cf/Al复合材料经向、纬向显微组织均存在一定的微孔、纤维丝偏聚等缺陷。室温的弯曲强度、弯曲模量、剪切强度分别为268.4 MPa,75.2 GPa和41.0 MPa,350℃的弯曲强度、弯曲模量、剪切强度分别为139 MPa,70.9 GPa和39.2 MPa,400℃的弯曲强度、弯曲模量、剪切强度分别为97.6 MPa,68.5 GPa和29.9 MPa;其中,弯曲失效主要由于内侧面受压导致经向纤维束在压应力作用下被压断,纬向纤维束产生挤压变形;外侧面受拉处随测试温度升高复合材料拉伸破坏现象不明显;而剪切破坏首先出现在基体与纤维束界面损伤处,室温下纤维束被拔出,断口不平齐,350,400℃时纤维束断口呈现45°破坏;经向纤维束屈曲与纬向纤维束挤压变形程度随测试温度升高越来越严重。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
冯景鹏
余欢
徐志锋
蔡长春
王振军
胡银生
王雅娜
关键词 2.5D浅交直联Cf/Al复合材料显微组织弯曲性能剪切性能
Abstract:2.5D shallow cross-linked Cf/Al composites with volume fraction of 50% were fabricated by vacuum pressure infiltration. The microstructure, bending and shear properties at room and high temperature were studied. The failure mechanism of bending and shear properties of the composites were analyzed. The results indicate that the warp and weft microstructures of 2.5D shallow cross-linked Cf/Al composites have some defects such as microvoid and fiber aggregation. The bending strength, bending modulus and shear strength of the composites at room temperature are 268.4 MPa,75.2 GPa and 41.0 MPa,respectively. The bending strength, bending modulus and shear strength of the composites at 350 ℃ are 139 MPa,70.9 GPa and 39.2 MPa,respectively. The bending strength,bending modulus and shear strength of the composites at 400 ℃ are 97.6 MPa,68.5 GPa and 29.9 MPa,respectively.The bending failure is mainly caused by the compressive stress on the inner surface, which leads to press fracture of the warp fiber bundle and the extrusion deformation of the weft fiber bundle. Tensile failure of composites is not obvious with the increase of testing temperature at the outer side tension. Shear failure occurs first in the damage interface of the matrix and fiber bundle, the fiber bundle is pulled out and the fracture surface is not at the same level at room temperature, the fracture of the fiber bundle shows 45° failure at 350,400 ℃.The buckling of the warp fiber bundle and the extrusion deformation degree of the weft fiber bundle become more and more serious with the increase of the test temperature.
Key words2.5D shallow cross-linked    Cf/Al composites    microstructure    bending property    shear property
收稿日期: 2019-06-05      出版日期: 2020-06-15
中图分类号:  TB331
通讯作者: 余欢(1960-),男,教授,博士,研究方向为金属基复合材料,联系地址:江西省南昌市红谷滩新区丰和南大道696号南昌航空大学轻合金加工科学与技术国防重点学科实验室(330063), yuhwan@163.com     E-mail: yuhwan@163.com
引用本文:
冯景鹏, 余欢, 徐志锋, 蔡长春, 王振军, 胡银生, 王雅娜. 2.5D浅交直联Cf/Al复合材料的显微组织及弯曲和剪切性能[J]. 材料工程, 2020, 48(6): 132-139.
FENG Jing-peng, YU Huan, XU Zhi-feng, CAI Chang-chun, WANG Zhen-jun, HU Yin-sheng, WANG Ya-na. Microstructure, bending and shear properties of 2.5D shallow cross-linked Cf/Al composites. Journal of Materials Engineering, 2020, 48(6): 132-139.
