材料工程  2020, Vol. 48 Issue (7): 154-161    DOI: 10.11868/j.issn.1001-4381.2019.000694
  研究论文 本期目录 | 过刊浏览 | 高级检索 |
真空热循环对碳/双马来酰亚胺复合材料低速冲击性能的影响
高禹1, 刘京1, 王进2, 王柏臣1, 崔旭1, 包建文3
1. 沈阳航空航天大学 材料科学与工程学院, 沈阳 110136;
2. 沈阳飞机设计研究所, 沈阳 110035;
3. 先进复合材料国防科技重点实验室, 北京 100095
Effects of vacuum thermal cycle on low velocity impact properties of carbon fiber/BMI composites
GAO Yu1, LIU Jing1, WANG Jin2, WANG Bai-chen1, CUI Xu1, BAO Jian-wen3
1. School of Materials Science and Engineering, Shenyang Aerospace University, Shenyang 110136, China;
2. Shenyang Aircraft Design&Research Institute, Shenyang 110035, China;
3. National Key Laboratory of Advanced Composites, Beijing 100095, China
全文: PDF(5128 KB)   HTML()
输出: BibTeX | EndNote (RIS)       背景资料
文章导读

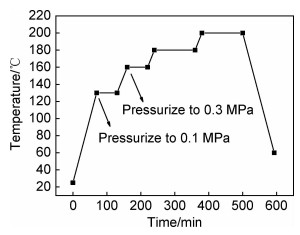

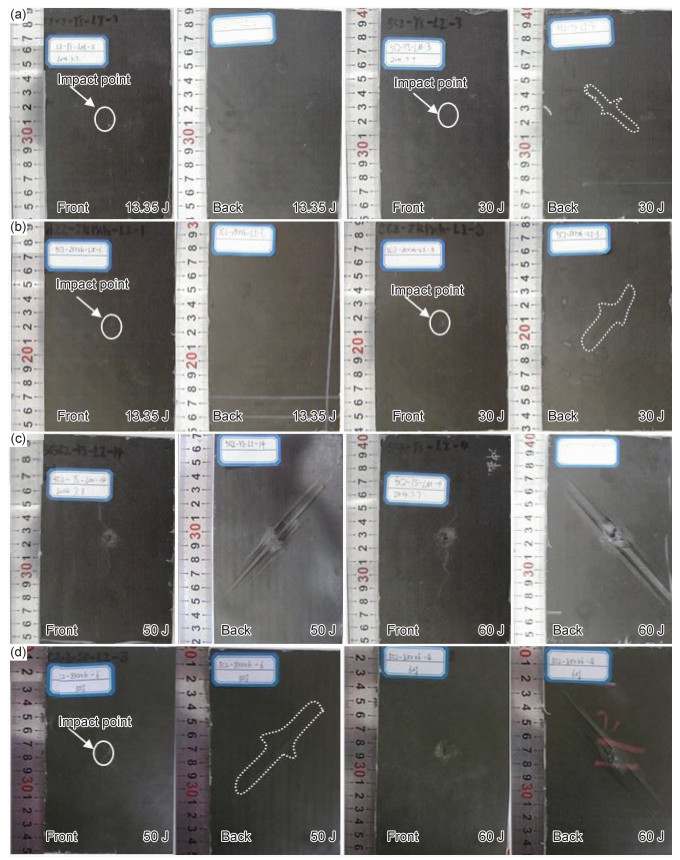

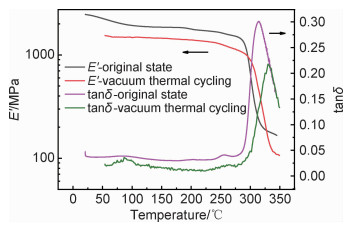

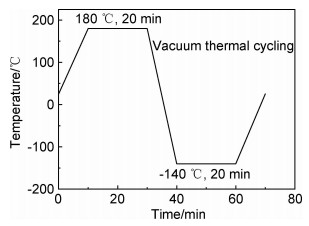

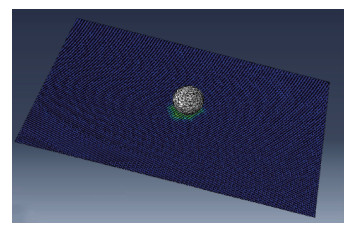

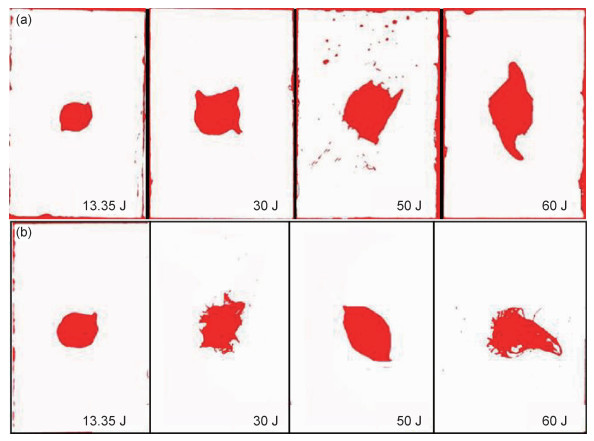

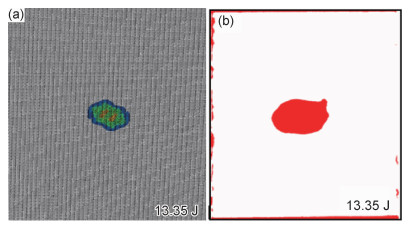

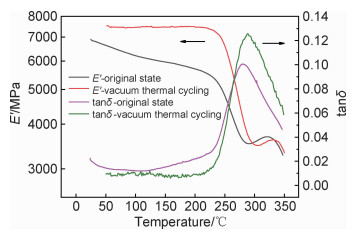

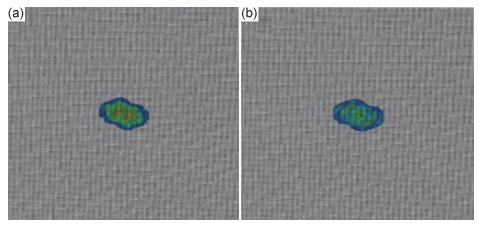

摘要 对T700/HT280复合材料进行真空热循环处理(-140~180℃,10-3 Pa),分别测试真空热循环处理前后复合材料的质损率、动态力学性能和低速冲击性能。采用宏观目视、超声C扫描和有限元分析对低速冲击损伤状况进行分析、表征和模拟。结果表明,随真空热循环次数的增加,由于发生析气效应,T700/HT280复合材料及基体树脂的质损率先急剧升高然后趋于平缓。经历真空热循环处理后T700/HT280复合材料出现了一定程度的后固化、热老化和局部界面脱粘。低冲击能时主要损伤模式为基体树脂受到压缩,高冲击能时主要损伤模式转化为基体开裂、复合材料分层。有限元模拟结果与实验结果吻合。随冲击能量的增大,复合材料吸收能增加。冲击能量为30~40 J条件下,吸收能可以有效地表征出真空热循环对复合材料的环境损伤效应。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
高禹
刘京
王进
王柏臣
崔旭
包建文
关键词 碳/树脂基复合材料真空热循环低速冲击性能动态力学热分析(DMA)有限元模拟超声C扫描
Abstract:The T700/HT280 composites were subjected to vacuum thermal cycling (-140-180℃,10-3 Pa). The mass loss rate, dynamic mechanical properties and low-speed impact of composites were tested before and after vacuum thermal cycling respectively. The visual observation, ultrasonic C-scan and finite element (FE) analysis were used to analyze, characterize and simulate the low-speed impact damage. The results show that the mass loss rates of T700/HT280 composites and matrix resin are increased rapidly and then level off with the increase of the number of vacuum thermal cycles, which is due to the gassing effect. After the vacuum thermal cycle treatment, T700/HT280 composites show some degree of post-cure, thermal aging and partial interface debonding. The main damage mode at low impact energy is that the matrix resin is compressed. However, matrix cracking and delamination are deemed as the damage mode at high impact energy. The FE simulation results are consistent with the experimental results. As the impact energy increases, the absorption energy of the composites is increased. Under the condition of 30-40 J impact energy, the absorption energy can effectively characterize the environmental damage effects of vacuum thermal cycle on composites.
Key wordscarbon/resin-based composites    vacuum thermal cycling    low-speed impact property    dyna-mic mechanical thermal analysis (DMA)    finite element (FE) simulation    ultrasonic C-scan
收稿日期: 2019-07-24      出版日期: 2020-07-21
中图分类号:  TB332
基金资助:
通讯作者: 高禹(1971-),男,教授,博士,主要从事碳/树脂基复合材料在空间环境因素作用下损伤效应及机理的研究,联系地址:辽宁省沈阳市沈北新区道义南大街37号沈阳航空航天大学材料科学与工程学院(110136),E-mail:syczq05@163.com     E-mail: syczq05@163.com
引用本文:
高禹, 刘京, 王进, 王柏臣, 崔旭, 包建文. 真空热循环对碳/双马来酰亚胺复合材料低速冲击性能的影响[J]. 材料工程, 2020, 48(7): 154-161.
GAO Yu, LIU Jing, WANG Jin, WANG Bai-chen, CUI Xu, BAO Jian-wen. Effects of vacuum thermal cycle on low velocity impact properties of carbon fiber/BMI composites. Journal of Materials Engineering, 2020, 48(7): 154-161.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2019.000694      或      http://jme.biam.ac.cn/CN/Y2020/V48/I7/154
[1] AN J,ZHANG W,YANG D S.Atomic oxygen environment analysis technology for low earth orbit spacecraft[C]//Prognostics & System Health Management Conference.Harbin:IEEE,2017.
[2] WANG H D,MA G Z,XU B S,et al.The erosion effect of Kapton film in a ground-based atomic oxygen irradiation simulator[J].Journal of Wuhan University of Technology(Mater Sci Ed),2014,29(6):1277-1282.
[3] ZHANG X,MAO L,DU J,et al.Atomic oxygen erosion resistance of sol-gel oxide films on Kapton[J].Journal of Sol-Gel Science and Technology,2014,69(3):498-503.
[4] MINTON T K,WRIGHT M E,TOMCZAK S J,et al.Atomic Oxygen effects on POSS polyimides in low earth orbit[J].ACS Applied Materials & Interfaces,2012,4(2):492-502.
[5] MLYNCZAK M G,HUNT L A,MAST J C,et al.Atomic oxygen in the mesosphere and lower thermosphere derived from SABER:algorithm theoretical basis and measurement uncertainty[J].Journal of Geophysical Research:Atmospheres,2013,118(11):5724-5735.
[6] 都亨,叶宗海.低轨道航天器空间环境手册[M].北京:国防工业出版社,1996:397-520. DU H,YE Z H.Handbook for space environment of low orbit spacecraft[M].Beijing:National Defense Industry Press,1996:397-520.
[7] TANG J M,LEE S K.Recent progress of applications of advanced composite materials in aerospace industry[J].Spacecraft Environment Engineering,2010,27(5):552-557.
[8] ZHENG N,HE J M,ZHAO D,et al.Improvement of atomic oxygen erosion resistance of carbon fiber and carbon fiber/epoxy composite interface with a silane coupling agent[J].Materials & Design,2016,109:171-178.
[9] 王迎芬,刘刚,彭公秋,等.国产T700级碳纤维/双马来酰亚胺树脂复合材料界面性能[J].材料工程,2018,46(4):140-145. WANG Y F,LIU G,PENG G Q,et al.Interfacial properties of domestic T700 grade carbon fiber/bismaleimide resin composites[J].Journal of Materials Engineering,2018,46(4):140-145.
[10] 陈祥宝,张凤翻.先进树脂基结构复合材料的发展[J].材料工程,1996(6):5-12. CHEN X B,ZHANG F F.Development of advanced resin-based structural composites[J].Journal of Materials Engineering,1996(6):5-12.
[11] GAO Y,HE S,YANG D Z,et al.Effect of vacuum thermo-cycling on physical properties of unidirectional M40J/AG-80 composites[J].Composites:Part B,2005,36(4):351-358.
[12] SHIN K B,KIM C G,HONG C S,et al.Prediction of failure thermal cycles in graphite/epoxy composite materials under simulated low earth orbit environments[J]. Composites:Part B,2000,31:223-235.
[13] 高禹,王钊,陆春,等.高性能树脂基复合材料典型空天环境下动态力学行为研究现状[J].材料工程,2015,43(3):106-112. GAO Y,WANG Z,LU C,et al.Research status of dynamic mechanical behavior of high performance resin matrix composites in typical space environment[J].Journal of Materials Engineering,2015,43(3):106-112.
[14] 高禹,张志松,王柏臣,等.空天飞行器用炭/双马复合材料环境损伤行为的研究现状[J].高分子材料科学与工程,2013,29(6):165-168. GAO Y,ZHANG Z S,WANG B C, et al. Research status of environmental damage behavior of carbon/BMI composites for aerospace vehicles[J].Polymer Materials Science and Engineering,2013,29(6):165-168.
[15] 过梅丽.高聚物与复合材料的动态力学热分析[M].北京:化学工业出版社,2002:196-198. GUO M L.Dynamic mechanical thermal analysis of polymers and composites[M].Beijing:Chemical Industry Press,2002:196-198.
[16] LONG S C,YAO X H,ZHANG X Q. Delamination prediction in composite laminates under low-velocity impact[J].Composite Structures,2015,132:290-298.
