拉曼光谱在石墨烯聚合物纳米复合材料中的应用
郝思嘉1,2, 李哲灵3, 任志东1,2, 田俊鹏1,2, 时双强1,2, 邢悦1,2, 杨程1,2,*()
1 中国航发北京航空材料研究院 石墨烯及应用研究中心, 北京 100095
2 北京石墨烯技术研究院有限公司, 北京 100094
3 英国 曼彻斯特大学 国家石墨烯研究院, 英国 曼彻斯特 M13 9PL
Applications of Raman spectroscopy in graphene-based polymer nanocomposites
Si-jia HAO1,2, Zhe-ling LI3, Zhi-dong REN1,2, Jun-peng TIAN1,2, Shuang-qiang SHI1,2, Yue XING1,2, Cheng YANG1,2,*()
1 Research Center of Graphene Applications, AECC Beijing Institute of Aeronautical Materials, Beijing 100095, China
2 Beijing Institute of Graphene Technology Co., Ltd., Beijing 100094, China
3 National Graphene Institute, University of Manchester, Manchester M13 9PL, UK
全文: PDF(4641 KB)   HTML ( 3 )
输出: BibTeX | EndNote (RIS)       背景资料
文章导读
摘要

拉曼光谱不仅能够用于确定石墨烯的物理性质、缺陷程度及层数等,也逐渐发展成为研究石墨烯聚合物复合材料重要的分析表征工具。石墨烯拉曼特征峰可用于对复合材料中石墨烯进行二维及三维的拉曼成像,从而获得石墨烯的分散状态。石墨烯拉曼特征峰的位移能够灵敏地反映石墨烯的形变程度,从而定量地评估复合材料中石墨烯与聚合物分子之间的相互作用、计算石墨烯的有效杨氏模量以及确定石墨烯的空间取向。本文综述了拉曼光谱在石墨烯聚合物复合材料领域的应用研究,介绍了拉曼光谱技术在石墨烯聚合物复合材料领域的最新研究进展,如石墨烯复合材料的微观变形机理、石墨烯与聚合物基体之间的应力转移效率、影响材料性能的关键性因素等。石墨烯聚合物复合材料的拉曼光谱研究目前仍以模型化复合材料为主要研究对象,而且聚合物基体的荧光效应也会在一定程度上限制拉曼光谱的应用。针对于此,可适当提高激发光的功率而产生一些非线性效应,以大幅增大拉曼光强度,从而使拉曼光谱技术在石墨烯聚合物复合材料领域中得到更广泛的应用。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
郝思嘉
李哲灵
任志东
田俊鹏
时双强
邢悦
杨程
关键词 石墨烯纳米复合材料拉曼光谱分散性力学性能
Abstract

Raman spectroscopy is well-known for its capability of detecting the physical properties, level of defects and number of layers for graphene-based materials, but far more than that, it's proven to be a versatile and promising tool for characterizing graphene-based polymer composites. This work focuses on the applications of Raman spectroscopy in the field of graphene-based polymer composites. The feature bands in Raman spectroscopy enable direct 2D and 3D imaging of graphene-based nanofillers in the polymer matrix, and even out of other carbonaceous materials. In addition, shifts in the vibrational frequencies of the characteristic bands induced by the strain of graphene could be utilized for analyzing the interactions between graphene-based nanofillers and polymer molecules, for calculating the effective moduli as well as for determining the spatial orientation of graphene-based nanofillers in the matrix. In the meantime, the recent progress of applications of Raman spectroscopy in the field of graphene-based polymer composites is introduced, such as the analysis of micromechanics of graphene-based nanocomposites, the investigation of stress transfer efficiency between the nanofillers and the matrix, and the reveal of key factors affecting material behavior. The Raman spectroscopy researches of graphene-based polymer composites currently are mainly focused on model composites, and the fluorescent effect of the matrix polymer as well limits the further applications of Raman spectroscopy. In order to address such problem, the amplified razor power are often adopted, and the resulted nonlinear effects are capable of increasing the intensity of the Raman signal, thus the Raman spectroscopy will be more widely applied in the field of graphene-based polymer composites.

Key wordsgraphene    nanocomposite    Raman spectroscopy    dispersity    mechanical property
收稿日期: 2019-09-26      出版日期: 2020-07-21
中图分类号:  O657.37
基金资助:中国国家留学基金项目(201705345008);航材院石墨烯专项(GR170353);国家财政部稳定支持科研项目(KZ0C190315)
通讯作者: 杨程     E-mail: chengyang_78@126.com
作者简介: 杨程(1978-), 女, 研究员, 博士, 主要从事石墨烯的制备和应用研究, 联系地址:北京市81信箱72分箱(100095), E-mail:chengyang_78@126.com
引用本文:
郝思嘉, 李哲灵, 任志东, 田俊鹏, 时双强, 邢悦, 杨程. 拉曼光谱在石墨烯聚合物纳米复合材料中的应用[J]. 材料工程, 2020, 48(7): 45-60.
Si-jia HAO, Zhe-ling LI, Zhi-dong REN, Jun-peng TIAN, Shuang-qiang SHI, Yue XING, Cheng YANG. Applications of Raman spectroscopy in graphene-based polymer nanocomposites. Journal of Materials Engineering, 2020, 48(7): 45-60.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2019.000889      或      http://jme.biam.ac.cn/CN/Y2020/V48/I7/45
Fig.1  碳材料和碳纳米结构(a)以及石墨烯材料(b)的拉曼光谱图[15]
Fig.2  复合材料中纤维与树脂的拉曼光谱图(a),经纱(b)和纬纱(c)编织样品的光学照片与二维拉曼图的叠加图,改性氧化石墨烯团聚体的三维拉曼图(d~e)[38]

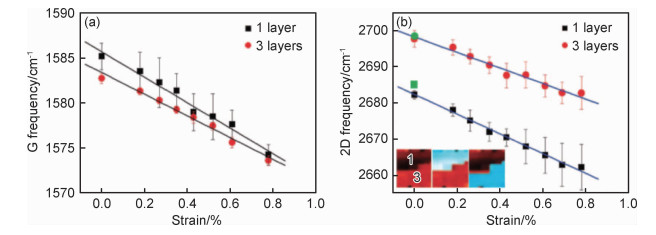

Fig.3  单轴应变下单层石墨烯和三层石墨烯的G峰(a)与2D峰(b)位置与应变之间的线性关系[43]
Fig.4  表面涂覆和未涂覆环氧树脂的单层石墨烯在不同应变水平下的应变分布图(a),表面涂覆环氧树脂的单层石墨烯在应变卸载后及重新加载应变至0.8%和0.6%的应变分布图(b)[77]
Fig.5  石墨烯片的坐标体系(x, y, z)与纳米复合材料样品的坐标体系(X, Y, Z)间的关系(a)[88],取向排列和无取向排列的GO纳米片的Krenchel因子(b)[89],GO环氧树脂复合材料中GO含量对模量的影响(c)[92]
Fig.6  含量分别为1%(a),2%(b),3%(c)及5%(d)的BwGO/PVA纳米复合材料的拉曼D峰强度ID与极化角度Φ的关系[55]
Fig.7  GO含量为5%的纳米复合材料中GO的D峰位置随应变的变化情况(a)[97],使用GO短片及长片的增强PVA复合材料的G+和G-峰位置随应变的变化情况(b~c)[96],不同测试方法下PP/GNP纳米复合材料的GNP含量对GNP有效模量的影响(d)[98]
