Mg-9Al-3Si-0.375Sr-0.78Y合金的热变形行为及本构模型

doi:10.11868/j.issn.1001-4381.2020.000205

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(16932 KB)

HTML ( 0 )
输出: BibTeX | EndNote (RIS)

摘要

利用Gleeble-3500热模拟试验机对Mg-9Al-3Si-0.375Sr-0.78Y合金试样进行等温恒应变速率压缩实验，研究其在温度250~400℃、应变速率0.001~10 s^-1条件下的热变形行为。结果表明：在热变形过程中，峰值应力随着应变速率的降低和温度的升高而减小，且峰值应力对应变速率的敏感性随着变形温度的下降而增强。建立了考虑应变的热变形Arrhenius本构模型，模型精度良好，在300，350℃及0.001~10 s^-1范围内，模型的平均绝对误差分别为1.57%和1.76%；合金的平均变形激活能为183.58 kJ/mol，平均应变速率敏感指数为0.1616。热变形过程中，α-Mg相呈现明显的动态再结晶特征，β-Mg₁₇Al₁₂相尺寸减小且分布均匀，初生Mg₂Si相较小。在低温(250~300℃)变形时，动态再结晶仅发生在晶界处。在高温(350~400℃)变形时，初生α-Mg晶粒发生了明显的动态再结晶。随着温度的增加和应变速率的降低，再结晶程度提高，再结晶晶粒逐渐长大。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	张连腾
	陈乐平
	徐勇
	袁源平

关键词 ：镁合金, 热变形, 本构方程, 动态再结晶

Abstract：

The Mg-9Al-3Si-0.375Sr-0.78Y alloy specimens were compressed at constant isothermal strain rate by Gleeble 3500 thermal-simulation machine. The hot deformation behavior in the range of 250-400℃ and strain rate 0.001-10 s^-1were studied. The results show that the peak stress decreases with the decreasing of strain rate and the increasing of temperature, meanwhile, the sensitivity of peak stress to strain rate increases with the decreasing of deformation temperature. In addition, the Arrhenius constitutive equation of hot deformation considering strain is established. The calculated flow stresses are compared with the experimental results, in the range of 300, 350℃ and 0.001-10 s^-1, the mean absolute errors of the model are 1.57% and 1.76%, respectively. The average deformation activation energy is about 183.58 kJ/mol, and the average strain rate sensitivity index is 0.1616. The α-Mg phases exhibit dynamic recrystallization characteristics obviously. The size of β-Mg₁₇Al₁₂ phases decreases and its distribution becomes uniform, and the morphology of primary Mg₂Si phase changes little. At low temperature (250-300℃), dynamic recrystallization occurs only at the grain boundary. Under high temperature (350-400℃) deformation, the primary α-Mg grains show significant dynamic recrystallization. With the increasing temperature and decreasing strain rate, recrystallization degree increases and recrystallization grain grows gradually.

Key words： magnesium alloy hot deformation constitutive equation dynamic crystallization

收稿日期: 2020-03-11 出版日期: 2021-02-27

中图分类号:

TG146.2⁺2

基金资助:国家自然科学基金资助项目(51261026);轻合金加工科学与技术国防重点学科实验室基金项目(G201903068);上海航天科技创新基金项目(SAST2018057)

通讯作者: 陈乐平 E-mail: jnnclp@163.com

作者简介: 陈乐平(1964-), 男, 教授, 研究方向: 物理场控制金属凝固技术、航空轻合金加工及成形技术, 联系地址: 江西省南昌市丰和南大道696号南昌航空大学(330063), E-mail: jnnclp@163.com

引用本文:

张连腾, 陈乐平, 徐勇, 袁源平. Mg-9Al-3Si-0.375Sr-0.78Y合金的热变形行为及本构模型[J]. 材料工程, 2021, 49(2): 88-96.
Lian-teng ZHANG, Le-ping CHEN, Yong XU, Yuan-ping YUAN. Hot deformation behavior and constitutive equation of Mg-9Al-3Si-0.375Sr-0.78Y alloy. Journal of Materials Engineering, 2021, 49(2): 88-96.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.000205 或 http://jme.biam.ac.cn/CN/Y2021/V49/I2/88

Fig.1 Mg-9Al-3Si-0.375Sr-0.78Y合金的铸态微观组织(a)及X射线衍射谱图(b)

Fig.2 截取试样的位置

Fig.3 Mg-9Al-3Si-0.375Sr-0.78Y合金在不同热变形条件下的真应力-真应变曲线
(a)T=350 ℃; (b)0.1 s^-1

Fig.4 Mg-9Al-3Si-0.375Sr-0.78Y合金在不同热变形温度下的峰值应力曲线

Fig.5 不同温度时ln$\dot \varepsilon $-lnσ(a)和ln$\dot \varepsilon $-σ(b)关系曲线

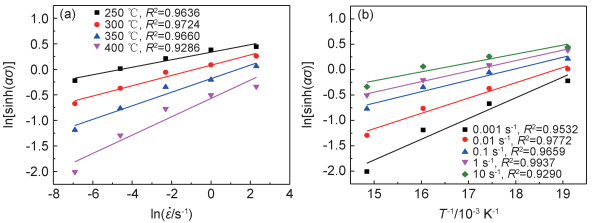

Fig.6 不同温度下$\dot \varepsilon $与ln[sinh(ασ)](a)及不同应变速率下ln[sinh(ασ)]与T^-1(b)的关系曲线

Fig.7 Mg-9Al-3Si-0.375Sr-0.78Y合金ln[sinh(ασ)]与lnZ的关系

Fig.8 材料常数与应变的关系 (a)α; (b)n; (c)Q; (d)lnA

Table 1 式(11)的多项式系数

Fig.9 不同温度和应变速率下流动应力预测值与实验结果的对比
(a)250 ℃; (b)300 ℃; (c)350 ℃; (d)400 ℃

Fig.10 流动应力的预测值与实验值对比

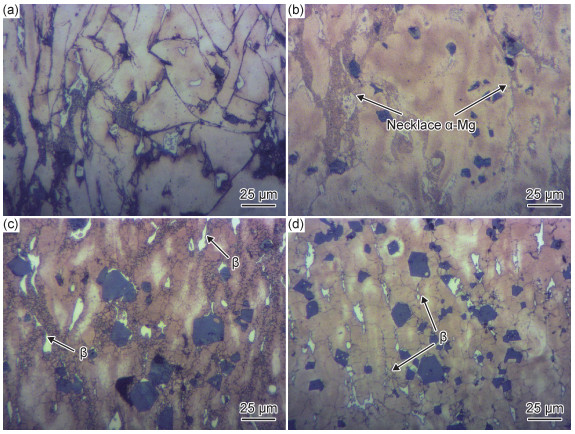

Fig.11 合金在应变速率为0.1 s^-1时不同热变形温度下的微观组织 (a)250 ℃; (b)300 ℃; (c)350 ℃; (d)400 ℃
