电沉积ZnO纳米柱的光学带隙与非辐射复合

doi:10.11868/j.issn.1001-4381.2020.000215

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(10033 KB)

HTML ( 1 )
输出: BibTeX | EndNote (RIS)

摘要

为实现ZnO纳米柱阵列材料在新型纳米结构化太阳能电池中的应用, 需要对纳米柱的几何形貌与光电特性进行调控。ZnO纳米柱阵列材料的制备方法为电化学沉积方法。通过在生长溶液中使用In(NO₃)₃和NH₄NO₃, 实现了对纳米柱的直径、阵列密度、柱间距、光学带隙、近带边发射、斯托克斯位移等物理性质的调控。采用扫描电子显微镜、X射线衍射仪、分光光度计、光致发光测试仪对样品的形貌、晶体性质、透射反射性质、光致发光性质进行测试与表征。结果表明, 使用NH₄NO₃将紧密排列的ZnO纳米柱阵列密度降低了51%, 导致柱间距增大至超过100 nm, 同时可将纳米柱的直径降低至22 nm。使用In(NO₃)₃使ZnO纳米柱的光学带隙展宽100 meV。通过NH₄NO₃的使用可在3.41 eV至3.55 eV范围内调控带隙。由于NH₄NO₃的引入, ZnO纳米柱的斯托克斯位移可降低至19 meV, 表明NH₄NO₃的引入能够有效地抑制纳米柱阵列中的非辐射复合。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	汤洋

关键词 ：氧化锌, 硝酸铵, 硝酸铟, 电沉积, 光学带隙, 非辐射复合

Abstract：

In order to achieve the applications of the ZnO nanorod arrays in the novel nanostructured solar cells, it is necessary to tailor and control the nanorods' morphological, optical and electrical properties. The ZnO nanorods arrays were fabricated by electrodeposition. The physical properties such as the diameter, density, distance, optical band gap energy, near band emission and Stokes shift can be adjusted by the use of In(NO₃)₃ and NH₄NO₃.The characterizations such as scanning electron microscopy, X-ray diffraction spectrometer and photoluminescence were used to measure the samples' morphology, crystal property, transmission and reflection and photoluminescence properties. According to the measurement results, the ZnO nanorod arrays' density is reduced to 5.9×10⁹ cm^-2 and the distance between nanorods is enlarged to 108 nm by using NH₄NO₃. The nanorods' diameter is decreased to 22 nm. The use of In(NO₃)₃ leads to the blue shift of the ZnO nanorods' optical band gap energy by 100 meV. The optical band gap energy is further tailored between 3.41 eV and 3.55 eV by using NH₄NO₃. The ZnO nanorods' Stokes shift can be decreased to 19 meV by using NH₄NO₃, resulting in the effective suppression of the non-radiative recombination.

Key words： ZnO ammonium nitrate indium nitrate electrodeposition optical band gap non-radiative recombination

收稿日期: 2020-03-17 出版日期: 2022-03-19

中图分类号:

TM23

基金资助:国家自然科学基金项目(61404007);北京市优秀人才培养拔尖自然科学资助项目(2015000021223ZK38)

通讯作者: 汤洋 E-mail: yang.tang.a@chnenergy.com.cn

作者简介: 汤洋(1983—)，男，高级工程师，博士，研究方向为太阳能电池与光伏建筑一体化，联系地址：北京市昌平区未来科学城国家能源集团科技创新园区202楼305室(102211)，E-mail: yang.tang.a@chnenergy.com.cn

引用本文:

汤洋. 电沉积ZnO纳米柱的光学带隙与非辐射复合[J]. 材料工程, 2022, 50(3): 90-97.
Yang TANG. Optical gap energy of eletrodeposited ZnO nanorods and its non-radiative recombination. Journal of Materials Engineering, 2022, 50(3): 90-97.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.000215 或 http://jme.biam.ac.cn/CN/Y2022/V50/I3/90

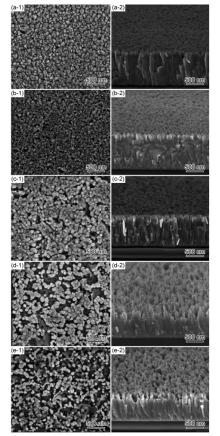

Fig.1 ZnO纳米柱的扫描电镜图片
(a)样品1；(b)样品2；(c)样品3；(d)样品4；(e)样品5；(1)俯视；(2)侧视

Table 1 ZnO纳米柱的几何形貌数据

Fig.2 AZO薄膜及样品1~5的X射线衍射图谱

Fig.3 样品1~5的透射光谱及光学带隙拟合图谱

Fig.4 样品1~5的反射光谱

Fig.5 ZnO纳米柱样品的室温光致发光图谱

Fig.6 ZnO纳米柱样品的室温光致发光图谱在300~470 nm范围的高斯拟合结果
(a)样品1;(b)样品2;(c)样品3;(d)样品4;(e)样品5

Table 2 ZnO纳米柱样品的近带边发射峰位和斯托克斯位移

1	KIM D , YUN I , KIM H . Fabrication of rough Al doped ZnO films deposited by low pressure chemical vapor deposition for high efficiency thin film solar cells[J]. Current Applied Physics, 2010, 10 (3): 459- 462. doi: 10.1016/j.cap.2010.02.030
2	LUKA G , WITKOWSKI B S , WACHNICKI L , et al. Electrical and mechanical stability of aluminum-doped ZnO films grown on flexible substrates by atomic layer deposition[J]. Materials Science and Engineering: B, 2014, 186, 15- 20. doi: 10.1016/j.mseb.2014.03.002
3	COMAN T , URSU E L , NICA V , et al. Improving the uncommon (110) growing orientation of Al-doped ZnO thin films through sequential pulsed laser deposition[J]. Thin Solid Films, 2014, 571, 198- 205. doi: 10.1016/j.tsf.2014.10.037
4	EYCIMEN DUYGULU N , KODOLBAS A O , EKERIM A , et al. Effects of argon pressure and r. power on magnetron sputtered aluminum doped ZnO thin films[J]. Journal of Crystal Growth, 2014, 394, 116- 125. doi: 10.1016/j.jcrysgro.2014.02.028
5	CHEN J , YE H , AE L , et al. Tapered aluminum-doped vertical zinc oxide nanorod arrays as light coupling layer for solar energy applications[J]. Solar Energy Materials and Solar Cells, 2011, 95 (6): 1437- 1440. doi: 10.1016/j.solmat.2010.10.006
6	郑高峰, 何广奇, 刘海燕, 等. 电纺氧化锌纳米纤维乙醇、丙酮气敏传感器[J]. 光学精密工程, 2014, 22 (6): 1555- 1561.
6	ZHENG G F , HE G Q , LIU H Y , et al. Electrospun zinc oxide nanofibrous gas sensors for alcohol and acetone[J]. Optics and Precision Engineering, 2014, 22 (6): 1555- 1561.
7	胡轶, 胡更新, 张洁静, 等. ZnO纳米棒/CdS量子点的制备及紫外-可见探测性能研究[J]. 中国光学, 2019, 12 (6): 1271- 1278.
7	HU Y , HU G X , ZHANG J J , et al. Fabrication of ZnO nanorod/CdS quantum dots and its detection performance in UV-Visible waveband[J]. Chinese Optics, 2019, 12 (6): 1271- 1278.
8	康冬茹, 叶芸, 汪江胜, 等. 图形化氧化锌阵列的制备及其场发射性能研究[J]. 液晶与显示, 2017, 32 (5): 367- 371.
8	KANG D R , YE Y , WANG J S , et al. Fabrication and field emission properties of patterned ZnO arrays[J]. Chinese Journal of Liquid Crystal and Displays, 2017, 32 (5): 367- 371.
9	孙义, 李青. 基于化学溶液法制备的氧化锌量子点发光二极管研究[J]. 液晶与显示, 2016, 31 (7): 635- 642.
9	SUN Y , LI Q . Research of zinc oxide quantum dot light-emitting diodes based on preparation of chemical solutions[J]. Chinese Journal of Liquid Crystal and Displays, 2016, 31 (7): 635- 642.
10	陈国炜, 朱荣. 基于氧化锌纳米线的硅谐振式加速度计[J]. 光学精密工程, 2009, 17 (6): 1279- 1285. doi: 10.3321/j.issn:1004-924X.2009.06.014
10	CHEN G W , ZHU R . Silicon micromachined resonant accelerometer based on ZnO nanowire[J]. Optics and Precision Engineering, 2009, 17 (6): 1279- 1285. doi: 10.3321/j.issn:1004-924X.2009.06.014
11	赵海霞, 方铉, 王颜彬, 等. ZnO/ZnS核壳纳米线界面缺陷的形成及发光特性研究[J]. 中国光学, 2019, 12 (4): 872- 879.
11	ZHAO H X , FANG X , WANG Y B , et al. Formation of interface defects of ZnO/ZnS core-shell nanowires and its optical properties investigations[J]. Chinese Optics, 2019, 12 (4): 872- 879.
12	SU S , YANG X , HU C , et al. Fabrication of ZnO nanowell-network ultraviolet photodetector on Si substrates[J]. Journal of Semiconductors, 2011, 32 (7): 074008. doi: 10.1088/1674-4926/32/7/074008
13	SUN X , AZAD F , WANG S , et al. Low-cost flexible ZnO microwires array ultraviolet photodetector embedded in PAVL substrate[J]. Nano Research Letters, 2018, 13, 277. doi: 10.1186/s11671-018-2701-4
14	CAO S , ZHANG J , LI W , et al. Near room temperature and large-area synthesis of ZnO/Cu₂O heterojunction for photocatalytic properties[J]. Chemical Physics Letters, 2018, 692, 14- 18. doi: 10.1016/j.cplett.2017.11.062
15	AMANY A , WANG D , WANG J , et al. Enhanced the UV response of AlN coated ZnO nanorods photodetector[J]. Journal of Alloys and Compounds, 2019, 776, 111- 115. doi: 10.1016/j.jallcom.2018.10.247
16	RIEDEL W , TANG Y , OHM W , et al. Effect of initial galvanic nucleation on morphological and optical properties of ZnO nanorod arrays[J]. Thin Solid Films, 2015, 574, 177- 183. doi: 10.1016/j.tsf.2014.12.006
17	GUO L , TANG Y , CHIANG F K , et al. Density-controlled growth and passivation of ZnO nanorod arrays by electrodeposition[J]. Thin Solid Films, 2017, 638, 426- 432. doi: 10.1016/j.tsf.2017.08.015
18	汤洋, 郭逦达, 张增光, 等. 硝酸铵诱导电沉积氧化锌纳米柱的铝掺杂及光学性质操控[J]. 光学精密工程, 2015, 23 (5): 1288- 1296.
18	TANG Y , GUO L D , ZHANG Z G , et al. Aluminium doping and optical property control of electrodeposited zinc oxide nanorods induced by ammonium nitrate[J]. Optics and Precision Engineering, 2015, 23 (5): 1288- 1296.
19	TANG Y , CHEN J , GREINER D , et al. Fast growth of high work function and high-quality ZnO nanorods from an aqueous solution[J]. Journal of Physical Chemistry: C, 2011, 115 (13): 5239- 5243. doi: 10.1021/jp109022k
20	MAHMOOD K , KHALID A , WAQAS S , et al. Indium-doped ZnO mesoporous nanofibers as efficient electron transporting materials for perovskite solar cells[J]. Surface and Coatings Technology, 2018, 352, 231- 237. doi: 10.1016/j.surfcoat.2018.08.039
21	ZHANG C , XIONG D , XU S , et al. Highly effect field emission from indium-doped ZnO nanostructures on nanographene/ macroporous electric conductive network[J]. Material Letters, 2018, 222, 25- 28. doi: 10.1016/j.matlet.2018.03.181
22	YU C , LI R , LI T , et al. Effect of Indium doping on the photoelectric properties of n-ZnO nanorods/p-GaN heterojunction light-emitting diodes[J]. Superlattices and Microstructures, 2018, 120, 298- 304. doi: 10.1016/j.spmi.2018.05.060
23	KUMAR A , HUANG N , STAEDLER T , et al. Mechanical characterization of aluminum doped zinc oxide (Al∶ZnO) nanorods prepared by sol-gel method[J]. Applied Surface Science, 2013, 265, 758- 763. doi: 10.1016/j.apsusc.2012.11.101
24	CHEN Z , ZHAN G , WU Y . Sol-gel-hydrothermal synthesis and conductive properties of Al-doped ZnO nanopowders with controllable morphology[J]. Journal of Alloys and Compounds, 2014, 587, 692- 697. doi: 10.1016/j.jallcom.2013.10.241
25	汤洋, 赵颖, 张增光, 等. 氧化锌纳米柱阵列的水热合成及其性能[J]. 材料研究学报, 2015, 29 (7): 529- 534.
25	TANG Y , ZHAO Y , ZHANG Z G , et al. Hydrothermal synthesis and properties of ZnO nanorod arrays[J]. Chinese Journal of Materials Research, 2015, 29 (7): 529- 534.
26	汤洋, 陈颉. 电沉积掺铝氧化锌纳米柱的光学带隙蓝移与斯托克斯位移[J]. 发光学报, 2014, 35 (10): 1165- 1171.
26	TANG Y , CHEN J . Optical band gap blue shift and Stokes shift in Al-doped ZnO nanorods by electrodeposition[J]. Chinese Journal of Luminescence, 2014, 35 (10): 1165- 1171.
27	BAI A , TANG Y , CHEN J . Efficient photon capturing in Cu(In, Ga)Se₂ thin film solar cells with ZnO nanorod arrays as an antireflective coating[J]. Chemical Physics Letters, 2015, 636, 134- 140. doi: 10.1016/j.cplett.2015.07.044
28	PAL E , HORNOK V , OSZKO A , et al. Hydrothermal synthesis of prism-like and flower-like ZnO and indium-doped ZnO structures[J]. Colloids and Surfaces: A, 2009, 340 (1): 1- 9.
29	KIM C E , MOON P , KIM S , et al. Effect of carrier concentration on optical bandgap shift in ZnO∶Ga thin films[J]. Thin Solid Films, 2010, 518 (22): 6304- 6307. doi: 10.1016/j.tsf.2010.03.042
30	OI MAHAMUNI S , BORGOHAIN K , BENDRE B S , et al. Spectroscopic and structural characterization of electrochemically grown ZnO quantum dots[J]. Journal of Applied Physics, 1999, 85 (5): 2861- 2865. doi: 10.1063/1.369049
31	CHEN J , AE L , LUX-STEINER M C . High internal quantum efficiency ZnO nanorod prepared at low temperature[J]. Applied Physics Letters, 2008, 92 (16): 161906. doi: 10.1063/1.2910769
