Preparation and properties of modified carbon fiber reinforced polyamide 6 composites
Xu LIU1, Hai XU2, Li-xin XU3, Hong ZHANG1, Qiong ZHOU2,*()
1 College of Mechanical and Transportation Engineering, China University of Petroleum-Beijing, Beijing 102249, China 2 College of New Energy and Materials, China University of Petroleum-Beijing, Beijing 102249, China 3 China Merchants Marine and Offshore Research Institute Co., Ltd., Shenzhen 518067, Guangdong, China

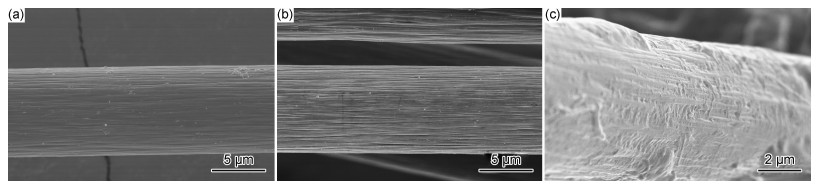

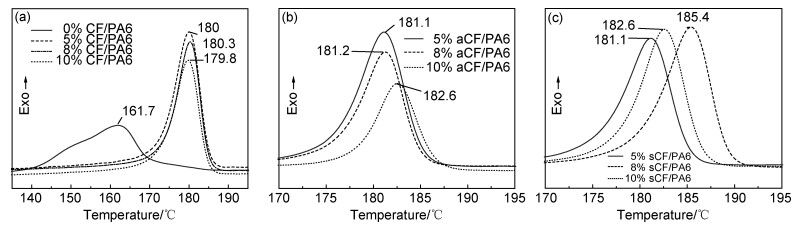

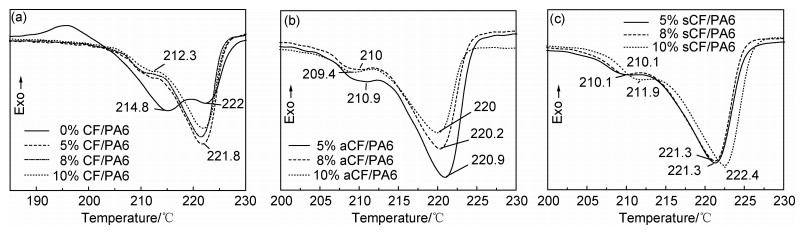

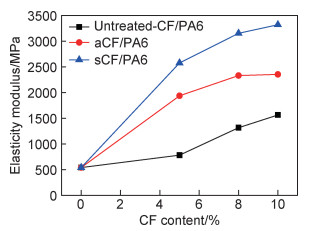

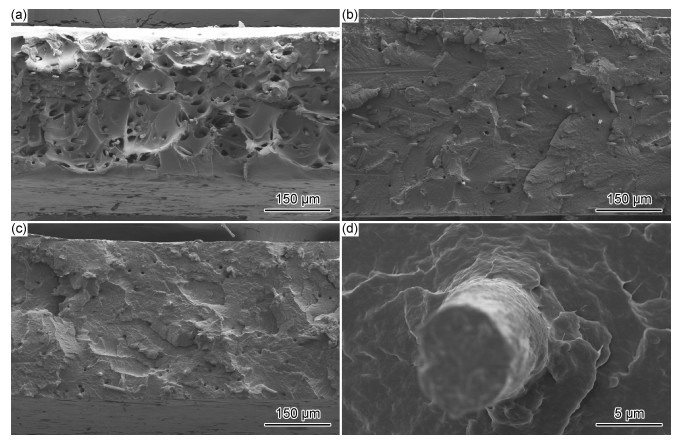

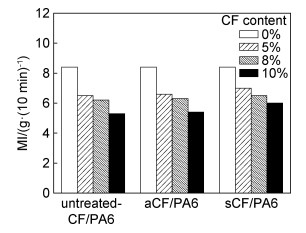

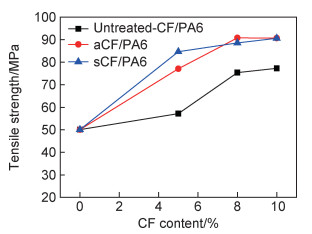

The carbon fibers (CF) were surface modified by nitric acid treatment and polyamide 6 (PA6) solution sizing treatment, and a series of CF/PA6 composites with high strength and high modulus, low melting index, and excellent processability were prepared. Scanning electron microscope (SEM), differential scanning calorimeter (DSC) and melt index meter were used to test and characterize the microstructure, mechanical properties and crystallization behavior of the composite materials. The results show that a layer of PA6 film is formed on the surface CF after immersion and sizing treatment with PA6 solution, which greatly enhances the binding force between the fiber and PA6 matrix, and improves the dispersibility of CF. The overall strength and modulus of the composites are improved. The tensile strength of the CF/PA6 is increased by 80.8% and the elastic modulus is increased by 513.9% when the modified CF amount is 8% (mass fraction). The addition of modified CF can promote the transition of PA6 from the γ crystal form to a more stable α crystal form. At the same time, the crystallization temperature and crystallization rate of the composites are increased, so that the crystallization of the composites are more uniform, thereby reducing the melting index of the composite and improving its processing performance.
YAN J , YING X P , BU Y F , et al. Summary of development of flexible riser structural technology in deep water[J]. Ocean Engineering Equipment and Technology, 2019, (6): 745- 749.
YU R H , YUAN P B . Structure and research focus of marine unbonded flexible pipes[J]. Oil & Gas Storage and Transportation, 2016, 35 (12): 1255- 1260.
QIAN L , LI P J , ZHANG W Y . Development and applications of marine composite flexible pipe[J]. Oil Field Equipment, 2012, 41 (2): 90- 92.
5
LAMBERT A, DO A T, FELIX H A, et al. Qualification of unbonded dynamic riser with carbon fiber composite armours[C]//ASME 201231st International Conference on Ocean, Offshore and Arctic Engineering, 2012: 117-125.
6
HUANG H , YAN L , GUO Y , et al. Morphological, mechanical and thermal properties of PA6 nanocomposites co-incorporated with nano-Al2O3 and graphene oxide fillers[J]. Polymer, 2020, (188): 122119.
7
NGUYENTRAN H D , HOANG V T , DO V T , et al. Effect of multiwalled carbon nanotubes on the mechanical properties of carbon fiber-reinforced polyamide-6/polypropylene composites for lightweight automotive parts[J]. Materials, 2018, 11 (3): 429- 441.
doi: 10.3390/ma11030429
YIN X C , YIN Y H , CHENG D , et al. Microstructure and properties of PA6/HDPE/CNTs blends of different mixing sequences under normal stress dominated flow field[J]. Journal of Materials Engineering, 2020, 48 (2): 87- 93.
LI P Y , WANG J R , YU S G , et al. Investigation of modification of inner-liner for heat resistant oil pipe[J]. China Plastics Industry, 2004, 32 (12): 22- 24.
10
TIBBETTS G G , LAKE M L , STRONG K L , et al. A review of the fabrication and properties of vapor-grown carbon nanofiber/polymer composites[J]. Compos Sci Technol, 2007, 67 (7): 1709- 1718.
11
COLEMAN J N , KHAN U , GUN' KO Y K . Mechanical reinforcement of polymers using carbon nanotubes[J]. Adv Mater, 2006, 18 (6): 689- 706.
12
ESAWI A M K , FARAG M M . Carbon nanotube reinforced composites: potential and current challenges[J]. Mater Design, 2007, 28 (9): 2394- 2401.
13
MAZUR K , KUCIEL S , SALASINSKA K . Mechanical, fire, and smoke behaviour of hybrid composites based on polyamide 6 with basalt/carbon fibres[J]. Journal of Composite Materials, 2019, 53 (28/30): 3979- 3991.
14
KIM B J , CHA S H , KANG G H , et al. Interfacial control through ZnO nanorod growth on plasma-treated carbon fiber for multiscale reinforcement of carbon fiber/polyamide 6 composites[J]. Materials Today Communications, 2018, 17 (12): 438- 449.
15
PENG Q , LI Y , HE X , et al. Interfacial enhancement of carbon fiber composites by poly(amido amine) functionalization[J]. Composites Science and Technology, 2013, 74 (1): 37- 42.
16
VARELIDIS P C , MCCULLOUGH R L , PAPASPYRIDES C D . The effect on the mechanical properties of carbon/epoxy composites of polyamide coatings on the fibers[J]. Composites Science and Technology, 1999, 59 (12): 1813- 1823.
