高应变速率下等径角挤压高纯粗晶铝中的形变孪晶与退火孪晶

doi:10.11868/j.issn.1001-4381.2020.000288

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(7783 KB)

HTML ( 0 )
输出: BibTeX | EndNote (RIS)

摘要

在室温下对铸态高纯粗晶铝进行一道次高应变率动态等径角挤压（D-ECAP）变形，利用电子背散射衍射技术（EBSD）研究挤压过程中所形成的孪晶。结果表明：利用D-ECAP能够在粗晶铝中同时制备出形变孪晶和退火孪晶，但两者在形态、Kernel平均取向差（KAM）以及与相邻晶粒的取向差三个方面存在较大差异。D-ECAP高应变率和大剪切变形使高层错能铝中形成了百微米级的形变孪晶，形变孪晶的形态为透镜状，后续变形使得孪晶界偏离∑3 60°〈111〉取向关系且KAM值主要集中于0.6°~1.8°。高应变率剪切变形下形成的大量层错和复杂的位错组态以及高形变储存能在变形温升的作用下促进了退火孪晶的形成。退火孪晶的形态较不规则，但孪晶界的取向关系更接近于∑3 60°〈111〉且KAM值主要集中于0.2°~0.5°。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	刘敬勇
	卢磊
	钟政烨

关键词 ：高纯粗晶铝, 高应变速率, 等径角挤压, 形变孪晶, 退火孪晶

Abstract：

An as-cast high purity coarse-grained aluminum was deformed by dynamic equal channel angular pressing (D-ECAP) at high strain rate for one pass at room temperature.The twins formed during extrusion were studied with electron backscatter diffraction.The results show that deformation twins and annealing twins can be synthesized simultaneously in the coarse-grained aluminum via D-ECAP, which can be differentiated by their morphology, Kernel average misorientation (KAM) and the misorientation between adjacent grains.Due to the high strain rate and large shear deformation of D-ECAP, deformation twins with size of several hundred microns can be formed in aluminum with high stacking fault energy, and their shapes are lenticular.The twin boundaries deviate from ∑3 60°〈111〉 orientation relationship as a result of subsequent deformation, and the KAM values are mainly between 0.6°-1.8°.The high strain rate shear deformation contributes to the formation of abundant stacking fault, intricate dislocation patterns, and high deformation stored energy, and thus the ensuing temperature rise facilitates the formation of annealing twins.The morphology of annealing twins is irregular, but the orientation relationship of annealing twin boundaries is more close to ∑3 60°〈111〉 and the KAM values of annealing twins are mainly between 0.2°-0.5°.

Key words： high purity coarse-grained aluminum high strain rate equal channel angular pressing deformation twin annealing twin

收稿日期: 2020-04-02 出版日期: 2021-04-21

中图分类号:

TG146.2⁺1

基金资助:中央高校基本科研业务费专项资金(2682018CX47);四川省科技项目(2019YFG0445)

通讯作者: 钟政烨 E-mail: zhongzhengye@swjtu.edu.cn

作者简介: 钟政烨(1984-), 男, 讲师, 博士, 研究方向为金属材料的变形与损伤, 联系地址: 四川省成都市金牛区二环路北一段111号西南交通大学机械馆(610031), E-mail: zhongzhengye@swjtu.edu.cn

引用本文:

刘敬勇, 卢磊, 钟政烨. 高应变速率下等径角挤压高纯粗晶铝中的形变孪晶与退火孪晶[J]. 材料工程, 2021, 49(4): 89-94.
Jing-yong LIU, Lei LU, Zheng-ye ZHONG. Deformation twins and annealing twins in high purity coarse-grained aluminum by equal channel angular pressing at high strain rate. Journal of Materials Engineering, 2021, 49(4): 89-94.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.000288 或 http://jme.biam.ac.cn/CN/Y2021/V49/I4/89

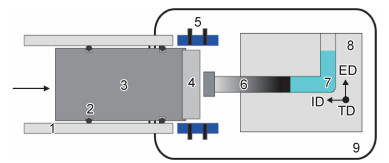

Fig.1 D-ECAP实验装置示意图

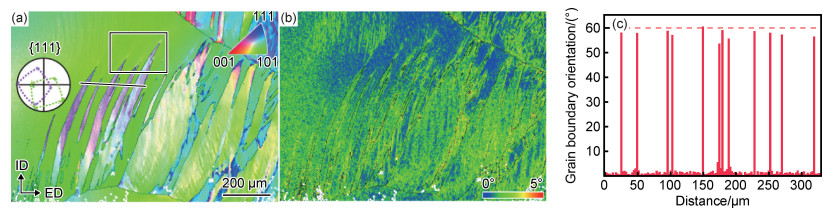

Fig.2 D-ECAP变形后高纯铝中形变孪晶EBSD表征结果
(a)取向成像图；(b)图(a)对应的KAM图；(c)孪晶界取向差图

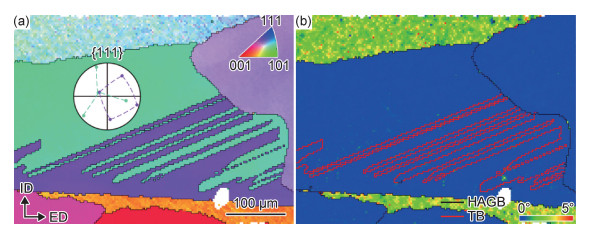

Fig.3 D-ECAP变形后高纯铝中退火孪晶微观结构的EBSD表征结果
(a)取向成像图；(b)图(a)对应的KAM图

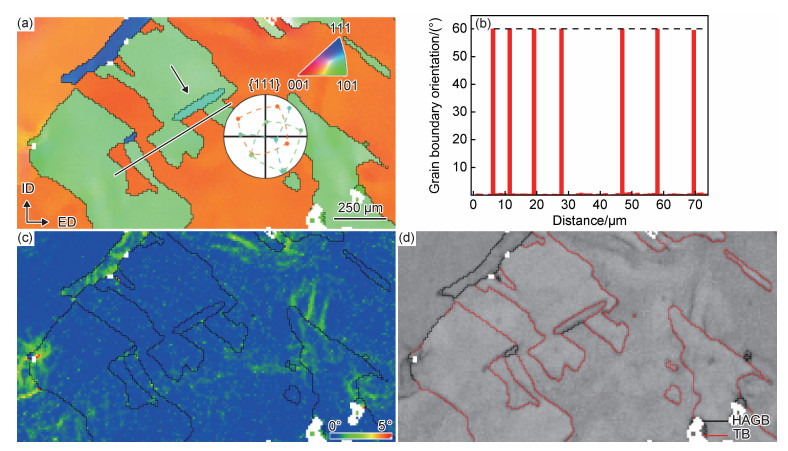

Fig.4 D-ECAP变形后高纯铝中退火孪晶EBSD表征结果
(a)取向成像图；(b)孪晶界取向差图；(c)图(a)对应的KAM图；(d)菊池带衬度分布图

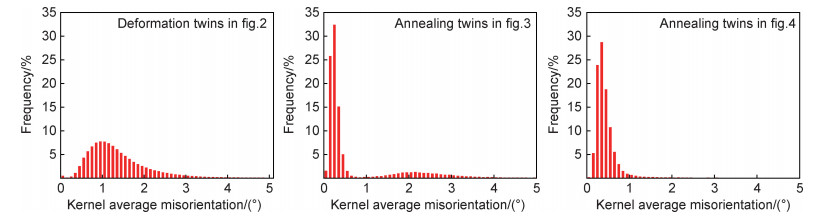

Fig.5 图 2~4中KAM柱状统计图
