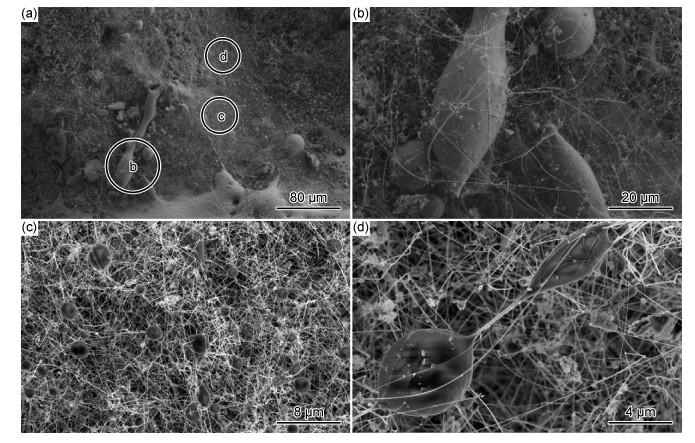

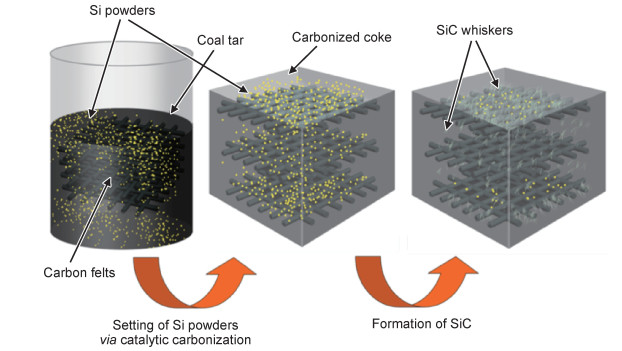

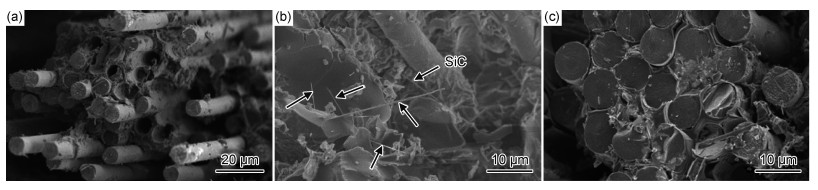

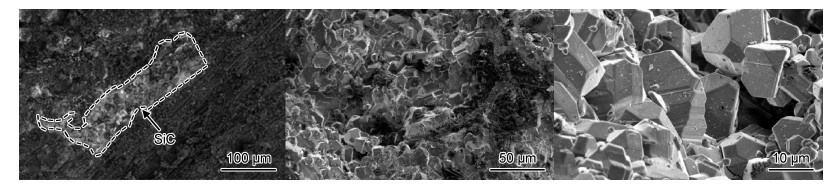

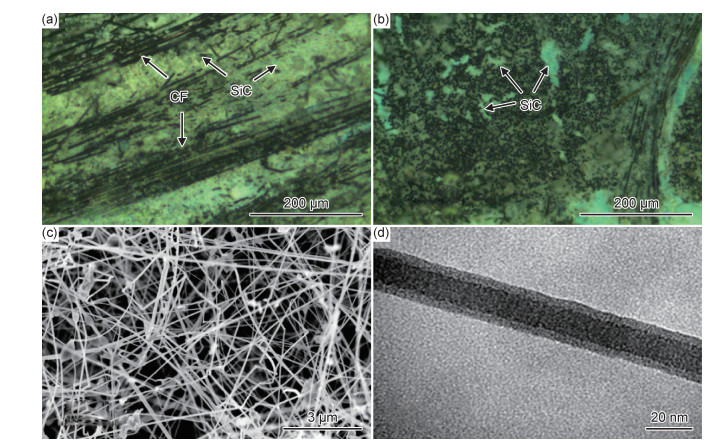

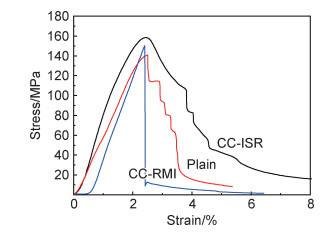

By aid of aluminium trichloride (AlCl3), an effective fabrication of the preform of carbon/carbon silicon carbide (C/C-SiC) composites via catalytic carbonization was developed, using coal tar as precursor at a low temperature. C/C-SiC composites were obtained by two different approaches, one combining catalytic carbonization and in-situ reacted (CC-ISR) method, the other combining catalytic carbonization and reactive melt infiltration (CC-RMI) method. Furthermore, the microstructure and mechanical properties of the resulted C/C-SiC composites were characterized. SiC nanowires distributed in the voids of interbundle and intrabundle of carbon fibers in as-prepared samples with CC-ISR process. The CC-ISR sample exhibits a pseudo-plastic fracture mode and its flexural strength is about (158±12) MPa. By contrast, the SiC morphology of composites fabricated in CC-RMI process contains cube and hexagonal grains. The fracture behavior of CC-RMI sample shows a brittle fracture mode and its flexural strength was about (150±10) MPa. Compared with the CC-RMI method, the C/C-SiC composites obtained by the CC-ISR method has many advantages such as simple technology, low cost and excellent mechanical properties.
LIU C X , CAO L X , CHEN J X , et al. Microstructure and ablation behavior of SiC coated C/C-SiC-ZrC composites prepared by a hybrid infiltration process[J]. Carbon, 2013, 65, 196- 205.
doi: 10.1016/j.carbon.2013.08.014
LI H J , LUO R Y , YANG Z . The status and future on research and application about carbon/carbon composites in the aeronautical area[J]. Journal of Materials Engineering, 1997, (8): 8- 10.
CAO Y , LIU R J , CAO Y B , et al. Effects of preform density on structure and property of C/C-SiC composites fabricated by gaseous silicon infiltration[J]. Journal of Materials Engineering, 2016, 44 (7): 19- 25.
5
KUMAR P , SRIVASTAVA V K . Tribological behaviour of C/C-SiC composites-a review[J]. J Adv Ceram, 2016, 5 (1): 1- 12.
doi: 10.1007/s40145-015-0171-z
FU D J , ZENG X R , ZOU J Z , et al. Study on microstructure of C/C composites prepared by microwave chemical vapor infiltration[J]. Journal of Materials Engineering, 2009, (Suppl 1): 5- 8.
7
ODESHI A G , MUCHA H , WIELAGE B . Manufacture and characterization of a low cost carbon fibre reinforced C/SiC dual matrix composite[J]. Carbon, 2006, 44 (10): 1994- 2001.
doi: 10.1016/j.carbon.2006.01.025
WANG Y M , SHI Q L . Tribological property of C/C-SiC composites fabricated by isothermal chemical vapor infiltration[J]. Journal of Aeronautical Materials, 2017, 37 (4): 52- 60.
9
SWAMINATHAN B , PAINULY A , PRABHAKARAN P V , et al. Liquid polycarbosilane-derived C/C-SiC composites with improved mechanical strength for high temperature applications[J]. Ceramics International, 2015, 41 (3): 3575- 3577.
10
CUI Y Y , LI A J , LI B , et al. Microstructure and ablation mechanism of C/C-SiC composites[J]. Journal of the European Ceramic Society, 2014, 34 (2): 171- 177.
doi: 10.1016/j.jeurceramsoc.2013.08.026
KANG W J , XUE R Y , ZHAO D M , et al. Component development and ablation properties of C/C-SiC composites prepared with RMI process[J]. Journal of Solid Rocket Technology, 2019, 42 (4): 519- 522.
12
LI Y , XIAO P , LI Z , et al. Tensile fatigue behavior of plain-weave reinforced Cf/C-SiC composites[J]. Ceramics International, 2016, 42 (6): 6850- 6857.
doi: 10.1016/j.ceramint.2016.01.068
13
NAKANO K , KAMIYA A , OGAWA H , et al. Fabrication and mechanical properties of carbon fiber reinforced silicon carbide composites[J]. Journal of the Ceramic Society of Japan, 1992, 100 (1160): 472- 475.
doi: 10.2109/jcersj.100.472
14
XIAO P , LI Z , ZHU Z B , et al. Preparation, properties and application of C/C-SiC composites fabricated by warm compacted-in situ reaction[J]. Journal of Materials Science & Technology, 2010, 26 (3): 283- 288.
15
KOUMOTO K , TAKEDA S , PAI C H , et al. High-resolution electron microscopy observations of stacking faults in β-SiC[J]. Journal of the American Ceramic Society, 1989, 72 (10): 1985- 1987.
doi: 10.1111/j.1151-2916.1989.tb06014.x
16
CHUNG F H . Quantitative interpretation of X-ray diffraction patterns of mixtures Ⅰ matrix-flushing method for quantitative multicomponent analysis[J]. Journal of Applied Crystallography, 1974, 7 (6): 519- 525.
doi: 10.1107/S0021889874010375
PENG K , GE Y C , YANG L , et al. Effect of C/C preforms density on sliding friction behavior of C/C-SiC composites fabricated by molten silicon infiltration method[J]. Materials Science and Engineering of Powder Metallurgy, 2010, 15 (3): 252- 257.
18
CHEN J J , PAN Y , TANG W H , et al. Tuning the morphologies of SiC nanowires via the change of the CoxSiy melts[J]. Nano-micro Letters, 2010, 2 (1): 11- 17.
doi: 10.1007/BF03353610
19
WU R B , LI B S , GAO M X , et al. Tuning the morphologies of SiC nanowires via the control of growth temperature, and their photoluminescence properties[J]. Nanotechnology, 2008, 19 (33): 335602.
doi: 10.1088/0957-4484/19/33/335602
20
CHEN J J , SHI Q , XIN L P , et al. A simple catalyst-free route for large-scale synthesis of SiC nanowires[J]. Journal of Alloys and Compounds, 2011, 509 (24): 6844- 6847.
doi: 10.1016/j.jallcom.2011.03.131
21
SCHULTE-FISCHEDICK J , ZERN A , MAYER J , et al. The morphology of silicon carbide in C/C-SiC composites[J]. Materials Science and Engineering: A, 2002, 332 (1): 146- 152.
22
XIAO P , LI Z , ZHU Z B , et al. The morphology and mechanism of formation of SiC in C/C-SiC composites fabricated by liquid silicon infiltration[J]. Journal of Ceramic Processing Research, 2010, 11 (3): 335- 340.
CUI Y Y , BAI R C , SUN J L , et al. Research of C/C-SiC composites prepared by liquid silicon infiltration[J]. Materials Reports, 2011, 25 (1): 31- 35.
