过渡金属氟化物改善2NaBH<sub>4</sub>+MgH<sub>2</sub>储氢体系的放氢热力学性能

doi:10.11868/j.issn.1001-4381.2020.000986

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(1197 KB)

HTML ( 1 )
输出: BibTeX | EndNote (RIS)

摘要

通过机械球磨法制备了2NaBH₄+MgH₂和2NaBH₄+MgH₂+0.1MF_x(M＝Ni，Ti，Zr；x＝2，3，4)储氢复合材料。分别通过扫描电子显微镜(SEM)、能谱分析仪(EDS)和X射线衍射(XRD)分析了复合材料的形貌、元素分布和晶体结构。另外，通过差示扫描量热法(DSC)和程序升温脱附(TPD)测试了材料的放氢热力学性质。结果表明，通过添加NiF₂，TiF₃和ZrF₄，分别将2NaBH₄+MgH₂的第一个放氢峰温降低了8.9，35.7 ℃和54.5 ℃。此外，放氢过程中出现的NaMgF₃相改变了第一个放氢过程的反应路径，并且改变了2NaBH₄+MgH₂的第二次放氢过程，使得第二个脱氢过程的峰温分别降低了18.0，31.1 ℃和34.1 ℃。添加NiF₂，TiF₃和ZrF₄使2NaBH₄+MgH₂的放氢比例分别达到91.7%，91.9%和98.7%。其中ZrF₄对2NaBH₄+MgH₂的整个放氢过程显示出了最好的效果。因此，2NaBH₄+MgH₂+0.1ZrF₄可以作为燃料电池供氢系统的潜在应用体系。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	郗森良
	王晓军
	张同环
	韩宗盈
	高猛
	周仕学
	于昊

关键词 ：金属氟化物, 2NaBH₄+MgH₂, 机械球磨法, 热力学稳定性

Abstract：

The 2NaBH₄+MgH₂ and 2NaBH₄+MgH₂+0.1MF_x (M＝Ni, Ti, Zr;x＝2, 3, 4) hydrogen storage composites were prepared by ball milling. The morphology, element distribution, and crystal structure of the composites were detected by scanning electron microscopy (SEM), energy dispersive spectrometer (EDS) and X-ray diffraction (XRD), respectively. In addition, the hydrogen release thermodynamic properties of the materials were tested by differential scanning calorimetry (DSC) and temperature-programmed desorption (TPD). The results show that the peak temperature of the first hydrogen release process for 2NaBH₄+MgH₂ is decreased by 8.9, 35.7 ℃ and 54.5 ℃ by the addition of NiF₂, TiF₃ and ZrF₄, respectively. In addition, the NaMgF₃ phase that appeared during the hydrogen release process changes the reaction path of the first hydrogen release process, and catalyzes the second hydrogen release process of 2NaBH₄+MgH₂, which reduces the peak temperature of the second dehydrogenation process by 18.0 ℃, 31.1 ℃ and 34.1 ℃, respectively. The quantity ratio of hydrogen release for 2NaBH₄+MgH₂ reaches 91.7%, 91.9% and 98.7% by the addition of NiF₂, TiF₃ and ZrF₄, respectively. In these three catalysts, ZrF₄ shows the best catalytic effect on the entire hydrogen release process of 2NaBH₄+MgH₂. Therefore, 2NaBH₄+MgH₂+0.1ZrF₄can be used as a potential application system of fuel cell hydrogen supply system.

Key words： metal fluoride 2NaBH₄+MgH₂ mechanical ball milling method thermodynamic stability

收稿日期: 2020-10-26 出版日期: 2022-09-20

中图分类号:	TB332
	TK91

基金资助:国家自然科学基金青年项目(21805169);国家自然科学基金面上项目(21978156);山东省自然科学基金(ZR2018BB069);山东省自然科学基金(ZR2018PEM003);山东省高等学校科技计划项目(J17KA113)

通讯作者: 于昊 E-mail: haoyu@sdust.edu.cn

作者简介: 于昊(1983—)，男，副教授，博士研究生，主要研究方向为储氢材料、二氧化碳加氢催化剂制备、生物质转化、精细化学品化学、第一性原理计算等，联系地址：山东省青岛市黄岛区前湾港路579号山东科技大学储能技术学院、化学与生物工程学院(266590)，E-mail: haoyu@sdust.edu.cn

引用本文:

郗森良, 王晓军, 张同环, 韩宗盈, 高猛, 周仕学, 于昊. 过渡金属氟化物改善2NaBH₄+MgH₂储氢体系的放氢热力学性能[J]. 材料工程, 2022, 50(9): 97-104.
Senliang XI, Xiaojun WANG, Tonghuan ZHANG, Zongying HAN, Meng GAO, Shixue ZHOU, Hao YU. Thermodynamic performance of 2NaBH₄+MgH₂ hydrogen storage system improved by transition metal fluoride. Journal of Materials Engineering, 2022, 50(9): 97-104.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.000986 或 http://jme.biam.ac.cn/CN/Y2022/V50/I9/97

Fig.1 球磨后2NaBH₄+MgH₂的扫描电镜图(a), (b)和Na(c)，Mg(d)元素分布图

Fig.2 球磨后2NaBH₄+MgH₂+0.1NiF₂的扫描电镜图(a), (b)和Na(c)，Mg(d), Ni(e)元素分布图

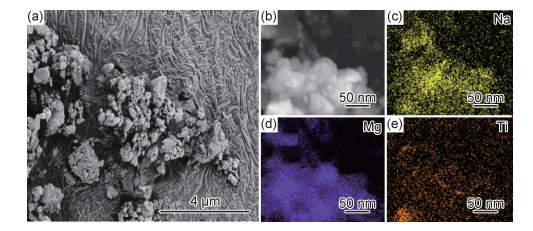

Fig.3 球磨后2NaBH₄+MgH₂+0.1TiF₃的扫描电镜图(a), (b)和Na(c)，Mg(d), Ti(e)元素分布图

Fig.4 球磨后2NaBH₄+MgH₂+0.1ZrF₄的扫描电镜图(a), (b)和Na(c)，Mg(d), Zr(e)元素分布图

Fig.5 复合储氢体系球磨后的XRD谱图

Fig.6 复合储氢体系分别升温到450 ℃(a)和600 ℃(b)后的XRD谱图

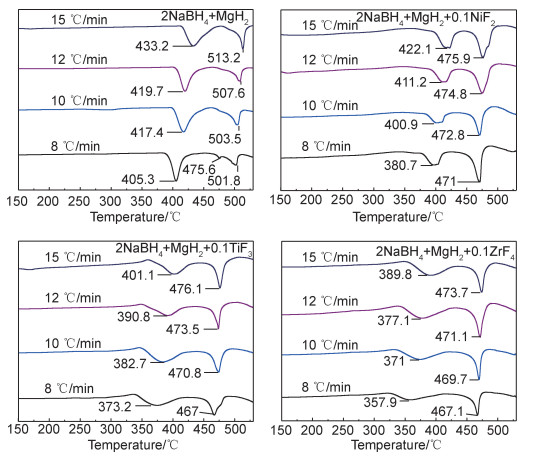

Fig.7 复合储氢体系在不同升温速率下的DSC曲线

Fig.8 复合储氢体系第一个放氢过程的表观活化能

Fig.9 复合储氢体系在5 ℃/min的升温速率下的TPD曲线

Table 1 不同复合储氢体系的放氢量及放氢质量分数

1	WANG Y , CHEN X , ZHANG H , et al. Heterostructures built in metal hydrides for advanced hydrogen storage reversibility[J]. Advanced Materials, 2020, 32 (31): 2002647. doi: 10.1002/adma.202002647
2	LIU P , LIAN J , CHEN H , et al. In-situ synthesis of Mg₂Ni-Ce₆O₁₁ catalyst for improvement of hydrogen storage in magnesium[J]. Chemical Engineering Journal, 2020, 385, 123448. doi: 10.1016/j.cej.2019.123448
3	YU H , BENNICI S , AUROUX A . Hydrogen storage and release: kinetic and thermodynamic studies of MgH₂ activated by transition metal nanoparticles[J]. International Journal of Hydrogen Energy, 2014, 39 (22): 11633- 11641. doi: 10.1016/j.ijhydene.2014.05.069
4	刘晓静, 李辛元, 蒋瑞乾, 等. 镧对镁吸氢和放氢动力学及热力学性能的影响[J]. 稀有金属材料与工程, 2019, 48 (7): 2239- 2243.
4	LIU X J , LI X Y , JIANG R Q , et al. Effect of lanthanum on kinetic and thermodynamic properties of magnesium for hydrogen absorption and desorption[J]. Rare Metal Materials and Engineering, 2019, 48 (7): 2239- 2243.
5	陈军, 朱敏. 高容量储氢材料的研究进展[J]. 中国材料进展, 2009, 28 (5): 2- 10.
5	CHEN J , ZHU M . Progress in research of hydrogen storage materials with high capacity[J]. Materials China, 2009, 28 (5): 2- 10.
6	LIU P , CHEN H , YU H , et al. Oxygen vacancy in magnesium/cerium composite from ball milling for hydrogen storage improvement[J]. International Journal of Hydrogen Energy, 2019, 44 (26): 13606- 13612. doi: 10.1016/j.ijhydene.2019.03.258
7	LIU B , ZHANG B , WU Y , et al. Theoretical prediction and experimental study on catalytic mechanism of incorporated Ni for hydrogen absorption of Mg[J]. International Journal of Hydrogen Energy, 2019, 44 (51): 27885- 27895. doi: 10.1016/j.ijhydene.2019.09.045
8	HAN Z Y , CHEN H P , LI X Y , et al. Novel application of MgH₂/MoS₂ hydrogen storage materials to thiophene hydrodesulfurization: a combined experimental and theoretical case study[J]. Materials & Design, 2018, 158, 213- 223.
9	XI S L , ZHANG P , FU Y Y , et al. Hydrogen release: Thermodynamic and kinetic studies of NaBH₄ activated by different zeolite nanoparticles[J]. Energy & Fuels, 2020, 34 (8): 10218- 10224.
10	BENNICI S , YU H , OBEID E , et al. Highly active heteropolyanions supported Co catalysts for fast hydrogen generation in NaBH₄ hydrolysis[J]. International Journal of Hydrogen Energy, 2011, 36 (13): 7431- 7442. doi: 10.1016/j.ijhydene.2011.03.148
11	HUANG T , ZOU J , ZHAO N , et al. Reversible hydrogen storage system of 3NaBH₄-0.5ScF₃-0.5YF₃: the synergistic effect of ScF₃ and YF₃[J]. Journal of Alloys and Compounds, 2019, 791, 1270- 1276. doi: 10.1016/j.jallcom.2019.02.306
12	MARTELL P , CAPUTO R , REMHOF A , et al. Stability and decomposition of NaBH₄[J]. The Journal of Physical Chemistry C, 2010, 114 (15): 7173- 7177. doi: 10.1021/jp909341z
13	邵阳阳, 靳惠明, 俞亮, 等. Mo掺杂Co-B非晶态合金的制备及催化硼氢化钠水解制氢性能[J]. 材料导报, 2020, 34 (1): 2063- 2066.
13	SHAO Y Y , JIN H M , YU L , et al. Preparation of Mo-doped Co-B amorphous alloy and its catalytic performance on sodium borohydride hydrolysis for hydrogen production[J]. Materials Reports, 2020, 34 (1): 2063- 2066.
14	LIU X , PEASLEE D , JOST C Z , et al. Systematic pore-size effects of nanoconfinement of LiBH₄: elimination of diborane release and tunable behavior for hydrogen storage applications[J]. Chemistry of Materials, 2011, 23 (5): 1331- 1336. doi: 10.1021/cm103546g
15	GUO L , LI Y , MA Y , et al. Enhanced hydrogen storage capacity and reversibility of LiBH₄ encapsulated in carbon nanocages[J]. International Journal of Hydrogen Energy, 2017, 42 (4): 2215- 2222. doi: 10.1016/j.ijhydene.2016.11.184
16	方占召, 康向东, 王平. 硼氢化锂储氢材料研究[J]. 化学进展, 2009, 21 (10): 2212- 2218.
16	FANG Z Z , KANG X D , WANG P . Study of hydrogen storage properties of lithium borohydride[J]. Progress in Chemistry, 2009, 21 (10): 2212- 2218.
17	MAO J F , YU X B , GUO Z P , et al. Enhanced hydrogen storage performances of NaBH₄-MgH₂ system[J]. Journal of Alloys and Compounds, 2009, 479 (1/2): 619- 623.
18	GARRONI S , MILANESE C , GIRELLA A , et al. Sorption properties of NaBH₄/MH₂ (M=Mg, Ti) powder systems[J]. International Journal of Hydrogen Energy, 2010, 35 (11): 5434- 5441. doi: 10.1016/j.ijhydene.2010.03.004
19	MILANESE C , GARRONI S , GIRELLA A , et al. Thermodynamic and kinetic investigations on pure and doped NaBH₄+MgH₂ system[J]. The Journal of Physical Chemistry C, 2011, 115 (7): 3151- 3162. doi: 10.1021/jp109392e
20	PISTIDDA C , BARKHORDARIAN G , RZESZUTEK A , et al. Activation of the reactive hydride composite 2NaBH₄+MgH₂[J]. Scripta Materialia, 2011, 64 (11): 1035- 1038. doi: 10.1016/j.scriptamat.2011.02.017
21	DING Z , LI H , SHAW L . New insights into the solid-state hydrogen storage of nanostructured LiBH₄-MgH₂ system[J]. Chemical Engineering Journal, 2020, 385, 123856. doi: 10.1016/j.cej.2019.123856
22	UTKE R , THIANGVIRIYA S , JAVADIAN P , et al. 2LiBH₄-MgH₂ nanoconfined into carbon aerogel scaffold impregnated with ZrCl₄ for reversible hydrogen storage[J]. Materials Chemistry and Physics, 2016, 169, 136- 141. doi: 10.1016/j.matchemphys.2015.11.040
23	PUSZKIEL J A , GENNARI F C , LAROCHETTE P A , et al. Effect of Fe additive on the hydrogenation-dehydrogenation properties of 2LiH+MgB₂/2LiBH₄+MgH₂ system[J]. Journal of Power Sources, 2015, 284, 606- 616. doi: 10.1016/j.jpowsour.2015.02.153
24	GOSALAWIT-UTKE R , MILANESE C , JAVADIAN P , et al. 2LiBH₄-MgH₂-0.13TiCl₄ confined in nano porous structure of carbon aerogel scaffold for reversible hydrogen storage[J]. Journal of Alloys and Compounds, 2014, 599, 78- 86. doi: 10.1016/j.jallcom.2014.02.032
25	LI Y , LI P , TAN Q , et al. Thermal properties and cycling performance of Ca(BH₄)₂/MgH₂ composite for energy storage[J]. Chemical Physics Letters, 2018, 700, 44- 49. doi: 10.1016/j.cplett.2018.04.011
26	KARIMI F , PRANZAS P K , PISTIDDA C , et al. Structural and kinetic investigation of the hydride composite Ca(BH₄)₂+MgH₂ system doped with NbF₅ for solid-state hydrogen storage[J]. Physical Chemistry Chemical Physics, 2015, 17 (41): 27328- 27342. doi: 10.1039/C5CP03557K
27	BONATTO MINELLA C , GARRONI S , PISTIDDA C , et al. Sorption properties and reversibility of Ti(Ⅳ) and Nb(Ⅴ)-fluoride doped-Ca(BH₄)₂-MgH₂ system[J]. Journal of Alloys and Compounds, 2015, 622, 989- 994. doi: 10.1016/j.jallcom.2014.11.038
28	MULAS G , CAMPESI R , GARRONI S , et al. Hydrogen storage in 2NaBH₄+MgH₂ mixtures: destabilization by additives and nanoconfinement[J]. Journal of Alloys and Compounds, 2012, 536, 236- 240. doi: 10.1016/j.jallcom.2011.12.042
29	HUANG T , ZOU J , ZENG X , et al. Reversible hydrogen sorption behaviors of the 3NaBH₄-(x)YF₃-(1-x)GdF₃ system: the effect of double rare earth metal cations[J]. International Journal of Hydrogen Energy, 2019, 44 (10): 4868- 4877. doi: 10.1016/j.ijhydene.2018.12.060
30	ZHAO N , ZOU J , ZENG X , et al. Mechanisms of partial hydrogen sorption reversibility in a 3NaBH₄/ScF₃ composite[J]. RSC Advances, 2018, 8 (17): 9211- 9217. doi: 10.1039/C8RA00429C
31	NWAKWUO C C , PISTIDDA C , DORNHEIM M , et al. Microstructural study of hydrogen desorption in 2NaBH₄+MgH₂ reactive hydride composite[J]. International Journal of Hydrogen Energy, 2012, 37 (3): 2382- 2387. doi: 10.1016/j.ijhydene.2011.10.070
32	POTTMAIER D , PISTIDDA C , GROPPO E , et al. Dehydrogenation reactions of 2NaBH₄+MgH₂ system[J]. International Journal of Hydrogen Energy, 2011, 36 (13): 7891- 7896. doi: 10.1016/j.ijhydene.2011.01.059
33	ZHANG L , SUN Z , CAI Z , et al. Enhanced hydrogen storage properties of MgH₂ by the synergetic catalysis of Zr_0.4Ti_0.6Co nanosheets and carbon nanotubes[J]. Applied Surface Science, 2020, 504, 144465- 144472. doi: 10.1016/j.apsusc.2019.144465
34	YANG X , JI L , YAN N , et al. Superior catalytic effects of FeCo nanosheets on MgH₂ for hydrogen storage[J]. Dalton Transactions, 2019, 48 (33): 12699- 12706. doi: 10.1039/C9DT02084E
35	张晓丽, 王乃飞, 李涛, 等. 氢化镁放氢动力学的研究[J]. 功能材料, 2015, 46 (9): 9041- 9044.
35	ZHANG X L , WANG N F , LI T , et al. Hydrogen desorption kinetics of magnesium hydride[J]. Journal of Functional Materials, 2015, 46 (9): 9041- 9044.
36	ZHANG Q , ZANG L , HUANG Y , et al. Improved hydrogen storage properties of MgH₂ with Ni-based compounds[J]. International Journal of Hydrogen Energy, 2017, 42 (38): 24247- 24255. doi: 10.1016/j.ijhydene.2017.07.220
37	JIN S A , SHIM J H , CHO Y W , et al. Dehydrogenation and hydrogenation characteristics of MgH₂ with transition metal fluorides[J]. Journal of Power Sources, 2007, 172 (2): 859- 862. doi: 10.1016/j.jpowsour.2007.04.090
38	DELEDDA S , BORISSOVA A , POINSIGNON C , et al. H-sorption in MgH₂ nanocomposites containing Fe or Ni with fluorine[J]. Journal of Alloys and Compounds, 2005, 404/406, 409- 412. doi: 10.1016/j.jallcom.2005.01.115
