1 College of Mechanical and Energy Engineering, Shaoyang University, Shaoyang 422000, Hunan, China 2 Key Laboratory of Hunan Province for Efficient Power System and Intelligent Manufacturing, Shaoyang University, Shaoyang 422000, Hunan, China

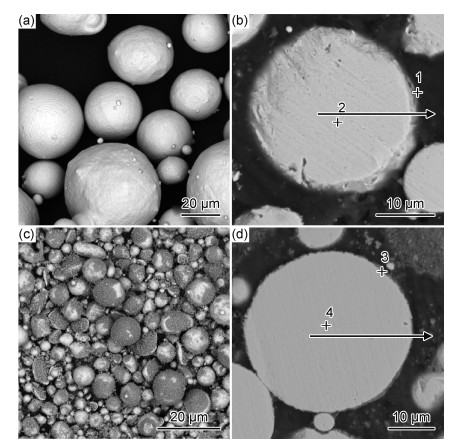

The core-shell structured CoNiCrAlY-Al2O3 powders were well-designed and fabricated with the Al2O3 as the shell. The ball milling preparation process of core-shell structured powders was optimized by orthogonal experiment design. The phase structure and microstructure evolution of the high velocity oxy-fuel sprayed(HVOF) CoNiCrAlY-Al2O3 coatings caused by using of core-shell structured powders were discussed. The oxidation behavior of HVOF CoNiCrAlY coating and CoNiCrAlY-Al2O3 composite coating at 800 ℃ was comparatively studied.The results show that the influence of the process parameters on the average coating rate of the core-shell structured powders in descending order are: ball milling rotation speed, mass ratio of ball to powder and ball milling time.The optimal ball milling parameters for preparing CoNiCrAlY-Al2O3 core-shell structured powders are: ball milling rotation speed of 180 r/min, mass ratio of ball to powder of 10∶1, and ball milling for 6 h. The HVOF CoNiCrAlY coating is mainly composed of γ-Co-Ni-Cr phase.The oxidation behavior of CoNiCrAlY alloy during spraying process is significantly inhibited by the using of core-shell structured raw powders. Due to the existence of the high melting point Al2O3 shell in the raw powders, the CoNiCrAlY-Al2O3 composite coating contains a high content of β-NiAl phase. In addition, the coating has high porosity and high content of un-melted particles.Compared with CoNiCrAlY coating, CoNiCrAlY-Al2O3 composite coating has excellent high temperature oxidation resistance. The high content of β-NiAl and Al2O3 in the composite coating leads to the formation of a dense Al2O3 rich protective layer on the surface of the coating during high temperature oxidation. The oxide film significantly inhibits the growth of non-protective oxides.
YUAN T , DENG C G , MAO J , et al. Preparation and thermal conductivity of 7YSZ thermal barrier coatings prepared by plasma spray-physical vapor deposition[J]. Journal of Materials Engineering, 2017, 45 (7): 1- 6.
2
WEN W , JACKSON G A , LI H , et al. An experimental and numerical study of a CoNiCrAlY coating using miniature specimen testing techniques[J]. International Journal of Mechanical Sciences, 2019, 157/158, 348- 356.
doi: 10.1016/j.ijmecsci.2019.04.001
3
VENKADESAN G , MUTHUSAMY J . Experimental investigation of Al2O3/8YSZ and CeO2/8YSZ plasma sprayed thermal barrier coating on diesel engine[J]. Ceramics International, 2019, 45 (3): 3166- 3176.
doi: 10.1016/j.ceramint.2018.10.218
WANG Y Q , SONG P , JI Q , et al. Effect of H2O and Y(O) on oxidation behavior of NiCoCrAl coating within thermal barrier coating[J]. Journal of Materials Engineering, 2017, 45 (4): 65- 69.
5
DESHPANDE S , SAMPATH S , ZHANG H . Mechanisms of oxidation and its role in microstructural evolution of metallic thermal spray coatings-case study for Ni-Al[J]. Surface & Coatings Technology, 2006, 200 (18/19): 5395- 5406.
6
CHOI H , LEE S , KIM B , et al. Effect of in-flight particle oxidation on the phase evolution of HVOF NiTiZrSiSn bulk amorphous coating[J]. Journal of Materials Science, 2005, 40 (23): 6121- 6126.
doi: 10.1007/s10853-005-3169-z
7
ZHANG C , LIU L , CHAN K C , et al. Wear behavior of HVOF-sprayed Fe-based amorphous coatings[J]. Intermetallics, 2012, 29, 80- 85.
doi: 10.1016/j.intermet.2012.05.004
8
PENG Y , ZHANG C , ZHOU H , et al. On the bonding strength in thermally sprayed Fe-based amorphous coatings[J]. Surface & Coatings Technology, 2013, 218, 17- 22.
9
TANG F , AJDELSZTAJN L , KIM G E , et al. Effects of surface oxidation during HVOF processing on the primary stage oxidation of a CoNiCrAlY coating[J]. Surface & Coatings Technology, 2004, 185 (2/3): 228- 233.
10
JALOWICKA A , NAUMENKO D , ERNSBERGER M , et al. Alumina formation and microstructural changes of aluminized CoNiCrAlY coating during high temperature exposure in the temperature range 925℃-1075℃[J]. Materials at High Temperatures, 2018, 35 (1/3): 66- 77.
11
WENG W X , WANG Y M , LIAO Y M , et al. Comparison of microstructural evolution and oxidation behaviour of NiCoCrAlY and CoNiCrAlY as bond coats used for thermal barrier coatings[J]. Surface & Coatings Technology, 2018, 352, 285- 294.
12
FEIZABADI A , DOOLABI M S , SADRNEZHAAD S K , et al. Cyclic oxidation characteristics of HVOF thermal-sprayed NiCoCrAlY and CoNiCrAlY coatings at 1000℃[J]. Journal of Alloys and Compounds, 2018, 746, 509- 519.
doi: 10.1016/j.jallcom.2018.02.282
13
JONCA J , MALARD B , SOULIE J , et al. Oxidation behaviour of a CoNiCrAlY/h-BN based abradable coating[J]. Corrosion Science, 2019, 153, 170- 177.
doi: 10.1016/j.corsci.2019.02.030
14
HUANG T , BERGHOLZ J , MAUER G , et al. Effect of test atmosphere composition on high-temperature oxidation behaviour of CoNiCrAlY coatings produced from conventional and ODS powders[J]. Materials at High Temperatures, 2018, 35 (1/3): 97- 107.
15
VORKTTER C , HAGEN S P , PINTSUK G , et al. Oxide dispersion strengthened bond coats with higher alumina content: oxidation resistance and influence on thermal barrier coating lifetime[J]. Oxidation of Metals, 2019, 92 (3/4): 167- 194.
doi: 10.1007/s11085-019-09931-z
16
BABABDANI S M , NOGORANI F S . Overaluminizing of a CoNiCrAlY coating by inward and outward diffusion treatments[J]. Metallurgical and Materials Transactions A, 2014, 45 (4): 2116- 2122.
doi: 10.1007/s11661-013-2138-4
WANG J Z. Preparation and properties of NiCrCoAlY-TiB2 nano-powders and its composite coating applied to HVOF[D]. Guangzhou: South China University of Technology, 2017.
OUYANG Z. Preparation and properties of MoSi2-CoNiCrAlY nano-composite coating on GH4169 alloy by plasma spraying[D]. Guangzhou: South China University of Technology, 2015.
19
HATAMI M , NAEIMI F , SHAMANIAN M , et al. High-temperature oxidation behavior of nano-structured CoNiCrAlY-YSZ coatings produced by HVOF thermal spray technique[J]. Oxidation of Metals, 2018, 90 (1/2): 153- 167.
20
CHEN H , RUSHWORTH A . Effects of oxide stringers on the β-phase depletion behaviour in thermally sprayed CoNiCrAlY coatings during isothermal oxidation[J]. Journal of Materials Science & Technology, 2020, 45, 108- 116.
21
KARAOGLANLI A C , OZGURLUK Y , DOLEKER K M . Comparison of microstructure and oxidation behavior of CoNiCrAlY coatings produced by APS, SSAPS, D-gun, HVOF and CGDS techniques[J]. Vacuum, 2020, 180, 109609.
doi: 10.1016/j.vacuum.2020.109609
22
CHEN H , BARMAN T . Thermo-Calc and DICTRA modelling of the β-phase depletion behaviour in CoNiCrAlY coating alloys at different Al contents[J]. Computational Materials Science, 2018, 147, 103- 114.
doi: 10.1016/j.commatsci.2018.02.013
23
UNOCIC K A , BERGHOLZ J , HUANG T , et al. High-temperature behavior of oxide dispersion strengthening CoNiCrAlY[J]. Materials at High Temperatures, 2018, 35 (1/3): 108- 119.
DUAN J L. Static oxidation behavior of superalloy GH99 and MCrAlY(Ta) (M=Ni, Co) coatings at high temperatures[D]. Harbin: Harbin Institute of Technology, 2011.
