连续等通道转角挤压对Al-Ti-C合金组织与性能的影响

doi:10.11868/j.issn.1001-4381.2020.001073

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(12908 KB)

HTML ( 1 )
输出: BibTeX | EndNote (RIS)

摘要

采用连续等通道转角挤压工艺, 以连续的方式对Al-Ti-C合金进行多道次挤压, 通过观察微观组织演化, 探讨晶粒细化机理和力学性能变化。结果表明: 连续等通道转角挤压工艺可有效细化Al-Ti-C合金微观组织, 晶粒尺寸减小至1 μm左右, 形变诱导是变形过程中最主要的晶粒细化机制; 高密度位错堆积引起Al基体和TiAl₃界面的裂纹以及TiAl₃内部的空洞产生, 裂纹进一步扩展贯穿整个TiAl₃颗粒, 最终导致第二相TiAl₃组织的细化, 同时细小的第二相TiAl₃组织的钉扎机制和剪切机制促进了Al基体细化; 连续等通道转角挤压1道次后, 合金硬度提升最明显, 与原始态相比提高59.2%;之后随挤压道次的增加, 硬度提升的趋势变缓, 合金塑性下降, 韧性提高。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	邵琦
	吴晓玉
	张玲
	皮宗力
	李英龙

关键词 ：连续等通道转角挤压, Al-5Ti-0.2C合金, 细化机理, TiAl₃

Abstract：

The Al-Ti-C alloy was extruded in multiple passes in a continuous manner by continuous equal channel angular pressing process. Through observation of the microstructure evolution, the mechanism of grain refinement and changes in mechanical properties were discussed.The results show that continuous equal channel angular pressing process can effectively refine the microstructure of Al-Ti-C alloy, and the grain size is reduced to about 1 μm.The deformation induction is the most important grain refinement mechanism in the deformation process.The accumulation of high density dislocations causes cracks at the interface between the Al matrix and TiAl₃ and voids inside the TiAl₃. The cracks further propagate through the entire TiAl₃ particles, ultimately leading to the refinement of the second phase TiAl₃ structure.At the same time, the pinning mechanism and shearing mechanism of the fine second phase TiAl₃ structure promote the refinement of the Al matrix.After one pass of continuous equal channel angular pressing, the hardness of the alloy increases most obviously, which is 59.2% higher than that of the original state.With the increase of the number of extrusion passes, the increasing trend of hardness slows down, the plasticity of the alloy decreases, and toughness increases.

Key words： continuous equal channel angular pressing Al-5Ti-0.2C alloy refinement mechanism TiAl₃

收稿日期: 2020-11-19 出版日期: 2022-03-19

中图分类号:

TG379

基金资助:国家自然科学基金项目(U1760105)

通讯作者: 李英龙 E-mail: liyl@smm.neu.edu.cn

作者简介: 李英龙(1961—)，男，教授，博士生导师，研究方向为轻合金组织细化与凝固成形一体化技术、超声场耦合下材料制备新技术与界面结构调控，联系地址：辽宁省沈阳市和平区东北大学材料科学与工程学院(110819)，E-mail: liyl@smm.neu.edu.cn

引用本文:

邵琦, 吴晓玉, 张玲, 皮宗力, 李英龙. 连续等通道转角挤压对Al-Ti-C合金组织与性能的影响[J]. 材料工程, 2022, 50(3): 115-121.
Qi SHAO, Xiaoyu WU, Ling ZHANG, Zongli PI, Yinglong LI. Effect of continuous equal channel angular pressing on microstructure and properties of Al-Ti-C alloy. Journal of Materials Engineering, 2022, 50(3): 115-121.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.001073 或 http://jme.biam.ac.cn/CN/Y2022/V50/I3/115

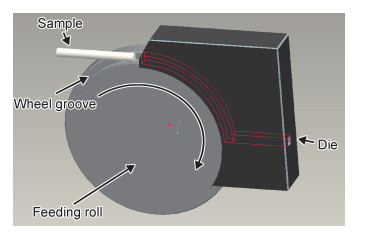

Fig.1 连续等通道转角挤压示意图

Fig.2 不同挤压道次下Al-5Ti-0.2C合金的TEM微观组织
(a)1道次；(b)2道次

Fig.3 挤压4道次下Al-5Ti-0.2C合金的TEM微观组织
(a)亚晶；(b)孪晶

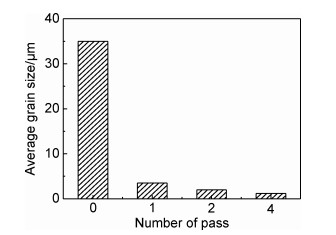

Fig.4 不同挤压道次下Al-5Ti-0.2C合金中α-Al的平均晶粒尺寸变化

Fig.5 Al-5Ti-0.2C合金原始铸态SEM微观组织

Fig.6 不同挤压道次下Al-5Ti-0.2C合金SEM微观组织
(a)1道次；(b)2道次；(c)4道次；(d)5道次

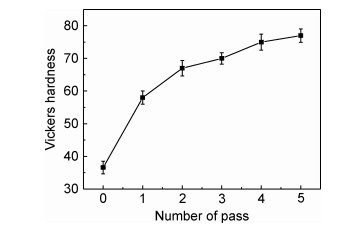

Fig.7 X面的硬度值随挤压道次的变化

Fig.8 不同挤压道次下Al-5Ti-0.2C合金的拉伸断口形貌
(a)原始铸态；(b)1道次；(c)2道次；(d)4道次

1	高鹏, 陈楠楠, 李细锋, 等. 超细晶轻合金的制备及超塑性研究进展[J]. 模具技术, 2018, (4): 57- 63. doi: 10.3969/j.issn.1001-4934.2018.04.013
1	GAO P , CHEN N N , LI X F , et al. Research progress on preparation and superplasticity of ultrafine-grained light alloys[J]. Die and Mould Technology, 2018, (4): 57- 63. doi: 10.3969/j.issn.1001-4934.2018.04.013
2	BRYŁA K , EDALATI K . Historical studies by polish scientist on ultrafine-grained materials by severe plastic deformation[J]. Materials Transactions, 2019, 60 (8): 1553- 1560. doi: 10.2320/matertrans.MF201921
3	ABIOYE O P , ATANDA P O , OSINKOLU G A , et al. Influence of equal channel angular extrusion on the tensile behavior of aluminum 6063 alloy[J]. Procedia Manufacturing, 2019, 35, 1337- 1343. doi: 10.1016/j.promfg.2019.05.020
4	MURALIDHARAN S , KUMAR S A , IQBAL U M . A study on the combined effect of aging and severe plastic deformation on the mechanical properties of AA6061 alloy[J]. IOP Conference Series: Materials Science and Engineering, 2020, 912 (3): 032017. doi: 10.1088/1757-899X/912/3/032017
5	梁博, 王庆娟, 周晓, 等. 大塑性变形制备超细晶金属材料的研究现状[J]. 特种铸造及有色合金, 2017, 37 (8): 840- 844.
5	LIANG B , WANG Q J , ZHOU X , et al. Research status of ultra-fine grained metallic materials processed by severe plastic defor-mation[J]. Special Casting & Nonferrous Alloys, 2017, 37 (8): 840- 844.
6	张苏鹏, 王军丽, 章震威, 等. 等通道转角挤压制备超细晶材料的最新研究进展[J]. 材料热处理学报, 2020, 41 (3): 1- 14.
6	ZHANG S P , WANG J L , ZHANG Z W , et al. Latest research progress in the preparation of ultra-fine grain materials by equal channel angular pressing[J]. Transactions of Materials and Heat Treatment, 2020, 41 (3): 1- 14.
7	ROMINIYI A L , OLUWASEGUN K M , OLAWALE J O , et al. Effect of post-ECAP aging on the microstructure, hardness and impact behaviour of 6061 Al alloy[J]. Materials Today: Procee-dings, 2020, 38 (2): 1031- 1034.
8	ROMERO-RESÉNDIZ L , FLORES-RIVERA A , FIGUEROA I A , et al. Effect of the initial ECAP passes on crystal texture and residual stresses of 5083 aluminum alloy[J]. International Journal of Minerals Metallurgy and Materials, 2020, 27 (10): 801- 808.
9	何涛, 杜忠泽, 王庆娟, 等. 连续等通道转角挤压工艺的发展[J]. 矿冶, 2007, (2): 38- 42. doi: 10.3969/j.issn.1005-7854.2007.02.010
9	HE T , DU Z Z , WANG Q J , et al. Development of the technics for continue equal-channel angular pressing[J]. Mining and Metallurgy, 2007, (2): 38- 42. doi: 10.3969/j.issn.1005-7854.2007.02.010
10	PALÁN J , PROCHÁZKA R , ZEMKO M . The microstructure and mechanical properties evaluation of UFG titanium grade 4 in relation to the technological aspects of the CONFORM SPD process[J]. Procedia Engineering, 2017, 207, 1439- 1444. doi: 10.1016/j.proeng.2017.10.910
11	POLYAKOV A V , SEMENOVA I P , VALIEV R Z , et al. Influence of annealing on ductility of ultrafine-grained titanium processed by equal-channel angular pressing-Conform and drawing[J]. MRS Communications, 2013, 3 (4): 249- 253. doi: 10.1557/mrc.2013.40
12	陈彦博, 赵晶磊, 李英龙, 等. 连续ECAP技术制备超细晶铝[J]. 中国有色金属学报, 2006, 16 (12): 2054- 2059. doi: 10.3321/j.issn:1004-0609.2006.12.011
12	CHEN Y B , ZHAO J L , LI Y L , et al. Preparation of ultrafine grained aluminium by continuous equal channel angular pressing[J]. The Chinese Journal of Nonferrous Metals, 2006, 16 (12): 2054- 2059. doi: 10.3321/j.issn:1004-0609.2006.12.011
13	李洪达, 胡治流, 刘玉伟, 等. 等径角挤压Al-Ti-B合金显微组织及细化机理的研究[J]. 中国铸造装备与技术, 2006, (5): 16- 19. doi: 10.3969/j.issn.1006-9658.2006.05.005
13	LI H D , HU Z L , LIU Y W , et al. Microstructure and refinement mechanism of ultrafine-grained Al-Ti-B alloy pressed by equal-channel angular pressing[J]. China Foundry Machinery & Technology, 2006, (5): 16- 19. doi: 10.3969/j.issn.1006-9658.2006.05.005
14	YANG W S , XIU Z Y , WANG X , et al. Microstructure evolution and oxidation behaviour of Ti_f/TiAl₃ composites[J]. Materials & Design, 2011, 32 (1): 207- 216.
15	VOLONAKIS G , TSETSERIS L , LOGOTHETIDIS S . Electronic and structural properties of TiB₂: bulk, surface, and nanoscale effects[J]. Materials Science & Engineering: B, 2010, 176 (6): 484- 489.
16	胡治流, 陈海红, 李洪达, 等. 铝-钛-硼中间合金在等径角挤压过程中的变形行为[J]. 机械工程材料, 2009, 33 (1): 26- 29.
16	HU Z L , CHEN H H , LI H D , et al. Deformation behavior of Al-Ti-B alloy during ECAP press[J]. Materials for Mechanical Engineering, 2009, 33 (1): 26- 29.
17	田佳, 李建平, 白亚平, 等. 等通道挤压对7075铝合金组织与力学性能的影响[J]. 材料热处理学报, 2016, 37 (7): 61- 68.
17	TIAN J , LI J P , BAI Y P , et al. Effect of equal channel angular pressing on microstructure and mechanical properties of 7075 aluminum alloy[J]. Transactions of Materials and Heat Treatment, 2016, 37 (7): 61- 68.
18	KO Y G , SHIN D H , PARK K T , et al. An analysis of the strain hardening behavior of ultra-fine grain pure titanium[J]. Scripta Materialia, 2006, 54 (10): 1785- 1789. doi: 10.1016/j.scriptamat.2006.01.034
19	刘刚, 张国君, 丁向东, 等. 含有不同尺度量级第二相的高强铝合金断裂韧性模型[J]. 中国有色金属学报, 2002, 12 (4): 706- 713. doi: 10.3321/j.issn:1004-0609.2002.04.017
19	LIU G , ZHANG G J , DING X D , et al. A model for fracture toughness of high strength aluminum alloys containing second particles of various sized scales[J]. The Chinese Journal of Nonferrous Metals, 2002, 12 (4): 706- 713. doi: 10.3321/j.issn:1004-0609.2002.04.017

[1]	丁万武, 夏天东, 赵文军. TiAl₃对TiC粒子在铝熔体中沉淀特性的影响机理[J]. 材料工程, 2013, 0(3): 10-15.
