硅烷偶联剂及氧化石墨烯二次改性对芳纶纤维界面性能的影响

doi:10.11868/j.issn.1001-4381.2020.001116

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(12078 KB)

HTML ( 0 )
输出: BibTeX | EndNote (RIS)

摘要

为改善芳纶纤维(PPTA)与丁腈橡胶(NBR)复合材料之间的界面强度, 采用硅烷偶联剂A172和氧化石墨烯(GO)对芳纶纤维表面进行接枝改性处理, 并对处理前后的芳纶纤维进行化学结构、表面形貌及H抽出力分析。利用SEM对抽出纤维表面和橡胶基芳纶纤维复合材料截面进行微观结构分析。结果表明: 硅烷偶联剂和氧化石墨烯对芳纶纤维进行二次表面改性后, 纤维表面含氧基团增加, 化学活性提高, 处理后表面存在明显的表层附着物, 纤维结构未发生明显损伤且表面粗糙度得到明显改善。每个处理阶段后H抽出力均有提高, 且氧化石墨烯二次改性后的芳纶纤维H抽出力提高效果最佳, 从18.192 MPa提高到48.748 MPa, 芳纶纤维与丁腈橡胶的界面结合力得到了显著提升, 从而证实了硅烷偶联剂和氧化石墨烯二次改性芳纶纤维的有效性, 为橡胶基芳纶纤维复合材料性能的研究提供了参考。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	刘龙
	梁森
	王得盼
	周越松
	郑长升

关键词 ：芳纶纤维, 氧化石墨烯, 硅烷偶联剂, 表面改性, 界面强度

Abstract：

To improve the interface strength between aramid fiber (PPTA) and NBR composites, the silane coupling agent (A172) and graphene oxide (GO) were used to have the graft modification treatment to the aramid fiber surface and analyze the chemical construction, surface topography and H-pull test of aramid fiber before and after treatment. The microstructure of the pull out fiber surface and section of the rubber-based aramid fiber reinforced polymer(AFRP) was analyzed by SEM. The results show that the oxygen-containing groups on the fiber surface are increased and the chemical activity is improved after the secondary surface modification to the aramid fiber is conducted with the silane coupling agent and GO. The obvious attachments can be found on the surface after treatment. The fiber structure has no obvious damage and its surface roughness is improved substantially. The H-pull test after treatment increases with an optimal effect of aramid fiber H-pull test after the secondary modification with GO (improved to 48.748 MPa from 18.192 MPa). The interface bonding strength between the aramid fiber and NBR is improved dramatically, thus confirming the effectiveness of the silane coupling agent and GO in the secondary modification to the aramid fiber, which provides reference for the study of the performance of the rubber-based AFRP.

Key words： aramid fiber graphene oxide silane coupling agent surface modification interface strength

收稿日期: 2020-12-03 出版日期: 2022-01-19

中图分类号:

TB332

基金资助:国家自然科学基金项目(52075280);山东省自然科学基金项目(ZR2019ME088)

通讯作者: 梁森 E-mail: 183847094@qq.com

作者简介: 梁森(1962—)，男，教授，博士，从事结构与功能复合材料研究，联系地址：山东省青岛市黄岛区青岛理工大学机械与汽车工程学院(266520)，E-mail: 183847094@qq.com

引用本文:

刘龙, 梁森, 王得盼, 周越松, 郑长升. 硅烷偶联剂及氧化石墨烯二次改性对芳纶纤维界面性能的影响[J]. 材料工程, 2022, 50(1): 145-153.
Long LIU, Sen LIANG, Depan WANG, Yuesong ZHOU, Changsheng ZHENG. Effect of secondary modification of silane coupling agent and graphene oxide on interfacial properties of aramid fiber. Journal of Materials Engineering, 2022, 50(1): 145-153.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.001116 或 http://jme.biam.ac.cn/CN/Y2022/V50/I1/145

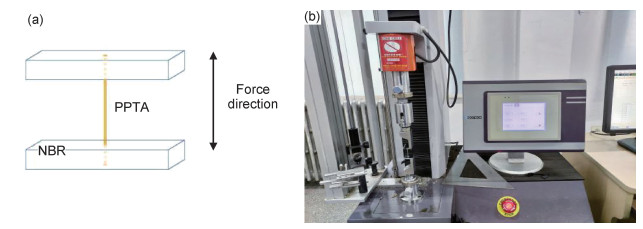

Fig.1 H抽出实验示意图(a)及实验装置(b)

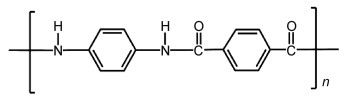

Fig.2 PPTA结构式

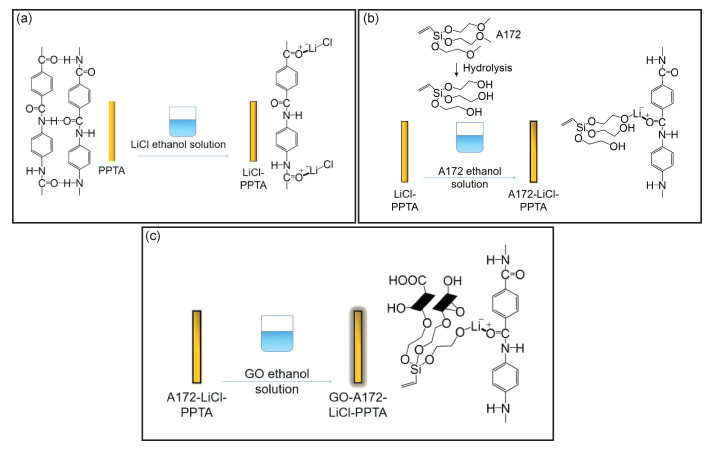

Fig.3 芳纶纤维改性步骤图解
(a)络合反应; (b)接枝反应; (c)表面功能化

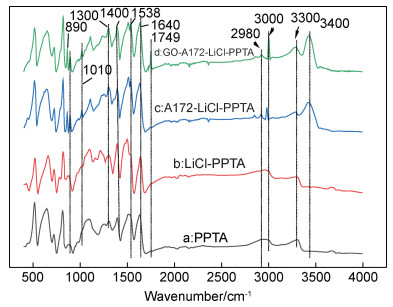

Fig.4 芳纶纤维各处理阶段FTIR谱图

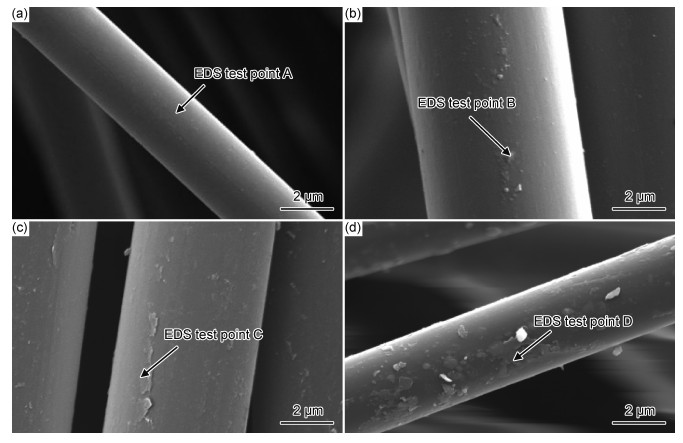

Fig.5 芳纶纤维表面形貌SEM照片
(a)PPTA; (b)LiCl-PPTA; (c)A172-LiCl-PPTA; (d)GO-A172-LiCl-PPTA

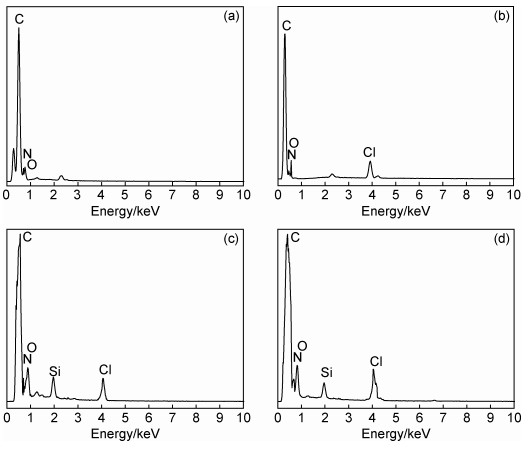

Fig.6 芳纶纤维的EDS能谱
(a)point A; (b)point B; (c)point C; (d)point D

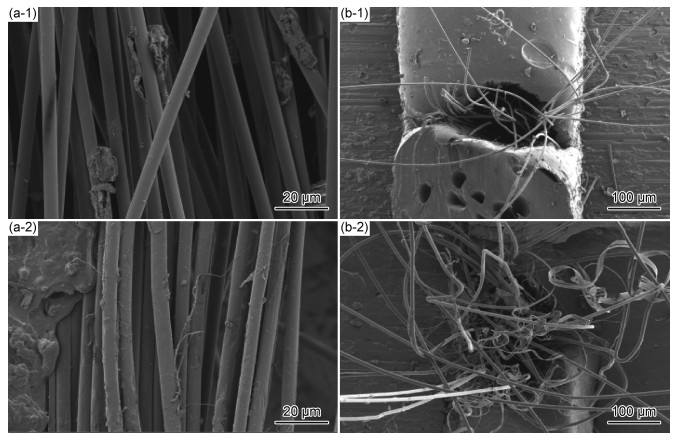

Fig.7 H抽出实验的SEM照片
(a)芳纶纤维抽出后; (b)芳纶纤维抽出后橡胶试件; (1)未处理; (2)GO改性处理

Table 1 不同试剂改性处理后芳纶纤维H抽出实验情况

Table 2 改性芳纶纤维的正交实验

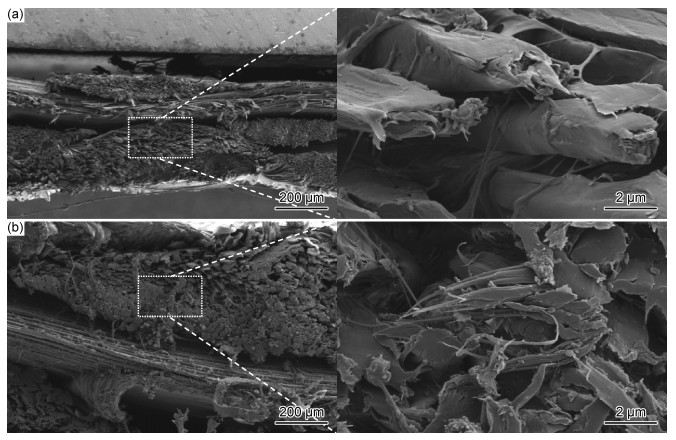

Fig.8 橡胶基复合材料横截面形貌SEM照片
(a)未处理; (b)改性后
