铝合金厚板静止轴肩搅拌摩擦焊接头组织及性能

doi:10.11868/j.issn.1001-4381.2020.001122

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(39685 KB)

HTML ( 1 )
输出: BibTeX | EndNote (RIS)

摘要

采用8.5 mm厚度2A14-T4铝合金和自主研制搅拌工具进行静止轴肩搅拌摩擦焊（stationary shoulder friction stir welding，SSFSW）实验，探讨焊接工艺参数对接头组织和力学性能的影响规律。结果表明：只有在低转速工艺参数范围内（转速ω=400~600 r/min与焊接速率v=60~120 mm/min）可获得焊缝表面光滑、无缺陷厚板铝合金SSFSW焊接接头。SSFSW焊缝区主要由焊核区（NZ）组成，周围热力影响区（TMAZ）及热影响区（HAZ）宽度明显减小，焊核区与搅拌针形状类似且由两种不同尺寸细小等轴晶构成，前进侧NZ晶粒比后退侧NZ更为细小。接头显微硬度呈"W"状分布，NZ硬度值可达到母材硬度80%~90%，TMAZ与HAZ交界处存在软化区，硬度最低为母材硬度72%左右。在给定ω=500 r/min，v=140 mm/min焊接参数下，SSFSW接头抗拉强度可达到母材的88%，断裂位置多位于后退侧TMAZ与HAZ交界处软化区，具有韧性断裂特征。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	杨新岐
	元惠新
	孙转平
	闫新中
	赵慧慧

关键词 ： 2A14-T4铝合金厚板, 静止轴肩搅拌摩擦焊, 组织特征, 力学性能

Abstract：

The stationary shoulder friction stir welding (SSFSW) processes for 2A14-T4 aluminum alloy with the thickness of 8.5 mm were performed by using the self-developed tools, and the influences of welding process parameters on the microstructure and mechanical properties of SSFSW welded joints were investigated. The results show that the SSFSW joints with smooth weld surface and defect-free for aluminum alloy thick-plate can only be obtained under the process parameter condition of lower rotational speed (rotational speed ω=400-600 r/min and welding speed v=60-120 mm/min).The weld zone of SSFSW joints mainly consists of nugget zone (NZ), and the widths of thermo-mechanically affected zone (TMAZ) and the heat affected zone (HAZ) around the NZ are obviously reduced; the NZ is similar with the shape of tool pin and it is composed of two kinds of fine equiaxed grains with different sizes, the grains on the advancing side are more finer than that of retreating side. The profiles of microhardness across the weld section present the "W" shape, the hardness values of NZ reach the 80%-90% of the base metal of hardness value, the softened region is produced between interfaces of TMAZ and HAZ, and its hardness is the lowest with the 72% of the base metal of hardness value. The tensile strengths of SSFSW joints reach the 88% of base metal under the welding parameters of ω=500 r/min, v=140 mm/min, and the fractured sites are always located at the softened zones between TMAZ and HAZ on the retreating side, exhibiting the toughness fracture features.

Key words： 2A14-T4 aluminum alloy thick-plate SSFSW microstructure characteristic mechanical property

收稿日期: 2020-12-08 出版日期: 2022-07-18

中图分类号:

TG453⁺.9

通讯作者: 杨新岐 E-mail: xqyang@tju.edu.cn

作者简介: 杨新岐(1962—), 男, 教授, 博士, 主要从事固相摩擦焊接技术及焊接结构完整性评定研究工作, 联系地址: 天津市天津大学材料科学与工程学院(300350), E-mail: xqyang@tju.edu.cn

引用本文:

杨新岐, 元惠新, 孙转平, 闫新中, 赵慧慧. 铝合金厚板静止轴肩搅拌摩擦焊接头组织及性能[J]. 材料工程, 2022, 50(7): 128-138.
Xinqi YANG, Huixin YUAN, Zhuanping SUN, Xinzhong YAN, Huihui ZHAO. Microstructure and properties of stationary shoulder friction stir welded joints for aluminum alloy thick-plate. Journal of Materials Engineering, 2022, 50(7): 128-138.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.001122 或 http://jme.biam.ac.cn/CN/Y2022/V50/I7/128

Table 1 2A14-T4铝合金的化学成分(质量分数/%)

Table 2 SSFSW焊接工艺参数

Fig.1 拉伸试样尺寸

Fig.2 SSFSW对接接头典型表面形貌

Fig.3 不同焊接参数下SSFSW焊缝截面宏观形貌
(a)v=60 mm/min; (b)v=80 mm/min; (c)v=100 mm/min; (d)v=120 mm/min; (1)ω=500 r/min; (2)ω=600 r/min

Fig.4 SSFSW焊缝截面宏观形貌
(ω=500 r/min, v=140 mm/min)

Fig.5 焊缝各区晶粒微观组织
(a)NZ；(b)前进侧TMAZ；(c)后退侧TMAZ-1；(d)后退侧TMAZ-2；(e)前进侧HAZ；(f)后退侧HAZ

Fig.6 NZ晶粒组织
(a)NZ; (b)B区域放大形貌; (c)C区域放大形貌; (d)D区域放大形貌

Fig.7 不同焊接参数下SSFSW焊缝截面微观形貌
(a)ω=500 r/min, v=60 mm/min; (b)ω=500 r/min, v=120 mm/min; (c)ω=600 r/min, v=60 mm/min; (d)ω=600 r/min, v=120 mm/min; (1)焊缝前进侧组织; (2)焊缝后退侧组织; (3)焊缝中心区域组织

Fig.8 SSFW焊缝各区第二相分布
(a)NZ; (b)TMAZ, HAZ; (c)母材

Fig.9 SSFSW接头硬度分布曲线

Fig.10 NZ第二相分布
(a)顶部; (b)中部; (c)底部

Fig.11 ω=500 r/min, v=60~140 mm/min 时焊缝硬度分布
(a)顶部；(b)中部；(c)底部

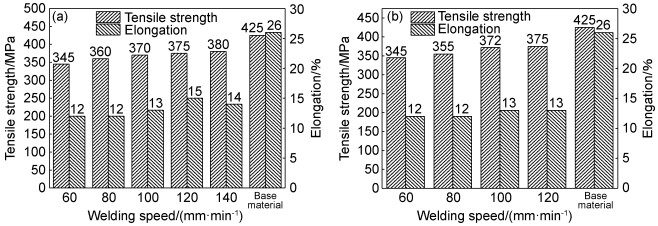

Fig.12 接头拉伸测试结果
