1 Hebei University of Environmental Engineering, Qinhuangdao 066102, Hebei, China 2 College of Agricultural Science and Engineering, Hohai University, Nanjing 210098, China 3 Shanxi Institute of Biology Co., Ltd., Taiyuan 030006, China

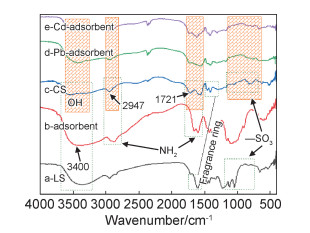

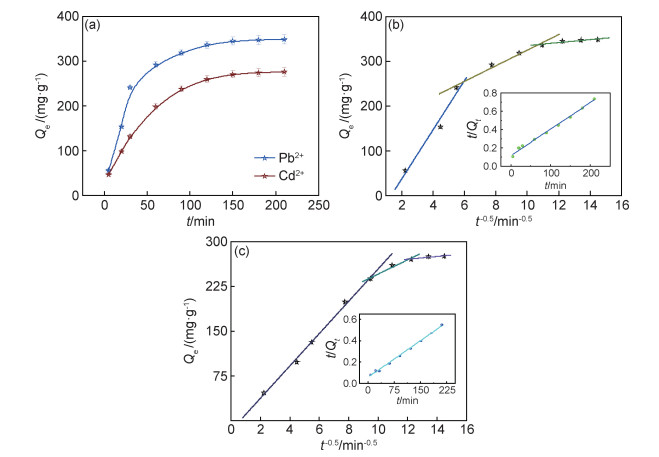

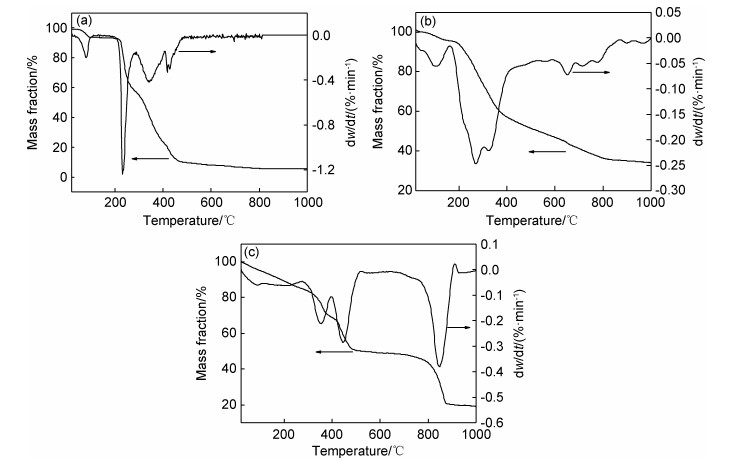

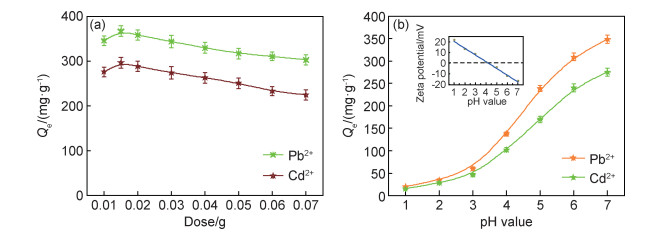

Industrial wastewater has brought huge disasters to water bodies and soil, and seriously affected the growth of crops. In order to obtain clean water, a stable, effective and sustainable treatment agent must be prepared to control water pollution. The lignin-based hydrogel adsorbent was prepared on polyacrylic acid by free radical polymerization of sodium lignosulfonate and chitosan, which was applied to remove Pd2+ and Cd2+. The orthogonal method was used to optimize the content of sodium lignosulfonate, chitosan, cross-linking agent and initiator. Fourier infrared spectrometer, scanning electron micrograph, thermal analyzer and Zeta potentiometer were used to characterize the adsorbent. The effects of different conditions on the adsorption of Pb2+ and Cd2+ by lignin-based hydrogels were discussed, and the kinetics and isotherm models on the basis were established. The results show that when the adsorbent is 0.015 g, the concentration of heavy metal ions is 100 mg·L-1, and the pH value is 7, the adsorption capacity for Pd2+ is 367 mg·g-1 and the adsorption capacity for Cd2+ is 296 mg·g-1. Simultaneously, it is revealed that the adsorption process of lignin-based hydrogels is an adsorption mode in which electrostatic adsorption is supplemented by chemical adsorption.
CHEN J , ZHU J , WANG N , et al. Hydrophilic polythiophene/SiO2 composite for adsorption engineering: green synthesis in aqueous medium and its synergistic and specific adsorption for heavy metals from wastewater[J]. Chemical Engineering Journal, 2019, 360, 1486- 1497.
doi: 10.1016/j.cej.2018.10.228
2
CHEN Q , ZHENG J , WEN L , et al. A multi-functional-group modified cellulose for enhanced heavy metal cadmium adsorption: performance and quantum chemical mechanism[J]. Chemosphere, 2019, 224, 509- 518.
doi: 10.1016/j.chemosphere.2019.02.138
SI Z Y , XIE S B , ZHU A Q , et al. Action mechanism of montmorillonite/Fe3O4/humic acid composite on U(Ⅵ)[J]. Journal of Materials Engineering, 2021, 49 (3): 158- 166.
4
WU D Q , ZHU J , HAN H , et al. Synthesis and characterization of arginine-NIPAAm hybrid hydrogel as wound dressing: in vitro and in vivo study[J]. Acta Biomaterialia, 2018, 65, 305- 316.
doi: 10.1016/j.actbio.2017.08.048
5
GODIYA C B , LIANG M , SAYED S M , et al. Novel alginate/polyethyleneimine hydrogel adsorbent for cascaded removal and utilization of Cu2+ and Pb2+ ions[J]. Journal of Environmental Management, 2019, 232 (15): 829- 841.
6
MA J , LUO J , LIU Y , et al. Pb(Ⅱ), Cu(Ⅱ) and Cd(Ⅱ) removal using a humic substance-based double network hydrogel in individual and multicomponent systems[J]. Journal of Materials Chemistry A, 2018, 6 (41): 20110- 20120.
doi: 10.1039/C8TA07250G
7
GUO H , JIANG C , XU Z , et al. Synthesis of bitter gourd-shaped nanoscaled hydroxyapatite and its adsorption property for heavy metal ions[J]. Materials Letters, 2019, 241 (15): 176- 179.
8
SHARMA M , SINGH J , HAZRA S , et al. Adsorption of heavy metal ions by mesoporous ZnO and TiO2@ZnO monoliths: adsorption and kinetic studies[J]. Microchemical Journal, 2019, 145, 105- 112.
doi: 10.1016/j.microc.2018.10.026
9
FU F , LIU X , CHEN G . Adsorption of heavy metal sewage on nano-materials such as titanate/TiO2 added lignin[J]. Results in Physics, 2019, 12, 405- 411.
doi: 10.1016/j.rinp.2018.11.084
10
YUE X , ZHANG T , YANG D , et al. The synthesis of hierarchical porous Al2O3/acrylic resin composites as durable, efficient and recyclable absorbents for oil/water separation[J]. Chemical Engineering Journal, 2017, 309, 522- 531.
doi: 10.1016/j.cej.2016.10.049
11
ABDELSALAM H , TELEB N H , YAHIA I S , et al. First principles study of the adsorption of hydrated heavy metals on graphene quantum dots[J]. Journal of Physics and Chemistry of Solids, 2019, 130, 32- 40.
doi: 10.1016/j.jpcs.2019.02.014
12
LIU S , PAN J , CAO J , et al. Simultaneous removal of Pb(Ⅱ) and 2, 4, 6-trichlorophenol by a hierarchical porous PU@PDA@MSNs sponge with reversible "shape memory" effect[J]. Chemical Engineering Journal, 2016, 284, 10- 20.
doi: 10.1016/j.cej.2015.08.133
13
WU Y , QIU X , CAO S , et al. Adsorption of natural composite sandwich-like nanofibrous mats for heavy metals in aquatic environment[J]. Journal of Colloid and Interface Science, 2019, 539, 533- 544.
doi: 10.1016/j.jcis.2018.12.099
14
VESELSKÁ V , ŠILLEROVÁ H , GÖTTLICHER J , et al. The role of soil components in synthetic mixtures during the adsorption and speciation changes of Cr(Ⅵ): conjunction of the modeling approach with spectroscopic and isotopic investigations[J]. Environment International, 2019, 127, 848- 857.
doi: 10.1016/j.envint.2019.03.066
15
SUN J , LI M , ZHANG Z , et al. Unravelling the adsorption disparity mechanism of heavy-metal ions on the biomass-derived hierarchically porous carbon[J]. Applied Surface Science, 2019, 471, 615- 620.
doi: 10.1016/j.apsusc.2018.12.050
16
WANG J , ZHANG W , WEI J . Fabrication of poly(β-cyclodextrin)-conjugated magnetic graphene oxide by surface-initiated RAFT polymerization for synergetic adsorption of heavy metal ions and organic pollutants[J]. Journal of Materials Chemistry A, 2019, 7 (5): 2055- 2065.
doi: 10.1039/C8TA09250H
17
XIE A , DAI J , CHEN X , et al. Ultrahigh adsorption of typical antibiotics onto novel hierarchical porous carbons derived from renewable lignin via halloysite nanotubes-template and in-situ activation[J]. Chemical Engineering Journal, 2016, 304, 609- 620.
doi: 10.1016/j.cej.2016.06.138
18
SIYAL A A , SHAMSUDDIN M R , KHAN M I , et al. A review on geopolymers as emerging materials for the adsorption of heavy metals and dyes[J]. Journal of Environmental Management, 2018, 224, 327- 339.
19
ZHANG D , WANG C , BAO Q , et al. The physicochemical cha-racterization, equilibrium, and kinetics of heavy metal ions adsorption from aqueous solution by arrowhead plant (Sagitta-ria trifolia L.) stalk[J]. Journal of Food Biochemistry, 2018, 42 (1): 12448.
doi: 10.1111/jfbc.12448
LI S Y , SHI D F , TANG Z P , et al. Adsorption characteristics and mechanism of chitosan/graphene oxide composites for U(Ⅵ)[J]. Acta Scientiae Circumstantiae, 2017, 37 (4): 1388- 1395.
LI K Q , WANG Y J , YANG M R , et al. Adsorption kinetics and mechanism of Pb(Ⅱ) on polyamine functionalized mesoporous carbon[J]. Environmental Science, 2014, 35 (8): 3198- 3205.
23
JIANG C , WANG X , WANG G , et al. Adsorption performance of a polysaccharide composite hydrogel based on crosslinked glucanitosan for heavy metal ions[J]. Composite Part B: Engineering, 2019, 169, 45- 54.
doi: 10.1016/j.compositesb.2019.03.082
