激光选区熔化成形含锆7××× 系铝合金的显微组织与力学性能
詹强坤, 刘允中(), 刘小辉, 周志光
华南理工大学 国家金属材料近净成形工程技术研究中心, 广州 510641
Microstructures and mechanical properties of zirconium-containing 7××× aluminum alloy prepared by selective laser melting
Qiang-kun ZHAN, Yun-zhong LIU(), Xiao-hui LIU, Zhi-guang ZHOU
National Engineering Research Center of Near-Net-Shape Forming for Metallic Materials, South China University of Technology, Guangzhou 510641, China
全文: PDF(26153 KB)   HTML ( 0 )
输出: BibTeX | EndNote (RIS)
摘要

热裂问题是激光选区熔化成形(SLM)7××× 系铝合金面临的主要障碍之一。通过低能球磨工艺制备ZrH2/7075复合粉末,采用激光选区熔化技术制备含锆7××× 系铝合金材料,分析了不同ZrH2添加量(0.5%,1.0%,1.5%,质量分数,下同)对试样显微组织和力学性能的影响规律。结果表明:随着ZrH2含量的增加,SLM试样的柱状晶组织逐渐消失,热裂纹逐渐减少,当ZrH2含量为1.5%时,试样显微组织完全转变为细小等轴晶(平均晶粒尺寸为1.6 μm),热裂纹完全消除。ZrH2在SLM成形过程中与铝熔体原位反应形成L12型Al3Zr相,L12型Al3Zr相的异质形核作用促进了柱状晶到等轴晶的转变,抑制了热裂纹的产生。经T6热处理后,试样抗拉强度为(550±10)MPa,屈服强度为(490±5)MPa,伸长率为(12±1)%,断口处存在大量韧窝,表现为韧性断裂。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
詹强坤
刘允中
刘小辉
周志光
关键词 7×××系铝合金ZrH2激光选区熔化热裂纹力学性能
Abstract

The preparation of 7××× series aluminum alloy by selective laser melting technology (SLM) is hindered by hot tearing. Novel ZrH2 modified 7075 composite powders were prepared by the low-energy ball milling technology. Zirconium-containing 7××× series aluminum alloy was then prepared by the SLM process. The microstructure and mechanical properties of the samples with different ZrH2contents (0.5%, 1.0%, 1.5%, mass fraction, the same below) were systematically investigated. The results show that the addition of ZrH2 can significantly reduce hot tearing and change the microstructure. When 1.5% ZrH2 is added, the hot tearing is completely eliminated and the grain microstructure is entirely composed of fine equiaxed grains. The transition of columnar grains to equiaxed grains is attributed to the in-situ formation of L12-Al3Zr which provides numerous nucleation positions for solidification. After T6 heat treatment, the tensile strength, yield strength and elongation of SLMed sample are (550±10), (490±5) MPa and (12±1)%, respectively. Fractography analysis shows a large number of dimples on the fracture surface after tensile testing, indicating ductile fracture mode.

Key words7××× aluminum alloy    ZrH2    selective laser melting    hot tearing    mechanical property
收稿日期: 2020-12-18      出版日期: 2021-06-22
中图分类号:  TG146.2+1
基金资助:广东省重点领域研发计划项目(2019B090907001);广东省科技计划项目(2014B010129002)
通讯作者: 刘允中     E-mail: yzhliu@scut.edu.cn
作者简介: 刘允中(1969-), 男, 教授, 博士, 研究方向为3D打印金属新材料及金属雾化制粉与喷射成形, 联系地址:广东省广州市天河区华南理工大学38号楼(510641), E-mail:yzhliu@scut.edu.cn
引用本文:
詹强坤, 刘允中, 刘小辉, 周志光. 激光选区熔化成形含锆7××× 系铝合金的显微组织与力学性能[J]. 材料工程, 2021, 49(6): 85-93.
Qiang-kun ZHAN, Yun-zhong LIU, Xiao-hui LIU, Zhi-guang ZHOU. Microstructures and mechanical properties of zirconium-containing 7××× aluminum alloy prepared by selective laser melting. Journal of Materials Engineering, 2021, 49(6): 85-93.
链接本文:
http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.001165      或      http://jme.biam.ac.cn/CN/Y2021/V49/I6/85

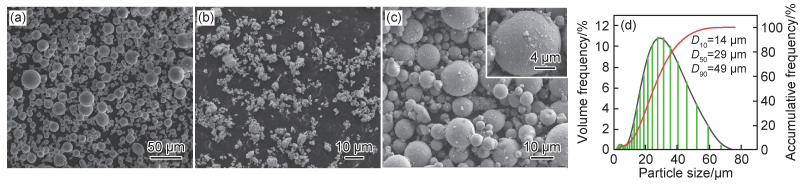

Fig.1  7075铝合金粉末(a),ZrH2粉末(b)和ZrH2/7075复合粉末(c)SEM图及7075铝合金粉末粒径分布(d)
Zn Mg Cu Cr Fe Mn Ti Al
5.76 2.79 1.53 0.20 < 0.10 < 0.10 < 0.05 Bal
Table 1  7075铝合金粉末的化学成分(质量分数/%)
Fig.2  SLM试样光学显微图
(a)7075铝合金;(b)7075铝合金+0.5% ZrH2;(c)7075铝合金+1.0% ZrH2;(d)7075铝合金+1.5% ZrH2
Fig.3  SLM试样的EBSD图(1)和尺寸分布图(2)
(a)7075铝合金;(b)7075铝合金+0.5% ZrH2;(c)7075铝合金+1.0% ZrH2;(d)7075铝合金+1.5% ZrH2
Fig.4  激光功率对试样致密度的影响(a)和典型试样光学显微图(b)~(d)
Fig.5  SLM试样低倍(1)和高倍(2)显微组织图(a)XOY面;(b)XOZ
Fig.6  SLM试样的SEM图(XOZ面)(a)低倍;(b)高倍
Fig.7  SLM试样 (a)TEM图;(b),(c)EDS面扫描图;(d),(e)衍射斑点图;(f)高分辨图
Fig.8  T6热处理态SLM试样的SEM图(a)低倍;(b),(c)高倍
Fig.9  T6热处理态SLM试样 (a),(b)TEM图;(c),(d)衍射斑点图
Fig.10  T6热处理态SLM试样的拉伸应力-应变曲线
Fig.11  激光功率为200 W时T6热处理态SLM试样的断口形貌 (a)低倍;(b)高倍
