高韧性三元层状陶瓷: 从MAX相到MAB相

doi:10.11868/j.issn.1001-4381.2020.001171

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(33188 KB)

HTML ( 4 )
输出: BibTeX | EndNote (RIS)

摘要

三元层状化合物MAX相和新近引起人们注意的MAB相以其兼具陶瓷和金属的共同特性成为结构陶瓷领域20余年的研究热点，而高损伤容限和高断裂韧度是其区别于传统陶瓷的本质特征。本文简要回顾了MAX相的整体发展脉络和MAB相的最新研究进展，重点分析了纳米层状结构对宏观力学行为的影响及其内在机制。基于第一性原理计算结果建立的键刚度模型在实现对化学键强度的定量表征基础上，更重要的是阐明了"足够"弱的层间结合是三元层状陶瓷表现出非凡力学性能的根本原因。而Fe₂AlB₂在室温附近所出现的磁热效应（MCE）则显示了MAB相化合物在功能领域的良好应用前景。经过20余年的持续研究，MAX相化合物的结构和性能逐渐变得清晰，目前针对具体场景的应用研究在世界各地蓬勃开展起来。然而，目前对MAB相化合物的认识还很有限。因此，合成和表征现有已知MAB相化合物的结构、力学性能、物理性能以及基于应用背景的使役行为是现阶段的重要任务。其中，基于密度泛函理论（DFT）的第一性原理数值模拟可扮演重要角色，正如其在理解MAX相化合物的非凡性能和发现新型化合物时所起的重要作用一样。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	柏跃磊
	尹航
	宋广平
	赫晓东
	齐欣欣
	高进
	郝兵兵
	张金泽

关键词 ： MAX相, MAB相, 层状结构, 损伤容限, 键刚度模型, 磁制冷, Fe₂AlB₂

Abstract：

The MAX phase of the ternary layered compound and the recently attracted attention of the MAB phase have become the research hotspots in the field of structural ceramics for more than 20 years because of their common characteristics of ceramics and metals. The high damage tolerance and high fracture toughness are different from the essential characteristics of traditional ceramics. The overall development of MAX phase and the latest research progress of MAB phase were briefly reviewed in this article, focusing on the analysis of the effect of multi-scale layered structure on macro-mechanical behavior and its internal mechanism. Based on the results of first-principles calculations, the bond stiffness model was established and the quantitative characterization of chemical bond strength was realized, and more importantly, it was clarified that "sufficiently" weak interlayer bonding is the root cause for the extraordinary mechanical properties of ternary layered ceramics. The magnetocaloric effect (MCE) of Fe₂AlB₂ near room temperature shows the good application prospects of MAB phase compounds in the functional field. After more than 20 years of continuous research, the structure and performance of MAX-phase compounds have gradually become clear. At present, application research for specific scenarios is vigorously carried out all over the world. However, the current knowledge of MAB phase compounds is still very limited. Therefore, synthesizing and characterizing the structure, mechanical properties, physical properties, and service behaviour of existing MAB phase compounds are the important tasks at this stage. First-principles numerical simulation based on density functional theory (DFT) can play an important role, just as in understanding the extraordinary properties of MAX phase compounds and discovering new compounds.

Key words： MAX phase MAB phase layered structure damage tolerance model of bond stiffness magnetic refrigeration Fe₂AlB₂

收稿日期: 2020-12-19 出版日期: 2021-05-21

中图分类号:

TB321

基金资助:国家自然科学基金面上项目(51972080);深圳市科技计划资助项目(KQTD2016112814303055)

通讯作者: 柏跃磊 E-mail: baiyl@hit.edu.cn

作者简介: 柏跃磊(1983-), 男, 教授, 博士生导师, 研究方向: 三元层状陶瓷、计算材料科学/多尺度物理力学、热防护材料与系统, 联系地址: 黑龙江省哈尔滨市南岗区一匡街2号哈工大科学园B1栋411室(150080), baiyl@hit.edu.cn

引用本文:

柏跃磊, 尹航, 宋广平, 赫晓东, 齐欣欣, 高进, 郝兵兵, 张金泽. 高韧性三元层状陶瓷: 从MAX相到MAB相[J]. 材料工程, 2021, 49(5): 1-23.
Yue-lei BAI, Hang YIN, Guang-ping SONG, Xiao-dong HE, Xin-xin QI, Jin GAO, Bing-bing HAO, Jin-ze ZHANG. High-fracture-toughness ternary layered ceramics: from the MAX to MAB phases. Journal of Materials Engineering, 2021, 49(5): 1-23.

链接本文:

http://jme.biam.ac.cn/CN/10.11868/j.issn.1001-4381.2020.001171 或 http://jme.biam.ac.cn/CN/Y2021/V49/I5/1

Fig.1 MAX相的晶体结构图^[20] (a)211；(b)312;(c)413

Table 1 MAX相的原子位置和内坐标

Fig.2 Ti₄GaC₃多形体之间的相变能垒^[72](TS_a-b，TS_a-c和TS_b-c分别对应α-β，α-γ和β-γ相变的过渡态)

Fig.3 Ti₂AlC的断口形貌^[81] (a)断口全貌；(b)晶粒弯曲和扭折；(c)层间分层；(d)图(c)的放大图

Fig.4 粗晶和细晶Ti₃SiC₂的裂纹扩展阻力随裂纹生长的演化曲线(a)^[87]和晶粒尺寸对断裂韧度的影响(b)^[83]

Fig.5 MAX相的损伤容限 (a)Ti₃SiC₂，Ti₃GeC₂和Ti₃Si_0.5Ge_0.5C₂经维氏压痕测试后的四点弯曲强度^[88]；(b)46 μm Ti₃GeC₂试样的组织结构；(c)7 μm Ti₃Si_0.5Ge_0.5C₂试样的组织结构；(d)块体Ti₂AlC经铁锤反复敲打后的表面形貌^[83]

Fig.6 M₂AlC(a)，M₃AlC₂(b)和M₄AlC₃(c)在0 GPa时的化学键刚度^[20]

Fig.7 M₂AlC(a)，M₃AlC₂(b)和M₄AlC₃(c)的体积模量和总化学键刚度的关系^[20]

Compound	The weakest bond (stiffness/GPa)	The strongest bond (stiffness/GPa)	k_min/k_max	Fracture toughness/ (MPa·m^1/2)	Indentation cracks
Ti₂AlC	Ti—Al(375)^[20]	Ti—C(741)^[20]	0.505	6.5^[89]	No^[89]
Zr₂AlC	Zr—Al(342)^[20]	Zr—C(704)^[20]	0.488	-	No^[90]
Hf₂AlC	Hf—Al(372)^[20]	Hf—C(806)^[20]	0.465	-	-
V₂AlC	V—Al(472)^[20]	V—C(901)^[20]	0.528	5.7±0.2^[91]	No^[91]
Nb₂AlC	Nb—Al(461)^[20]	Nb—C(917)^[20]	0.505	5.9±0.3^[92]	No^[92]
Ta₂AlC	Ta—Al(518)^[20]	Ta—C(1139)^[20]	0.456	7.7±0.2^[93]	No^[93]
Cr₂AlC	Cr—Al(495)^[20]	Cr—C(1020)^[20]	0.485	6.22±0.26^[94]	No^[94]
Ti₂SC	Ti—S(578)	Ti—C(752)	0.769	5.0±1.0^[95]	Yes^[95]
Ti₃AlC₂	Ti1—Al(366)^[20]	Ti1—C(870)^[20]	0.417	7.2^[96]	No^[96]
Zr₃AlC₂	Zr1—Al(352)^[20]	Zr1—C(840)^[20]	0.416	-	-
Hf₃AlC₂	Hf1—Al(362)^[20]	Hf1—C(980)^[20]	0.368	-	-
Ta₃AlC₂	Ta1—Al(500)^[20]	Ta1—C(1388)^[20]	0.358	-	-
V₄AlC₃	V1—Al(450)^[20]	V1—C1(1075)^[20]	0.417	-	No^[97]
Nb₄AlC₃	Nb1—Al(436)^[20]	Nb1—C1(1031)^[20]	0.422	7.1±0.3^[98]	No^[98]
Ta₄AlC₃	Ta1—Al(500)^[20]	Ta1—C1(1220)^[20]	0.471	7.7±0.5^[99]	No^[99]
Ti₄GaC₃	Ti1—Ga(375)^[72]	Ti1—C1(952)^[72]	0.489	-	-
Zr₂Al₃C₄	Al1—C4(505)^[100]	Zr1—C2(893)^[100]	0.611	4.2±0.52^[101]	Yes
Zr₃Al₃C₅	Al1—C3(714)^[100]	Zr1—C2(893)^[100]	0.563	4.68±0.74^[102]	Yes
Zr₂Al₄C₅	C4—C5(535)^[100]	Zr1—C1(807)^[100]	0.663	4.64±0.64^[103]	Yes
Zr₃Al₄C₆	C4—C5(535)^[100]	Zr1—C1(807)^[100]	0.663	-	-
Hf₂Al₃C₄	Al2—C1(465)^[17]	Hf—C3(840)^[17]	0.554	-	-
Hf₃Al₃C₅	Al2—C1(461)^[17]	Hf1—C3(909)^[17]	0.507	-	-
Hf₂Al₄C₅	Al2—C3(498)^[17]	Hf2—C4(806)^[17]	0.618	-	-
Hf₃Al₄C₆	Al3—C2(478)^[17]	Hf3—C1(806)^[17]	0.593	-	-
MoAlB	Al—Al(526)^[19]	B—B(1205)^[19]	0.437	4.3±0.1^[104]	No^[11]
Cr₂AlB₂	Al—B(571)/Cr-Al(617)^[105]	Cr—B2(1149)^[105]	0.497/0.537	-	-
Cr₃AlB₄	Al—B1(581)/Cr1-Al(610)^[105]	Cr1—B2(1075)^[105]	0.540/0.567	-	-
Cr₄AlB₆	Al—B1(595)/Cr1-Al(599)^[105]	Cr1—B2(1099)^[105]	0.541/0.545	-	-
Cr₄AlB₄	Al—B1(574)/Cr1-Al(625)^[106]	Cr1—B2(1190)^[106]	0.482/0.525	-	-

Table 2 部分典型三元层状化合物的化学键刚度、断裂韧度和维氏压痕

Fig.8 MAX相的维氏压痕与最弱和最强化学键的相应刚度比值k_min/k_max (a)Ti₂SC^[95]；(b)Ti₂AlC^[107]

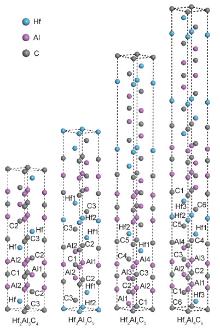

Fig.9 (HfC)_nAl₃C₂和(HfC)_nAl₄C₃的晶体结构^[17]

Table 3 典型二元硼化物材料性能^[113]

Fig.10 MAB相的晶体结构

Fig.11 MAB相的透射电镜照片 (a) Fe₂AlB₂单晶[101]方向扫描透射电镜图^[115]；(b)图(a)相应的能谱图^[115]；(c)沿[100]和[001]方向带有倾斜边界缺陷的Cr₂AlB₂晶粒透射电镜图像^[118]；(d)NaOH处理后MoAlB晶体透射电镜图^[116]; (e)Cr₃AlB₄晶粒透射电镜图像，白色箭头为堆垛层错^[117]

Fig.12 MAB相的多尺度层状结构 (a)MoAlB透射电镜图像^[11]；(b)MoAlB二次电子SEM图像^[11]；(c)MoAlB晶粒的高倍SEM照片^[11]；(d)Cr₂AlB₂晶粒分层^[123]；(e)Fe₂AlB₂晶粒分层^[123]

Fig.13 MAB相单晶形貌^[6]
(a)MoAlB；(b)Mn₂AlB₂; (c)Fe₂AlB₂; (d)WAlB; (e)Cr₂AlB₂; (f)Cr₃AlB₄; (g)Cr₄AlB₆

Table 4 部分典型MAB相材料的制备工艺

Table 5 部分典型MAB相块体的力学性能

Fig.14 MoAlB(a)^[11]和Fe₂AlB₂(b)^[12]的维氏压痕

Fig.15 采用SENB法测定Fe₂AlB₂断裂韧度的载荷-位移曲线^[12]

Table 6 Fe₂AlB₂和常见磁制冷材料磁热特性参数^{[10, 140, 149-151]}

Fig.16 反应热压合成Fe₂AlB₂的磁性能^[140] (a)磁矩随温度的变化曲线(施加磁场为5 mT), 顶部插图是2 K时的磁滞回线，底部插图是磁矩随温度曲线的一阶导数；(b)265~325 K温度区间的等温M-H曲线；(c)接近居里温度T_C的Arrott曲线族；(d)在2~5 T区间内的磁熵变

1	FAHRENHOLTZ W G , WUCHINA E J , LEE W E , et al. Ultra-high temperature ceramics: materials for extreme environment applications[M]. Hoboken, New Jersey, USA: John Wiley & Sons, Inc, 2014.
2	GREEN D J . An introduction to the mechanical properties of ceramics[M]. Cambridge: Cambridge University Press, 1998.
3	BARSOUM M W , EL-RAGHY T . Synthesis and characterization of a remarkable ceramic: Ti₃SiC₂[J]. J Am Ceram Soc, 1996, 79, 1953- 1956. doi: 10.1111/j.1151-2916.1996.tb08018.x
4	BAI Y L , SRIKANTH N , CHUA C K , et al. Density functional theory study of M_n+1AX_n phases: a review[J]. Crit Rev Solid State Mat Sci, 2019, 44, 56- 107. doi: 10.1080/10408436.2017.1370577
5	BARSOUM M W . The M_N+1AX_N phases: a new class of solids; thermodynamically stable nanolaminates[J]. Prog Solid State Chem, 2000, 28, 201- 281. doi: 10.1016/S0079-6786(00)00006-6
6	ADE M , HILLEBRECHT H . Ternary borides Cr₂AlB₂, Cr₃AlB₄, and Cr₄AlB₆: the first members of the series (CrB₂)_nCrAl with n=1, 2, 3 and a unifying concept for ternary borides as MAB-phases[J]. Inorganic Chemistry, 2015, 54, 6122- 6135. doi: 10.1021/acs.inorgchem.5b00049
7	KOTA S , SOKOL M , BARSOUM M W . A progress report on the MAB phases: atomically laminated, ternary transition metal borides[J]. International Materials Reviews, 2020, 65, 226- 255. doi: 10.1080/09506608.2019.1637090
8	JEITSCHKO W . The crystal structure of Fe₂AlB₂[J]. Acta Crystallographica, 1969, 25, 163- 165.
9	NOWOTNY H , ROGL P . Ternary metal borides[M]. Berlin, Heidelberg: Springer Berlin Heidelberg, 1977.
10	TAN X Y , CHAI P , THOMPSON C M , et al. Magnetocaloric effect in AlFe₂B₂: toward magnetic refrigerants from earth-abundant elements[J]. J Am Chem Soc, 2013, 135, 9553- 9557. doi: 10.1021/ja404107p
11	KOTA S , ZAPATA-SOLVAS E , LY A , et al. Synthesis and characterization of an alumina forming nanolaminated boride: MoAlB[J]. Sci Rep, 2016, 6, 9. doi: 10.1038/s41598-016-0002-7
12	LI N , BAI Y L , WANG S , et al. Rapid synthesis, electrical, and mechanical properties of polycrystalline Fe₂AlB₂ bulk from elemental powders[J]. J Am Ceram Soc, 2017, 100, 4407- 4411. doi: 10.1111/jace.15058
13	HU C F , SAKKA Y , GRASSO S , et al. Shell-like nanolayered Nb₄AlC₃ ceramic with high strength and toughness[J]. Scr Mater, 2011, 64, 765- 768. doi: 10.1016/j.scriptamat.2010.12.045
14	ZHANG H B , HU C F , SATO K , et al. Tailoring Ti₃AlC₂ ceramic with high anisotropic physical and mechanical properties[J]. J Eur Ceram Soc, 2015, 35, 393- 397. doi: 10.1016/j.jeurceramsoc.2014.08.026
15	XIE X , YANG R , CUI Y , et al. Fabrication of textured Ti₂AlC lamellar composites with improved mechanical properties[J]. J Mater Sci Technol, 2020, 38, 86- 92. doi: 10.1016/j.jmst.2019.05.070
16	BAI Y L , HE X D , SUN Y , et al. Chemical bonding and elastic properties of Ti₃AC₂ phases (A=Si, Ge, and Sn): a first-principle study[J]. Solid State Sci, 2010, 12, 1220- 1225. doi: 10.1016/j.solidstatesciences.2010.03.007
17	BAI Y L , DUFF A , JAYASEELAN D D , et al. DFT predictions of crystal structure, electronic structure, compressibility, and elastic properties of Hf-Al-C carbides[J]. J Am Ceram Soc, 2016, 99, 3449- 3457. doi: 10.1111/jace.14361
18	WANG C Y , HAN H , ZHAO Y Y , et al. Elastic, mechanical, electronic, and defective properties of Zr-Al-C nanolaminates from first principles[J]. J Am Ceram Soc, 2018, 101, 756- 772. doi: 10.1111/jace.15252
19	BAI Y L , QI X X , DUFF A , et al. Density functional theory insights into ternary layered boride MoAlB[J]. Acta Mater, 2017, 132, 69- 81. doi: 10.1016/j.actamat.2017.04.031
20	BAI Y L , HE X D , WANG R G , et al. An ab initio study on compressibility of Al-containing MAX-phase carbides[J]. J Appl Phys, 2013, 114, 173709. doi: 10.1063/1.4829282
21	JEITSCHKO W , NOWOTNY H , BENESOVSKY F . Die H-phasen Ti₂InC, Zr₂InC, Hf₂InC und Ti₂GeC[J]. Monatshefte Fur Chemie, 1963, 94, 1201- 1205. doi: 10.1007/BF00905711
22	JEITSCHKO W , NOWOTNY H , BENESOVSKY F . Kohlenstoffhaltige ternare verbindungen (V-Ge-C, Nb-Ga-C, TA-Ga-C, Ta-Ge C, Cr-Ga-C UND Cr-Ge-C)[J]. Monatshefte Fur Chemie, 1963, 94, 844- 850. doi: 10.1007/BF00902358
23	JEITSCHKO W , NOWOTNY H , BENESOVSKY F . Die H-Phasen: Ti₂CdC, Ti₂GaC, Ti₂GaN, Ti₂InN, Zr₂InN und Nb₂GaC[J]. Monatshefte für Chemie/Chemical Monthly, 1964, 95, 178- 179. doi: 10.1007/BF00909264
24	JEITSCHKO W , NOWOTNY H , BENESOVSKY F . Die H-Phasen Ti₂TlC, Ti₂PbC, Nb₂InC, Nb₂SnC und Ta₂GaC[J]. Monatshefte für Chemie und verwandte Teile anderer Wissenschaften, 1964, 95, 431- 435. doi: 10.1007/BF00901306
25	JEITSCHK W , NOWOTNY H . Crystal structure of Ti₃SiC₂ a new type of complex carbide[J]. Monatshefte Fur Chemie, 1967, 98, 329- 337. doi: 10.1007/BF00899949
26	JEITSCHKO W , NOWOTNY H . Die Kristallstruktur von Ti₃SiC₂-ein neuer Komplexcarbid-Typ[J]. Monatshefte für Chemie und verwandte Teile anderer Wissenschaften, 1967, 98, 329- 337. doi: 10.1007/BF00899949
27	WOLFSGRUBER H , NOWOTNY H , BENESOVSKY F . Die Kristallstruktur von Ti₃GeC₂[J]. Monatshefte für Chemie und verwandte Teile anderer Wissenschaften, 1967, 98, 2403- 2405. doi: 10.1007/BF00902438
28	JEITSCHKO W , NOWOTNY H , BENESOVSKY F . Ti₂AlN, eine stickstoffhaltige H-phase[J]. Monatshefte Fur Chemie, 1963, 94, 1198- 337. doi: 10.1007/BF00905710
29	NOWOTNY V H . Strukturchemie einiger Verbindungen der übergangsmetalle mit den elementen C, Si, Ge, Sn[J]. Prog Solid State Chem, 1971, 5, 27- 70. doi: 10.1016/0079-6786(71)90016-1
30	PIETZKA M , SCHUSTER J . Summary of constitutional data on the aluminum-carbon-titanium system[J]. Journal of Phase Equilibria, 1994, 15, 392- 400. doi: 10.1007/BF02647559
31	NICKL J J , SCHWEITZER K K , LUXENBERG P . Gasphasenabscheidung im system Ti-Si-C[J]. Journal of the Less Common Metals, 1972, 26, 335- 353. doi: 10.1016/0022-5088(72)90083-5
32	GOTO T , HIRAI T . Chemically vapor deposited Ti₃SiC₂[J]. Mater Res Bull, 1987, 22, 1195- 1201. doi: 10.1016/0025-5408(87)90128-0
33	LIS J , PAMPUCH R , PIEKARCZYK J , et al. New ceramics based on TI₃SiC₂[J]. Ceram Int, 1993, 19, 219- 222. doi: 10.1016/0272-8842(93)90052-S
34	LIS J , MIYAMOTO Y , PAMPUCH R , et al. Ti₃SiC₂-based materials prepared by HIP-SHS techniques[J]. Mater Lett, 1995, 22, 163- 168. doi: 10.1016/0167-577X(94)00246-0
35	MORGIEL J , LIS J , PAMPUCH R . Microstructure of Ti₃SiC₂-based ceramics[J]. Mater Lett, 1996, 27, 85- 89. doi: 10.1016/0167-577X(95)00259-6
36	ISEKI T , YANO T , CHUNG Y S . Wetting and properties of reaction products in active metal brazing of SiC[J]. J Ceram Soc Jpn, 1989, 97, 710- 714. doi: 10.2109/jcersj.97.710
37	BARSOUM M W , ZHEN T , KALIDINDI S R , et al. Fully reversible, dislocation-based compressive deformation of Ti₃SiC₂ to 1 GPa[J]. Nat Mater, 2003, 2, 107- 111. doi: 10.1038/nmat814
38	ZHOU A G , BASU S , BARSOUM MW . Kinking nonlinear elasticity, damping and microyielding of hexagonal close-packed metals[J]. Acta Mater, 2008, 56, 60- 67. doi: 10.1016/j.actamat.2007.08.050
39	BARSOUM M W , YOO H I , POLUSHINA I K , et al. Electrical conductivity, thermopower, and hall effect of Ti₃AlC₂, Ti₄AlN₃, and Ti₃SiC₂[J]. Phys Rev B, 2000, 62, 10194- 10198. doi: 10.1103/PhysRevB.62.10194
40	BARSOUM M W , ELRAGHY T , OGBUJI L . Oxidation of Ti₃SiC₂ in air[J]. J Electrochem Soc, 1997, 144, 2508- 2516. doi: 10.1149/1.1837846
41	BARSOUM M W , BRODKIN D , EL-RAGHY T . Layered machinable ceramics for high temperature applications[J]. Scr Mater, 1997, 36, 535- 541. doi: 10.1016/S1359-6462(96)00418-6
42	BARSOUM M W , YAROSCHUK G , TYAGI S . Fabrication and characterization of M₂SnC (M=Ti, Zr, Hf and Nb)[J]. Scr Mater, 1997, 37, 1583- 1591. doi: 10.1016/S1359-6462(97)00288-1
43	BARSOUM M W , ALI M , EL-RAGHY T . Processing and characterization of Ti₂AlC, Ti₂AlN, and Ti₂AlC_0.5N_0.5[J]. Metall Mater Trans A, 2000, 31, 1857- 1865. doi: 10.1007/s11661-006-0243-3
44	EL-RAGHY T , CHAKRABORTY S , BARSOUM M W . Synthesis and characterization of Hf₂PbC, Zr₂PbC and M₂SnC (M=Ti, Hf, Nb or Zr)[J]. J Eur Ceram Soc, 2000, 20, 2619- 2625. doi: 10.1016/S0955-2219(00)00127-8
45	WANG X H , ZHOU Y C . Layered machinable and electrically conductive Ti₂AlC and Ti₃AlC₂ ceramics: a review[J]. J Mater Sci Technol, 2010, 26, 385- 416. doi: 10.1016/S1005-0302(10)60064-3
46	XU L D , ZHU D G , GRASSO S , et al. Effect of texture microstructure on tribological properties of tailored Ti₃AlC₂ ceramic[J]. Journal of Advanced Ceramics, 2017, 6, 120- 128. doi: 10.1007/s40145-017-0224-6
47	CAI L P , HUANG Z Y , HU W Q , et al. Fabrication, mechanical properties, and tribological behaviors of Ti₂AlC and Ti₂AlSn_0.2C solid solutions[J]. Journal of Advanced Ceramics, 2017, 6, 90- 99. doi: 10.1007/s40145-017-0221-9
48	BARSOUM M W , SCHUSTER J C . Comment on "New ternary nitride in the Ti-Al-N system"[J]. J Am Ceram Soc, 1998, 81, 785- 786.
49	BARSOUM M W , FARBER L , LEVIN I , et al. High-resolution transmission electron microscopy of Ti₄AlN₃, or Ti₃Al₂ N₂ revisited[J]. J Am Ceram Soc, 1999, 82, 2545- 2547. doi: 10.1111/j.1151-2916.1999.tb02117.x
50	HOLM B , AHUJA R , LI S , et al. Theory of the ternary layered system Ti-Al-N[J]. J Appl Phys, 2002, 91, 9874- 9877. doi: 10.1063/1.1476076
51	PALMQUIST J P , LI S , PERSSON P O A , et al. M_n+1AX_n phases in the Ti-Si-C system studied by thin-film synthesis and ab initio calculations[J]. Phys Rev B, 2004, 70, 165401. doi: 10.1103/PhysRevB.70.165401
52	HOGBERG H , EKLUND P , EMMERLICH J , et al. Epitaxial Ti₂GeC, Ti₃GeC₂, and Ti₄GeC₃ MAX-phase thin films grown by magnetron sputtering[J]. J Mater Res, 2005, 20, 779- 782. doi: 10.1557/JMR.2005.0105
53	LIN Z J , ZHUO M J , ZHOU Y C , et al. Structural characterization of a new layered-ternary Ta₄AlC₃ ceramic[J]. J Mater Res, 2006, 21, 2587- 2592. doi: 10.1557/jmr.2006.0310
54	MANOUN B , SAXENA S K , EL-RAGHY T , et al. High-pressure X-ray diffraction study of Ta₄AlC₃[J]. Appl Phys Lett, 2006, 88, 201902. doi: 10.1063/1.2202387
55	EKLUND P , PALMQUIST J P , HOWING J , et al. Ta₄AlC₃: phase determination, polymorphism and deformation[J]. Acta Mater, 2007, 55, 4723- 4729. doi: 10.1016/j.actamat.2007.04.040
56	ETZKORN J , ADE M , HILLEBRECHT H . Ta₃AlC₂ and Ta₄AlC₃-single-crystal investigations of two new ternary carbides of tantalum synthesized by the molten metal technique[J]. Inorg Chem, 2007, 46, 1410- 1418. doi: 10.1021/ic062231y
57	ETZKORN J , ADE M , HILLEBRECHT H . V₂AlC, V₄AlC_3-x (x approximate to 0.31), and V₁₂Al₃C₈: synthesis, crystal growth, structure, and superstructure[J]. Inorg Chem, 2007, 46, 7646- 7653. doi: 10.1021/ic700382y
58	HU C F , LI F Z , ZHANG J , et al. Nb₄AlC₃: a new compound belonging to the MAX phases[J]. Scr Mater, 2007, 57, 893- 896. doi: 10.1016/j.scriptamat.2007.07.038
59	ZHOU Y C , MENG F L , ZHANG J . New MAX-phase compounds in the V-Cr-Al-C system[J]. J Am Ceram Soc, 2008, 91, 1357- 1360. doi: 10.1111/j.1551-2916.2008.02279.x
60	ETZKORN J , ADE M , KOTZOTT D , et al. Ti₂GaC, Ti₄GaC₃ and Cr₂GaC-synthesis, crystal growth and structure analysis of Ga-containing MAX-phases M_n+1GaC_n with M=Ti, Cr and n=1, 3[J]. J Solid State Chem, 2009, 182, 995- 1002. doi: 10.1016/j.jssc.2009.01.003
61	SEGALL M D , LINDAN P J D , PROBERT M J , et al. First-principles simulation: ideas, illustrations and the CASTEP code[J]. J Phys-Condes Matter, 2002, 14, 2717- 2744. doi: 10.1088/0953-8984/14/11/301
62	MEDVEDEVA N I , NOVIKOV D L , IVANOVSKY A L , et al. Electronic properties of Ti₃SiC₂-based solid solutions[J]. Phys Rev B, 1998, 58, 16042- 16050. doi: 10.1103/PhysRevB.58.16042
63	WANG J Y , ZHOU Y C . Ab initio investigation of the electronic structure and bonding properties of the layered ternary compound Ti₃SiC₂ at high pressure[J]. J Phys-Condes Matter, 2003, 15, 1983- 1991. doi: 10.1088/0953-8984/15/12/315
64	WANG J Y , ZHOU Y C . Dependence of elastic stiffness on electronic band structure of nanolaminate M₂AlC (M=Ti, V, Nb, and Cr) ceramics[J]. Phys Rev B, 2004, 69, 214111. doi: 10.1103/PhysRevB.69.214111
65	SUN Z M , LI S , AHUJA R , et al. Calculated elastic properties of M₂AlC (M=Ti, V, Cr, Nb and Ta)[J]. Solid State Commun, 2004, 129, 589- 592. doi: 10.1016/j.ssc.2003.12.008
66	WANG J Y , ZHOU Y C . Polymorphism of Ti₃SiC₂ ceramic: first-principles investigations[J]. Phys Rev B, 2004, 69, 144108. doi: 10.1103/PhysRevB.69.144108
67	LIAO T , WANG J Y , ZHOU Y C . Deformation modes and ideal strengths of ternary layered Ti₂AlC and Ti₂AlN from first-principles calculations[J]. Phys Rev B, 2006, 73, 214109. doi: 10.1103/PhysRevB.73.214109
68	MUSIC D , SUN Z M , VOEVODIN A A , et al. Electronic structure and shearing in nanolaminated ternary carbides[J]. Solid State Commun, 2006, 139, 139- 143. doi: 10.1016/j.ssc.2006.06.007
69	LIAO T , WANG J Y , ZHOU Y C . Superior mechanical properties of Nb₂AsC to those of other layered ternary carbides: a first-principles study[J]. J Phys-Condes Matter, 2006, 18, L527- L533. doi: 10.1088/0953-8984/18/41/L04
70	FARBER L , LEVIN I , BARSOUM M W , et al. High-resolution transmission electron microscopy of some Ti_n+1AX_n compounds (n=1, 2; A=Al or Si; X=C or N)[J]. J Appl Phys, 1999, 86, 2540- 2543. doi: 10.1063/1.371089
71	RAWN C J , BARSOUM M W , EL-RAGHY T , et al. Structure of Ti₄AlN₃-a layered M_n+1AX_n nitride[J]. Mater Res Bull, 2000, 35, 1785- 1796. doi: 10.1016/S0025-5408(00)00383-4
72	HE X D , BAI Y L , ZHU C C , et al. Polymorphism of newly discovered Ti₄GaC₃: a first-principles study[J]. Acta Mater, 2011, 59, 5523- 5533. doi: 10.1016/j.actamat.2011.05.025
73	BAI Y L , HE X D , WANG R G , et al. Effect of transition metal (M) and M-C slabs on equilibrium properties of Al-containing MAX carbides: An ab initio study[J]. Comput Mater Sci, 2014, 91, 28- 37. doi: 10.1016/j.commatsci.2014.04.033
74	EKLUND P , BECKERS M , JANSSON U , et al. The M_n+1AX_n phases: materials science and thin-film processing[J]. Thin Solid Films, 2010, 518, 1851- 1878. doi: 10.1016/j.tsf.2009.07.184
75	YU R , ZHAN Q , HE L L , et al. Polymorphism of Ti₃SiC₂[J]. J Mater Res, 2002, 17, 948- 950. doi: 10.1557/JMR.2002.0141
76	YU R , ZHANG X F , HE L L , et al. Topology of charge density and elastic anisotropy of Ti₃SiC₂ polymorphs[J]. J Mater Res, 2005, 20, 1180- 1185. doi: 10.1557/JMR.2005.0145
77	WANG Z W , ZHA C S , BARSOUM M W . Compressibility and pressure-induced phase transformation of Ti₃GeC₂[J]. Appl Phys Lett, 2004, 85, 3453- 3455. doi: 10.1063/1.1808491
78	RAWN C J , PAYZANT E A , HUBBARD C R , et al. Structure of Ti₃SiC₂[J]. Materials Science Forum, 2000, 321/324, 889- 892. doi: 10.4028/www.scientific.net/MSF.321-324.889
79	ONODERA A , HIRANO H , YUASA T , et al. Static compression of Ti₃SiC₂ to 61 GPa[J]. Appl Phys Lett, 1999, 74, 3782- 3784. doi: 10.1063/1.124178
80	JORDAN J L , SEKINE T , KOBAYASHI T , et al. High pressure behavior of titanium-silicon carbide (Ti₃SiC₂)[J]. J Appl Phys, 2003, 93, 9639- 9643. doi: 10.1063/1.1573345
81	BAI Y L , HE X D , WANG R G , et al. High temperature physical and mechanical properties of large-scale Ti₂AlC bulk synthesized by self-propagating high temperature combustion synthesis with pseudo hot isostatic pressing[J]. J Eur Ceram Soc, 2013, 33, 2435- 2445. doi: 10.1016/j.jeurceramsoc.2013.04.014
82	FARBER L , BARSOUM M W , ZAVALIANGOS A , et al. Dislocations and stacking faults in Ti₃SiC₂[J]. J Am Ceram Soc, 1998, 81, 1677- 1681.
83	BARSOUM M W. Mechanical properties: ambient temperature[C]//MAX Phases (Properties of Machianable Ternary Carbides and Nitrides). Weinheim, Germany: John Wiley & Sons, 2013: 307-361.
84	周玉. 陶瓷材料学[M]. 北京: 科学出版社, 2004.
84	ZHOU Y . Ceramic materials science[M]. Beijing: Science Press, 2004.
85	GILBERT C J , BLOYER D R , BARSOUM M W , et al. Fatigue-crack growth and fracture properties of coarse and fine-grained Ti₃SiC₂[J]. Scr Mater, 2000, 42, 761- 767. doi: 10.1016/S1359-6462(99)00427-3
86	LI S B , YU W B , ZHAI H X , et al. Mechanical properties of low temperature synthesized dense and fine-grained Cr₂AlC ceramics[J]. J Eur Ceram Soc, 2011, 31, 217- 224. doi: 10.1016/j.jeurceramsoc.2010.08.014
87	CHEN D , SHIRATO K , BARSOUM M W , et al. Cyclic fatigue-crack growth and fracture properties in Ti₃SiC₂ ceramics at elevated temperatures[J]. J Am Ceram Soc, 2001, 84, 2914- 2920. doi: 10.1111/j.1151-2916.2001.tb01115.x
88	GANGULY A , ZHEN T , BARSOUM M W . Synthesis and mechanical properties of Ti₃GeC₂ and Ti₃(Si_xGe_1-x) C₂(x=0.5, 0.75) solid solutions[J]. J Alloy Compd, 2004, 376, 287- 295. doi: 10.1016/j.jallcom.2004.01.011
89	BARSOUM M , RADOVIC M . Mechanical properties of the MAX phase[J]. Annual Review of Materials Research, 2011, 41, 195- 227. doi: 10.1146/annurev-matsci-062910-100448
90	LAPAUW T , LAMBRINOU K , CABIOC'H T , et al. Synthesis of the new MAX phase Zr₂AlC[J]. Journal of the European Ceramic Society, 2016, 36, 1847- 1853. doi: 10.1016/j.jeurceramsoc.2016.02.044
91	HU C F , HE L F , LIU M Y , et al. In situ reaction synthesis and mechanical properties of V₂AlC[J]. J Am Ceram Soc, 2008, 91, 4029- 4035. doi: 10.1111/j.1551-2916.2008.02774.x
92	ZHANG W , TRAVITZKY N , HU C F , et al. Reactive hot pressing and properties of Nb₂AlC[J]. J Am Ceram Soc, 2009, 92, 2396- 2399. doi: 10.1111/j.1551-2916.2009.03187.x
93	HU C F , HE L F , ZHANG J , et al. Microstructure and properties of bulk Ta₂AlC ceramic synthesized by an in situ reaction/hot pressing method[J]. J Eur Ceram Soc, 2008, 28, 1679- 1685. doi: 10.1016/j.jeurceramsoc.2007.10.006
94	YING G B , HE X D , LI M W , et al. Synthesis and mechanical properties of high-purity Cr₂AlC ceramic[J]. Mater Sci Eng A, 2011, 528, 2635- 2640. doi: 10.1016/j.msea.2010.12.039
95	AMINI S , BARSOUM M W , EL-RAGHYY T . Synthesis and mechanical properties of fully dense Ti₂SC[J]. J Am Ceram Soc, 2007, 90, 3953- 3958.
96	WANG X H , ZHOU Y C . Microstructure and properties of Ti₃AlC₂ prepared by the solid-liquid reaction synthesis and simultaneous in-situ hot pressing process[J]. Acta Mater, 2002, 50, 3141- 3149.
97	HOSSEIN-ZADEH M , MIRZAEE O , MOHAMMADIAN-SEMNANI H . An investigation into the microstructure and mechanical properties of V₄AlC₃MAX phase prepared by spark plasma sintering[J]. Ceramics International, 2019, 45, 7446- 7457. doi: 10.1016/j.ceramint.2019.01.036
98	HU C F , LI F Z , HE L F , et al. In situ reaction synthesis, electrical and thermal, and mechanical properties of Nb₄AlC₃[J]. J Am Ceram Soc, 2008, 91, 2258- 2263. doi: 10.1111/j.1551-2916.2008.02424.x
99	HU C F , LIN Z J , HE L F , et al. Physical and mechanical properties of bulk Ta₄AlC₃ ceramic prepared by an in situ reaction synthesis/hot-pressing method[J]. J Am Ceram Soc, 2007, 90, 2542- 2548. doi: 10.1111/j.1551-2916.2007.01804.x
100	WANG C , HAN H , ZHAO Y , et al. Elastic, mechanical, electronic, and defective properties of Zr-Al-C nanolaminates from first principles[J]. Journal of the American Ceramic Society, 2018, 101, 756- 772. doi: 10.1111/jace.15252
101	HE L F , LIN Z J , WANG J Y , et al. Synthesis and characterization of bulk Zr₂Al₃C₄ ceramic[J]. J Am Ceram Soc, 2007, 90, 3687- 3689. doi: 10.1111/j.1551-2916.2007.01964.x
102	HE L F , ZHOU Y C , BAO Y W , et al. Synthesis, physical, and mechanical properties of bulk Zr₃Al₃C₅ceramic[J]. J Am Ceram Soc, 2007, 90, 1164- 1170. doi: 10.1111/j.1551-2916.2007.01518.x
103	ZHANG R B , CHEN G Q , HAN W B . Synthesis, mechanical and physical properties of bulk Zr₂Al₄C₅ ceramic[J]. Mater Chem Phys, 2010, 119, 261- 265. doi: 10.1016/j.matchemphys.2009.08.051
104	XU L , SHI O , LIU C , et al. Synthesis, microstructure and properties of MoAlB ceramics[J]. Ceramics International, 2018, 44, 13396- 13401. doi: 10.1016/j.ceramint.2018.04.177
105	BAI Y L , QI X X , HE X D , et al. Phase stability and weak metallic bonding within ternary-layered borides CrAlB, Cr₂AlB₂, Cr₃AlB₄, and Cr₄AlB₆[J]. J Am Ceram Soc, 2019, 102, 3715- 3727. doi: 10.1111/jace.16206
106	齐欣欣, 宋广平, 尹维龙, 等. 新型三元层状硼化物Cr₄AlB₄的物相稳定性和力学行为分析[J]. 无机材料学报, 2020, 35 (1): 53- 60.
106	QI X X , SONG G P , YIN W L , et al. Analysis on stability and mechanical property of newly-discovered ternary layered boride Cr₄AlB₄[J]. Journal of Inorganic Materials, 2020, 35 (1): 53- 60.
107	BAI Y L , HE X D , LI Y B , et al. Rapid synthesis of bulk Ti₂AlC by self-propagating high temperature combustion synthesis with a pseudo-hot isostatic pressing process[J]. J Mater Res, 2009, 24, 2528- 2535. doi: 10.1557/jmr.2009.0327
108	成来飞, 张立同, 梅辉. 陶瓷基复合材料强韧化与应用基础[M]. 北京: 化学工业出版社, 2019.
108	CHENG L F , ZHANG L T , MEI H . Strengthening and toughening of ceramic matrix composites and application basis[M]. Beijing: Chemical Industry Press, 2019.
109	ZHOU Y C , HE L F , LIN Z J , et al. Synthesis and structure-property relationships of a new family of layered carbides in Zr-Al(Si)-C and Hf-Al(Si)-C systems[J]. J Eur Ceram Soc, 2013, 33, 2831- 2865. doi: 10.1016/j.jeurceramsoc.2013.05.020
110	尤姝黎, 于志强, 杨振国. 硼化物陶瓷及其复合材料的研究进展[J]. 理化检验(物理分册), 2007, 43 (1): 27- 31.
110	YOU S L , YU Z Q , YANG Z G . Research progress of boride ceramics and their composite materials[J]. Physical Testing and Chemical Analysis Part B, 2007, 43 (1): 27- 31.
111	李福民, 唐国章. 钢铁材料表面硼化物覆层技术初探[J]. 河北理工学院学报, 2000, 增刊1, 133- 137.
111	LI F M , TANG G Z . Discussion on boride coating on the steel surface[J]. Journal of Hebei Institute of Technology, 2000, Suppl 1, 133- 137.
112	吕春燕, 顾华志, 汪厚植, 等. ZrB₂系陶瓷材料的研究进展[J]. 材料导报, 2003, 17, 246- 249. doi: 10.3321/j.issn:1005-023X.2003.z1.075
112	LU C Y , GU H Z , WANG H Z , et al. Progress in research on ZrB₂-containing ceramics[J]. Materials Reports, 2003, 17, 246- 249. doi: 10.3321/j.issn:1005-023X.2003.z1.075
113	邓世钧. 高性能陶瓷涂层技术[J]. 表面工程与再制造, 2003, (6): 4- 5.
114	向军辉, 肖汉宁. TiB₂材料的研究现状及其应用[J]. 陶瓷工程, 1996, (4): 40- 44, 39.
114	XIANG J H , XIAO H N . Research status and application of TiB₂ material[J]. Ceramic Engineering, 1996, (4): 40- 44, 39.
115	LAMICHHANE T N , XIANG L , LIN Q , et al. Magnetic properties of single crystalline itinerant ferromagnet Fe₂AlB₂[J]. Physical Review Materials, 2018, 2, 084408. doi: 10.1103/PhysRevMaterials.2.084408
116	KIM K , CHEN C , NISHIO-HAMANE D , et al. Topochemical synthesis of phase-pure Mo₂AlB₂ through staging mechanism[J]. Chemical Communications, 2019, 55, 9295- 9298. doi: 10.1039/C9CC03855H
117	KOTA S , WANG W Z , LU J , et al. Magnetic properties of Cr₂AlB₂, Cr₃AlB₄, and CrB powders[J]. J Alloy Compd, 2018, 767, 474- 482. doi: 10.1016/j.jallcom.2018.07.031
118	LU J , KOTA S , BARSOUM M W , et al. Atomic structure and lattice defects in nanolaminated ternary transition metal borides[J]. Materials Research Letters, 2017, 5 (4): 235- 241. doi: 10.1080/21663831.2016.1245682
119	JEITSCHKO W . Die Kristallstruktur von MoAlB[J]. Monatshefte Für Chemie Und Verwandte Teile Anderer Wissenschaften, 1966, 97, 1472- 1476. doi: 10.1007/BF00902599
120	CHABAN N F , KUZ'MA Y . Ternary systems Cr-Al-B and Mn-Al-B[J]. Inorg Mater, 1973, 9, 1696- 1698.
121	ZHANG H M , DAI F Z , XIANG H M , et al. Crystal structure of Cr₄AlB₄: a new MAB phase compound discovered in Cr-Al-B system[J]. J Mater Sci Technol, 2019, 35, 530- 534.
122	JUNG W , PETRY K . Ternäre boride des ruthemums mit aluminium und Zink[J]. Zeitschrift Fur kristallographie, 1988, 182 (1/4): 153- 154.
123	KADAS K , IUSAN D , HELLSVIK J , et al. AlM₂B₂ (M=Cr, Mn, Fe, Co, Ni): a group of nanolaminated materials[J]. Journal of Physics-Condensed Matter, 2017, 29 (15): 11.
124	HALLA F , THURY W . über boride von molybdän und wolfram[J]. Zeitschrift für anorganische und allgemeine Chemie, 1942, 249, 229- 237. doi: 10.1002/zaac.19422490301
125	ELMASSALAMI M , OLIVEIRA D D , TAKEYA H . On the ferromagnetism of AlFe₂B₂[J]. J Magn Magn Mater, 2011, 323, 2133- 2136. doi: 10.1016/j.jmmm.2011.03.008
126	DU Q , CHEN G , YANG W , et al. Magnetic properties of AlFe₂B₂ and CeMn₂Si₂ synthesized by melt spinning of stoichiometric compositions[J]. Japanese Journal of Applied Physics, 2015, 54, 053003. doi: 10.7567/JJAP.54.053003
127	XU L D , SHI O L , LIU C Y , et al. Synthesis, microstructure and properties of MoAlB ceramics[J]. Ceram Int, 2018, 44, 13396- 13401. doi: 10.1016/j.ceramint.2018.04.177
128	LU X , LI S , ZHANG W , et al. Thermal shock behavior of a nanolaminated ternary boride: MoAlB[J]. Ceram Int, 2019, 45 (7): 9386- 9389. doi: 10.1016/j.ceramint.2018.08.071
129	WANG S , XU Y J , YU Z G , et al. Synthesis, microstructure and mechanical properties of a MoAlB ceramic prepared by spark plasma sintering from elemental powders[J]. Ceram Int, 2019, 45, 23515- 23521. doi: 10.1016/j.ceramint.2019.08.060
130	BEI G P , van der ZWAAG S , KOTA S , et al. Ultra-high temperature ablation behavior of MoAlB ceramics under an oxyacetylene flame[J]. J Eur Ceram Soc, 2019, 39, 2010- 2017. doi: 10.1016/j.jeurceramsoc.2019.01.016
131	LIU J , LI S B , YAO B X , et al. Rapid synthesis and characterization of a nanolaminated Fe₂AlB₂ compound[J]. J Alloy Compd, 2018, 766, 488- 497. doi: 10.1016/j.jallcom.2018.06.352
132	KOTA S , CHEN Y X , WANG J Y , et al. Synthesis and characterization of the atomic laminate Mn₂AlB₂[J]. J Eur Ceram Soc, 2018, 38, 5333- 5340. doi: 10.1016/j.jeurceramsoc.2018.07.051
133	SAMMIS C G , ASHBY M F . The failure of brittle porous solids under compressive stress states[J]. Acta Metallurgica, 1986, 34, 511- 526. doi: 10.1016/0001-6160(86)90087-8
134	LIU J , LI S B , YAO B X , et al. Thermal stability and thermal shock resistance of Fe₂AlB₂[J]. Ceram Int, 2018, 44, 16035- 16039. doi: 10.1016/j.ceramint.2018.06.042
135	BAI Y L , SUN D D , LI N , et al. High-temperature mechanical properties and thermal shock behavior of ternary-layered MAB phases Fe₂AlB₂[J]. Int J Refract Met Hard Mat, 2019, 80, 151- 160. doi: 10.1016/j.ijrmhm.2019.01.010
136	CHEN Y , KOTA S , BARSOUM M W , et al. Compressive deformation of MoAlB up to 1100℃[J]. J Alloy Compd, 2019, 774, 1216- 1222. doi: 10.1016/j.jallcom.2018.09.124
137	曹学强. 热障涂层新材料和新结构[M]. 北京: 科学出版社, 2016.
137	CAO X Q . Nevo materials and new structures of thermal barrier coatings[M]. Beijng: Science Press, 2016.
138	RADOVIC M , BARSOUM M W . MAX phases: bridging the gap between metals and ceramics[J]. American Ceramic Society Bulletin, 2013, 92, 20- 27.
139	WARBURG E . Magnetische untersuchungen[J]. Annalen der Physik, 1881, 249, 141- 164. doi: 10.1002/andp.18812490510
140	BAI Y L , QI X X , HE X D , et al. Experimental and DFT insights into elastic, magnetic, electrical, and thermodynamic properties of MAB-phase Fe₂AlB₂[J]. J Am Ceram Soc, 2020, 103, 5837- 5851. doi: 10.1111/jace.17205
141	GUTFLEISCH O , WILLARD M A , BRUCK E , et al. Magnetic materials and devices for the 21st century: stronger, lighter, and more energy efficient[J]. Adv Mater, 2011, 23, 821- 842. doi: 10.1002/adma.201002180
142	CHIEN C L , UNRUH K M . Comparison of amorphous and crystalline FeB[J]. Phys Rev B, 1984, 29, 207- 211.
143	MIRYASOV N Z , PARSANOV A P . Ferromagnetism of Mn-B alloys[J]. Izvest akad nauk S s s r ser fiz, 1959, 23
144	DU Q H , CHEN G F , YANG W Y , et al. Magnetic properties of AlFe₂B₂ and CeMn₂Si₂ synthesized by melt spinning of stoichiometric compositions[J]. Japanese Journal of Applied Physics, 2015, 54, 5.
145	BARUA R , LEJEUNE B T , JENSEN B A , et al. Enhanced room-temperature magnetocaloric effect and tunable magnetic response in Ga-and Ge-substituted AlFe₂B₂[J]. J Alloy Compd, 2019, 777, 1030- 1038. doi: 10.1016/j.jallcom.2018.10.206
146	HIRT S , YUAN F , MOZHARIVSKYJ Y , et al. AlFe_2-xCo_xB₂ (x=0-0.30): T_C tuning through cosubstitution for a promising magnetocaloric material realized by spark plasma sintering[J]. Inorg Chem, 2016, 55, 9677- 9684. doi: 10.1021/acs.inorgchem.6b01467
147	LEVIN E M , JENSEN B A , BARUA R , et al. Effects of Al content and annealing on the phases formation, lattice parameters, and magnetization of Al_xFe₂B₂ (x=1.0, 1.1, 1.2) alloys[J]. Physical Review Materials, 2018, 2 (3): 034403. doi: 10.1103/PhysRevMaterials.2.034403
148	ZHANG X , LEJEUNE B T , BARUA R , et al. Estimating the in-operando stabilities of AlFe₂B₂-based compounds for magnetic refrigeration[J]. Journal of Alloys and Compounds, 2020, 823, 153693. doi: 10.1016/j.jallcom.2020.153693
149	PECHARSKY V K , GSCHNEIDNER K A . Giant magnetocaloric effect in Gd₅(Si₂Ge₂)[J]. Phys Rev Lett, 1997, 78, 4494- 4497. doi: 10.1103/PhysRevLett.78.4494
150	TEGUS O , BRUCK E , BUSCHOW K H J , et al. Transition-metal-based magnetic refrigerants for room-temperature applications[J]. Nature, 2002, 415, 150- 152. doi: 10.1038/415150a
151	WANG J L , CAMPBELL S J , ZENG R , et al. Re-entrant ferromagnet PrMn₂Ge_0.8Si_1.2: magnetocaloric effect[J]. J Appl Phys, 2009, 105, 3.
152	SOKOL M , NATU V , KOTA S , et al. On the chemical diversity of the MAX phases[J]. Trends Chem, 2019, 1, 210- 223. doi: 10.1016/j.trechm.2019.02.016
153	BENAMOR A , KOTA S , CHIKER N , et al. Friction and wear properties of MoAlB against Al₂O₃ and 100Cr6 steel counterparts[J]. J Eur Ceram Soc, 2019, 39, 868- 877. doi: 10.1016/j.jeurceramsoc.2018.10.026

[1]	胡洁, 董中奇, 沈英明, 王杨, 杨俊雅. Mo元素对LaFe_11.5Si_1.5磁制冷材料耐腐蚀性能及磁性能的影响[J]. 材料工程, 2020, 48(8): 119-125.
[2]	董慧民, 闫丽, 安学锋, 钱黄海, 苏正涛, 益小苏. ES^TM-fabric/3266复合材料低速冲击响应及冲击后压缩行为研究[J]. 材料工程, 2020, 48(1): 41-47.
[3]	马宏毅, 安学锋, 益小苏. “离位”增韧复合材料准静态压入损伤特性研究[J]. 材料工程, 2012, 0(9): 88-91,98.
[4]	房卫萍, 陈沦, 史耀武, 虞文军, 毛智勇, 唐振云. 损伤容限钛合金的研究进展及应用现状[J]. 材料工程, 2010, 0(9): 95-98.
[5]	张纪奎, 程小全, 郦正能. 基于损伤容限设计的机体金属材料力学性能综合表征与评价[J]. 材料工程, 2010, 0(7): 49-53.
[6]	袁鸿, 余槐, 王金雪, 王新南, 朱知寿, 李晓红. TC4-DT钛合金电子束焊接接头的损伤容限性能[J]. 材料工程, 2007, 0(8): 17-19.
[7]	王瑞刚, 潘伟, 蒋蒙宁, 罗永明, 陈健, 孙瑞峰. 层状结构陶瓷材料结构和应用[J]. 材料工程, 2003, 0(1): 45-48.

Viewed

Full text

Abstract

Cited

Shared

Discussed
